Khoom Description
Daim ntawv thov:

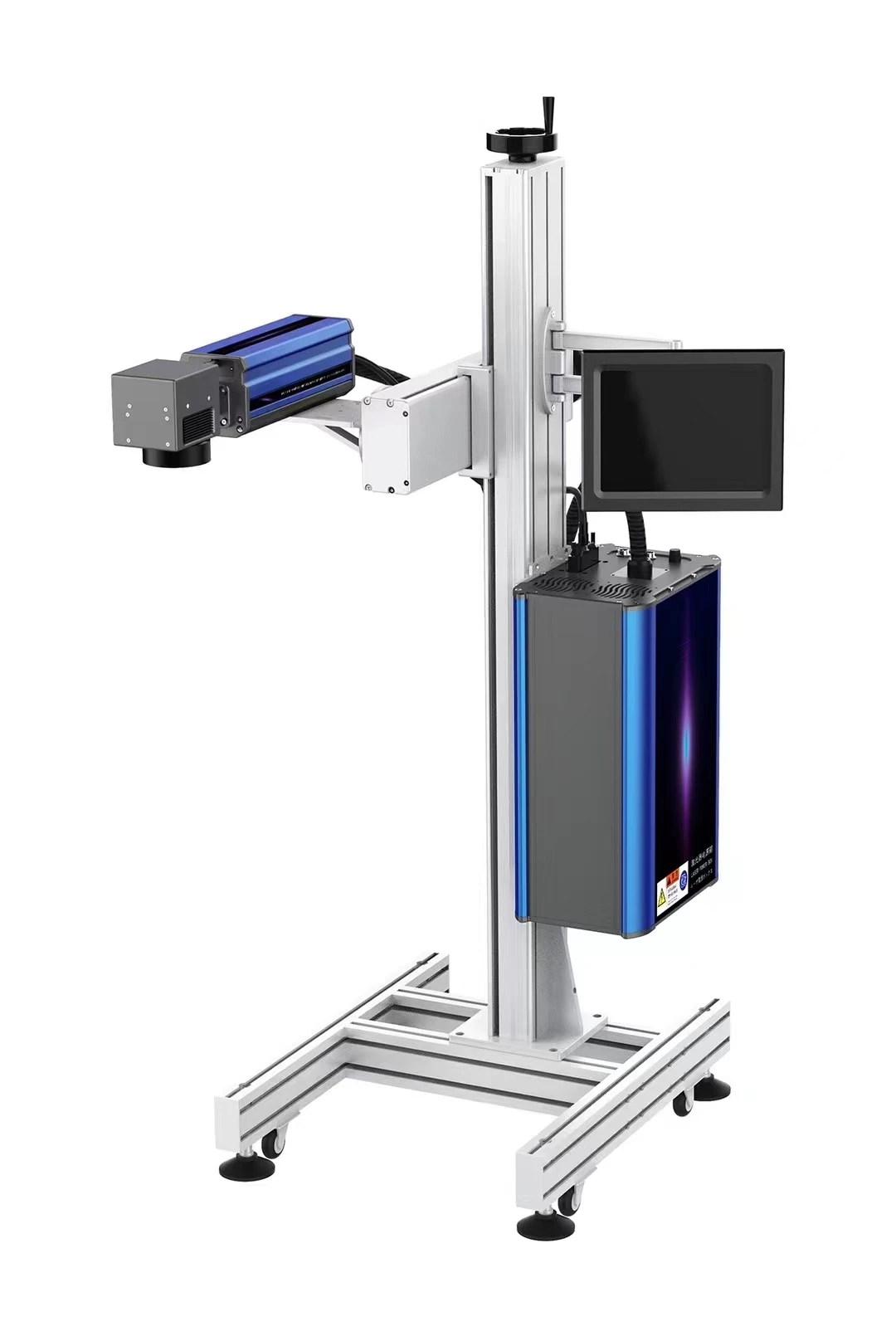

Fiber laser npav tshuab online yog tsim rau kev kos npe online ntawm cov ntaub ntawv hlau feem ntau thiab qee cov ntaub ntawv tsis yog xim hlau nrog cov khoom siv hlau, PVC, HDPE, txhuas zaj duab xis, roj hmab thiab yas.
Nws yog dav siv nyob rau hauv kev tsim cov khoom siv tu tus kheej, ntim khoom noj thiab dej haus, cawv, khoom noj siv mis, khoom siv hluav taws xob, cov khoom siv tshuaj lom neeg thiab lwm yam kev lag luam, thiab hnub tas sij hawm, batch tooj, hloov, chaw tsim khoom npe thiab logo thiab lwm yam duab thiab ntawv cim.
It kuj tseem siv nyob rau hauv hnub tsim khoom, kev tiv thaiv cuav, kev kho mob thiab ntim khoom lag luam.Cov qauv no txhawb kev ua haujlwm xws li tsis siv neeg encoding, serial tooj, batch naj npawb, hnub tim, barcode, ob-dimensional code, tsis siv neeg tus lej hla, thiab lwm yam, kom tau raws li cov kev xav tau ntawm cov neeg siv khoom hauv kev lag luam sib txawv.

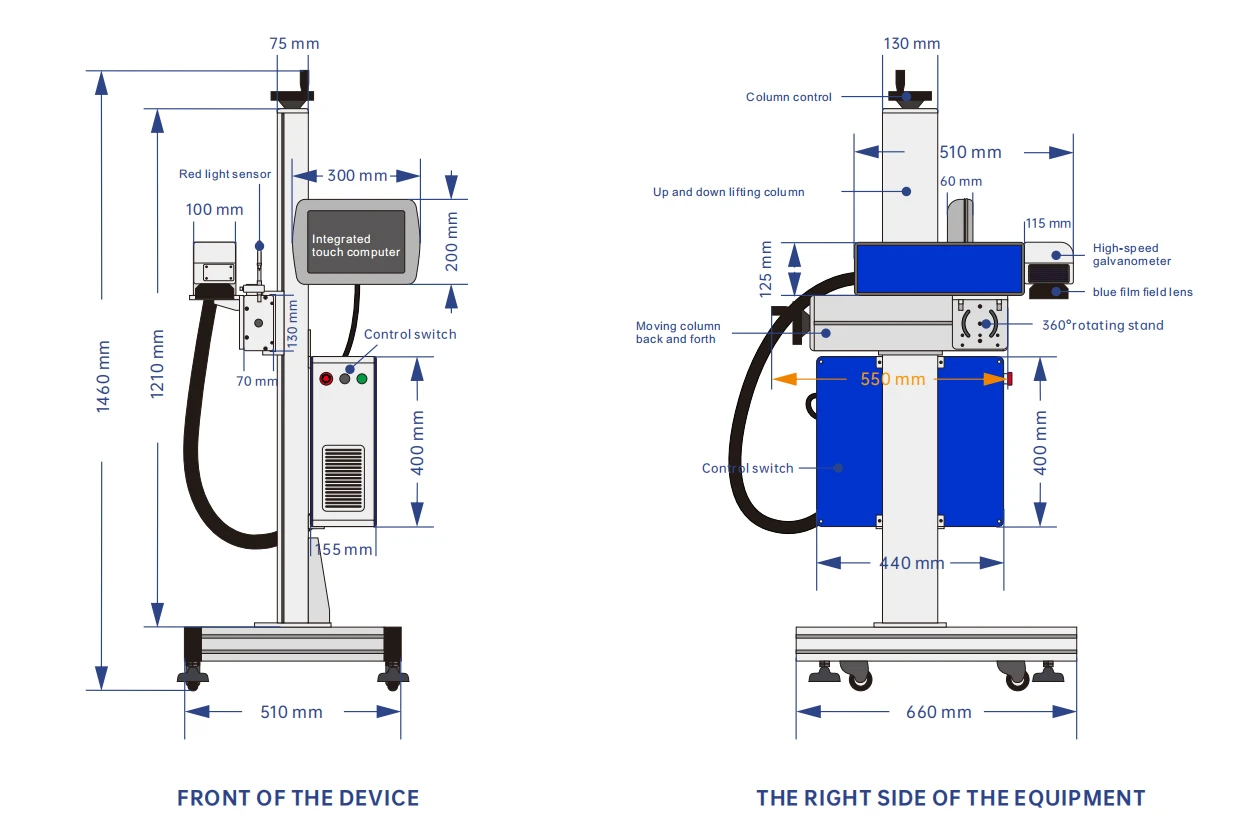

Khoom loj
Main parameter
|
Laser parameter |
Laser qhov chaw qauv |
MFP-20G/20X |
|
Tso zis zog |
18.5W |
|
|
Beam zoo M2 |
Tsawg dua los yog sib npaug rau 1.4 |
|
|
Pulse repetition zaus |
27-60 KHZ |
|
|
Laser wavelength |
1064±5 |
|
|
Tso zis zog stability |
＜3% |
|
|
Ua hauj lwm lub neej |
Txog 100000 teev ua haujlwm (tsis yog lub neej) |
|
|
Optical zog |
Kos ntau yam |
100-300 hli |
|
Engraving qhov tob |
Tsawg dua lossis sib npaug li 1 hli (nyob ntawm lub zog thiab lub sijhawm) |
|
|
Engraving ceev |
Tsawg dua lossis sib npaug li 10000mm / s |
|
|
Rov ua qhov tseeb |
±0.002 |
|
|
Yam tsawg kawg ntawm kab kab dav |
0.1 hli |
|
|
Yam tsawg kawg nkaus qhov siab |
0.15 hli |
