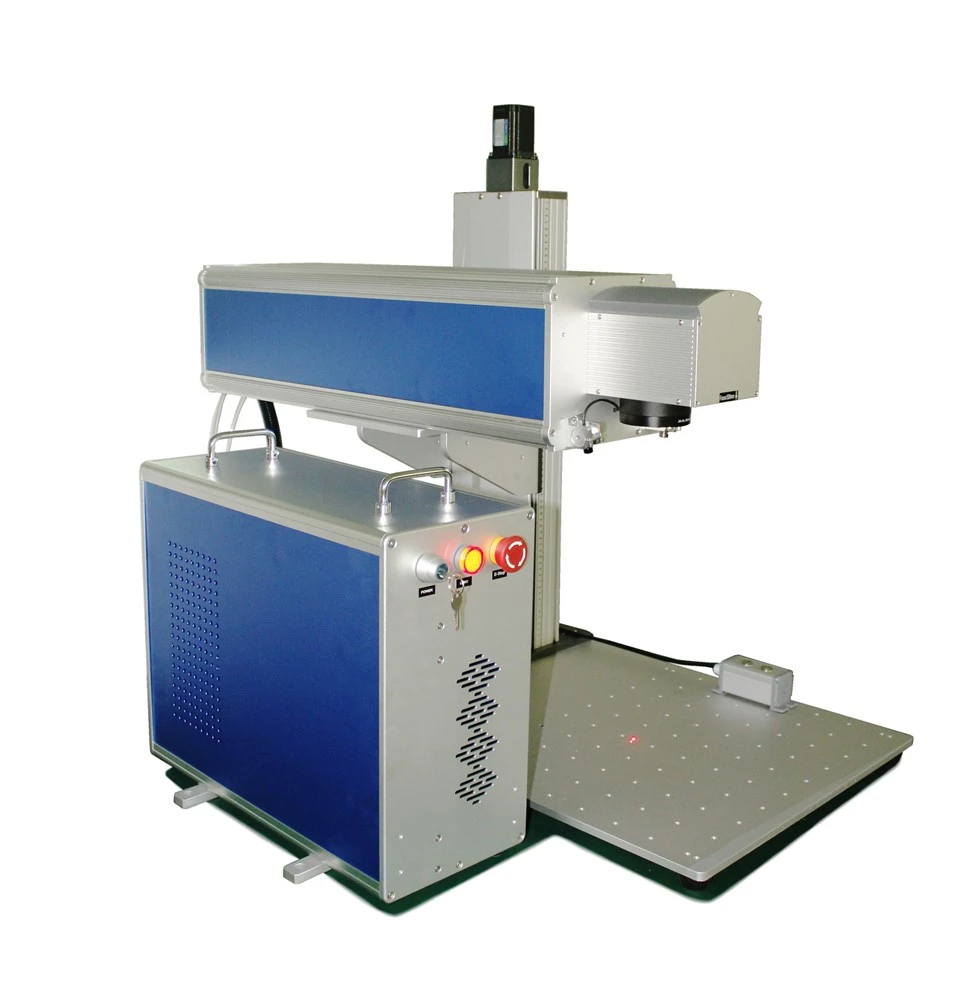

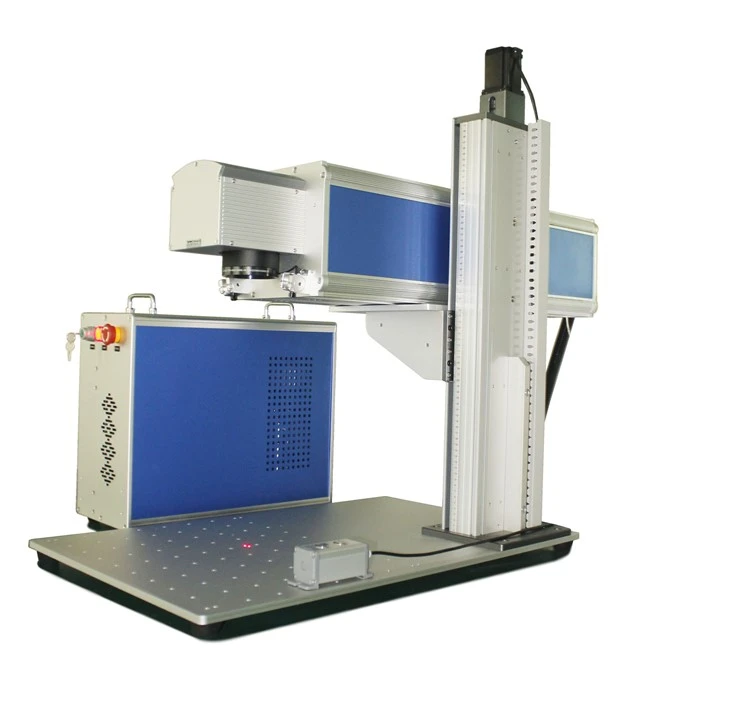

Precision 3D UV Laser Npav Tshuab

Lub Precision 3D UV Laser Marking Tshuab yog lub siab -kawg technical device, featuring meej, npaum thiab ruaj khov ua haujlwm. Nws yog dav siv hauv kev lag luam xws li hluav taws xob, kev sib txuas lus, biomedicine, zaub mov thiab tshuaj txhua hnub. Precision 3D UV Laser Marking Tshuab txais kev siv tshuab ultraviolet laser siab heev thiab muaj peev xwm ua tiav qib siab - qhov ntsuas qhov tseeb ntawm qib micrometer, ua kom cov khoom zoo thiab kev ntseeg siab ntawm cov khoom.

Xa kev nug

Khoom Taw qhia

Khoom Description

Lub Precision 3D UV Laser Marking Tshuab yog lub siab -kawg ntaus ntawv uas muaj qhov tseeb, ua tau zoo, thiab ruaj khov cim muaj peev xwm.Nws tsis tsuas yog ua tau raws li cov kev xav tau ntawm ntau yam kev lag luam, tab sis kuj pab cov lag luam txuag nqi thiab txhim kho kev ua haujlwm. Nws yog ib qho tseem ceeb ntawm cov khoom siv tseem ceeb hauv kev tsim khoom niaj hnub no. No Precision 3D UV Laser Marking Tshuab yog ib qho yooj yim rau kev khiav lag luam. Tsuas yog tsuas yog teeb tsa cov kev txwv thiab cov cim ua haujlwm tuaj yeem ua tiav yooj yim. Lub caij no, cov cuab yeej no muaj cov cim ceev ceev thiab kev siv hluav taws xob siab, uas ua rau muaj txiaj ntsig zoo heev. Tsis tas li ntawd, Precision 3D UV Laser Marking Tshuab nta muaj kev ruaj ntseg thiab kev ntseeg siab, thiab tuaj yeem tswj tau siab -cov qhab nia zoo txawm tias tom qab ntev - ua haujlwm tsis tu ncua.

Khoom nta

High precision thiab stability

Lub Precision 3D UV Laser Marking Tshuab nta tshwj xeeb siab precision thiab ruaj khov. Siv cov cuab yeej laser qib siab, cov cuab yeej no muaj peev xwm ua tiav micron - qib kev ntsuas qhov tseeb thiab tswj kev ua haujlwm tsis tu ncua nyob rau lub sijhawm ntev, yog li ua kom cov khoom zoo ib yam thiab zoo nkauj sib xws.

Kev ua haujlwm siab thiab kev ua haujlwm -txuag

Lub tuam tsev ntawm cov khoom siv txheem, Precision 3D UV Laser Marking Tshuab yog nruab nrog cov kev sib txuas ntse ntse uas sib txuas ua ke ua ke pom qhov pom kev muaj peev xwm nrog inline marking peev xwm. Cov txheej txheem no tsis tsuas yog txo qis cov kev xav tau ntawm kev ua haujlwm tab sis kuj tseem txhawb nqa nws cov kev ua haujlwm ntau lawm. Piv nrog rau cov tshuab ua haujlwm ib txwm muaj, thiab raws li kev kuaj xyuas nruj, qhov kev ua tau zoo tag nrho yog txhim kho ntau dua 60%.

Kev tiv thaiv siab thiab kev nyab xeeb

Raws li lub tshuab cim no siv lub UV laser qhov chaw uas muaj kev phom sij hauv hluav taws xob, nws cov qauv tsim kev tiv thaiv yuav tsum nruj kom tsis txhob muaj kev pheej hmoo ntawm kev nyab xeeb.Lub tshuab soj ntsuam lub qhov rais yog tsim los ntawm siab -zoo, tshwj xeeb, hluav taws xob-filtering acrylic, kom ntseeg tau tias muaj kev tiv thaiv tag nrho.

Kev siv dav dav

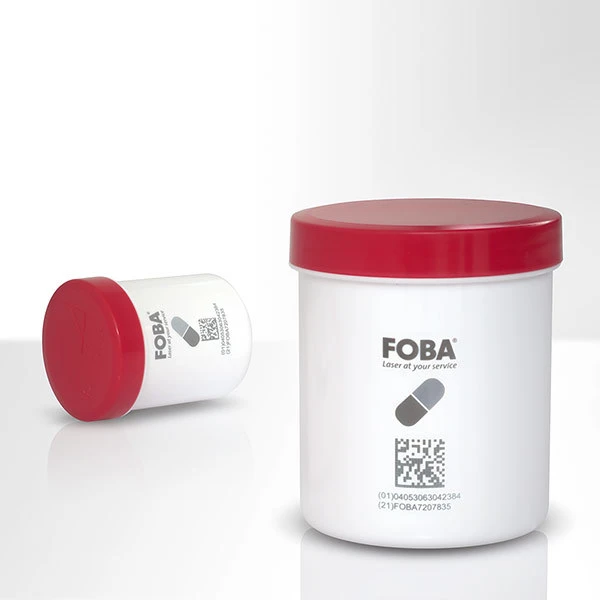

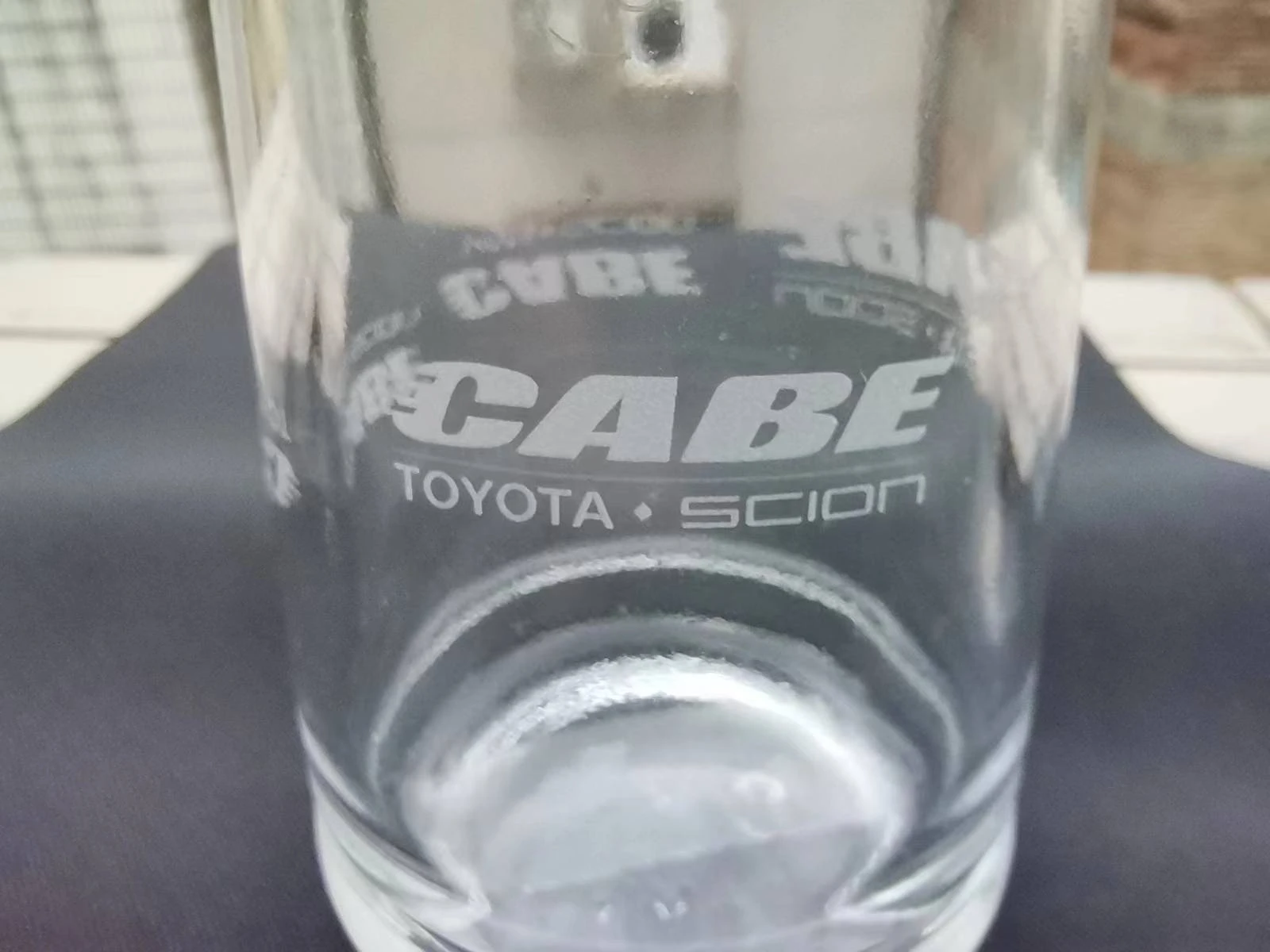

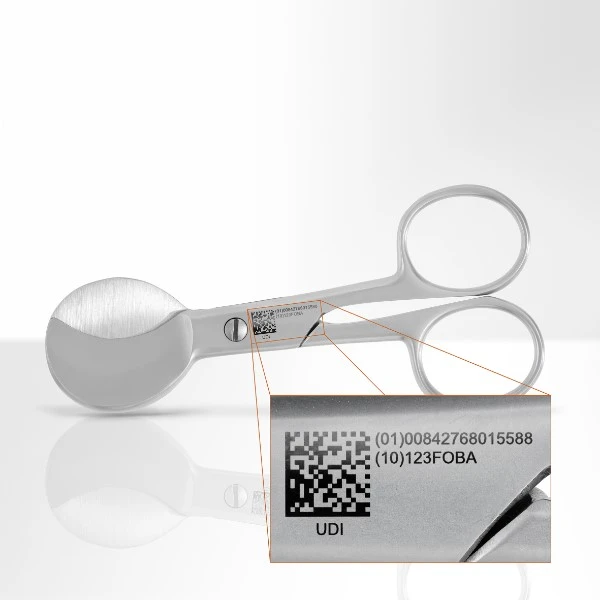

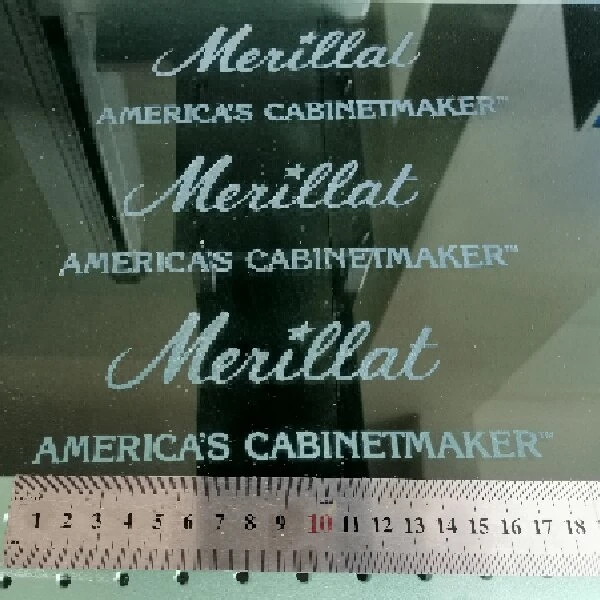

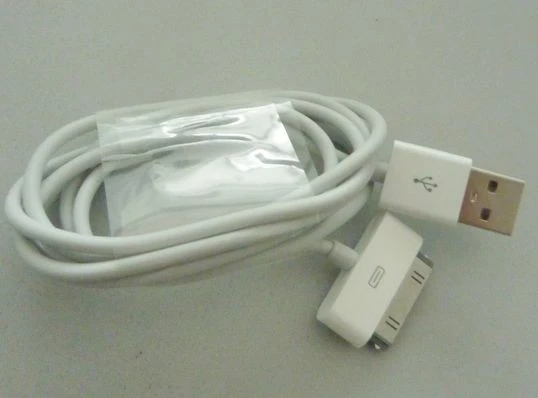

Lub Precision 3D UV Laser Marking Tshuab kuj muaj kev siv dav thiab tuaj yeem siv rau kev kos ntau yam ntaub ntawv, suav nrog hlau, yas, iav thiab lwm yam ntaub ntawv, nrog rau kev ua kom muaj zog.

Khoom Parameters

Laser qhov chaw qauv	DS -LM20-E	DS -LM30-E
Optical zog	Tso zis zog	18.5/20W	30W
	Beam zoo M2	Tsawg dua los yog sib npaug rau 1.4	Tsawg dua los yog sib npaug rau 1.4
	Pulse repetition zaus	27-60 kHz	30-60 kHz
	Laser wavelength	1064 ± 5nm
	Tso zis zog stability	＜3%
	Lub neej ua haujlwm	Txog 100,000 teev ua haujlwm (tsis yog-lub neej)
	Kos ntau yam	100-150mm (ntau yam xaiv)
	Engraving qhov tob	Tsawg dua lossis sib npaug li 1 hli (nyob ntawm lub zog thiab lub sijhawm)
	Engraving ceev	Tsawg dua lossis sib npaug li 10000mm / s
	Rov ua qhov tseeb	±0.002
	Yam tsawg kawg ntawm kab kab dav	0.1 hli
	Yam tsawg kawg nkaus qhov siab	0.15 hli
Siv ib puag ncig	Txoj kev txias	Cua
	Qhov system fais fab mov	500W / 220V / 50Hz (110V tuaj yeem txuas tau)
	Kub humidity	0 ~ 40 degree, 30% RH 85%, cua txias yuav tsum tau ntsia thaum siv sab nraum qhov ntau
	Roj pos huab, condensation	Tsis pub
Lwm yam parameter	Kev them nyiaj yug system	Qhov rai operating system
	Qhov ntev	390 X 210 X 615 mm
	Packing loj	680 X 5500 X 270 mm
	Qhov hnyav tag nrho	Txog 20 kg

Ua hauj lwm ib puag ncig yuav tsum tau

Qhov kub thiab txias tsis tu ncua

Lub Precision 3D UV Laser Marking Hais txog qhov kub thiab txias, qhov kev pom zoo ua haujlwm rau cov khoom siv yog 16℃txog 28 degree; nws tau qhia tias qhov chaw ua haujlwm yuav tsum tau nruab nrog lub tshuab cua txias kom tswj tau qhov kub thiab txias.
Hais txog cov av noo, qhov ntau ntawm 45% mus rau 75% yog pom zoo; Qhov kev xav tau tseem ceeb yog qhov tsis muaj condensation, thiab cov teeb meem ntsig txog cov av noo siab tuaj yeem daws tau los ntawm kev txhim kho lub dehumidifier.

Cov kev xav tau ntawm lub zog thiab kev hloov pauv

Cov kev xav tau ntawm lub zog hluav taws xob yog 220V thiab 50Hz, nrog kev tso cai sib txawv ntawm ± 10%. Hauv cov cheeb tsam uas qhov kev hloov pauv ntawm qhov hluav taws xob ntau dua 5%, yuav tsum tau nruab ib qho hluav taws xob tsis siv neeg voltage thiab tam sim no stabilization ntaus ntawv. Tsis tas li ntawd, txoj kab hluav taws xob hauv av yuav tsum ua raws li cov qauv hauv av thoob ntiaj teb; qhov no yog qhov tseem ceeb tsis yog rau kev nyab xeeb nkaus xwb tab sis kuj tiv thaiv electrostatic cuam tshuam.

Teeb liab

Zam tej thaj chaw uas muaj zog hlau nplaum thaum twg los tau; thaj tsam ntawm cov cuab yeej yuav tsum tsis pub muaj teeb meem electromagnetic cuam tshuam. Lub chaw teeb tsa yuav tsum tsis txhob nyob ze ntawm cov chaw xa xov tooj cua (lossis chaw nres tsheb relay).

Lub hauv paus amplitude

Txij li thaum lub laser beam yuav tsum tau positioned nrog huab precision ntawm lub workpiece nto rau kos thaum lub sij hawm ua hauj lwm, yuav tsum nruj tswj ntawm amplitude. amplitude tus qauv: tsawg dua 50 µm; vibration acceleration: tsawg dua 0.05g.

Plua plav- Ib puag ncig khoom siv dawb

Lub cheeb tsam yuav tsum tsis muaj pa taws thiab plua plav, thiab - tshwj xeeb tshaj yog - ceev ceev kom deb ntawm cov plua plav- tsim cov txheej txheem xws li hlau polishing thiab sib tsoo.

Cua Siab thiab Kub Dissipationt

Nws raug nquahu kom tswj hwm huab cua nyob ib puag ncig hauv thaj tsam ntawm 86 txog 106 kPa. Tsis tas li ntawd, xyuas kom tsis txhob muaj cua sov dissipation rau lub cuab yeej los ntawm kev tawm ntawm qhov chaw txaus nyob rau hauv ib puag ncig thiab tsis txhob cuam tshuam ncaj qha rau cov cua sov sab nraud.
