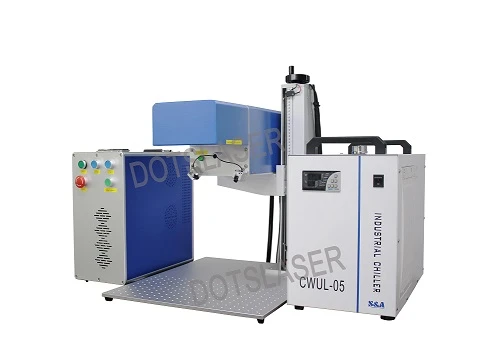

Lub "DS-UV5" ntawm 355nm uv laser tshuab muaj lub zog rau laser qhov chaw, tswj daim npav, tsav tsheb, thiab galvanometer, XYZ axis galvanometer system, optical system, software operating system, Z axis sawv ntsug, thiab precision positioning ntawm lub worktable. Lub laser beam tso zis los ntawm lub laser resonator ntawm ib tug wavelength ntawm 355 nm yog ces nthuav los ntawm lub beam expander, teem cia li los ntawm lub Z-axis galvanometer thiab ces reflected los ntawm lub X-axis, Y-axis galvanometer scanning system, uas nce mus txog rau. cov ntaub ntawv los ntawm optical focusing lens. Nyob rau hauv lub computer tswj, ib tug galvanometer scanning system oscillates sai sai, uas scans lub laser beam nyob rau hauv lub X thiab Y cov lus qhia.Qhov saum npoo ntawm lub laser beam tsom yog cim. Tom qab cov txheej txheem txuas ntxiv nyob rau hauv kev tswj hwm lub computer, cov cim preprogrammed thiab cov qauv raug cim rau saum npoo ntawm cov khoom.
Main parameter
| Qauv | DS-UV 5 |
| Kos thaj tsam | 100x100mm --180x180mm |
| Min. kab dav | 0.01mm (Raws li cov khoom siv) |
| Yam tsawg kawg nkaus tus cim | 0.3mm (raws li cov khoom siv) |
| Laser zog | 5W |
| Lub wavelength | 355nm ua |
| Standard marking cheeb tsam | 180 x 180 mm |
| Fais fab mov | Ib theem 200-240 VAC 50/60 HZ |
| Txias | dej txias |
| Core Components | Laser Source |
| Kev Ntsuas Qhov tob | 0 01-2mm |
