Lub handheld fiber ntau laser vuam tshuab yog ib tiam tshiab ntawm cov khoom siv laser vuam, uas belongs rau cov vuam tsis sib cuag. Cov txheej txheem kev ua haujlwm tsis tas yuav tsum muaj lub siab. Nws lub hauv paus ntsiab lus ua haujlwm yog ncaj qha irradiate lub siab-zog siv laser beam nyob rau saum npoo ntawm cov khoom los ntawm kev sib cuam tshuam ntawm lub laser thiab cov khoom. , Cov khoom yog melted sab hauv, thiab ces txias thiab crystallized los ua ib tug weld.
Lub tes tuav fiber ntau laser vuam tshuab puv qhov sib txawv ntawm tes tuav hauv kev lag luam khoom siv laser, tshem tawm cov kev ua haujlwm ntawm cov tsoos laser vuam tshuab, thiab hloov txoj kev kho qhov muag yav dhau los nrog hom tuav tes. Nws yog yoog raws thiab yooj yim, thiab qhov vuam nrug ntev. Nws kuj ua rau laser vuam ua haujlwm sab nraum zoov. Ua tau.
Tes tuav vuam yog tsuas yog tsom rau laser welding ntawm qhov ntev-ntev thiab loj workpieces. Nws kov yeej cov kev txwv ntawm lub rooj ua haujlwm' qhov chaw mob stroke. Lub tshav kub cuam tshuam qhov chaw thaum vuam yog me me, thiab nws yuav tsis ua rau deformation, blackening, thiab kab nyob tom qab ntawm lub workpiece. Qhov tob ntawm vuam yog loj. Nws yog ruaj thiab tag nrho melted. Nws tuaj yeem tsis tsuas yog paub txog thermal conduction vuam, tab sis kuj tseem txuas ntxiv sib sib zog nqus nqus vuam, qhov chaw vuam, taub qab vuam, plooj vuam, sib khi vuam, vuam vuam, thiab lwm yam.
Cov txheej txheem no subverts hom kev ua haujlwm ntawm cov tsoos laser vuam tshuab. Nws muaj qhov zoo ntawm kev ua haujlwm yooj yim, zoo nkauj vuam seam, vuam ceev ceev, thiab tsis muaj consumables. Nws tuaj yeem ua tau zoo tshaj plaws rau vuam nyias stainless hlau daim hlau, hlau daim hlau, galvanized daim hlau thiab lwm yam ntaub ntawv hlau. Nws hloov cov tsoos argon arc vuam, stainless hlau phaj, hlau phaj, txhuas phaj thiab lwm yam ntaub ntawv hlau vuam.
Qhov zoo ntawm handheld laser vuam tshuab
1. Kev sib txuas dav dav: Lub tes tuav lub taub hau vuam yog nruab nrog 5m-10M thawj cov khoom siv kho qhov muag, uas kov yeej qhov kev txwv ntawm qhov chaw ua haujlwm, thiab tuaj yeem welded sab nraum zoov thiab kev sib txuas ntev;
2. Yooj yim thiab hloov tau yooj yim rau kev siv: Tes tuav laser vuam yog nruab nrog txav txav tau, uas yooj yim tuav thiab tuaj yeem kho txoj haujlwm ua haujlwm txhua lub sijhawm. Nws yog dawb thiab yoog raws, thiab haum rau ntau yam kev ua haujlwm ib puag ncig.

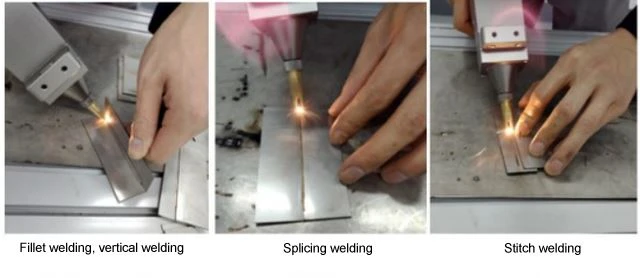

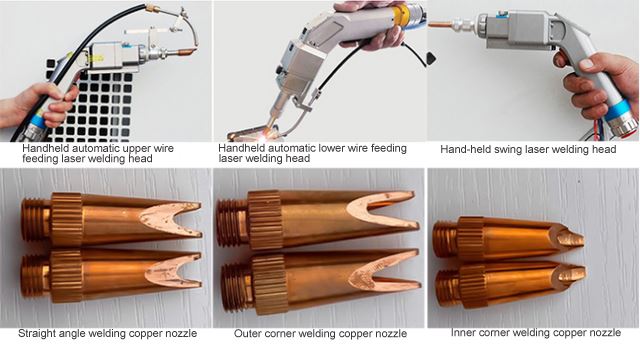

3. Ntau txoj kev vuam: Vuam ntawm txhua lub kaum ntse ntse tuaj yeem pom tau: sib tshooj vuam, taub qab vuam, ntsug vuam, tiaj tus vuam vuam, sab hauv qhov vuam, sab nraud vuam vuam, thiab lwm yam, thiab tuaj yeem vuam ntau yam kev sib txuas ntawm vuam workpieces thiab loj workpieces nrog irregular. cov duab. Paub welding ntawm txhua lub kaum ntse ntse. Tsis tas li ntawd, nws tseem tuaj yeem ua tiav qhov txiav, vuam thiab txiav tuaj yeem hloov pauv dawb, tsuas yog hloov cov vuam tooj liab nozzle rau txiav tooj liab nozzle, uas yooj yim heev.
4.Cov nyhuv vuam zoo: Tes tuav laser vuam yog kub-melt vuam. Piv nrog rau cov tsoos welding, laser vuam muaj zog dua qhov ceev thiab tuaj yeem ua tiav cov txiaj ntsig zoo dua. Qhov chaw vuam muaj qhov cuam tshuam me ntsis thermal, tsis yooj yim rau deform, dub, thiab muaj kab nyob tom qab. , vuam qhov tob yog loj, lub melting yog txaus, thiab nws yog ruaj khov thiab txhim khu kev qha, thiab lub zog vuam ncav cuag los yog tshaj lub hauv paus hlau nws tus kheej, uas tsis tuaj yeem lav los ntawm cov tshuab vuam zoo tib yam.

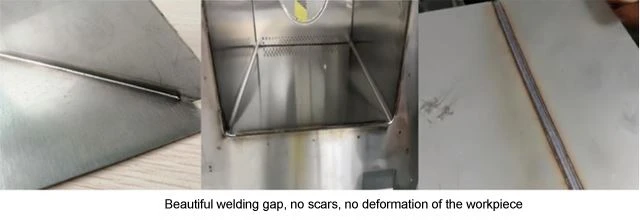

5. Vuam seam tsis tas yuav polished: Tom qab ib txwm welding, lub vuam taw tes yuav tsum tau polished los xyuas kom meej tias nws yog du thiab tsis ntxhib. Lub tes tuav laser vuam precisely qhia txog qhov zoo ntawm kev ua haujlwm: kev sib txuas txuas ntxiv, du thiab tsis muaj ntses nplai, zoo nkauj thiab tsis muaj caws pliav, thiab tsawg dua cov txheej txheem polishing.
6. Vuam yam tsis muaj consumables: Nyob rau hauv feem ntau cov neeg' s impression, welding lag luam yog" sab laug tes tsom iav, sab tes clamp vuam hlau". Tab sis nrog lub handheld laser vuam tshuab, vuam tuaj yeem ua tiav yooj yim, uas txo cov nqi khoom hauv kev tsim khoom thiab kev ua haujlwm.
7. Nrog rau ntau yam kev ceeb toom kev nyab xeeb, lub vuam taub hau tsuas yog siv tau thaum lub qhov hloov pauv yog kov thaum nws kov cov hlau, thiab lub teeb yuav raug kaw tom qab lub workpiece raug tshem tawm, thiab qhov kov hloov pauv tau txais lub cev kub. Kev nyab xeeb yog siab los xyuas kom muaj kev nyab xeeb ntawm tus neeg teb xov tooj thaum ua haujlwm.
8.Txuag tus nqi zog: Piv nrog arc vuam, tus nqi ua haujlwm tuaj yeem txo qis li 30%. Kev ua haujlwm yog yooj yim, yooj yim kawm, thiab pib sai. Cov txheej txheem thev naus laus zis ntawm cov neeg ua haujlwm tsis siab. Cov neeg ua haujlwm ib txwm tuaj yeem nqa lawv cov haujlwm tom qab kev cob qhia luv luv, uas tuaj yeem ua tiav cov txiaj ntsig zoo vuam zoo.

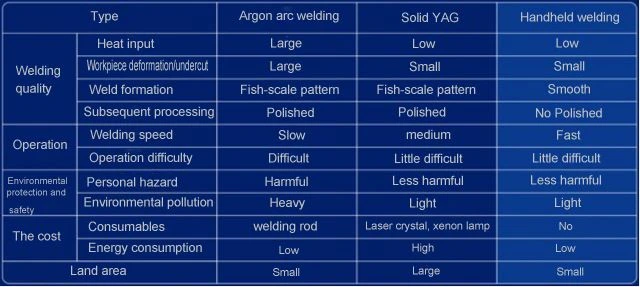

Kev sib piv ntawm handheld laser vuam tshuab thiab argon arc vuam
1. Kev sib piv ntawm kev siv hluav taws xob: Piv nrog cov khoom siv arc vuam, lub tes tuav laser vuam tshuab txuag tau li ntawm 80% mus rau 90% ntawm hluav taws xob, thiab cov nqi ua haujlwm tuaj yeem txo tau li ntawm 30%.
2. Kev sib piv cov nyhuv vuam: laser tes tuav vuam tuaj yeem ua tiav cov hlau tsis sib xws thiab cov hlau tsis sib xws. Qhov ceev yog ceev, qhov deformation yog me me, thiab qhov kub ntawm qhov cuam tshuam yog me me. Weld seam yog zoo nkauj, du, tsis muaj / tsawg porosity, thiab tsis muaj kuab paug. Lub handheld laser vuam tshuab yuav siv tau rau me me qhib qhov chaw thiab precision vuam.
3.Kev sib piv cov txheej txheem tom qab: cov khoom siv hluav taws xob qis thaum lub sij hawm siv lub tshuab laser vuam, me me deformation ntawm lub workpiece, zoo nkauj vuam nto tuaj yeem tau, tsis muaj lossis tsuas yog kev kho yooj yim (nyob ntawm seb qhov yuav tsum tau ua ntawm qhov vuam nto nyhuv). Lub handheld laser vuam tshuab tuaj yeem txo tus nqi zog ntawm cov txheej txheem polishing loj thiab qib.
Daim ntawv thov teb ntawm handheld laser vuam tshuab
Feem ntau yog rau cov ntawv loj thiab nruab nrab ntawm cov ntawv hlau, cov txee, chassis, aluminium alloy qhov rooj thiab qhov rais thav ntawv, stainless hlau ntxhua khaub ncaws thiab lwm yam haujlwm loj xws li lub kaum sab xis sab hauv, sab nrauv sab xis, tiaj tus vuam vuam, qhov chaw me me thaum lub sij hawm vuam , me me deformation, thiab vuam qhov tob Loj, muaj zog vuam. Siv dav hauv kev lag luam hauv chav ua noj thiab chav dej, kev lag luam hauv tsev, kev lag luam tshaj tawm, kev lag luam pwm, kev lag luam stainless hlau khoom lag luam, stainless hlau engineering kev lag luam, qhov rooj thiab qhov rais, kev lag luam khoom siv tes ua, kev lag luam khoom siv hauv tsev, kev lag luam rooj tog, kev lag luam pib, thiab lwm yam.
