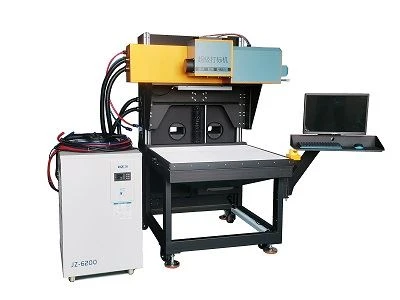

Canvas CO2 Laser Marking
Canvas CO2laser npav
Khoom Description
Nrog Canvas CO2 laser npav tshuab, cov neeg siv tuaj yeem kos ntau yam khoom, suav nrog ntoo, yas, iav, hlau, tawv, thiab ceramics. Lub tshuab laser beam muaj zog txaus los nkag mus rau cov ntaub ntawv no, tsim cov cim zoo uas tiv taus fading thiab hnav. Cov neeg siv kuj tuaj yeem kho lawv cov cim nrog Canvas CO2 laser npav tshuab. Lub tshuab los nrog cov neeg siv-phooj ywg software interface, uas tso cai rau cov neeg siv tsim thiab tsim lawv tus kheej cov cim. Qhov no tso cai rau muaj tswv yim ntau dua thiab yooj yim dua thaum nws los tsim thiab tsim cov khoom lag luam.
tshuab nta
High-Quality Marks:The CO2 laser engraver tsim kom huv si thiab ruaj khov cim rau ntawm canvas.Qhov no ua rau nws zoo tagnrho rau kev kos los yog engraving intricate designs, logos, los yog ntawv nyob rau hauv ntau yam ntaub ntawv.
Versatility:Canvas CO2 laser npav tuaj yeem ua rau ntau yam ntaub ntawv, suav nrog ntawv, yas, roj hmab, ntoo, iav, thiab hlau.
Fast marking ceev:Lub tshuab laser siv hauv Canvas CO2laser npav yog ceev thiab ua tau zoo, tso cai rau lub sij hawm tig rov qab ceev nrog cov qib siab ntawm qhov tseeb.
Nqi-zoo:CO2 engraver yuav tsum tau saib xyuas tsawg thiab siv tau, ua rau nws muaj kev xaiv pheej yig dua piv rau lwm cov cuab yeej kos npe.
Environmentally Friendly:Canvas CO2laser marking tsim cov khoom pov tseg tsawg heev thiab tsis siv cov tshuaj phem lossis cov kuab tshuaj. Qhov no ua rau nws ib puag ncig tus phooj ywg kev daws teeb meem rau kev kos npe thiab kos daim ntawv thov.
Kev nyab xeeb rau kev ua haujlwm:Kev tswj hwm kev tswj hwm nruj nruj yog siv tau rau ntau qhov chaw ntawm qhov kub thiab txias kom ntseeg tau tias kev ua haujlwm ruaj khov ntawm lub laser npav system.
Parameter
|
Laser raj tsis muaj |
Max tso zis muaj peev xwm | 250W |
| Nominal Peak Pov | Ntau tshaj lossis sib npaug rau 450W | |
| Hom Zoo | M2Tsawg dua los yog sib npaug rau 1.2 | |
| Duty Cycle Limit | Tsawg dua los yog sib npaug li 70% | |
| Hom Laser | CO2 | |
| Laser wavelength | 10.6μm | |
|
Kos npe kev ua tau zoo |
Hom ntawv cim |
Qauv, Lo lus, Barcode, QRcode, Hnub tim, Serial Number |
| Kos cim hom | Qauv thiab cov lus ntawm vectordiagram & bitmap | |
| Kos thaj tsam | 400X400-700X700(mmXmm) Kho tau | |
| Kev Ntsuas Qhov tob | 0-5mm (Raws li cov ntaub ntawv) | |
| Marking Ceev | <7000mm/s | |
| Min Kab Dav | 0.3mm(Raws li cov ntaub ntawv) | |
| Min Cim | 0.4 hli | |
| Rov ua qhov tseeb qhov tseeb | 0.01 hli | |
| Tshuab ntaub ntawv | Tag Nrho Lub Zog | 6 KW |
| Fais fab mov | AC220V / 50Hz / 30A | |
| Txoj kev txias | Qhov ntsuas kub tsis tu ncua dej txias chav tsev | |
| Ua haujlwm kub | 15-30 degree | |
| Ua haujlwm av noo | <75 No condensation | |
| Ua haujlwm ib puag ncig | Tsis muaj plua plav, tsis muaj kev vibration | |
| Tshuab Packing Size | 1010 * 1340 * 1740 hli | |
| Tswj txee packing loj | 1060 * 660 * 1100 hli | |
| Chiller packing loj | 660 * 760 * 1080 hli |
CO2laser engraving ua hauj lwm los ntawm emitting ib tug concentrated beam ntawm lub teeb uas heats lub nto ntawm lub hom phiaj cov khoom, ua rau nws yaj thiab vaporize. A CO2gas sib tov zoo siab los ntawm ib qho hluav taws xob tawm generates lub teeb beam. Cov txheej txheem yog tswj tau heev, nrog rau lub laser beam siv, ceev, thiab kev taw qhia ua tib zoo calibrated los tsim cov cim xav tau.
Dab tsi yog qhov chaw zoo tshaj plaws rau laser engraving ntawm canvas?
1. Kev teeb tsa fais fab
Xaiv lub hwj chim tsim nyog yog qhov kev daws teeb meem zoo tshaj plaws thaum pib engraving canvas. Txawm li cas los xij, qhov kev teeb tsa lub zog tiag tiag yuav tsum nyob ntawm lub canvas thickness, cov ntaub cov xim thiab muaj pes tsawg leeg, thiab tsim. Lub zog me me yuav tsis tsim cov txiaj ntsig xav tau, thaum lub zog ntau dhau tuaj yeem ua rau hlawv cov cim rau ntawm daim ntaub. Nws raug nquahu kom pib nrog lub teeb tsa hluav taws xob qis thiab maj mam nce mus txog thaum qhov kev xav tau ua tiav.
2. Kev teeb tsa ceev
Qhov zoo tshaj plaws ceev ceev rau laser engraving ntawm canvas yuav tsum yog 100-300 mm/s. Txawm li cas los xij, nws yog ib qho tseem ceeb los kho qhov nrawm raws li qhov nyuaj thiab qhov loj ntawm tus tsim. Kev qeeb qeeb tuaj yeem ua rau lub sijhawm ua tiav tab sis tsim cov qauv tsim, nrawm nrawm tuaj yeem tawg cov ntaub ntawv.
3. Kev daws teeb meem
Kev daws teeb meem yog hais txog qib ntawm kev nthuav dav uas tuaj yeem ua tiav hauv kev tsim. Siv qhov kev daws teeb meem tsawg kawg 300 DPI (dots ib nti) rau laser engraving ntawm canvas yog pom zoo. Ib qho kev daws teeb meem siab dua tuaj yeem pab ua tiav cov qauv tsim thiab cov kab ntse. Txawm li cas los xij, nws yog ib qho tseem ceeb kom nco ntsoov tias kev daws teeb meem siab dua tuaj yeem ua rau lub sijhawm engraving.
4. Lwm qhov chaw
Lwm qhov chaw uas yuav cuam tshuam rau qhov zoo ntawm cov engraving muaj xws li lub focal ntev, qhov cua, thiab kev sib dhos. Yuav tsum muaj qhov cua kom zoo los tiv thaiv cov pa taws thiab pa taws. Qhov kev sib tw ntawm lub laser beam yuav tsum tau kuaj xyuas kom paub tseeb tias tus tsim yog etched nyob rau hauv qhov tseeb txoj hauj lwm, tsis txhob ua teeb meem hlau alignment.
5. Tej yam yuam kev uas yuav tsum zam
Feem ntau yuam kev kom tsis txhob thaum laser engraving ntawm canvas suav nrog kev siv lub zog ntau dhau, muaj qhov tsis raug focal ntev, qhov cua tsis zoo, thiab siv qhov tsis ncaj ncees lawm. Nws kuj tseem pom zoo kom tsis txhob siv canvas nrog hluavtaws fibers vim lawv yuav yaj nyob rau hauv lub laser beam. Tsis tas li ntawd, nws yog ib qho tseem ceeb uas yuav tsum muaj kev tiv thaiv kev nyab xeeb nyob rau hauv qhov chaw, xws li cov looj tsom iav thiab hnab looj tes, thaum siv lub zog siab.

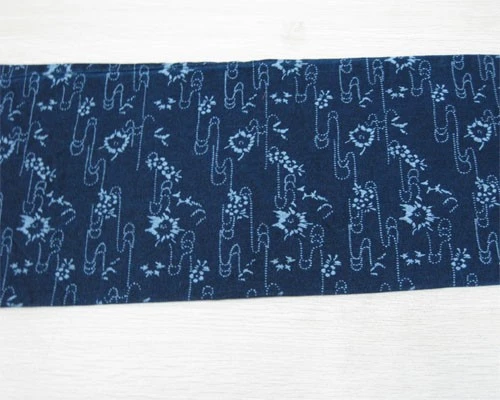

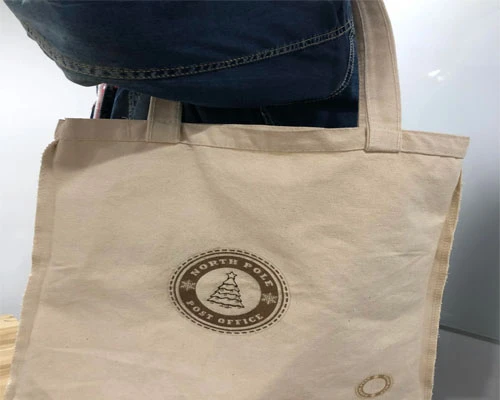

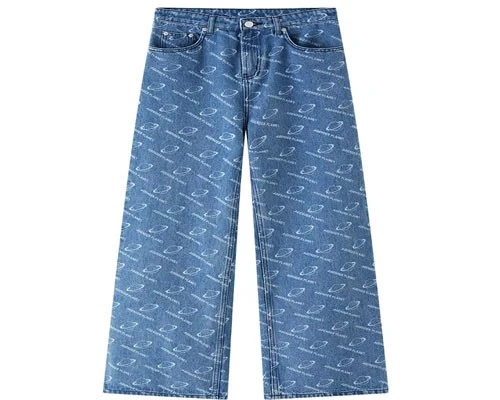

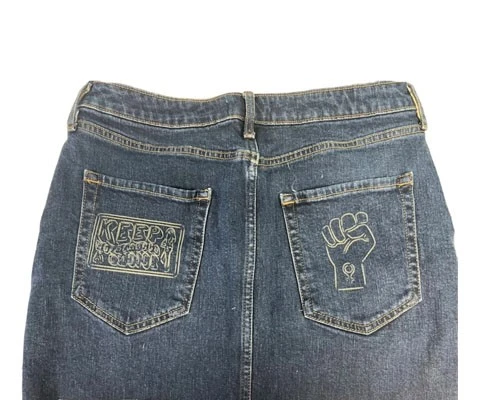

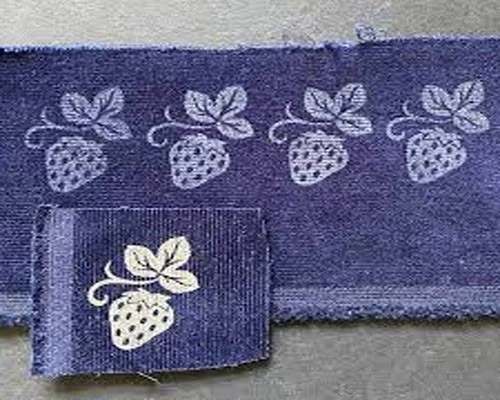

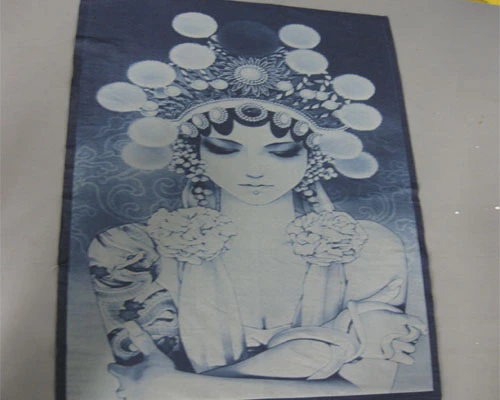

Cov qauvNtawm Laser Marking Tshuab

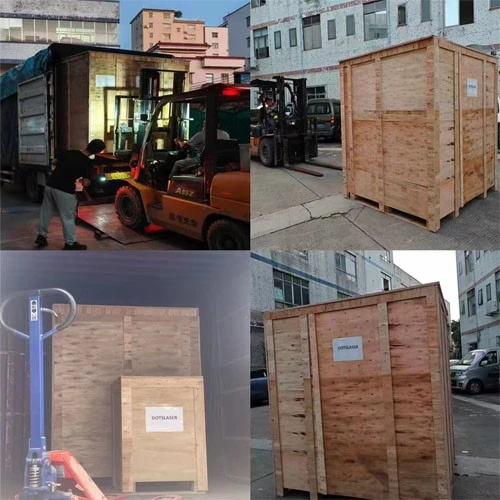

Shipping thiab pob
1. Kev ruaj ntseg zoo thiab kev pab cuam tom qab muag
Lub sijhawm lav ntawm cov cuab yeej yuav tsum yog 12 lub hlis txij li cov khoom siv los ntawm cov neeg siv khoom, kev teeb tsa thiab kev debugging tiav thiab cov khoom siv tau txais los ntawm tus neeg thov. Dotslaser muab qhov tseem ceeb rau kev ua haujlwm tom qab muag ntawm cov khoom, thaum cov khoom xa tuaj rau tus neeg siv, lub tuam txhab tam sim ntawd tsim cov ntaub ntawv cov neeg siv khoom tom qab muag, thiab tsis tu ncua taug qab tus neeg siv khoom siv cov xwm txheej, daws thiab teb tag nrho cov teeb meem ntawm tus neeg siv, tau txais cov neeg siv cov ntaub ntawv ceeb toom txog cov khoom siv tsis ua haujlwm, lub tuam txhab cov neeg ua haujlwm tuaj yeem ua cov lus teb sai hauv 2 teev. Yog tias kev taw qhia hauv xov tooj yog qhov nyuaj rau kev daws teeb meem, peb lub tuam txhab cov neeg ua haujlwm txawj tuaj yeem tuaj txog ntawm cov neeg siv khoom hauv 24 teev los muab kev txhawb nqa.
2. Kev teeb tsa thiab kev debugging
Ua ntej kev teeb tsa lub tshuab, peb lub Hoobkas yuav muab cov ntaub ntawv tsim nyog rau koj, qhov xav tau zoo 2 lub lis piam xa tuaj rau koj nyob ntawd, cov engineers ntawm Dotslaser yuav tuaj txog ntawm koj qhov chaw thiab tshuaj xyuas lub tshuab dua. Xyuas kom tag nrho cov xwm txheej ua tau raws li kev teeb tsa thiab kev ua haujlwm ntawm cov khoom siv, cov cuab yeej yuav thauj khoom raws sijhawm. Lub sijhawm teeb tsa thiab kev ua haujlwm ntawm cov cuab yeej siv yog li tsib hnub ua haujlwm, thawj peb hnub tau txuas nrog kev siv lub tshuab, thiab lub kaw lus ua haujlwm tom qab qhov kev pabcuam. Tus kws tshaj lij yuav cob qhia cov neeg ua haujlwm tsim nyog ntawm cov txheej txheem kev saib xyuas yooj yim thiab cov yam ntxwv ntawm kev ua haujlwm ntawm cov cuab yeej hauv ob hnub tom ntej
3. Kev pab txhawb nqa
Yog tias muaj teeb meem nrog ib feem ntawm lub cev thaum lub sijhawm lav, Dotslaser cov kws tshaj lij pabcuam kev pabcuam tau npaj los muab kev pabcuam hauv xovtooj lossis pib pabcuam ntawm qhov chaw, yog tias lub tshuab muaj teeb meem thaum lub sijhawm lav, thov hu rau peb ncaj qha !

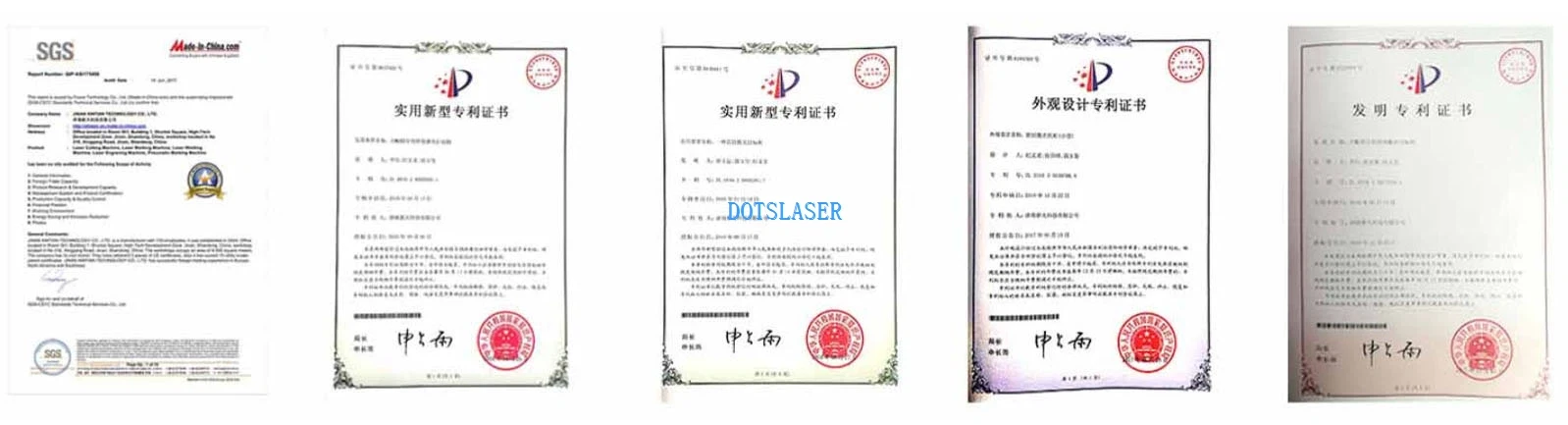

Daim ntawv pov thawj
FAQ
Q1: Lub pob zoo li cas?
Q2: Lub pob puas puas thaum lub sijhawm thauj mus los?
Q3: Yuav ua li cas rau nruab thiab khiav lub tshuab?
Q4: Kuv tuaj yeem ua li cas yog tias lub tshuab ua yuam kev?
