3D Laser Rau Pwm Engraving

Nws cov txiaj ntsig suav nrog kev ua haujlwm siab, kev ruaj ntseg siab, thiab cov nqi khiav lag luam tsawg heev. Nws kuj tseem nruab nrog cov software muaj zog ua haujlwm los txhawb peb-seem duab kho kom raug thiab importing.

Xa kev nug

Khoom Taw qhia

Khoom Description

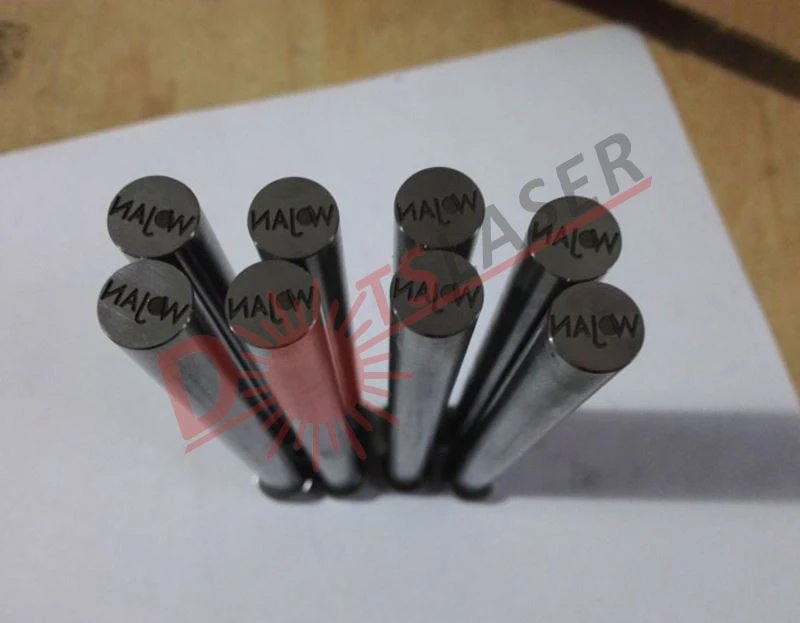

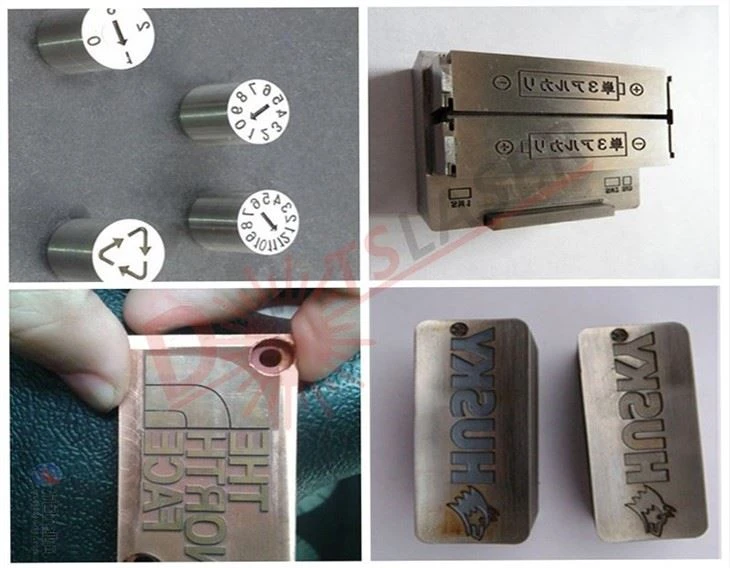

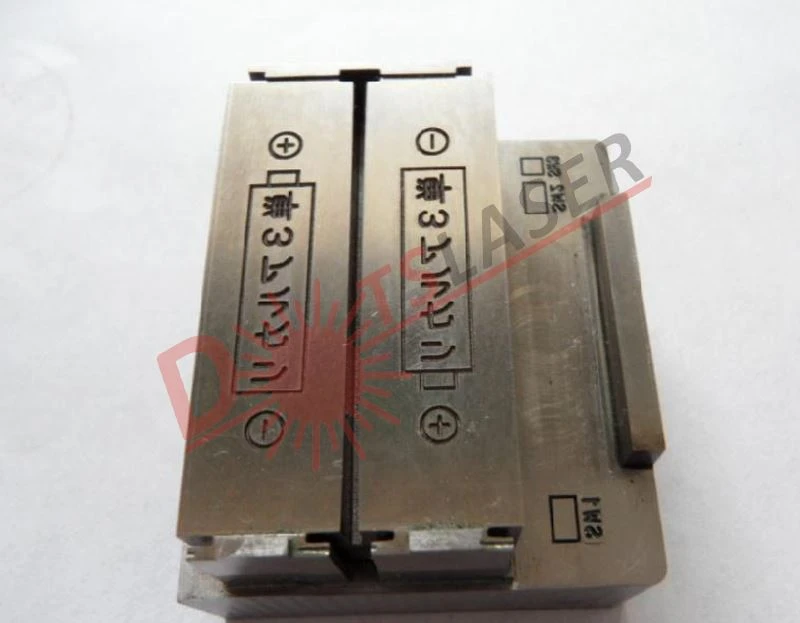

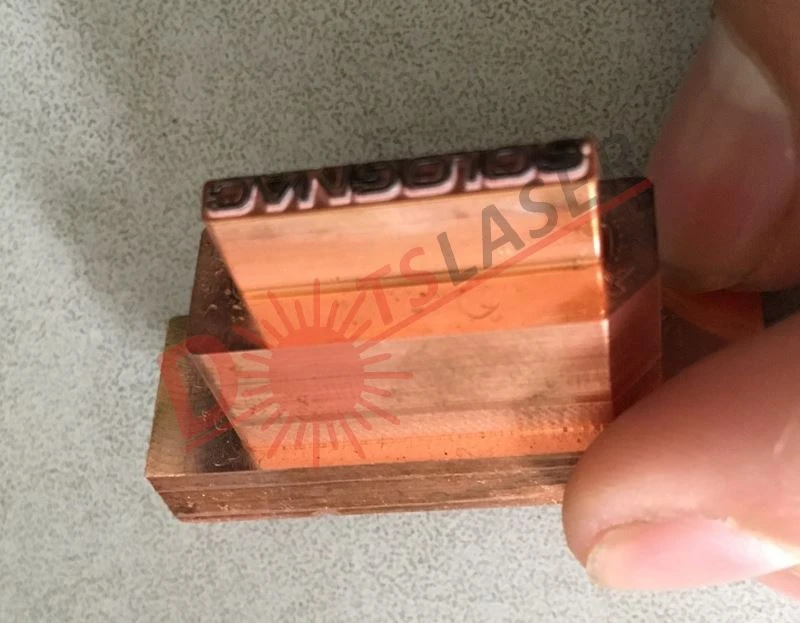

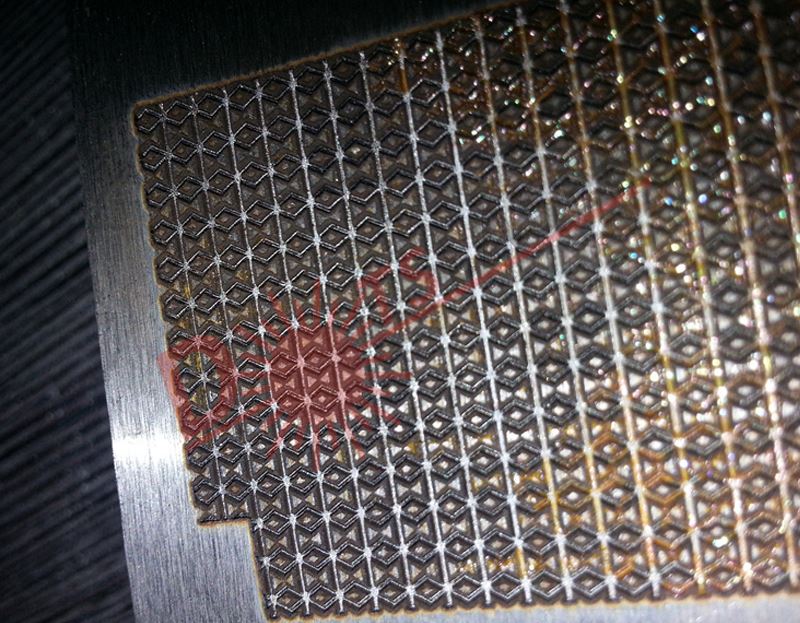

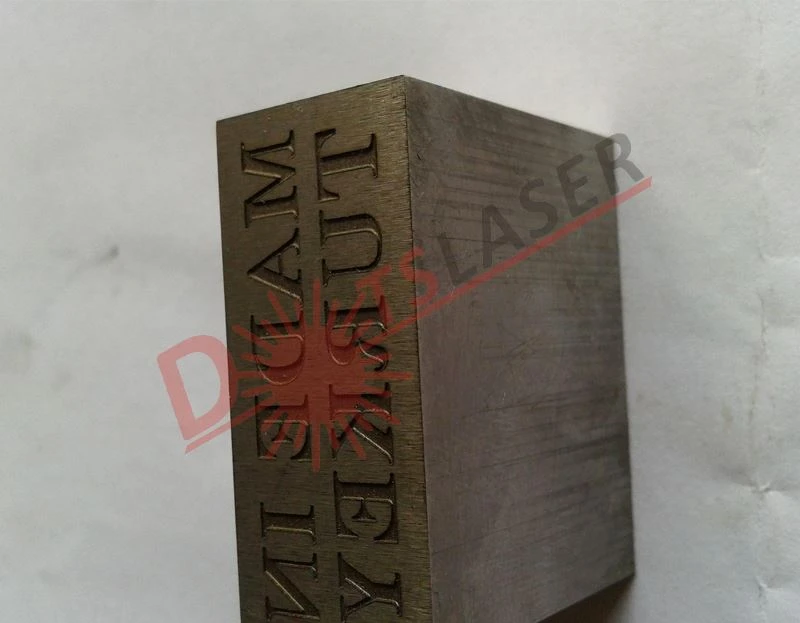

3D Laser Rau Pwm engraving tshuab tuaj yeem ua qee qhov engraving ntawm lettering pwm, logo engraving, kho vajtse ua, sib sib zog nqus engraving, pwm tsim engraving, stainless hlau pwm, titanium steel pwm, tooj liab pwm, thiab lwm yam. peb-dimensional multi-surface thiab loj-hom ntawv cim. Nws cov txiaj ntsig suav nrog kev ua haujlwm siab, kev ruaj ntseg siab, thiab cov nqi khiav lag luam tsawg heev. Nws kuj tau nruab nrog cov software muaj zog ua haujlwm los txhawb kev kos duab peb sab thiab kev xa tawm, thiab tau siv dav hauv kev lag luam xws li precision pwm, teeb pom kev zoo, cov khoom siv hluav taws xob, qhov chaw pib, thiab cov khoom siv kho mob.

Parameter

Qauv	DS-LM20-3D/DS-LM30-3D/DS-LM50-3D/DS-LM60-3D/DS-LM100-3D
Laser zog	20W/30W/50W/60W/100W
Pulse Repetition Frequency	30 kHz -1000kHz
Beam quality (㎡	<1.6
Qhov tob ntawm engraving (nyob ntawm cov khoom)	<5mm
Kev siv fais fab	Tsawg dua los yog sib npaug rau 1200W
Ua haujlwm voltage	Ib theem AC 220V / 110V 50 / 60HZ 5A
Laser wavelength	1064nm ua
Chaw ua haujlwm	1
Repetition precision	± 0.003mm
Max engraving ceev	Tsawg dua lossis sib npaug li 10000mm / s
Yam tsawg kawg kab dav	0.01 hli
Kev kos duab	Nyob ruaj ruaj Marking, Flying Marking, Rotary Marking
Cim loj	0 5-110mm
Txias System	Cua txias
Kev taw qhia ntawm kev txhim kho cov khoom siv	Ib qho
Cable ntawm Length	3m (5m yeem)
Ua haujlwm kub ntau	5-38 degree
Ua haujlwm av noo	20%-80%
Net nyhav ntawm lub tshuab	146kg ua
Dimension ntawm lub cev loj (L × W × H)	85mm × 75mm × 65mm

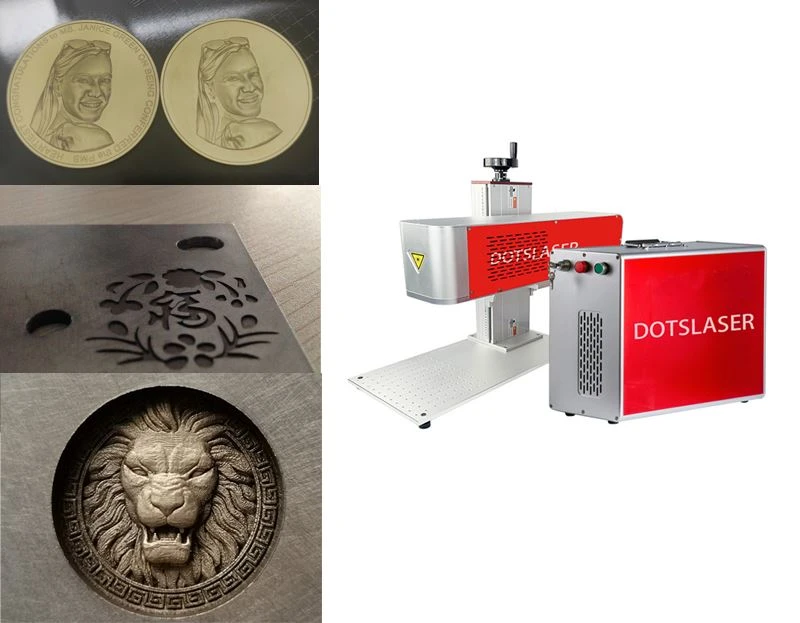

3D laser marking engraving

3D laser rau pwm engraving VS tsoos khoom siv tes ua

Muaj peb yam khoom siv tes ua

1.Qhov thawj yog ntau txoj kev. Engrave ncaj qha rau ntawm pwm los ntawm lub tshuab engraving. Txoj kev no feem ntau yog siv thaum lub font lossis qauv loj heev. Feem ntau hom fonts no feem ntau muaj riam rau ntawm qhov chaw, thiab lawv yuav tsum tau polished ua ntej lawv siv tau. Txoj kev no yog siv rau cov pwm uas xav tau tsawg dua, uas tsis tsuas yog txo tus nqi, tab sis kuj tseem muaj txiaj ntsig zoo rau kev ua haujlwm. Yog tias nws yog ib qho me me, siv cov ntawv milling los ua nws. Lub npe hu ua daim ntawv milling txheej txheem yog los xyaum cov font ntawm lub rooj tsavxwm yas. Los ntawm kev xyaum font thiab luam milling los tsav cov cuab yeej ua, qhov yuam kev font yuav me me. Txoj kev no yog siv ntau dua rau cov pwm xav tau tsawg dua.

2. Qhov thib ob hom electrode yog engraved thiab ces raug hluav taws xob tawm machining. Tus nqi kuj yog siab heev. Nws yog thawj zaug coj ib qho electrode ntawm qhov chaw uas yuav tsum tau ua cov font, thiab ces kos cov electrode. Tom qab ua tiav, qhov chaw uas cov hluav taws xob pulse tau txais rau kev tsim hluav taws xob, thiab cov font yuav raug tso rau saum npoo ntawm pwm tom qab ua tiav. Qhov no kuj yog ib txoj kev. Nyob rau hauv txoj kev no, lub typeface yog ntxhib heev, nrog cov qauv hluav taws. Ua ntej lub laser engraving tawm, nws tau ua li no. Tshwj xeeb tshaj yog qhov nyuaj fonts lossis cov qauv.

3. Qhov thib peb yog nthuav tawm cov cim, ua yeeb yaj kiab, thiab siv potion los corrode kom ua tiav cov txiaj ntsig ntawm kev sau ntawv.

Nyob rau hauv cov pwm me me thiab nruab nrab me me, laser engraving yog feem ntau. Lub laser yog siv los tawm cov cim rau ntawm pwm. Feem ntau txoj kev no tseem hu ua etching. Qhov zoo ntawm txoj kev no yog tias nws sai dua thiab tuaj yeem kho tau sai.
