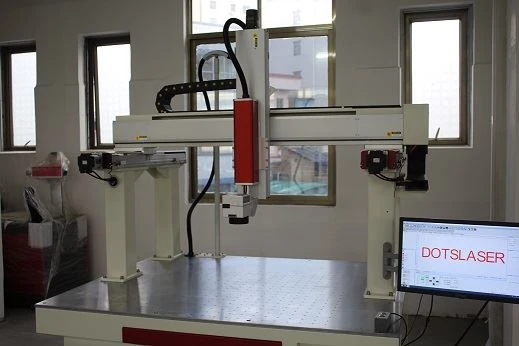

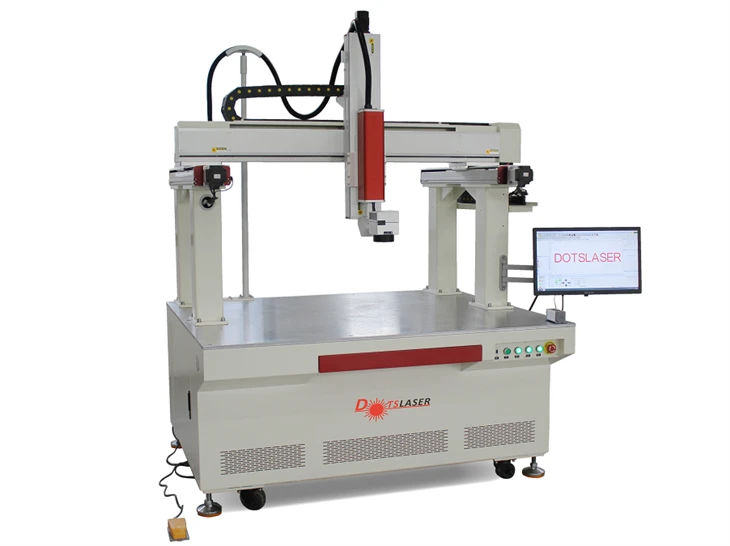

4 Axis Tsis Siv Neeg Fiber Laser Marker
Plaub Axis Tsis Siv Neeg Fiber Laser Marker
Khoom Description
Plaub Axis Tsis Siv Neeg Fiber Laser Marker yog qhov kev txhim kho tseem ceeb hauv kev lag luam laser npav tshuab. Lub tshuab siab heev no yog qhov tsim nyog rau kev kos npe ntawm cov ntaub ntawv loj nrog kev ua haujlwm siab thiab ua haujlwm zoo. Nrog nws cov kev ua tau zoo tshaj plaws thiab kev ua tau zoo, cov lag luam tam sim no tuaj yeem yooj yim luam cov logos, cov npe khoom lag luam, thiab cov ntaub ntawv ntawm ntau qhov chaw.
Khoom nta
| 1. Plaub-axis tsis siv neeg fiber ntau laser npav tshuab yog ib qho ntawm cov khoom lag luam uas tau siv dav hauv kev lag luam nrog kev ua haujlwm siab heev, hom loj thiab cov nqi siab ua haujlwm ua los ntawm DOTSLASER. | ||||
| 2.Kev siv plaub-axis txuas kev tswj qhov system, lub platform servo X, Y axis thiab galvanometer X, Y axis kev sib koom tes tswj ntawm kev ua haujlwm, lub platform loj tuaj yeem kos ntau lub hom phiaj. | ||||
| 3. Plaub-axis txuas kev tswj qhov system tuaj yeem paub txog cov ntaub ntawv loj hauv daim ntawv qhia thaum taug kev, thiab axial txav thiab kev vibration iav tuaj yeem ua tiav tib lub sijhawm, uas tuaj yeem ua tsis tau tsuas yog ua tiav txoj haujlwm tswj thiab ceev tswj, tab sis kuj ua kom muaj kev ruaj ntseg thiab raug nyob rau hauv cov txheej txheem cim; | ||||
| 4. Kev tswj xyuas kev sib txuas ntse, kev txawj ntse tsis sib xws ceev cim, ntau dua CAM software, kom lub tshuab los ntawm kev debugging yooj yim tuaj yeem ua tiav qhov siab ntawm cov duab kos cim. | ||||
| 5.Marking ceev: high-speed galvanometer scanning tuaj yeem ncav cuag qhov siab tshaj 7000mm / s npav, nws tsim nyog rau kev lag luam loj. |
Daim ntawv thov

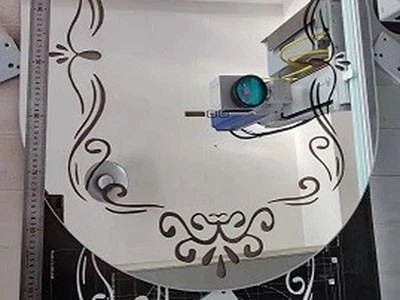

Dav siv nyob rau hauv cov xim tshem tawm, txheej txheej tshem tawm, frosted nto marking, graphic kab kos, ntse daim iav, iav technology, hniav painting technology, elevator qauv, advertising kev lag luam, loj hom qauv thiab lwm yam teb.
Qhov tseem ceeb

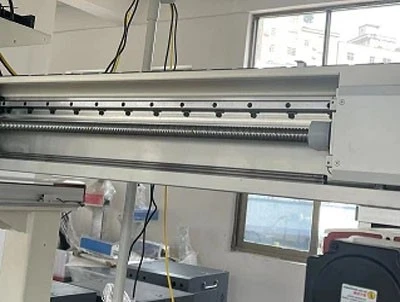

Cov Cheebtsam
Main Parameters
Ua haujlwm ib puag ncig |
|
|---|---|
| Qauv | Qauv: DS-LM100 |
| Qhov hluav taws xob | 220V, 50/60Hz |
| Kev siv fais fab | 1500W |
Kev xaiv Parameter |
|
|
Tso zis zog |
100W (yeem) |
| Galvometer | Dotslaser |
| Kos thaj tsam | 700mm * 900 hli |
| Kab Dav | 0.01mm -0.1mm |
| Yam tsawg kawg nkaus | 0.15 hli |
| Lub Hwj Huam Hloov Kho Ntau Yam (%) | 0-100 (kho tau) |
| Marking Ceev | 0-9000mm / s |
| Optical Cable | 3m |
| Lub wavelength | 1064nm ua |
| Systems Software | DOTS |
| Txias hom | Cua txias |
|
hluav taws xob tshuab |

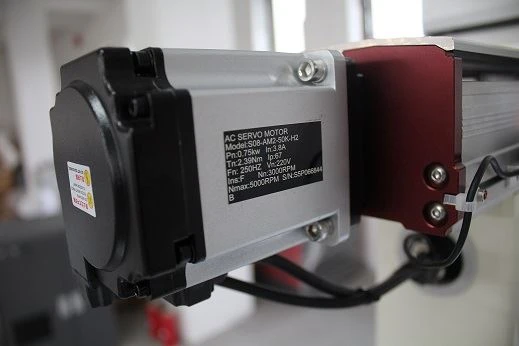

Servo Tsav |
| Optical zoo | m2Tsawg dua los yog sib npaug 2 |
Tshuab Parameter |
|
| Pob Loj | 1270mm * 1170mm * 1200mm |
| Siv Tau Kev Lag Luam | Chaw tsim tshuaj paus, Machinery Repair Shops, Printing Shop, Zog & Mining, Khoom noj khoom haus & dej haus khw, Advertising tuam txhab |
| Graphic Format txaus siab | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP |
| Warranty | 1 xyoo |

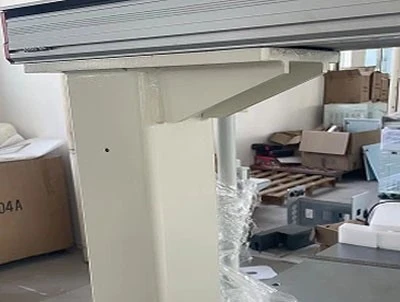

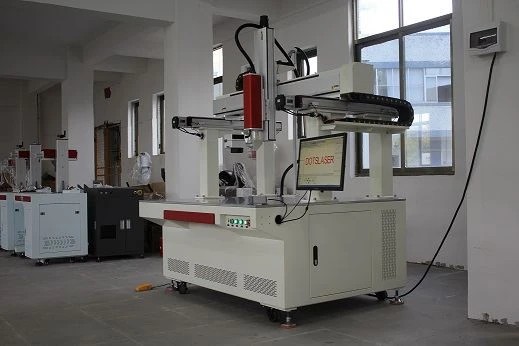

Cov qauv
Shipping Thiab Pob

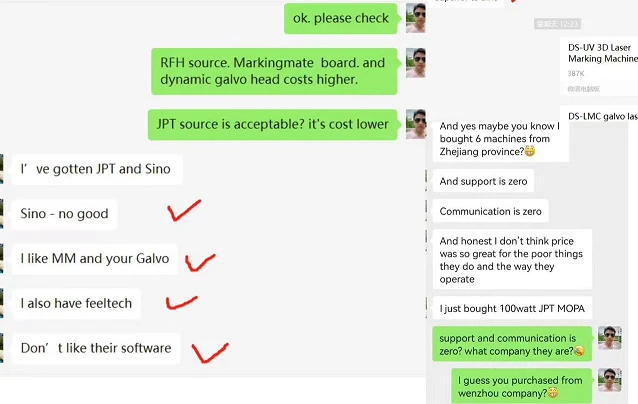

Cov neeg siv khoom tawm tswv yim
Kev tu txhua hnub
● Tom qab ua haujlwm tiav, xyuas kom cov hauv pem teb huv si. Tom qab ntawd ntxuav lub tshuab nrog rau saum npoo ntawm lub tshuab, rooj plaub ntawm qhov kho qhov muag, qhov chaw ntawm lub monitor, lub rooj ua haujlwm, thiab lwm yam.
● Thov tua txhua ntu thiab lub zog loj thaum lawv huv si.
● Tshawb xyuas lub lens tsis tu ncua rau cov plua plav. Thaum nws huv si, siv cov paj rwb wool nrog ntau dua 95% cawv qib kho mob los so clockwise los ntawm qhov chaw ntawm lub lens. Thaum koj xav tau txav lub tshuab kom tsis txhob muaj pob. Txheeb xyuas qhov kev sib txuas ntawm cable raws li daim ntawv teev npe cable.
Unpacking Ceev faj
Txhua lub tshuab cim tau raug kuaj nruj heev ntawm lub Hoobkas, tsuas yog cov khoom tsim nyog rau kev xa khoom. Thaum koj tau txais cov khoom thauj, thov xyuas raws li hauv qab no. Yog tias koj muaj lus nug, thov hu rau tus neeg sawv cev lossis cov neeg ua haujlwm ntawm DOTSLASER.
● Txawm tias muaj kev puas tsuaj lossis deformation thaum thauj.
● Paub meej tias tag nrho cov khoom ntawm cov npe ntim khoom yog lawm.
● Paub meej tias tus qauv ntawm cov khoom sib tw nrog lub npe (Operating voltage thiab KVA tooj).
● Xyuas kom tseeb tias tag nrho cov clamps nruj thiab tsis muaj cov khoom txawv teb chaws hauv lub cuab yeej.

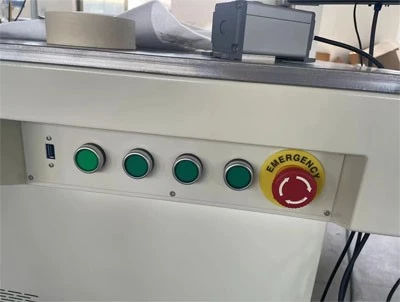

● Paub meej tias cov nyees khawm ua haujlwm, cov keyboards yog qhov qub.
