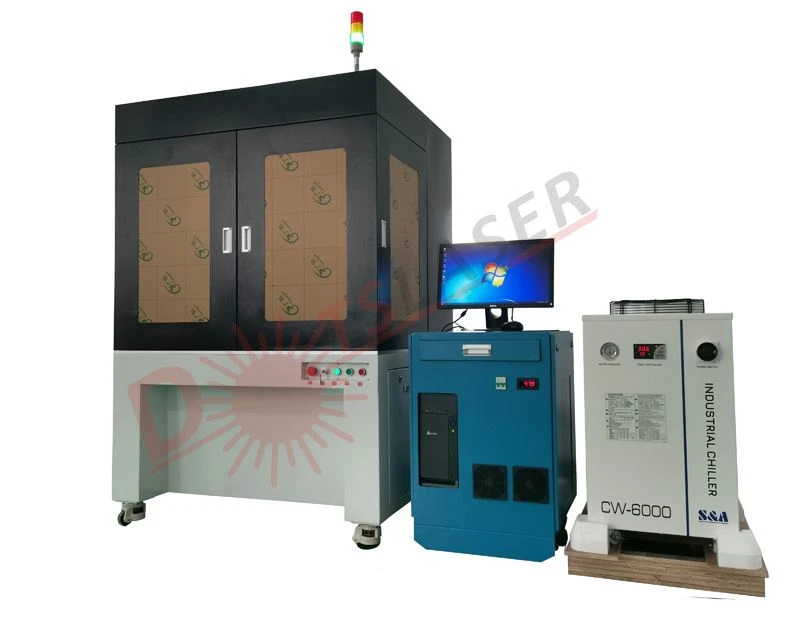

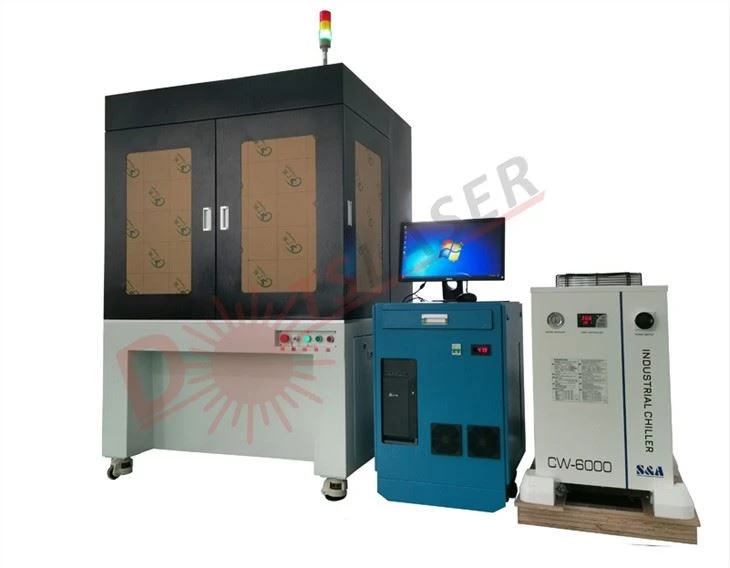

Cardboard Tej Tshuab
Cardboard Tej Tshuab
Khoom Description

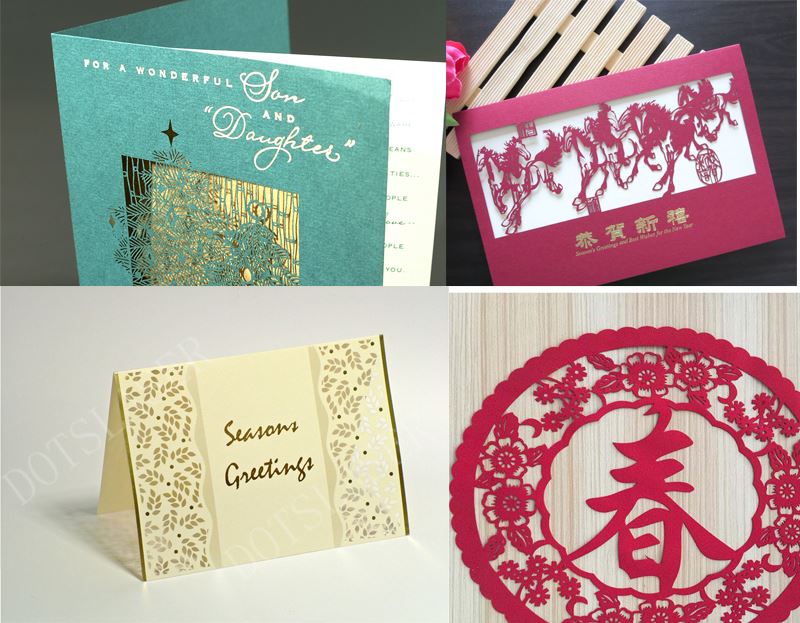

Cardboard Txiav Tshuab yog siv rau hauv daim npav tos txais, duab los qhia, decals, Daim duab Xyoo Tshiab, phaib caw, caw, customized shells, thawv, thiab lwm yam. Nws imported laser qhov chaw enables lub neej ntev, thiab dej-txias laser scanning taub hau thiab loj-hom dynamic. tswj system yog siv, uas tuaj yeem tau txais txiaj ntsig zoo ntawm cov kab teeb pom kev zoo. Lub tshuab no kuj yog ib qho yooj yim heev rau kev khiav lag luam, nruab thiab tswj, yog li koj tuaj yeem so assured mus yuav.
Nta thiab Qhov Zoo
Class 1 standard vaj tse rau kev nyab xeeb.
Qhov chaw ua haujlwm loj: tuaj yeem yog 400x400mm ~ 800x800mm, haum rau kev ua haujlwm ntawm thaj chaw loj.
Loj dua thiab nrawm dua galvo, kom tau txais cov nqaj me me, nrog cov kab zoo thiab muaj peev xwm txiav ntau dua. 25 ~ 35% sai dua piv nrog cov qauv zoo sib xws.
Txiav seam yog huv si, tsis yellowish, tsis blacken.no jagged.
Kev tswj hwm tshiab, ruaj khov dua German daim npav digital, Lub qhov sib xws nce mus txog 96%.
Compact qauv, me me chaw nyob.
Technical parameters
|
Qauv |
DS-LWM 150 |
DS-LWM 250 |
DS-LWM 350 |
|
Laser fais fab tso zis |
150W |
250W |
350W |
|
laser wavelength |
10.6μm |
||
|
Kos thaj tsam |
400x400mm, 500x500mm, 600x600mm, 800x800mm |
||
|
Pulse zaus |
1 ~ 130KHZ |
||
|
Max kab cim ceev |
8, 000mm/s |
||
|
Tswj txoj kev |
xyz 3 axis dynamic tsom |
||
|
Min. kab dav |
0.22mm (nyob ntawm cov khoom) |
||
|
Txias |
Dej txias |
||
|
Ua haujlwm temp |
10 ~ 30 degree |
||
|
Qhov hnyav tag nrho |
480 KG |
||
|
Qhov loj ntawm lub tshuab |
1200x800x1580mm |
||
|
Fais fab mov |
AC220V ± 10% / 20A, 50Hz lossis AC110V ± 10%, 60Hz |
||
Qhia meej
Khoom Paub meej

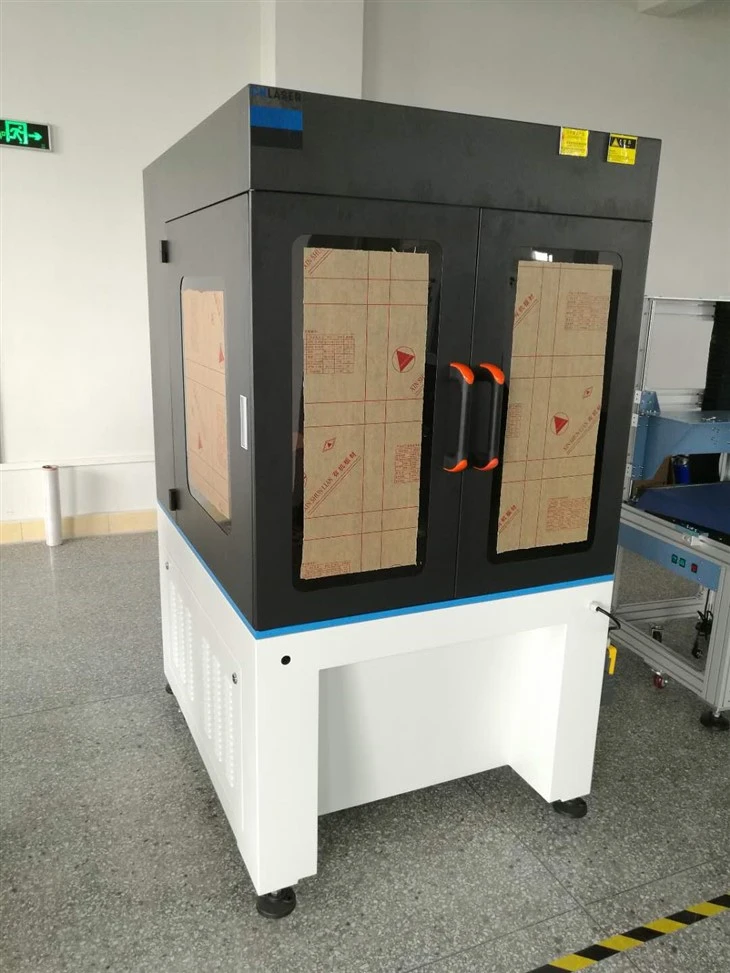

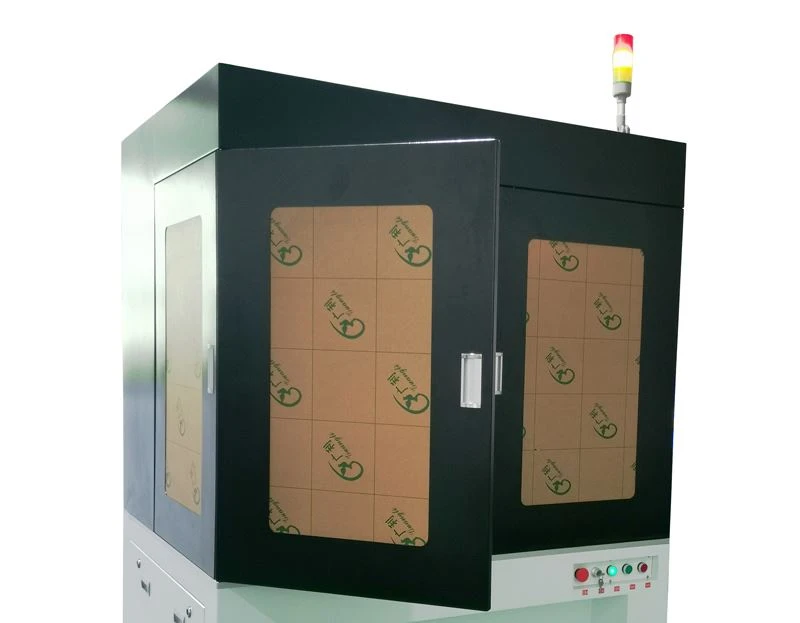

1. Chav kawm 1 muaj kev nyab xeeb
Lub qhov rooj no yog tsim los tiv thaiv kev raug mob ntawm lub laser beam, uas tuaj yeem ua rau raug mob hnyav lossis puas rau cov khoom rhiab heev. Nws yog tsim los ntawm cov ntaub ntawv zoo uas tuaj yeem tiv taus cov hluav taws xob laser hnyav thiab lwm yam kev phom sij.

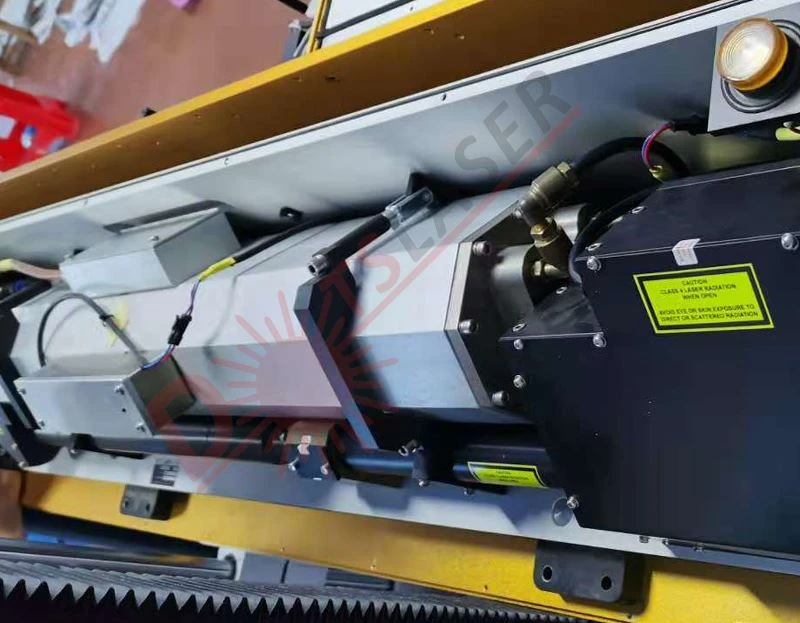

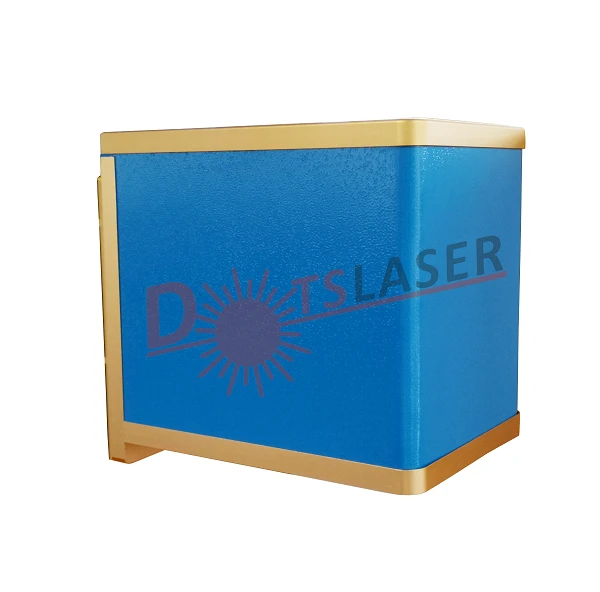

2. ruaj khov RF laser raj, ib qho tuaj txawv teb chaws, siv lub neej ntev dua.
Lub xov tooj cua zaus raj yog lub raj hlau kaw tag nrho thiab siv 48 volt low-voltage fais fab mov. Qhov no ncaj qha zam qee qhov tsis zoo tshwm sim los ntawm kev siv cov khoom siv hluav taws xob high-voltage. Kev sib koom tes ntawm ntau lub tshuab kuj tseem siab heev, thiab qhov pib yuav tsis muaj teeb meem ntau dhau. Lub tshuab raj iav raj laser txiav tshuab siv lub tshuab hluav taws xob siab ntawm 10, 000 volts lossis siab dua, uas tsis yog qhov tsis ruaj khov, tab sis kuj txaus ntshai.

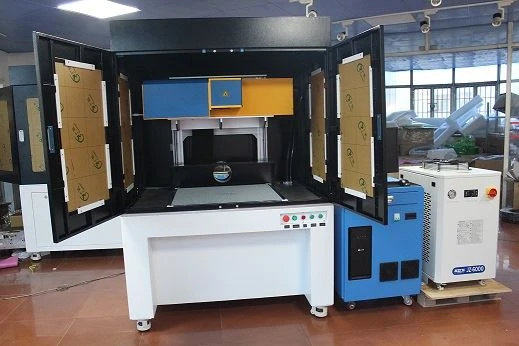

3. Yooj yim rau siv lub rooj ua haujlwm, zoo rau cov neeg ua haujlwm opreating.
Lub humanized tsim ntawm Cardboard Tej Tshuab tso cai rau tus neeg teb xov tooj siv lub laser ntau yam kev nyab xeeb thiab yooj yim rau txheej txheem ntau lawm cov ntaub ntawv. Nws siv cov software khiav haujlwm ntawm nws tus kheej tsim los ntawm DOTSLASER lub tuam txhab uas yooj yim thiab yooj yim kawm, thiab cov neeg uas tsis tau siv nws, yuav siv nws tom qab ib nrab hnub ntawm kev kawm.s.
FAQ
Q1: Kuv yuav xaiv qhov laser qhov twg?
Q2: Peb yuav ua li cas rau kev teeb tsa ntawm kev tsom xam?
Q3: Vim li cas CO2laser xav tau lub chiller?
