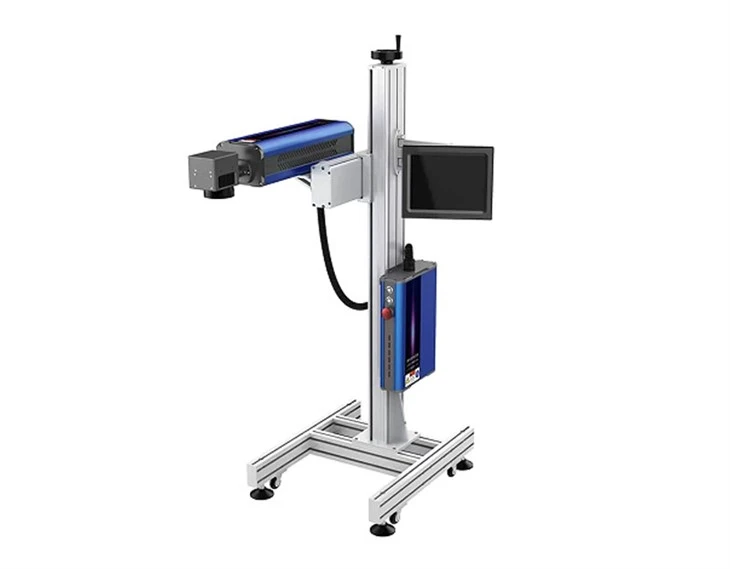

CO2 Flying Laser Marking Tshuab

CO 2 ya laser npav tshuab Cov Khoom Piav Qhia Dotslaser CO 2 ya laser npav tshuab txais lub siab tshaj plaws kaw cov pa roj carbon dioxide laser qhov chaw. Lub neej ntawm lub raj laser tshaj 20, 000 teev, uas yog tshwj xeeb tshaj yog haum rau laser npav, engraving thiab txiav....

Xa kev nug

Khoom Taw qhia

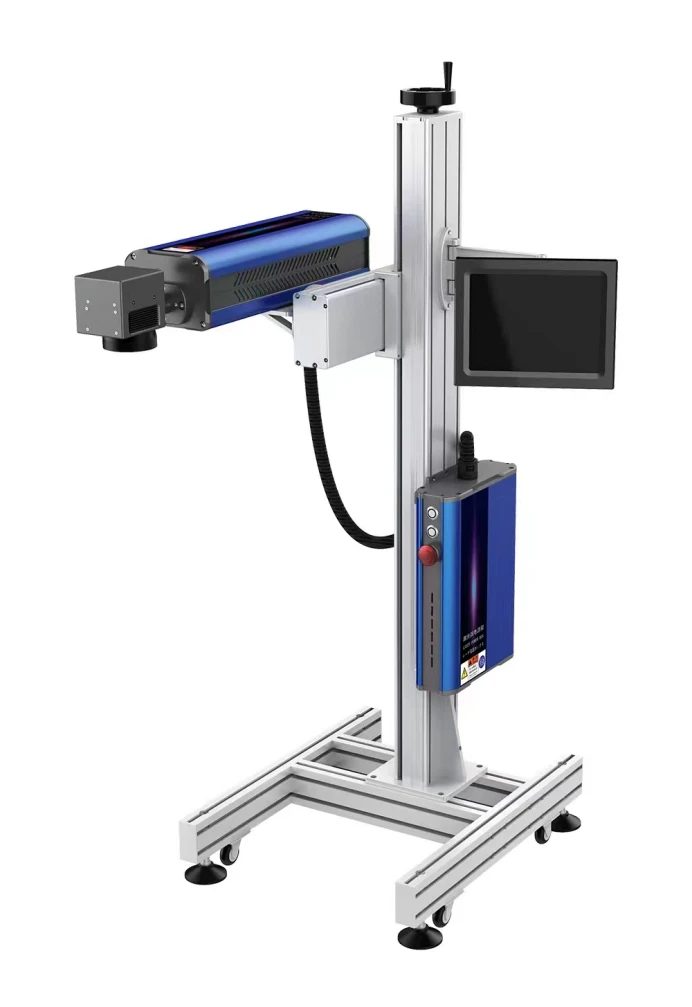

CO₂ya laser npav tshuab

Khoom Description

Dotslaser CO₂ya laser npav tshuab txais lub siab tshaj plaws kaw nruam carbon dioxide laser qhov chaw. Lub neej ntawm lub raj laser ntau tshaj 20, 000 teev, uas yog tshwj xeeb tshaj yog haum rau laser npav, engraving thiab txiav.Nruab nrog ib tug tshwj xeeb encoder kom paubonline ceev tawm tswv yim. Raws li qhov sib txawv,nruab nrog ntau yam fiber ntau optical sensors raukuaj pom, inductors, luam ntawv Circuit Court boards, integratedcircuits,hluav taws xobplug-nyob rau hauvdaim npav,ntau yaminstruments thiab control panels.

tshuab nta

01/

Kev kos npe meej

CO₂ya laser tshuab yog nruab nrog high-speed galvanometer scanning system, yog li cov cim

qhov tseeb yog qhov siab thiab kev ua haujlwm ceev ceev.

02/

Kev siv dav

CO₂laser tshuab feem ntau siv hauv cov ntaub ntawv uas tsis yog xim hlau, xws li ntoo, ntawv, xyoob, pob zeb, roj hmab, ntaub, arcylic, yas, ceramic, thiab lwm yam.

03/

Tus nqi ua haujlwm qis

Ultra-ceev teb ceev: chaw nres nkoj teb lub sij hawm yog nanoseconds, galvanometer thiab laser kho vajtse tswj, real-time teb, haum rau loj ntau lawm.

04/

Kev ua haujlwm siab

Flying laser npav tuaj yeem ua tiav tas mus li thiab ntau yam array coding, thiab tuaj yeem hloov kho arbitrarily.

Parameter

Qauv	DS-LWM 30
Laser fais fab tso zis	>30W
Laser wavelength	9.3μm/10.6μm
Kos thaj tsam	100x100mm (tus qauv)
Pulse zaus	1 ~ 100KHZ
Max marking ceev	12, 000mm/s
Font hom ntawv	Dot, ib kab, hom muaj tseeb
Code hom ntawv	Feem ntau 1D & 2D codes muaj
Txhawb interface	USB, TCP / IP, RS219 rau encoder thiab sensor
Beam zoo	M²＜1.3
Rov ua qhov tseeb	± 0.001 hli
Min. kab dav	0.1 hli
Qhov loj me me	0.2 hli
Txias	Cua txias
Ua haujlwm temp	5 ~ 35 degree
Fais fab mov	AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz
Qhov hnyav tag nrho	90 KG

Siv tau kev lag luam:

Fly Marking rau saum npoo ntawm ntau yam khoom siv tsis yog xim hlau thiab cov khoom, xws li plexi iav, ceramics, yas, cov khoom siv hluavtaws, ntoo, roj hmab tawv, cov khoom siv ntawv; Kev lag luam hluav taws xob: laser ya cim ntawm capacitors.

Lub tshuab ya laser ua haujlwm li cas?

Flying laser npav txhais tau tias tso cov khoom ntawm txoj siv conveyor kom ua raws li cov kab sib dhos, koom tes nrog kev lag luam automation, tso cai rau lawv dhau los ntawm lub tshuab laser thiab tom qab ntawd cia li induction marking, Nws tsis xav tau kev tuav phau ntawv, uas yog qhov tshwm sim ntawm automation.

Raws li txoj siv conveyor pib, cov workpieces raug xa mus rau ib qho los ntawm ib qho mus rau qhov kev txiav txim siab ua ntej. Thaum lub sij hawm tus txheej txheem no, qhov ceev thiab positioning raug ntawm txoj siv conveyor yog ib qho tseem ceeb los xyuas kom meej tias txhua yam khoom tuaj txog ntawm qhov chaw cim nyob rau hauv lub sij hawm tsim nyog qhov rais.Qhov no yuav txuag tau ntau lub sij hawm ua thiab txuag tau ntau tus nqi zog tsuas yog xav tau ib qho CO₂ya laser mahine.

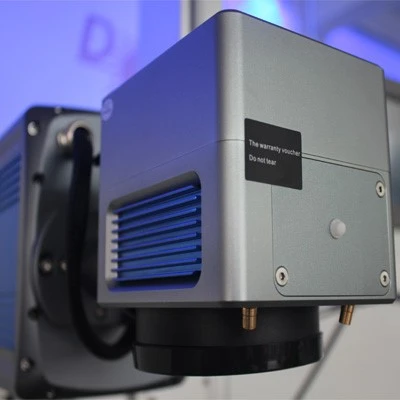

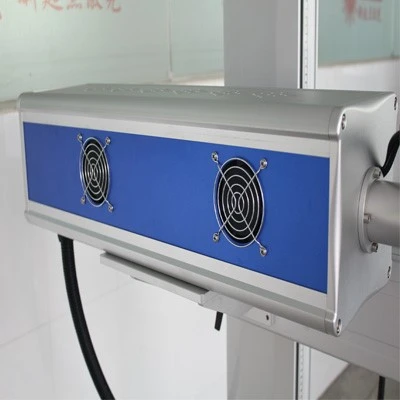

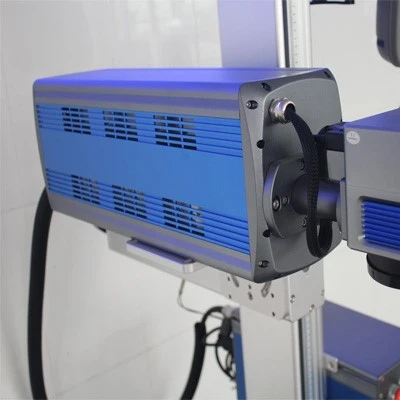

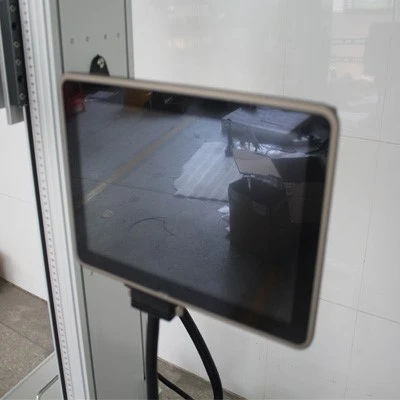

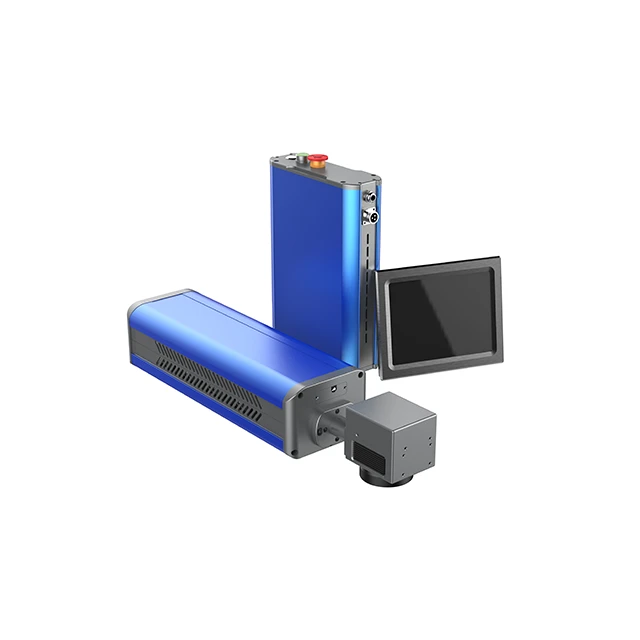

Tshuab Cheebtsam

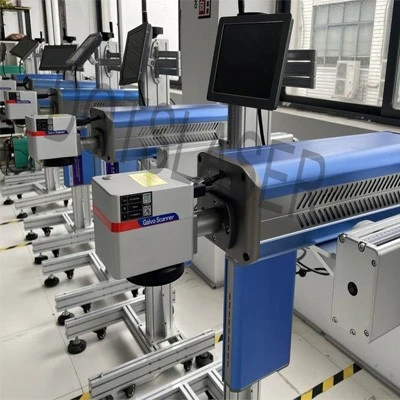

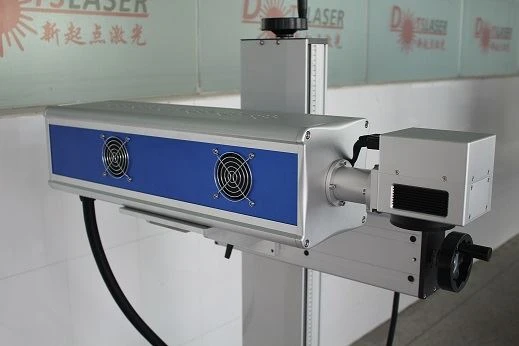

Cov qauvNtawm CO₂Flying Laser Marking

Shipping thiab pob

Dab tsi yog qhov superiority ntawm ya laser tshuab?

CO₂ya laser npav tshuab yog ib tug high-ceev nruam cim cim qauv tsim los txhim kho productivity. Nws siv COHENRENT industrial-qib hlau RF CO₂cev laser. Nws muaj cov qauv kho qhov muag zoo thiab ua haujlwm ceev ceev. Lub cim ceev ntawm cov kab ntau lawm yog mus txog 200m / min (ib leeg-kab 2MM-siab tus lej thiab cov ntawv), nws muab high-speed, high-yield daim ntawv thov txheeb xyuas cov cai, nws tsuas yog siv nyob rau hauv hnub tsim khoom, tiv thaiv cuav, kho mob. thiab ntim khoom lag luam.

Cov qauv no txhawb kev ua haujlwm xws li tsis siv neeg encoding, serial tooj, batch naj npawb, hnub tim, barcode, ob-dimensional code, tsis siv neeg tus lej hla, thiab lwm yam, kom tau raws li cov kev xav tau ntawm cov neeg siv khoom hauv kev lag luam sib txawv.
