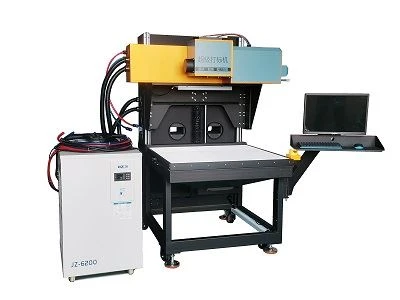

CO2 Laser Marking ntawm Acrylic khoom
CO2laser npav ntawm cov khoom acrylic
Khoom Description
CO2laser npav tshuab kos npe rau ntawm cov ntaub ntawv acrylic, nws cov cim kev cuam tshuam yog qhov tseeb thiab ruaj khov. Lub tshuab no kuj yooj yim dua rau daim ntawv lo, txheeb xyuas, thiab cov khoom lag luam, peb siv super galvonometer scanner thiab laser qhov zoo tshaj plaws. Cov txheej txheem laser npav kuj tseem yog ib puag ncig zoo, vim nws tsis tas yuav muaj tus cwj mem lossis tshuaj lom neeg uas tuaj yeem ua mob rau ib puag ncig.
Basic feature
| Ntau yam: CO2lasers tuaj yeem txiav, kos, thiab kos ntau yam ntaub ntawv, suav nrog acrylic, ntoo, iav, tawv, thiab ntaub. |
| meej: CO2lasers tsim meej, meej engravings nrog frosted dawb tiav, nws yog ua kom ua tau zoo thiab txuag tau ntau tus nqi zog. |
| Siab zoo: CO2lasers tuaj yeem tsim cov khoom zoo, kev daws teeb meem siab, cov duab ntse thiab lwm yam khoom. |

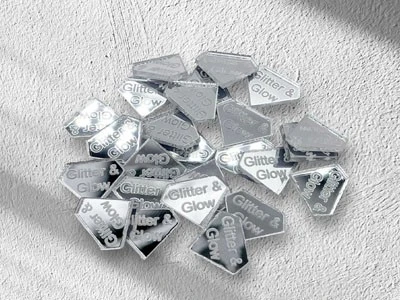

| Customizable: Laser engraving tso cai rau qib siab ntawm kev hloov kho, ua kom muaj kev tsim cov khoom tshwj xeeb, tus kheej, nws yog qhov tshwj xeeb rau koj pib kos qee yam khoom plig muaj txiaj ntsig rau koj cov phooj ywg thiab koj tsev neeg. |
| Durable: Laser npav tsim cov cim ruaj khov uas tuaj yeem muab cov khoom pov thawj thiab kev ntseeg tau. |
| Loj txaj loj: CO2lasers feem ntau muaj lub txaj loj thiab tuaj yeem ua haujlwm ntawm cov ntaub ntawv uas loj dua lub txaj ntawm lub tshuab, qhov no yog tsim rau kev tsim khoom loj. |
Parameter
|
Laser raj tsis muaj |
Max tso zis muaj peev xwm | 250W |
| Nominal Peak Pov | Ntau tshaj lossis sib npaug rau 450W | |
| Hom Zoo | M2Tsawg dua los yog sib npaug rau 1.2 | |
| Duty Cycle Limit | Tsawg dua los yog sib npaug li 70% | |
| Hom Laser | CO2 | |
| Laser wavelength | 10.6μm | |
|
Kos npe kev ua tau zoo |
Hom ntawv cim |
Qauv, Lo lus, Barcode, QRcode, Hnub tim, Serial Number |
| Kos cim hom | Qauv thiab cov lus ntawm vectordiagram & bitmap | |
| Kos thaj tsam | 400X400-700X700(mmXmm) Kho tau | |
| Kev Ntsuas Qhov tob | 0-5mm (Raws li cov ntaub ntawv) | |
| Marking Ceev | <7000mm/s | |
| Min Kab Dav | 0.3mm(Raws li cov ntaub ntawv) | |
| Min Cim | 0.4 hli | |
| Rov ua qhov tseeb qhov tseeb | 0.01 hli | |
| Tshuab ntaub ntawv | Tag Nrho Lub Zog | 6 KW |
| Fais fab mov | AC220V / 50Hz / 30A | |
| Txoj kev txias | Qhov ntsuas kub tsis tu ncua dej txias chav tsev | |
| Ua haujlwm kub | 15-30 degree | |
| Ua haujlwm av noo | <75 No condensation | |
| Ua haujlwm ib puag ncig | Tsis muaj plua plav, tsis muaj kev vibration | |
| Tshuab Packing Size | 1010 * 1340 * 1740 hli | |
| Tswj txee packing loj | 1060 * 660 * 1100 hli | |
| Chiller packing loj | 660 * 760 * 1080 hli |

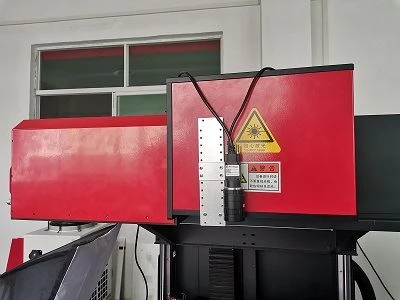

Peb Axis Dynamic CO2Laser Marking Tshuab yog dav haum rau cov kev lag luam, xws li Thaum tshav kub kub hloov zaj duab xis (paillette, TPU cov ntaub ntawv, Reflective hloov zaj duab xis, thiab lwm yam), tawv, ntoo thawv, ntawv card, khaub ncaws denim, illuminator, txawb kev sib txuas lus, pwm, precision machinery, IT Digital plhaub, Tub rog aviation Cheebtsam, handicrafts, Advertisement kho kom zoo nkauj, thiab lwm yam.
Magnifying iav thiab lo ntsiab muag:Tsis muaj dab tsi tuaj yeem piv rau lawv cov pob tshab, thiab nws pheej yig dua iav, yog li nws yog qhov kev xaiv zoo rau cov khoom siv kho qhov muag transmissive.
Kev ruaj ntseg barriers:Acrylic panels yog siv los ua lwm yam rau iav thaiv kev ruaj ntseg. Txawm li cas los xij, daim ntawv pov thawj acrylic mos txwv muaj UL kev ntsuas qis, feem ntau tsuas yog 1 txog 3. Yog tias kev tiv thaiv kev ntaus pob yog qhov tseem ceeb, lwm cov yas yuav tsum tau siv.

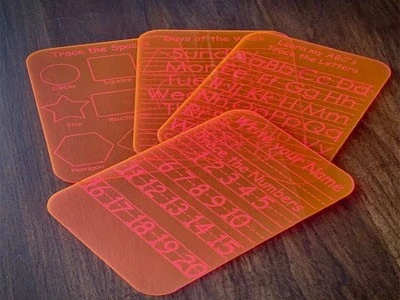

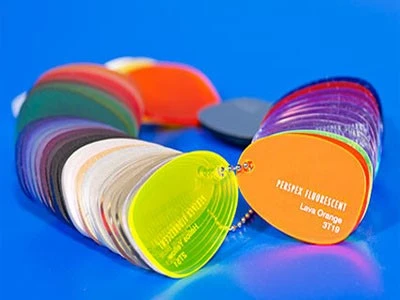

Cov cim:Acrylic blanks feem ntau yog siv los tsim cov paib, npe, cov ntawv qhia, thiab cov plaques.

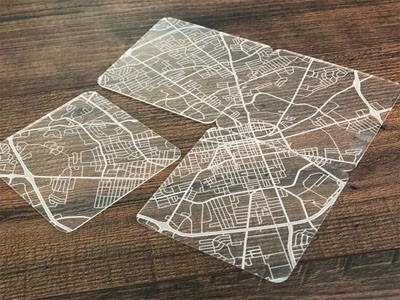

Windows:Sib nrug los ntawm lo ntsiab muag, acrylic panels kuj siv los ua qhov rais, enclosures, skylights, los yog tso tsheb hlau luam.

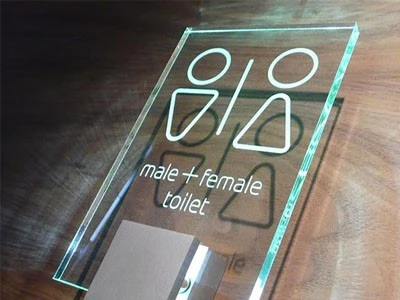

Qhia:Cov lus qhia kev cai tuaj yeem ua tiav siv acrylic raws li nws pheej yig piv rau polycarbonate thiab lwm yam yas.

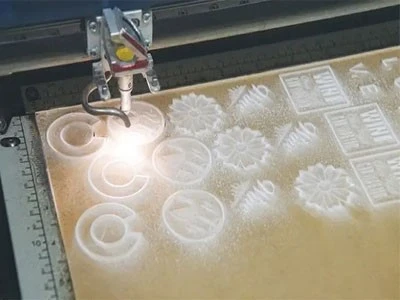

Cov qauvNtawm Laser Marking Tshuab

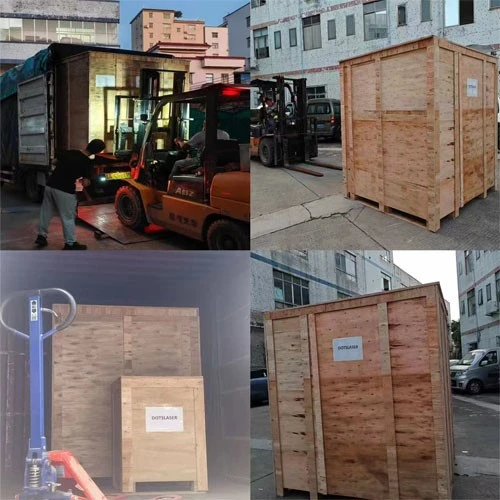

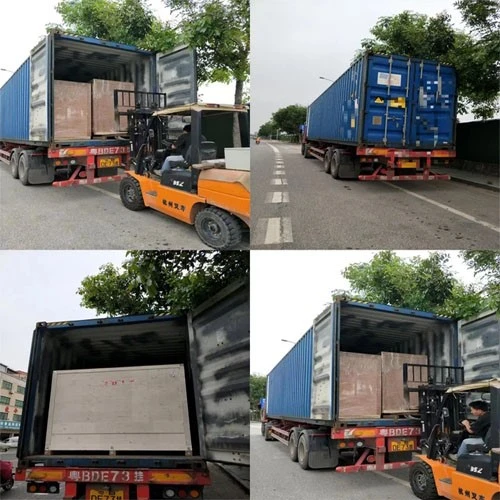

Shipping thiab pob
Unpacking ceev faj:
Txhua lub tshuab cim tau raug kuaj nruj ntawm lub Hoobkas, tsuas yog cov khoom tsim nyog rau kev xa khoom. Thaum koj tau txais cov khoom thauj, thov xyuas raws li hauv qab no. Yog tias koj muaj lus nug, thov hu rau tus neeg sawv cev lossis cov neeg ua haujlwm ntawm DOTSLASER.
● Txawm tias muaj kev puas tsuaj lossis deformation thaum thauj.
● Paub meej tias tag nrho cov khoom ntawm cov npe ntim khoom yog lawm.
● Paub meej tias tus qauv ntawm cov khoom sib xws nrog lub npe phaj (Kev ua haujlwm voltage thiab KVA tus lej).
● Xyuas kom tseeb tias tag nrho cov clamps nruj thiab tsis muaj cov khoom txawv teb chaws hauv lub cuab yeej.
● Paub meej tias cov nyees khawm ua haujlwm, cov keyboards yog qhov qub.
