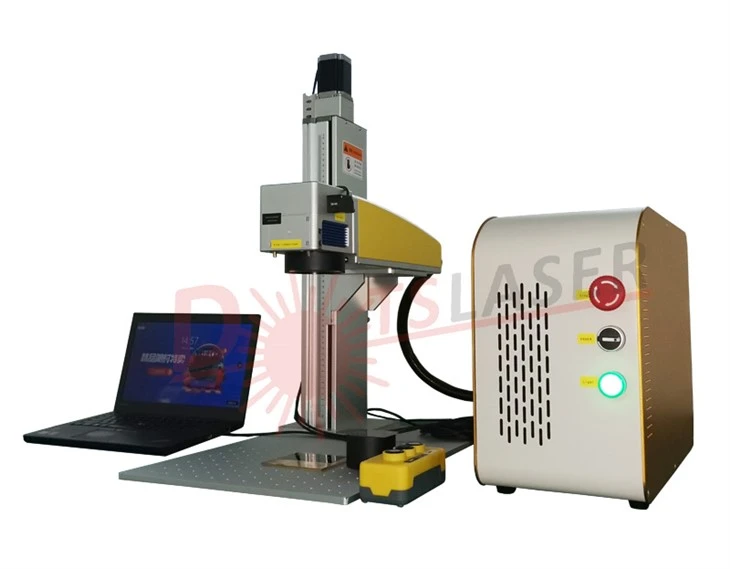

Nws pib Focus Laser Marking Tshuab
Nws pib Focus Laser Marking Tshuab
Khoom Description
Lub Auto Focus Laser Marking Tshuab yog lub xeev-ntawm-tus-kos duab laser system engineered kom xa ceev, raug, thiab zoo cim rau ntau yam ntaub ntawv. Nruab nrog cov cuab yeej ntse auto-focus thev naus laus zis, lub tshuab no kho sai sai rau kev ua haujlwm deb thiab focal point raws li cov khoom siv thiab qhov chaw raug cim, kom ntseeg tau qhov zoo tshaj plaws thiab cov txiaj ntsig. Nws yog qhov zoo tagnrho rau ntau yam kev lag luam, xws li kev tsim khoom, hluav taws xob, tsheb, aerospace, kev kho mob, thiab lwm yam.
Ntsiab nta
Intelligent Auto-Focusing System:
Lub Auto Focus Laser Marking Tshuab effortlessly adapts rau txawv deg tej yam kev mob, cov ntaub ntawv, thiab kev ua hauj lwm nyob deb, kom ntseeg tau meej thiab zoo ib yam cim.
High-Precision Marking:
Lub tshuab laser qib siab siv hauv lub tshuab no ua rau kev tsim cov ntse ntse, cov ncauj lus kom ntxaws, thiab cov cim zoo, ua tau raws li qhov yuav tsum tau ua ntawm ntau yam kev lag luam.
Wide Material Compatibility:
Lub tshuab yog tsim rau ntau yam ntaub ntawv, xws li hlau (stainless steel, aluminium, tooj liab, thiab lwm yam), ceramics, yas, ntoo, thiab iav, muab versatility thiab yooj rau ntau daim ntaub ntawv.
Rapid Marking Ceev:
Lub Auto Focus Laser Marking Tshuab ua kom cov cim nrawm nrawm yam tsis muaj kev cuam tshuam zoo, uas txhim kho kev ua haujlwm tag nrho.
User-Friendly Control Interface:
Lub intuitive tswj software simplifies lub cim txheej txheem los ntawm kev tso cai yooj yim teeb ntawm laser tsis, importing designs, thiab tswj cov txheej txheem cim.
Low Maintenance thiab High Reliability:
Lub tshuab laser qib siab siv nyob rau hauv lub tshuab no muaj cov qauv tsim muaj zog, tsis muaj kev saib xyuas yuav tsum tau ua, thiab lub neej ua haujlwm ntev, ua kom muaj kev ntseeg siab thiab ua haujlwm zoo.
Daim ntawv thov
Kev tsim khoom:Kos cov khoom, cov cuab yeej, thiab cov cuab yeej siv nrog cov lej cim, lub logo, lossis lwm yam cim cim rau kev tswj xyuas kom zoo thiab kev taug qab lub hom phiaj.
Electronics:Kev kos cov khoom siv hluav taws xob, cov rooj sib tham hauv Circuit Court, thiab cov khoom sib txuas nrog cov barcodes, QR cov lej, thiab cov lej lej rau kev txheeb xyuas thiab txheeb xyuas tau.
Automotive thiab Aerospace:Precisely marking tseem ceeb Cheebtsam, ib feem codes, thiab cov ntaub ntawv qhia txog tus kheej ntawm cov khoom rau kev ruaj ntseg zoo thiab kev tswj xyuas.
Cov cuab yeej kho mob:Etching intricate thiab meej cov cim ntawm cov cuab yeej phais, implants, thiab lwm yam khoom siv kho mob kom paub tseeb thiab traceability.
Personalization thiab Customization:Tsim cov khoom lag luam customized thiab tus kheej, cov khoom tshaj tawm, thiab khoom plig nrog cov qauv tsim tshwj xeeb thiab cov ntawv nyeem.
Lub Auto Focus Laser Marking Tshuab stands raws li ib tug ntse thiab kev daws teeb meem rau cov lag luam uas yuav tsum tau meej, high-zoo laser markings ntawm ntau yam ntaub ntawv. Kev nqis peev hauv qhov kev txiav txim siab no tuaj yeem txhim kho koj cov kev tsim khoom lag luam thiab kev ua haujlwm zoo, kom ntseeg tau tias koj nyob twj ywm kev sib tw thiab ua tau raws li ntau yam kev xav tau ntawm koj cov neeg siv khoom.
Parameters
|
Qauv |
DS-LM 20 |
DS-LM 30 |
DS-LM 50 |
Qauv: DS-LM80 |
|
Laser fais fab tso zis |
20W |
30W |
50W |
80W |
|
Engraving qhov tob |
Tsawg dua los yog sib npaug rau 0.2mm(nyob ntawm cov khoom) |
Tsawg dua los yog sib npaug rau 0.3mm(nyob ntawm cov khoom) |
Tsawg dua los yog sib npaug rau 0.5mm(nyob ntawm cov khoom) |
Tsawg dua los yog sib npaug rau 0.8mm(nyob ntawm cov khoom) |
|
laser wavelength |
1064 ± 10 nm |
|||
|
Kos thaj tsam |
100x100mm (tus qauv) / 175x175mm / 200x200mm / 300x300mm |
|||
|
Pulse zaus |
20 ~ 80KHZ / 1 ~ 600KHZ / 1 ~ 2000KHZ / 1 ~ 4000KHZ |
|||
|
Max marking ceev |
9000mm / s |
|||
|
Rov ua qhov tseeb |
± 0.001 hli |
|||
|
Min. kab dav |
0.01 hli |
|||
|
Min. cwj pwm loj |
0.2 hli |
|||
|
Txias |
Cua txias |
|||
|
Ua haujlwm temp |
10 ~ 35 degree |
|||
|
Humidity ntau |
< 70% No condensation |
|||
|
Fais fab mov |
AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz |
|||
Cov lus qhia ntxaws
Laser npav lossis engraving tau siv dav hauv kev lag luam rau ntau xyoo lawm rau kev txheeb xyuas lossis kev xav tau traceability. Nws yog ib qho txiaj ntsig kev lag luam rau ntau yam khoom siv, thermal lossis inking txheej txheem ntawm ntau cov ntaub ntawv, hlau, plastics lossis organic. Laser npav, tsis muaj kev sib cuag nrog ib feem yuav tsum tau cim, thiab muaj peev xwm ntawm finely thiab aesthetically reproducing complex daim duab (cov ntawv, logos, duab, bar codes los yog 2D lis dej num) muaj kev yooj yim ntawm kev siv thiab tsis xav tau ib tug consumable.
Yuav luag txhua yam khoom tuaj yeem raug cim nrog lub laser. Ntev npaum li qhov tseeb wavelength yog siv. Infrared (IR) feem ntau siv (1.06 microns thiab 10.6 microns) ntawm cov ntaub ntawv feem ntau. Peb kuj siv me me laser markers nrog wavelengths nyob rau hauv lub pom los yog nyob rau hauv lub ultra violet. Ntawm cov hlau, txawm tias los ntawm etching los yog nto annealing, nws muab durability thiab tsis kam mus rau acids thiab corrosion.
Ntawm cov yas, lub laser ua los ntawm foaming, lossis los ntawm cov khoom siv xim ntxiv rau cov pigments tej zaum muaj nyob rau hauv nws. Kos rau ntawm cov ntaub ntawv pob tshab kuj ua tau nrog lasers ntawm qhov tsim nyog wavelength, feem ntau yog UV lossis CO2. Ntawm cov ntaub ntawv organic, laser npav feem ntau ua thermally. Lub laser marker tseem yuav raug siv rau ntawm tag nrho cov ntaub ntawv no rau kev kos los ntawm ablation ntawm ib txheej los yog ntawm kev kho deg ntawm qhov chaw yuav tsum tau cim.

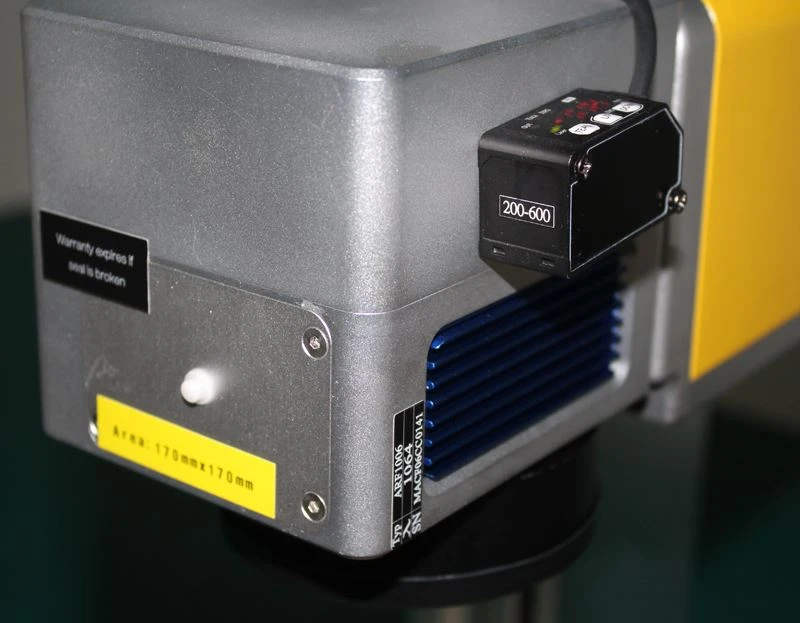

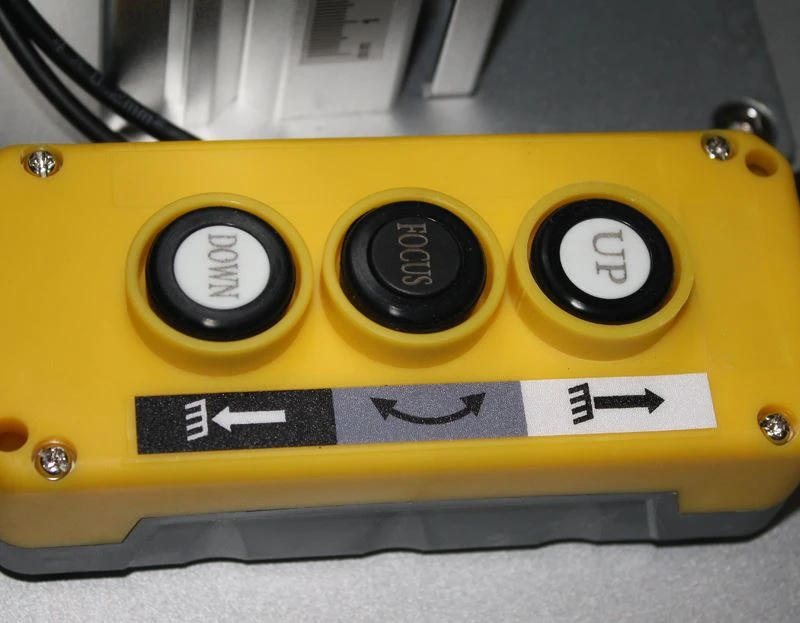

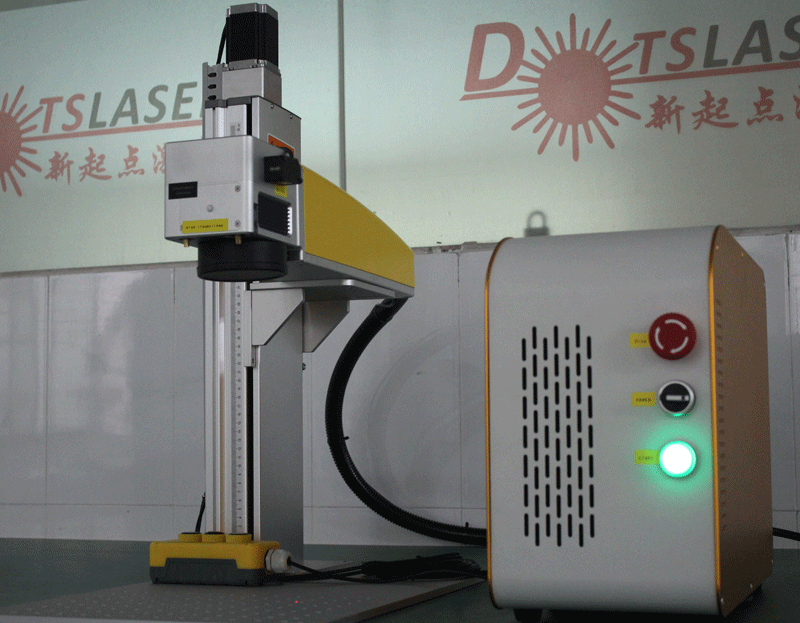

Lub autofocus muaj nuj nqi yog txawv rau lub motorized tsom. Lub motorized z axis kuj yuav tsum tau nias lub pob "up" & "down" los kho qhov ua kom pom tseeb, tab sis autofocus yuav pom qhov tseeb ntawm nws tus kheej. Vim nws muaj ib tug sensor, peb teem lub tsom ntev twb. Koj tsuas yog yuav tsum muab cov khoom tso rau ntawm lub rooj ua haujlwm, nias "Auto" khawm, tom qab ntawd nws yuav kho qhov ntev ntawm nws tus kheej.
Packing thiab Shipping
