Laser Engraved khob
Laser Engraved khob
Khoom Description

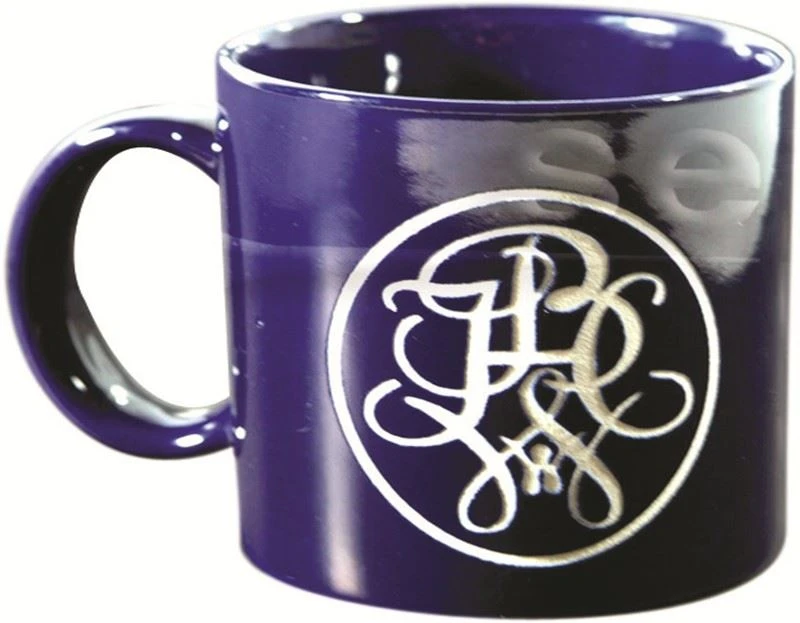

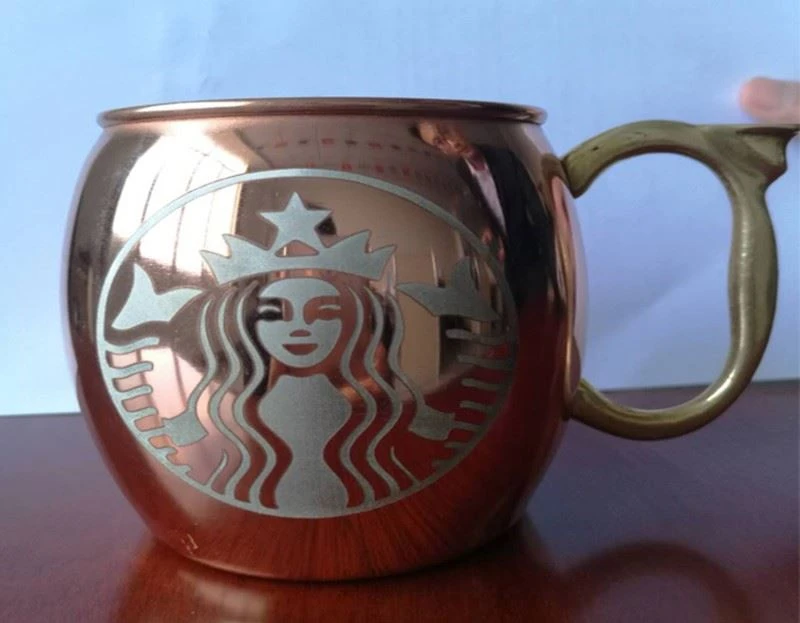

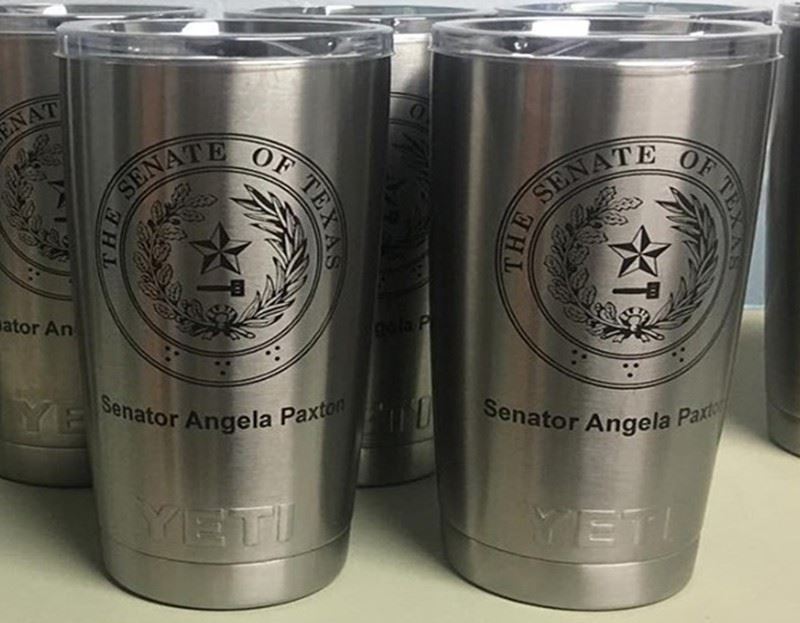

Muaj ntau hom laser engraved khob rau koj xaiv los ntawm, xws li Couple khob, me me khob, me me khob, cov neeg laus khob, portable khob, kis las khob, mugs, kas fes khob, ceramic khob, khob khob, siv lead ua khob, ntoo crafts khob, khob yas, khob goblet, khob txhuam hniav, khob qhov chaw, Lub zog khob, khob tshuaj yej, khob noj qab haus huv, khob txiv qaub, khob khoom plig, thiab lwm yam. Thiab cov ntaub ntawv engraved kuj yog optical. Nws tuaj yeem yog PVC, melamine, stainless hlau, hlau, txhuas, tooj liab, siv lead ua, iav, acrylic, Ceramic, silica gel, aluminium alloy, ntshav xuab zeb thiab lwm yam tsis yog xim hlau.
Laser engraved khob yog qhov tseeb dua thiab muaj txiaj ntsig ntau dua li kev siv tes. Qhov laj thawj tseem ceeb yog tias laser engraving yog raws li kev tswj cov lej thiab siv laser ua qhov nruab nrab.
Cov khoom siv yog lub cev yaj thiab vaporized nyob rau hauv lub laser irradiation kom ua tiav lub hom phiaj ua. Nws tsis nyob rau hauv kev sib cuag nrog cov khoom nto, uas yuav tsis cuam tshuam los ntawm kev txav mus los. Qhov saum npoo yuav tsis deformed, thiab feem ntau nws tsis tas yuav tsum tau kho. Tsis cuam tshuam los ntawm elasticity thiab yooj ntawm cov khoom, nws yooj yim rau cov ntaub ntawv mos. Qhov kev ua tiav yog siab, qhov ceev yog ceev, thiab daim ntawv thov teb yog dav.
Daim ntawv thov
Laser marking tshuab engraving tshuab ua ntau yam ntawm cov tswv yim thiab exquisite qauv los yog cov khoom, uas zoo heev txhim kho qib thiab ntxiv nqi ntawm khoom plig. Vim tias lub cim tau txais kev siv tshuab laser siab heev, tsis tas yuav tsum kov lub txiaj ntsim nrog lub laum me ntsis. Lub txiaj ntsim laser npav tuaj yeem siv rau ntau yam ntaub ntawv, nqa ntau txoj hauv kev rau kev lag luam khoom plig. Nws kuj tseem tuaj yeem txiav cov khoom plig nrog tib neeg txoj kev xav raws li cov neeg siv khoom lag luam keeb kwm yav dhau los, tshwj xeeb tshaj yog hauv cov hniav nyiaj hniav kub, cawv thiab lwm yam lag luam. Nws tuaj yeem tsis tsuas yog tswj hwm cov txiaj ntsig siab, tab sis kuj nyiam cov neeg siv khoom.
Tsis muaj
|
Qauv |

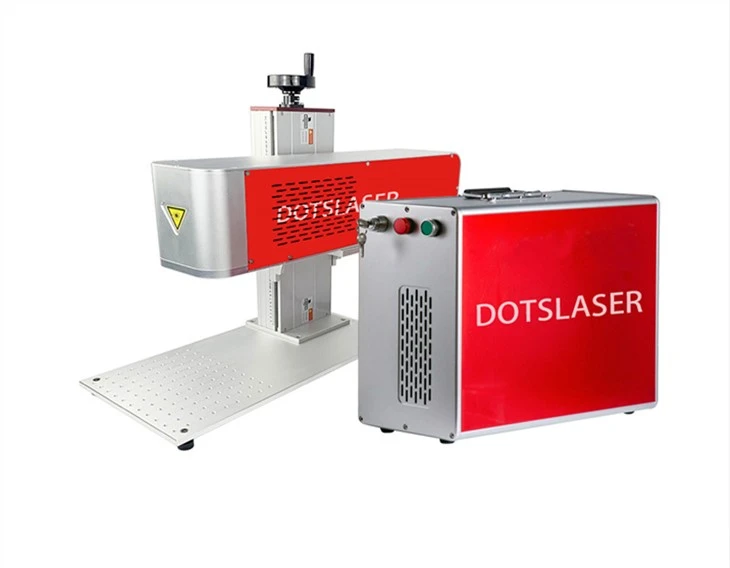

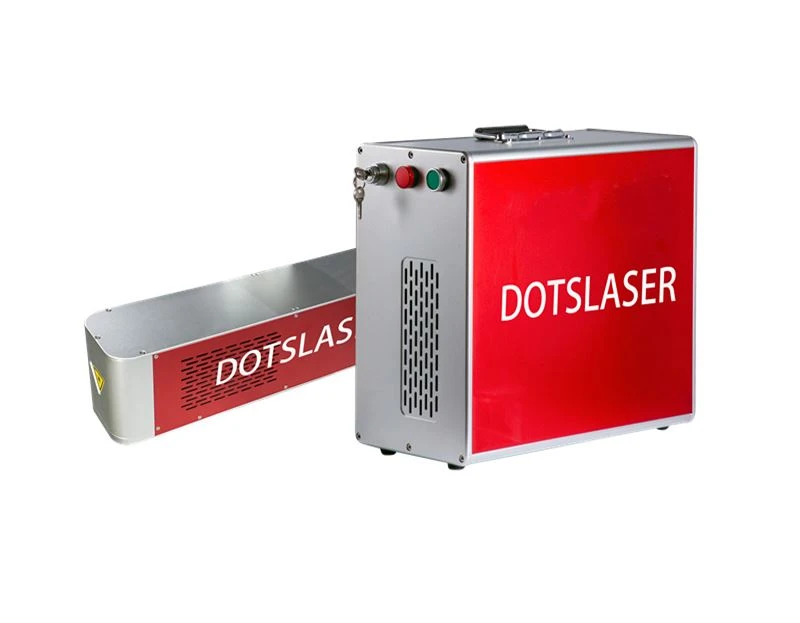

DS-LM30-3D/DS-LM60-3D/DS-LM80-3D |
|
Laser zog |
30W/60W/80W |
|
Pulse RepetitionNtau zaus |
1-1000kHz |
|
Beam quality (㎡ |
<1.6 |
|
Qhov tob ntawm engraving (nyob ntawmntawmkhoom siv) |
<5mm ua |
|
Kev siv fais fab |
Tsawg dua lossis sib npaug li 1000W |
|
Kev khiav haujlwmhluav taws xob |
Ib leegTheem AC 220V / 110V 50 / 60HZ 5A |
|
Laser wavelength |
1064nm ua |
|
Ua haujlwmcheeb tsam |
100100 × 60mm, 150 × 150 × 60mm, 200 × 200 × 60mm |
|
Repetition precision |
± 0.003mm |
|
Max engravingceev |
Tsawg dua los yog sib npaug8000 hli/s |
|
Yam tsawg kawg kab dav |
0.01 hli |
|
Kos npetxoj kev |
Nyob ruaj ruajMarking, Flying Marking, Rotary Marking |
|
Cim loj |
0 5-110mm |
|
TxiasQhov system |
CuaTxias |
|
Kev taw qhia ntawm kev txhim kho cov khoom siv |
Ib qho |
|
Cable ntawmNtev |
3m(5m yeem) |
|
Ua hauj lwm kub ntau yam |
5-38 degree |
|
Ua haujlwmCov av noo |
20%-80% |
|
Net nyhav ntawm lub tshuab |
46kg ua |
|
Dimension ntawmMainLub cev (L × W × H) |
480mm × 215mm × 450mm 700mm × 320mm × 700mm |
