Kev sib tw Fiber Laser Engraver
Kev sib twFiber Laser Engraver
Khoom Description
Peb txaus siab muab cov nqi pheej yig tsis tau ua tau zoo Fiber Laser Engraver tsim rau cov lag luam thiab cov neeg nyiam ua haujlwm nrog kev txwv nyiaj txiag. Muab cov txiaj ntsig zoo engraving rau ntau yam khoom siv, qhov kev daws teeb meem zoo tshaj plaws yog tsim nyog rau kev siv xws li kos cov hlau, yas, ceramics, thiab lwm yam.
Ntsiab nta
Nyiaj txiag-phooj ywg
Peb tus nqi pheej yig Fiber Laser Engraver tso cai rau koj kom txaus siab rau cov txiaj ntsig ntawm cov tshuab laser engraving zoo yam tsis muaj kev cuam tshuam lub txhab nyiaj.
Compact Design
Lub compact thiab txuag chaw tsim kom ntseeg tau tias tus engraver tuaj yeem haum yooj yim hauv kev cob qhia me me lossis studios, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov neeg uas muaj qhov chaw tsawg.
Yooj yim siv
Tus neeg siv-phooj ywg interface thiab software ua rau nws yooj yim rau kev tsim thiab ua haujlwm engraving, tso cai rau kev teeb tsa sai thiab sijhawm ua tiav sai.
Versatile Material Compatibility
Qhov pheej yig Fiber Laser Engraver muaj peev xwm kos thiab kos ntau yam ntaub ntawv, nrog rau cov hlau (xws li, stainless hlau, txhuas, tooj liab), yas, ceramics, thiab lwm yam.
Yooj yim thiab meej
Txawm hais tias nws tus nqi pheej yig, peb cov engraver nta high-precision laser tshuab, kom ntseeg tau cov cim thiab kos duab txawm nyob rau ntawm cov qauv tsim.
Kev kho qis
Nrog rau kev tsim kho tsawg kawg nkaus, tus nqi pheej yig Fiber Laser Engraver muaj kev ua tau zoo thiab ua haujlwm ntev, txo qhov kev xav tau ntawm kev kho nqi kim lossis kev hloov khoom siv.
Parameter ntawm pheej yig fiber ntau laser engraver
| Qauv series | Intelligent mini laser npav tshuab | ||
| Qauv | DS-LM20-E | DS-LM30-E | |
| Laser tsis | Laser qhov chaw qauv | MFP-20X/20QS | MFP-30X/30QS |
| Tso zis zog | 18.5/20W | 30W | |
| Beam zoo M2 | Tsawg dua los yog sib npaug rau 1.4 | Tsawg dua los yog sib npaug rau 1.4 | |
| Pulse repetition zaus | 27-60 KHz | 30-60 KHz | |
| Laser wavelength | 1064 ± 5 nm | ||
| Tso zis zog stability | <3% | ||
| Lub neej ua haujlwm | Txog 100,000 teev ua haujlwm (tsis yog lub neej) | ||
| Optical zog | Kos ntau yam | 100-150mm (ntau yam xaiv tau) | |
| Engraving qhov tob | Tsawg dua lossis sib npaug li 1 hli (nyob ntawm lub zog thiab lub sijhawm) | ||
| Engraving qhov tob | Tsawg dua lossis sib npaug li 10000mm / s | ||
| Rov ua qhov tseeb | ±0.002 | ||
| Yam tsawg kawg ntawm kab kab dav | 0. 1 hli | ||
| Yam tsawg kawg nkaus qhov siab | 0. 15 hli | ||
| Siv ib puag ncig | Txoj kev txias | Built-in cua txias | |
| Qhov system fais fab mov | 500W / 220V / 50Hz (110V tuaj yeem txuas tau) | ||
| Kub humidity | 0-40 degree ,30% RH 85%, cua txias yuav tsum tau muab tso rau thaum siv sab nraum qhov ntau | ||
| Roj pos huab, condensation | Tsis pub | ||
| Lwm yam tsis muaj | Kev them nyiaj yug system | Windows operating system | |
| Qhov ntev | 390 X 210 X 615 mm | ||
| Packing loj | 680 X 5500 X 270 mm | ||
| Qhov hnyav tag nrho | Txog 20 kg | ||
Daim ntawv thov:
Peb tus nqi pheej yig Fiber Laser Engraver yog qhov zoo rau cov haujlwm hauv ntau qhov kev lag luam thiab kev siv, xws li:
- Cov hniav nyiaj hniav kub thiab accessories engraving: xws li, rings, necklaces, bracelets, watches
- Cov cuab yeej thiab cov cuab yeej kos npe: piv txwv li, kos tus lej lej, logos, thiab cov cim
- Cov khoom siv hluav taws xob cov ntawv sau npe: xws li PCBs, connectors, ntaus ntawv casings
- Kev tshaj tawm thiab cov khoom siv tus kheej: xws li keychains, cwj mem, khoom plig, cim npe
- Muaj kev cim thiab traceability: piv txwv li, barcodes, QR codes, serial tooj
- Paub qhov zoo ntawm fiber ntau laser engraving tshuab thaum nyob hauv pob nyiaj siv nrog peb pheej yig Fiber Laser Engraver. Thov hu rau peb yog tias koj muaj lus nug, xav tau cov ntaub ntawv ntxiv, lossis xav teem sijhawm ua qauv qhia. Txhim khu koj cov engraving thiab cim peev xwm nrog peb cov nqi-zoo thiab cov kev daws teeb meem zoo.
DS-LM-E series pheej yig fiber ntau laser npav tshuab yog desktop hom khoom. Cov qauv no muaj cov qauv yooj yim thiab tsim tus kheej tsim, uas muaj kev ruaj ntseg siab thiab lub neej ntev. Cov khoom siv muaj qhov zoo ntawm kev lag luam thiab pheej yig, tus nqi tsim nyog (tus qauv tsis suav nrog lub khoos phis tawj), tag nrho lub tshuab hnyav tsuas yog 20kg, nws yooj yim thiab me me thiab txav tau yooj yim.
DS-LM-E series siv 1064nm wavelength fiber ntau laser qhov chaw, uas yog tsim rau engraving ntau yam ntaub ntawv hlau xws li hlau, tooj liab, txhuas, kub, nyiaj thiab tej yam uas tsis yog-hlau ntaub ntawv xws li PC, ABS, PVC, thiab PC. + ABS. Nws yog dav siv hauv 3C, nws pib qhov chaw, cov khoom siv hluav taws xob, cov khoom siv hluav taws xob sib txuas (PC), cov khoom siv hluav taws xob, cov khoom siv precision, cov khoom siv kho vajtse, cov khoom siv hauv tsev, thiab lwm yam lag luam.

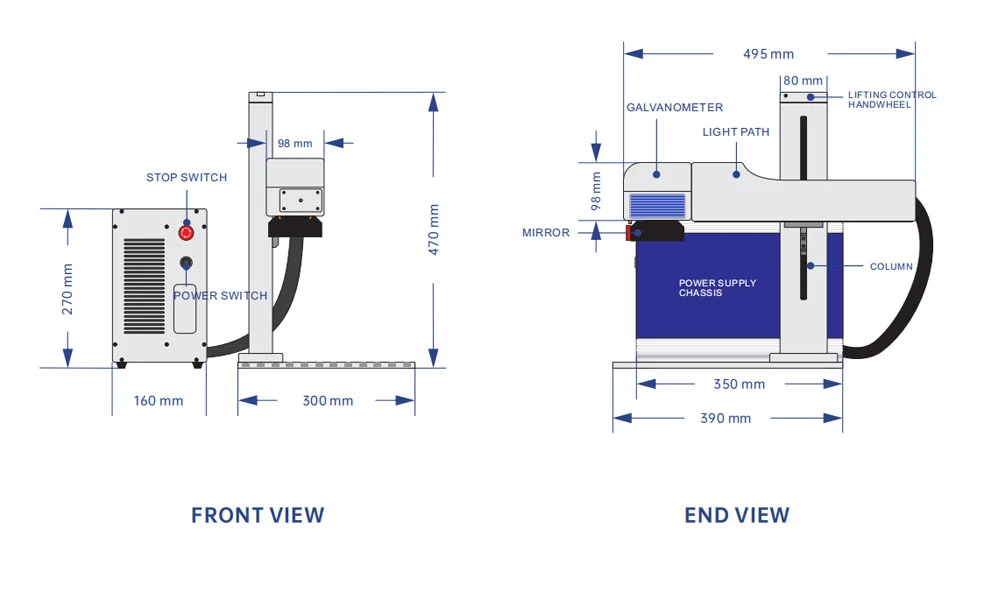

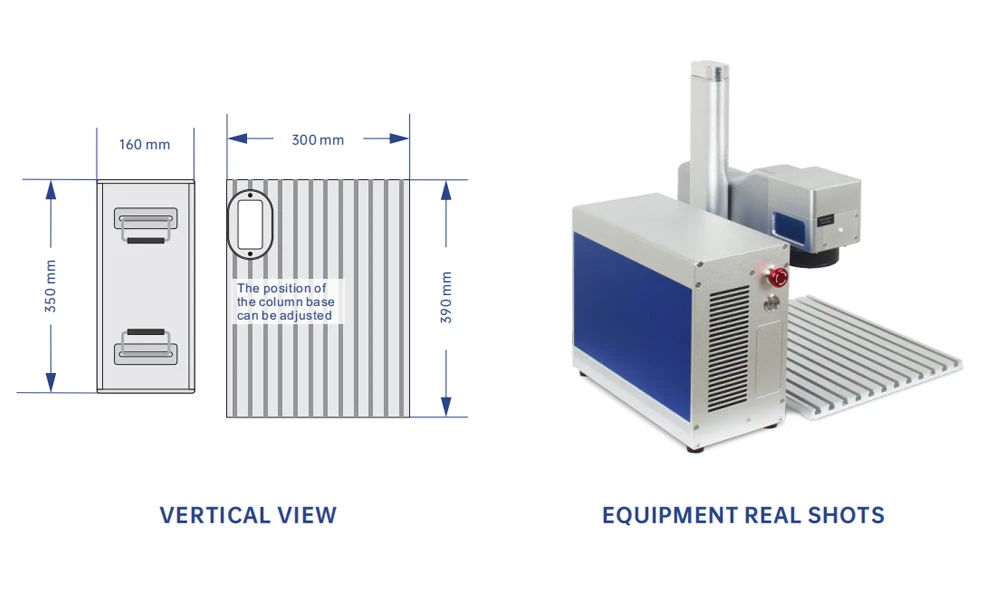

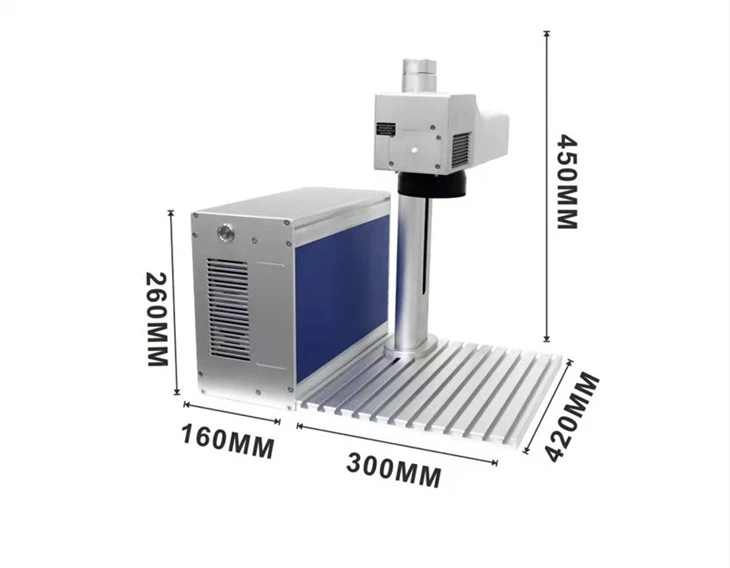

Khoom loj

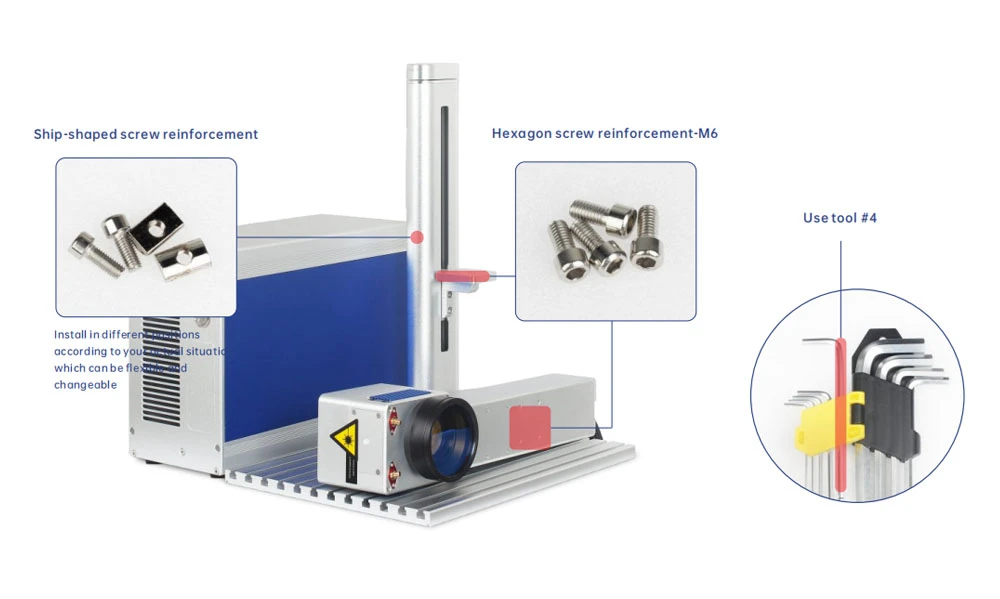

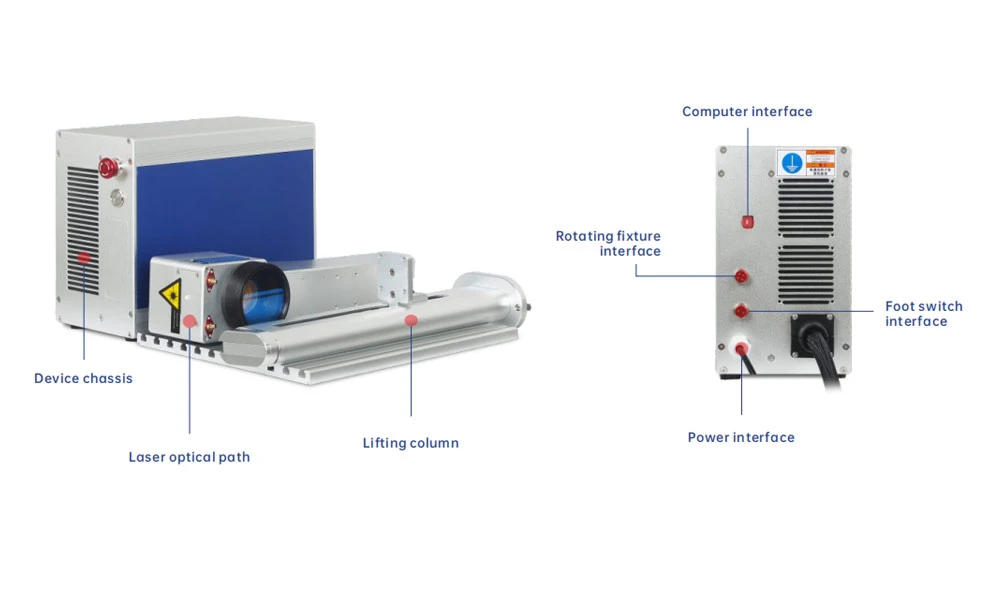

Kev teeb tsa

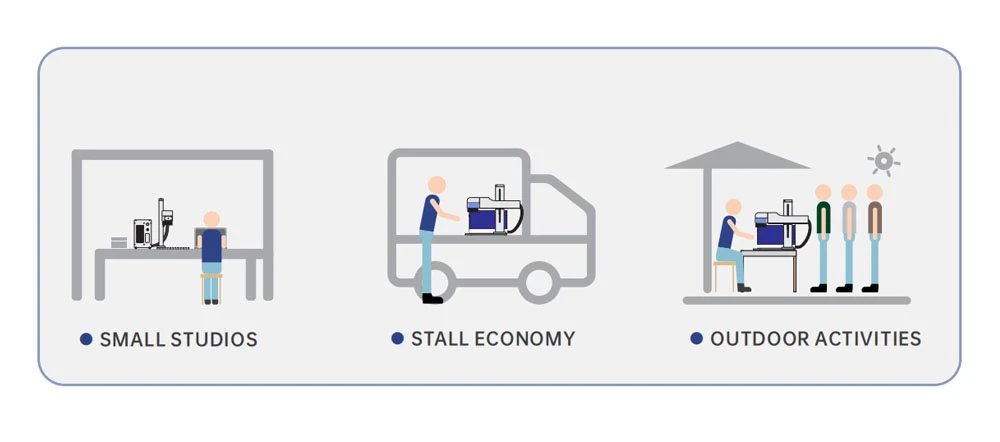

Daim ntawv thov
Kos cov qauv

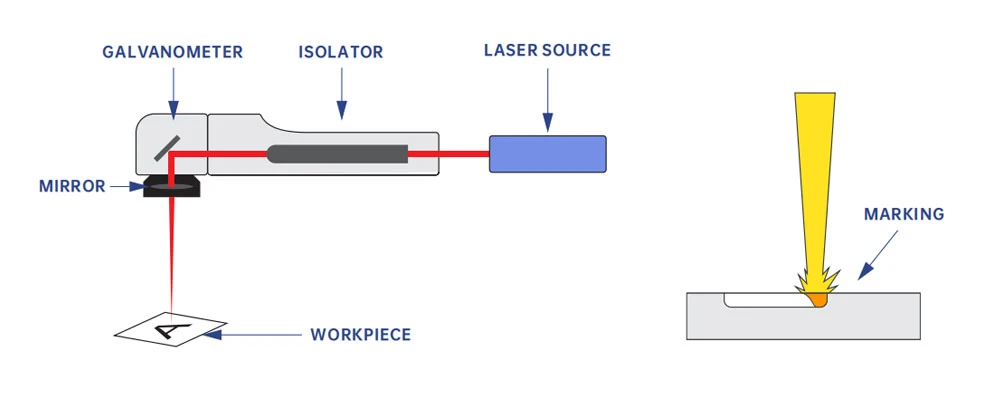

Laser txoj cai
Cov cim yog hluav taws ncaj qha rau ntawm qhov chaw nrog kev pab los ntawm lub zog pulsed laser beam los tsim qhov sib sib zog nqus sib sib zog nqus, high-contrast markings ntawm qhov chaw, ua tiav cov cim mus tas li nrog cov duab pom, thiab corrosion kuj.

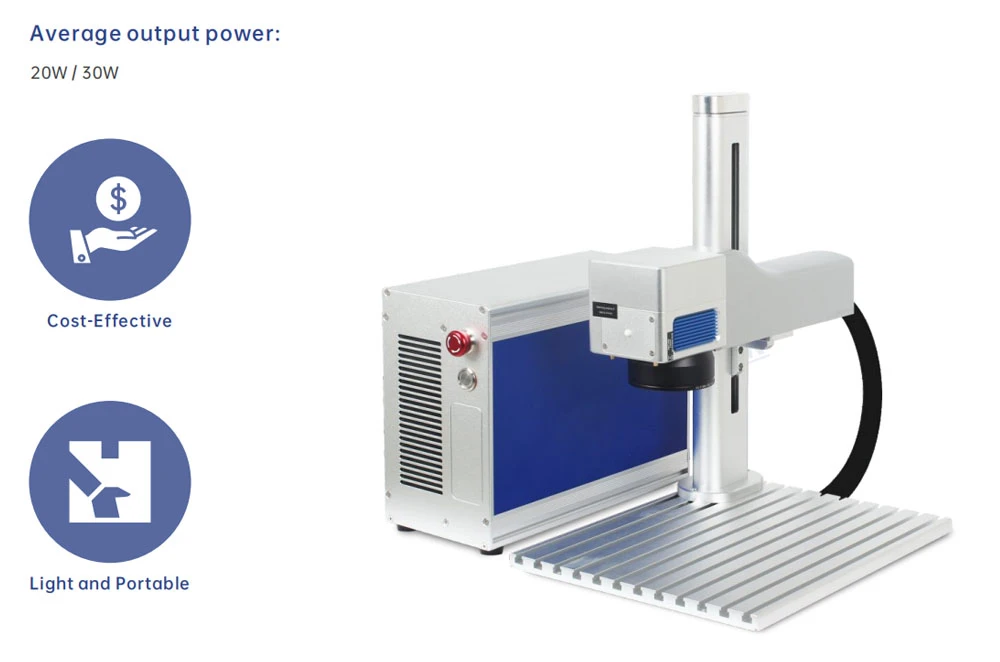

Qhov zoo ntawm kev sib tw fiber ntau laser engraver

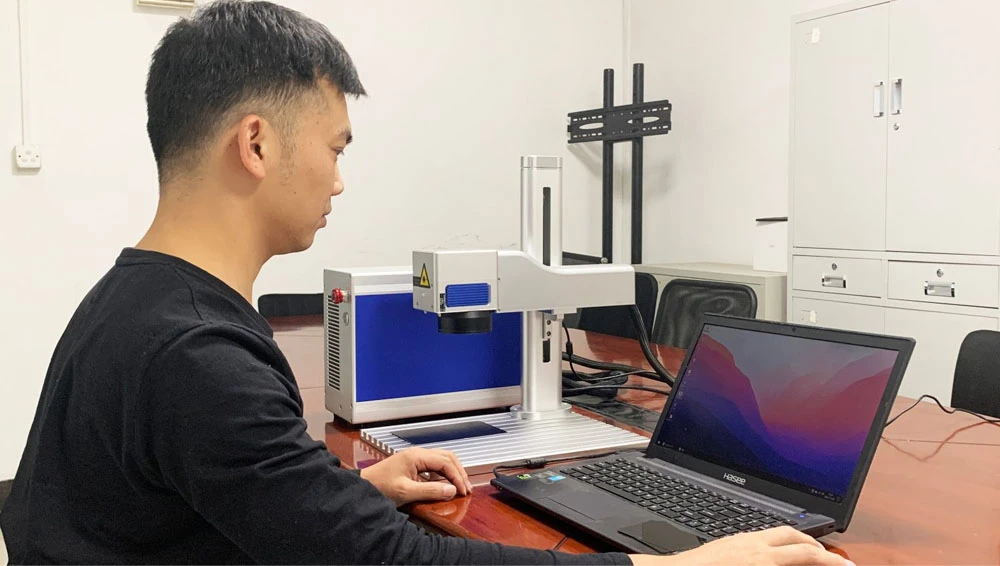

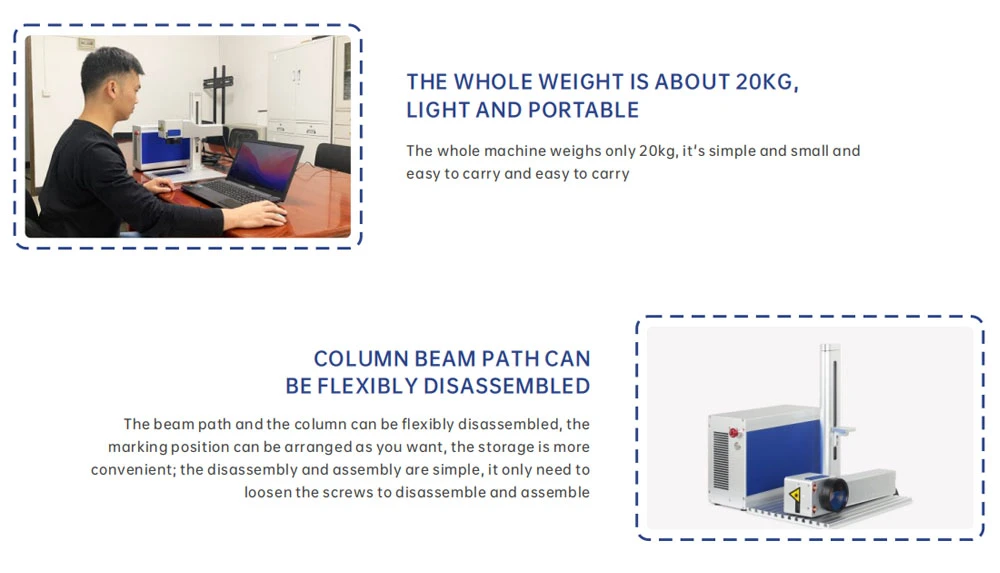

1. portable
Lub tshuab hnyav yog 20KG, nws yooj yim heev rau nqa
Txoj kev ntauwd thiab kab teeb tuaj yeem raug tshem tawm thiab ntim tau yooj yim, nws yooj yim rau nruab thiab thauj.
Txoj hauj lwm ntawm tus pej thuam tuaj yeem hloov kho dawb ntawm lub rooj, uas tuaj yeem hloov tau thiab hloov tau

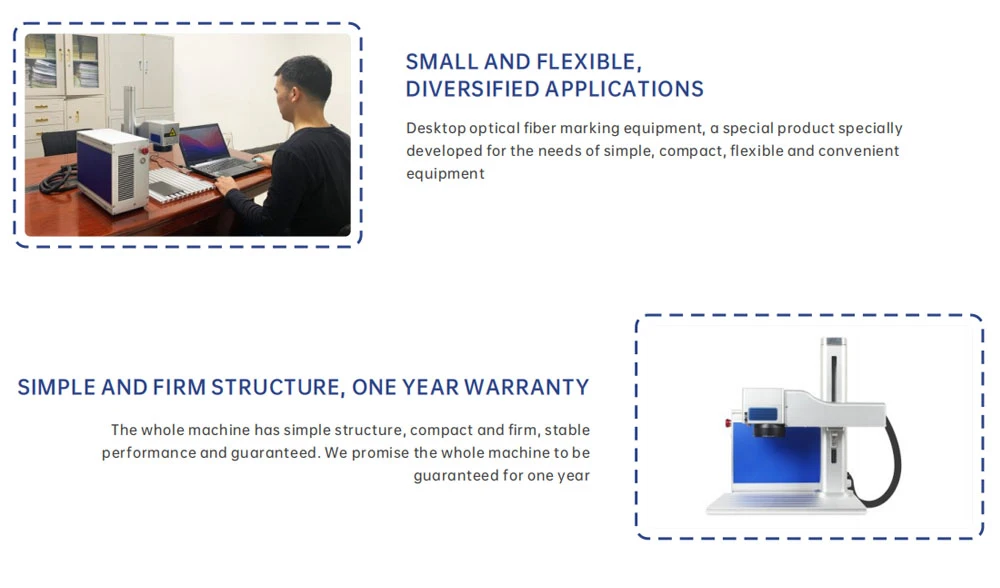

2. Tus nqi tsim nyog
Cov qauv pheej yig thiab kev lag luam, cov qauv ruaj khov, kev ua haujlwm ruaj khov, yooj yim rau kev txij nkawm.
Kev ua haujlwm desktop muaj, thaj chaw me me thiab chaw nyob.

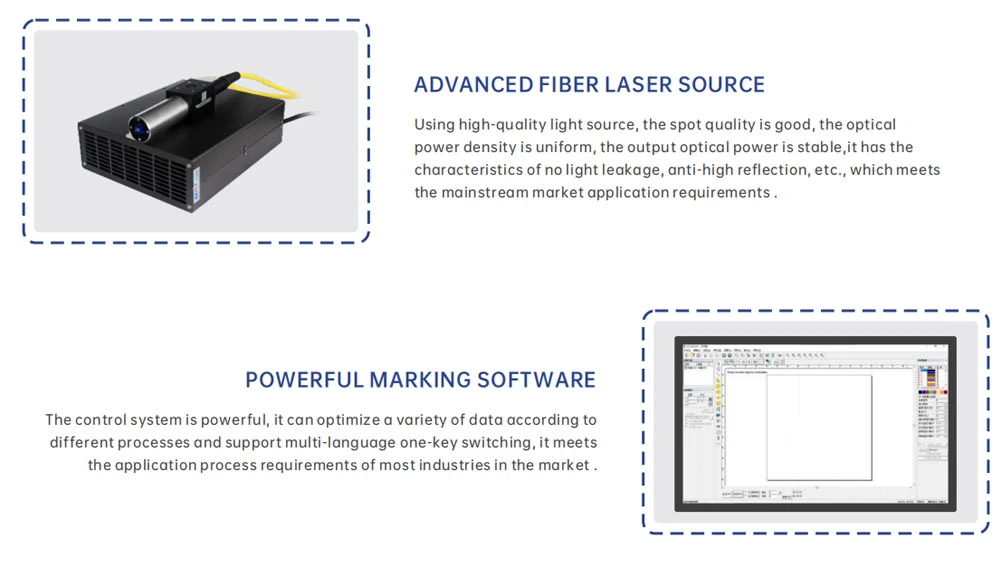

3. Zoo laser qhov chaw
Zoo tso zis beam zoo, muaj kev ntseeg siab;
Tsis muaj cov khoom siv thiab tsis muaj kev saib xyuas, lub neej ua haujlwm yog li 100, 000 teev
Siv rau cov khoom siv hlau thiab qee cov ntaub ntawv tsis yog hlau.

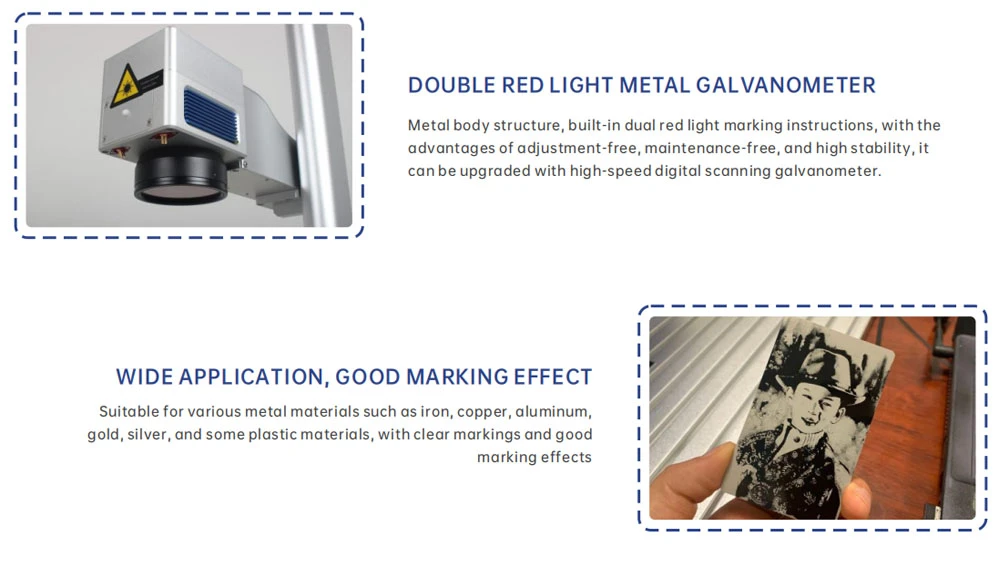

Nta thiab kev ua haujlwm ntawmkev sib twfiber ntau laser engraver
