Loj Stainless Hlau Laser Engraver
Loj Stainless Hlau Laser Engraver
Khoom Description
A Loj Stainless Hlau Laser Engraver yog lub tshuab tsim los rau engraving stainless hlau khoom ntawm ib tug loj scale los yog loj. Cov engravers no siv tshuab laser rau etch, kos, lossis kos ntau yam qauv, logos, lossis cov ntaub ntawv mus rau qhov chaw stainless hlau. Cov tshuab no tsim nyog rau ntau yam kev siv hauv kev lag luam xws li kev tsim khoom, tsheb, kev kho mob, aerospace, thiab lwm yam.
Loj stainless hlau Laser Engraver yog sib sau ua ke nrog tshwj xeeb tsim thiab tshawb fawb tswj kev pab cuam, uas muaj peev xwm tswj XY axis thiab galvo taub hau txav smoothly thiab precisely, thaum laser beam spray rau cov khoom raws li cov qauv koj tsim. Nws thaj chaw ua haujlwm yog xaiv tau, thaj chaw dav suav nrog 600x600mm, 1000x1000mm, 1300x1300mm, 1300x2500mm, ntau qhov sib txawv tuaj yeem kho.
Cov yam ntxwv tseem ceeb ntawm Loj Stainless Hlau Laser Engravers
Precision
Laser engravers muab cov kev tswj xyuas meej thiab kev daws teeb meem siab, ua kom muaj kev sib tw, nthuav dav, thiab raug engraving.
Ntau yam
Cov tshuab no tuaj yeem kos ntau yam qauv tsim, los ntawm cov ntawv nyeem thiab cov lej mus rau cov qauv, logos, thiab cov duab nyuaj.
Ceev
Laser engraving feem ntau yog ceev tshaj li phau ntawv los yog cov txheej txheem machining, txo lub sij hawm voj voog thiab nce cov khoom tsim tau.
Tsis muaj kev sib cuag
Laser engraving yog cov txheej txheem tsis sib cuag, txhais tau tias nws yuav tsis ua kom puas lossis deform cov khoom siv hlau tsis zoo thaum lub sijhawm kos npe, muab cov txiaj ntsig huv thiab zoo ib yam.
Kev kho qis
Laser engravers feem ntau muaj lub neej ntev, thiab vim lawv tsis siv cov khoom siv xws li number case lossis tshuaj, lawv yuav tsum tau saib xyuas tsawg dua li lwm txoj kev kos duab.
Yooj yim
Loj stainless hlau laser engravers tuaj yeem tuav thiab ua kom haum rau ntau qhov ntau thiab tsawg, qhov ntev, thiab cov duab ntawm cov khoom siv hlau stainless, ua rau lawv haum rau ntau daim ntawv thov
Qhov chaw zoo heev piv nrog rau lwm txoj kev, nws tuaj yeem yog 0.01mm, zoo rau engraving me me qauv thiab nrog siab precision.
Lub zog muaj zog nrog kev ua kom pom tseeb luv luv, uas yog tsim rau kev sib sib zog nqus engraving, lub zog xaiv yog 60W, 80W, 100W txawm ntau dua, qhov tsom mus deb ntawm galvo lub taub hau mus rau lub platform ib txwm tsawg dua 300mm, yog li lub laser beam raug rho tawm mus rau cov khoom 'ntes muaj zog. thiab muaj zog, daws qhov mob ntawm feem ntau thaj tsam loj engraver tsuas yog tuaj yeem ua haujlwm ntiav heev.
Tus nqi qis, kev siv hluav taws xob tag nrho yog tsawg dua 1.5KW, tshwj tsis yog siv hluav taws xob, yuav luag tsis muaj lwm yam nqi. tsis xav tau cov khoom siv.
Zoo li kev kos duab ntawm thaj chaw ua haujlwm loj, peb qhov tshwj xeeb tsim kev tswj xyuas tuaj yeem khaws XY axis nrog kev txav mus tas li, yog li cov cim laser txuas ntxiv mus rau thaj chaw ua haujlwm.
Lub kaw lus ruaj khov heev thiab koj tuaj yeem khiav nws 24h / 7d.
Technical parameters
| TSIS MUAJ. | Lub npe | Dav dav fiber ntau laser npav tshuab | |
| 1 | Tshuab qauv | DS-LM 1010-50 | DS-LM 1010-80 |
| 2 | laser zog | 50W | 80W |
| 3 | laser wavelength | 1064nm ua | 1064nm ua |
| 4 | Max ib leeg mem tes zog | 1, 25 mj | 2mj ib |
| 5 | Ntau zaus | 1-600Khz | 1-4000Khz |
| 6 | mem tes dav | 200 nsq | 2-500n |
| 7 | Laser qib | Chav Kawm 4 | Chav Kawm 4 |
| 8 | Rov ua qhov tseeb | ± 0.003mm | ± 0.003mm |
| 9 | Min. kab dav | 0.03 hli | 0.03 hli |
| 10 | Qhov loj me me | 0.35 hli | 0.35 hli |
| 11 | Max marking ceev | 8, 000mm/s | 8, 000mm/s |
| 12 | Chaw ua haujlwm | 1000x1000mm (tus qauv), ntau qhov chaw dav yog xaiv tau | |
| 13 | Txias | Cua txias | |
| 14 | Kev ua haujlwm ib puag ncig qhov kub thiab txias | 5 ~ 35 degree | |
| 15 | Humidity ntau ntawm kev ua haujlwm ib puag ncig | < 70% No condensation | |
| 16 | ua haujlwm voltage | 220V, 50/60Hz | |
Daim ntawv thov ntawm Loj Stainless Hlau Laser Engravers
| Kev tsim khoom | Engraving kev cai tsim, logos, los yog ib feem naj npawb mus rau stainless hlau Cheebtsam rau kev txheeb xyuas thiab taug qab lub hom phiaj. |
| Automotive Kev Lag Luam | Kos tus lej cim tsheb (VINs), serial tooj, lossis cov ntaub ntawv hnub tsim khoom ntawm cov hlau stainless loj thiab cov rooj sib txoos. |
| Kev lag luam kho mob | Engraving cov cuab yeej phais, kho mob cog, thiab cov khoom siv nrog tus lej cim lossis cim rau kev taug qab thiab tswj kom tsis muaj menyuam. |
| Aerospace Kev Lag Luam | Cov cim cim, xws li lub dav hlau cav qhov chaw, avionics systems, los yog cov khoom siv, nrog rau cov ntaub ntawv tseem ceeb rau kev ua raws cai thiab kev taug qab. |
| Signage thiab Architectural Design |
Laser engraving loj stainless hlau panels los yog nplooj ntawv nrog kev cai tsim, logos, los yog ntawv nyeem, uas yuav siv tau nyob rau hauv signage, kho kom zoo nkauj, los yog architectural lub hom phiaj. Of elevator vaj huam sib luag laser etching qauv. |
| Tshem tawm cov txheej ntawm tus kws kho plaub hau daim iav, daim iav hauv chav dej, daim iav chav ua noj, daim iav phab ntsa, thiab lwm yam. | |
| Sheet hlau nrog txheej lossis hlau hniav phaj kos cim ntau yam qauv. | |
| Sab nraum zoov advertising board engraving. | |
| Loj loj loj xim hlau commemorative plaque engraving | |
| Lub Loj Stainless Hlau Laser Engraver tuaj yeem yog ib qho khoom muaj nqis rau kev lag luam thiab kev lag luam uas yuav tsum tau ua kom zoo thiab raug kos rau ntawm cov khoom loj stainless hlau. Cov tshuab no muab cov txiaj ntsig zoo thaum ua kom muaj kev puas tsuaj tsawg kawg lossis deformations rau cov ntaub ntawv, ua rau lawv zoo tagnrho rau ntau yam kev siv. | |

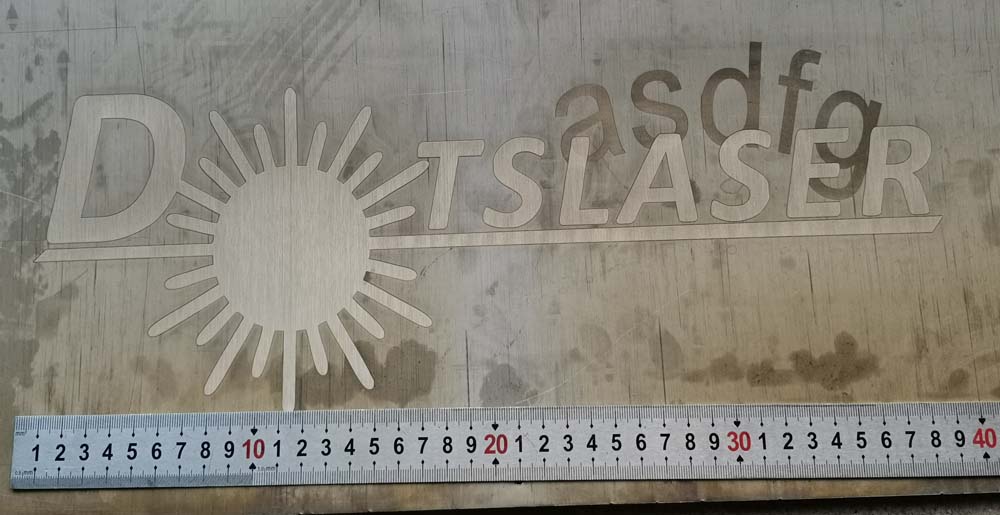

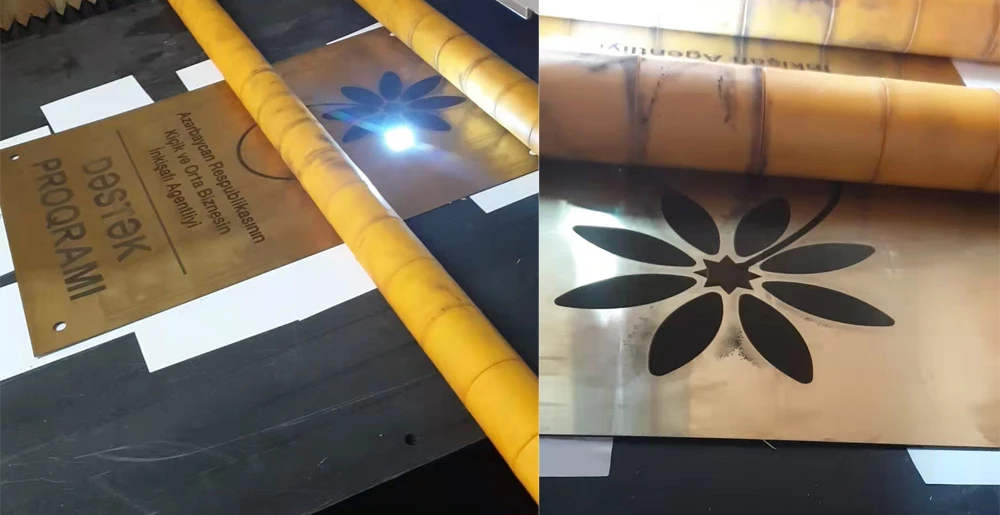

Cov qauv qhia
