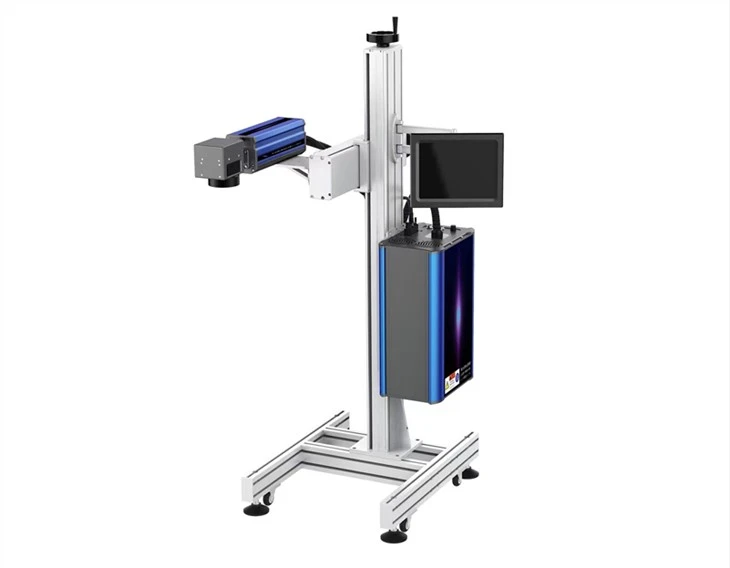

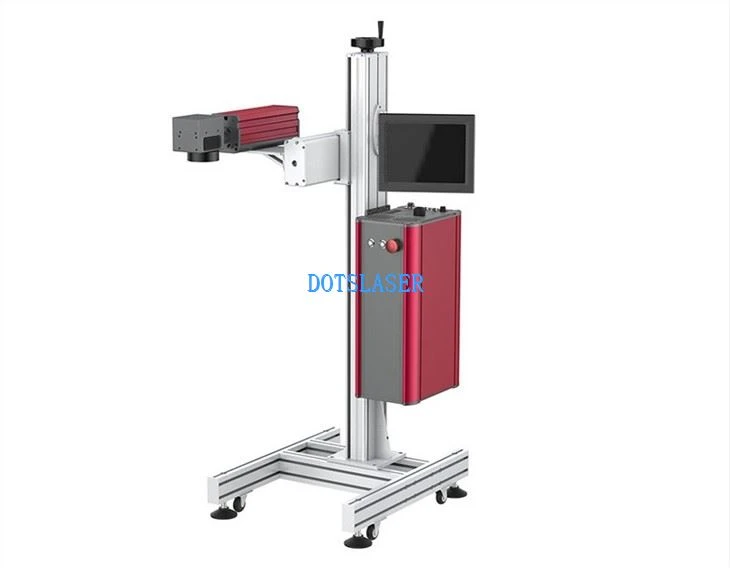

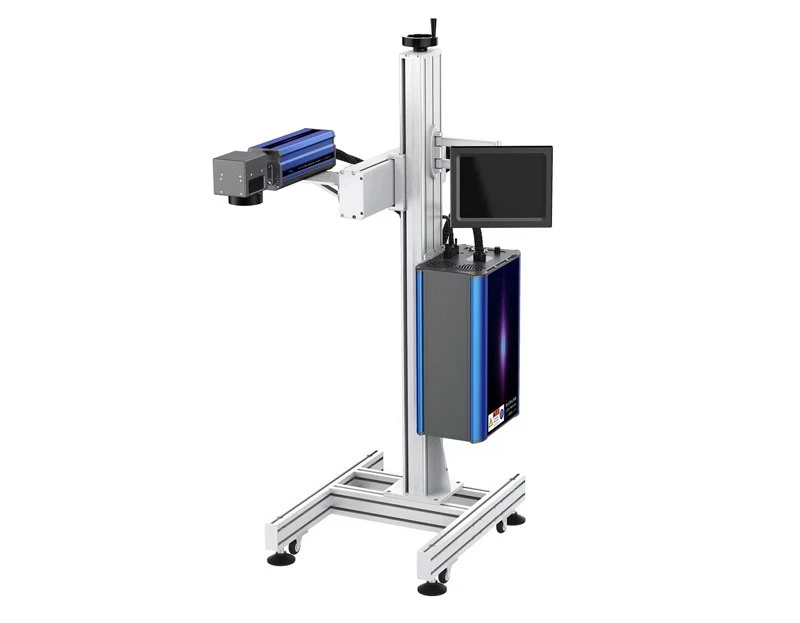

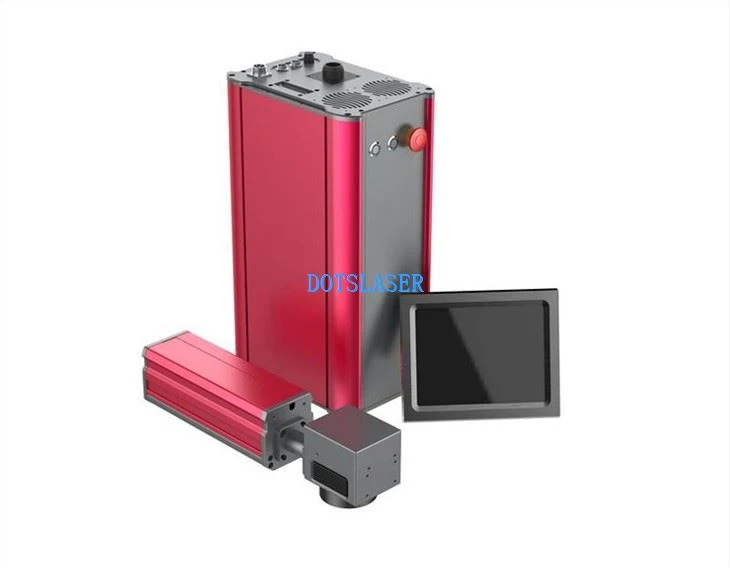

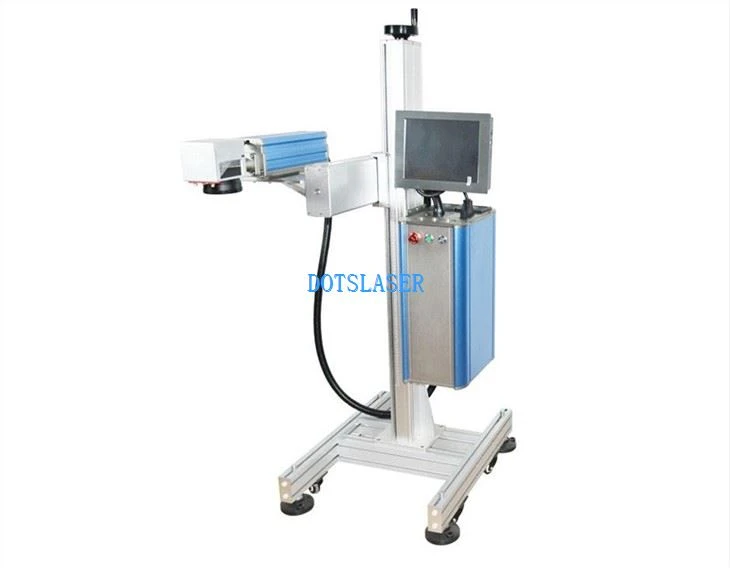

Dynamic Laser Fly Marking Tshuab
Dynamic Laser Fly Marking Tshuab
Khoom Description
Nruab nrog lub zog muaj zog laser qhov chaw thiab cov tshuab kho qhov muag siab heev, peb lub tshuab Dynamic Laser Fly Marking Tshuab muaj peev xwm tsim cov cim meej thiab zoo ib yam ntawm qhov ceev tsis txaus ntseeg. Txawm hais tias koj yuav tsum tau kos cov ntawv, logos, barcodes, lossis lwm yam duab, peb lub tshuab muaj peev xwm tuav txawm tias cov haujlwm nyuaj tshaj plaws tau yooj yim.
Nta thiab cov yam ntxwv
1.Lub dynamic laser ya marking tshuab txais fiber ntau laser qhov chaw, laser zog ceev yog nruab nrab thiab tso zis laser beam yog ruaj khov.
2.Tsis muaj laser beam to, tsis muaj kev cuam tshuam kev cuam tshuam thiab lwm yam ntxwv thaum lub laser qhov chaw raug muab tua.
3.Yuav tsis muaj duab ntxoov ntxoo thiab kev so virtual.
4.Lub digital high-speed scanning galvanometer ntawm DOTSLASER, nruab nrog me me, ceev ceev, ruaj khov zoo, thiab nws cov kev ua tau zoo tau mus txog qib siab thoob ntiaj teb.
5.Siv embedded operating system, nws cov kev ua tau zoo tshaj li domestic thiab txawv teb chaws theem, muaj zoo kov ua hauj lwm interface, thiab muaj zog tswj system.
6. Txais yuav tshwj xeeb fly marking system nrog kev ua tau zoo thiab ua haujlwm yooj yim ..
Parameters ntawm dynamic laser fly marking tshuab
| Qauv | DS-LM 20 | DS-LM 30 | DS-LM 50 | Qauv: DS-LM80 |
| Laser zog | 20W | 30W | 50W | 50W |
| Laser wavelength | 1064nm ua | |||
| Laser beam zoo | <1.3m2 | |||
| Rov ua dua | 20-200KHz | |||
| Max kab cim ceev | 9000mm / s | |||
| Kos thaj tsam | 70 * 70mm ~ 300 * 300mm | |||
| Min. kab dav | 0.03 hli | |||
| Min. cwj pwm | 0.1 hli | |||
| Txias | cua txias | |||
| Fais fab mov | 110-220V, 50/60Hz | |||
| Sib piv Cov Pros Thiab Cons |
Laser Fly Marking Tshuab |
Inkjet tshuab luam ntawv |
| Kev ua tau zoo heev, ua haujlwm hloov tau | Muaj peev xwm luam tawm ib ntus code, batch naj npawb, bar code, QR code, logo thiab cov qauv. Tus naj npawb ntawm kab thiab font loj ntawm cov lus yog txwv. |
Muaj peev xwm luam tawm bar codes, batch naj npawb thiab cov qauv yooj yim, thiab lwm yam., luam cov kab zauv.Cov kab thiab font loj ntawm cov lus yog txwv. |
| Yooj yim installation, yooj yim rau siv | Compact, lub teeb yuag chassis, me tshaj plaws thiab lub teeb laser printhead tuaj yeem ncaj qha rau hauv cov kab ntau lawm, tsim rau txhua qhov chaw tsim khoom. | Lub tshuab muaj qhov loj, tab sis tseem muaj me me, thiab qee cov qauv kuj xav tau cov khoom siv sab nraud los txuas uas tuaj yeem siv lub tshuab.Xws li cov cua compressors sab nraud. |
| Cov nqi khiav lag luam qis dua, kev saib xyuas dawb | Cov nqi khiav lag luam tsawg heev, tsis lees txais kev tsim khoom tsis tau npaj tseg, cov khoom siv tuaj yeem khaws cia dawb, tsis muaj khoom siv, tsis muaj nqi khiav haujlwm. | Lub tshuab luam ntawv inkjet siv ntau tus cwj mem thiab hnyav, khoom siv loj. Hloov lub taub hau, twj thiab lwm yam khoom siv yog kim. |
| Cov ntaub ntawv pov thawj muaj zog, tiv thaiv kev ua txhaum cai | Nruab nrog embedded davhlau system nrog cov ntaub ntawv muaj peev xwm ua tau zoo, uas tuaj yeem txuas tag nrho cov ntaub ntawv pov thawj cov ntaub ntawv, thiab cov cim yog qhov tseeb thiab ruaj khov. | Siv ib leeg-chip microcomputer tswj, cov ntaub ntawv muaj peev xwm ua tau raug txwv, tsawg dua los tiv thaiv kev ua lag luam, yooj yim rau lwv thiab hloov. |
| Kev nyab xeeb thiab ib puag ncig tus phooj ywg | Nws tsis tsim cov tshuaj phem rau ib puag ncig thiab tib neeg lub cev. Nws tau siv dav hauv kev tsim khoom noj thiab tshuaj. Raws li GB7247-87;GB10320-88 tus qauv. | Inks thiab cov kuab tshuaj yog cov tshuaj volatile heev, uas yuav tsim cov tshuaj lom neeg ntau ntxiv thiab ua paug rau ib puag ncig. |
Siv tau Industries:
1. Hluav taws xob engineering thiab hluav taws xob ib feem thiab cov khoom siv.
2. Txawb (npog, roj teeb, keyboard, iPhone case), cov ntaub ntawv yas.
3. Cov hniav nyiaj hniav kub (ntiv nplhaib, pedeant, bracelet), tsom iav, moos thiab khoom siv tes ua.
4. Cov khoom siv hauv tsev, PVC yeeb nkab.
5. Kev lag luam tsheb (lub cev muaj zog).
6. Insturment thiab meters thiab cov cuab yeej txiav.
7. kho vajtse haum thiab accessories.
8. Cov khoom siv huv huv.
9. Khoom noj khoom haus thiab dej haus.
10. Cov tshuaj pob thiab cov cuab yeej phais.
11. Hlau cim.
Cov qauv
Tom qab kev muag khoom txhawb nqa ntawm DOTSLASER
1. Peb muaj cov kws tshaj lij thoob ntiaj teb pab pawg los txhawb cov neeg koom tes thiab cov neeg siv ntawm 24/7. peb cov kws tshaj lij nrog 10 xyoo dhau los hauv laser teb. thiab hais lus Askiv zoo. koj tuaj yeem hu rau lawv ncaj qha rau txhua lo lus nug.
2. Lub warranty ntawm peb lub tshuab yog ib xyoos, laser qhov chaw ob xyoos. kev saib xyuas muaj nyob rau txhua lub sijhawm.
3. Kev cob qhia yog pub dawb, kev qhia tom qab muag tsis pub dawb, tsuas yog them nqi yog tias cov tshuab tsis muaj kev lav phib xaub thiab xav tau hloov pauv, kev pabcuam yog dawb.
4. Kev ua tsis tiav ntawm tib neeg, kev puas tsuaj ntuj tsim, quab yuam majeure yam, kev hloov pauv tsis raug cai tsis raug them los ntawm lub warranty.

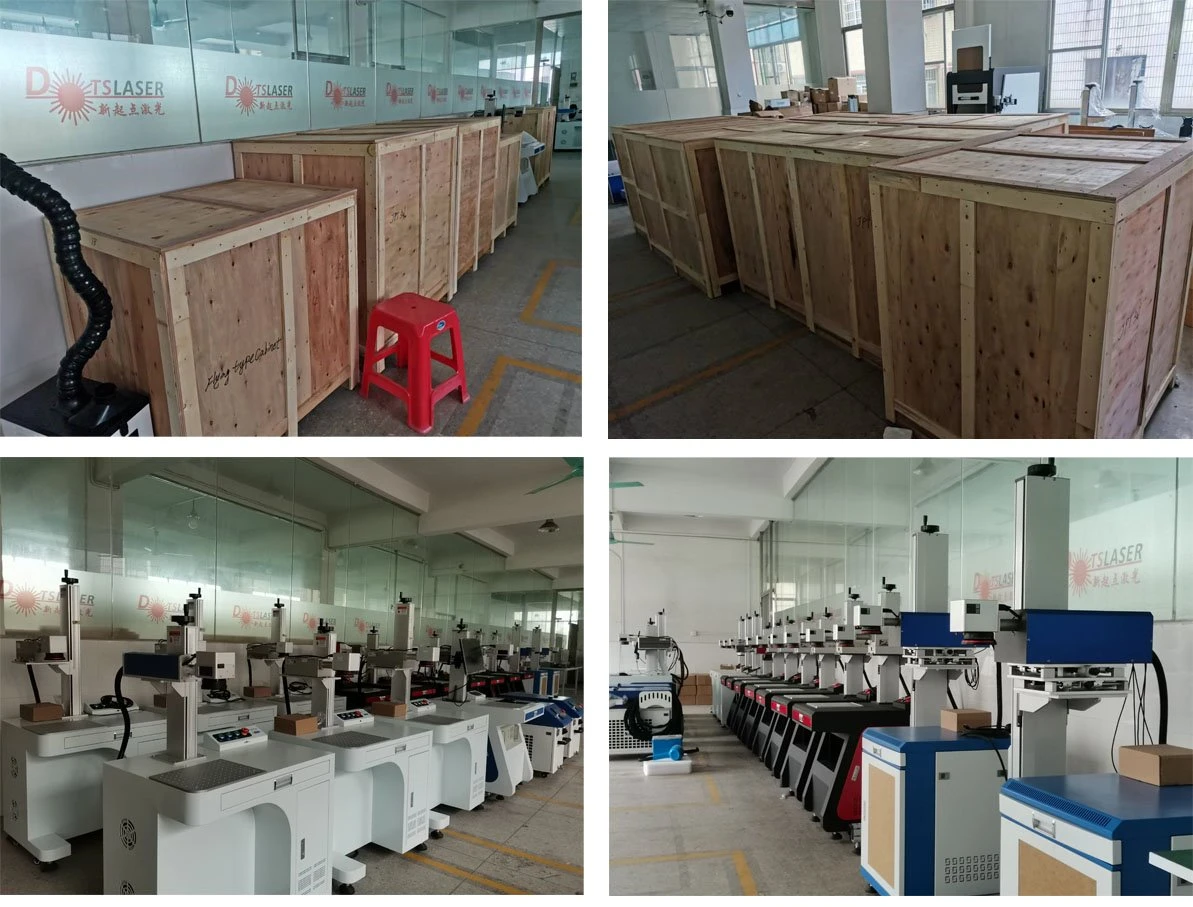

Ntim thiab xa khoom ntawm Dotslaser
| Kev ruaj ntseg zoo thiab kev pab cuam tom qab muag: Tom qab cov khoom tuaj txog ntawm qhov xav tau ntawm qhov chaw siv, tom qab kev teeb tsa thiab kev ua haujlwm tiav thiab kev lees paub ntawm tus neeg yuav khoom tsim nyog, 12 lub hlis yog lub sijhawm lav khoom. Peb muab qhov tseem ceeb heev rau kev pab cuam tom qab muag ntawm cov khoom. Thaum cov khoom raug xa mus rau cov neeg siv khoom siv, lub tuam txhab tam sim tsim cov ntaub ntawv kev pabcuam rau cov neeg siv khoom, thiab tsis tu ncua taug qab cov neeg siv khoom siv, daws thiab daws txhua yam teeb meem ntawm cov neeg siv, thiab tau txais cov neeg siv cov ntaub ntawv hais txog cov khoom siv. Cov ntaub ntawv ceeb toom tsis ua hauj lwm, lub tuam txhab pab neeg muab kev pabcuam tuaj yeem teb tau sai li ntawm ib nrab teev. |
