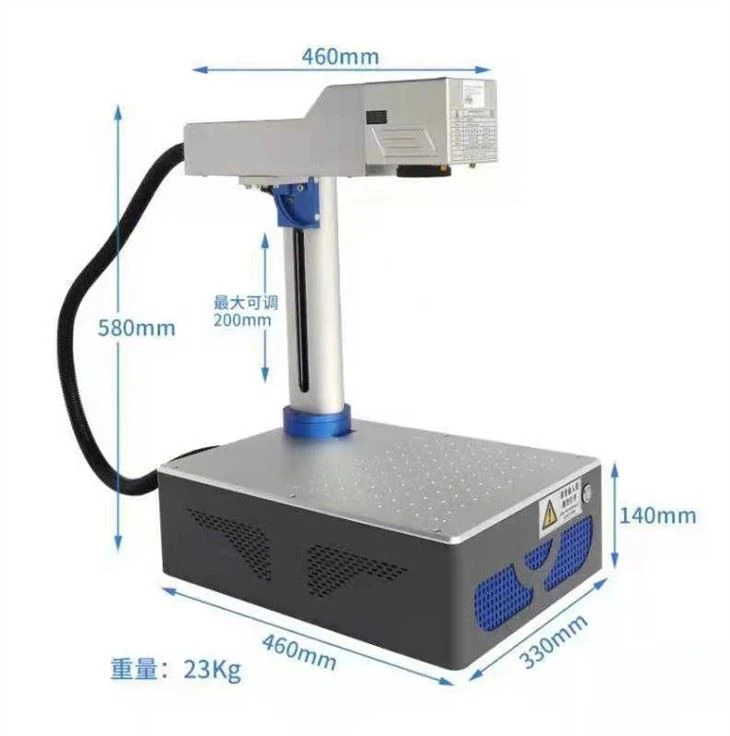

Desktop Fiber Laser Npav Tshuab
Desktop Fiber Laser Npav Tshuab
Khoom Description
Lub Desktop Fiber Laser Npav Tshuab muaj qhov siv tau zoo heev, thiab lub laser muaj kev sib raug zoo, kev siv zog siab, thiab kev ncaj ncees siab tib lub sijhawm. Tom qab lub laser yog generated los ntawm lub laser, nws yog kis tau los ntawm lub reflector thiab irradiated ntawm cov txheej txheem txheej txheem los ntawm lub tsom iav. Cov txheej txheem txheej txheem (nto) yog raug rau thermal zog thiab kub nce sharply, yog li ntawd lub point sai melts los yog vaporizes vim kub. Nws yog txuam nrog lub taub hau laser. Khiav tus khiav kom ua tiav lub hom phiaj ntawm kev ua.
Daim ntawv lo ua los ntawm Desktop Fiber Laser Marking Tshuab muaj cov nyhuv ntev thiab yuav tsis ploj mus vim kov, kua qaub thiab txo cov roj, cua sov thiab txias, thiab lwm yam.
Cov cim thiab cov cim kev hloov pauv tsis yooj yim rau kev xyaum, thiab muaj kev nyab xeeb heev rau qee yam. Nyob rau tib lub sijhawm, tsis muaj corrosion rau qhov chaw ua haujlwm, tsis muaj cov khoom siv, tsis muaj tshuaj lom, tsis muaj kuab paug. Nws tuaj yeem kos cov khoom zoo nrog cov qauv, thiab qhov tsawg kawg nkaus kab dav tuaj yeem ncav cuag 0.01mm.
Lub cim yog meej, ruaj thiab zoo nkauj. Laser npav tuaj yeem ua tau raws li qhov loj ntawm cov ntaub ntawv xav tau rau cov cim me me ntawm cov khoom yas. Lub laser beam txav ntawm kev kub ceev (txog 5 mus rau 7 m / s) nyob rau hauv kev tswj hwm lub computer, thiab cov txheej txheem kos npe tuaj yeem ua tiav hauv ob peb feeb.
Nta
Desktop Fiber Laser Npav Tshuab tuaj yeem tuav cov hlau, cov ntaub ntawv tsaus, silicon wafers thiab lwm yam ntaub ntawv. Piv nrog rau cov khoom siv tshuab engraving, tshuaj etching, tshuaj ntsuam luam ntawv, number case printing, thiab lwm yam., laser npav muaj tus nqi qis, siab yooj, thiab muaj peev xwm tswj tau lub computer system. Lub laser daim ntawv lo muaj zog permanence ntawm lub generated nto.
Tsis muaj
|
Qauv |
DS-LM 20 |
DS-LM 30 |
DS-LM 50 |
Qauv: DS-LM80 |
|
Laser fais fab tso zis |
20W |
30W |
50W |
80W |
|
Engraving qhov tob |
Tsawg dua los yog sib npaug rau 0.2mm(nyob ntawm cov khoom) |
Tsawg dua los yog sib npaug rau 0.3mm(nyob ntawm cov khoom) |
Tsawg dua los yog sib npaug rau 0.5mm(nyob ntawm cov khoom) |
Tsawg dua los yog sib npaug rau 0.8mm(nyob ntawm cov khoom) |
|
Laser wavelength |
1064 ± 10 nm |
|||
|
Kos thaj tsam |
100x100mm (tus qauv) / 175x175mm / 200x200mm |
|||
|
Pulse zaus |
20 ~ 80KHZ / 1 ~ 600KHZ / 1 ~ 2000KHZ / 1 ~ 4000KHZ |
|||
|
Max marking ceev |
8000mm / s |
|||
|
Rov ua qhov tseeb |
± 0.001 hli |
|||
|
Min. kab dav |
0.01 hli |
|||
|
Qhov loj me me |
0.2 hli |
|||
|
Txias |
Cua txias |
|||
|
Ua haujlwm temp |
10 ~ 35 degree |
|||
|
Humidity ntau |
< 70% No condensation |
|||
|
Fais fab mov |
AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz |
|||

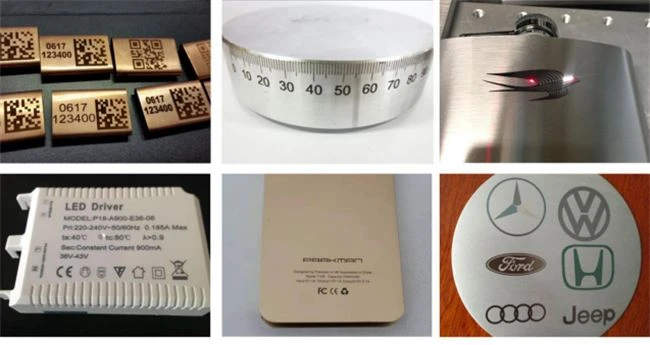

Cov qauv
Pob
DOTSLASER cog lus zoo tom qab kev muag khoom
1. Kev cob qhia tom qab muag
Lub tuam txhab tuaj yeem muab kev cob qhia dawb rau ntawm peb qhov chaw. Peb cov kws tshaj lij yuav ua kev cob qhia kev cob qhia rau tus neeg yuav khoom kom txog thaum cov neeg ua haujlwm tuaj yeem siv cov khoom siv ib txwm muaj. Cov ntsiab lus tseem ceeb ntawm kev cob qhia yog raws li nram no:
ib. Kev cob qhia software;
b. Kev cob qhia txog kev khiav hauj lwm cov txheej txheem rau kev hloov tshuab;
c. Lub ntsiab lus ntawm software lag luam interface thiab software tswj tsis tau, thiab kev cob qhia ntawm qhov kev xaiv parameter ntau yam;
d. Basic tu thiab tu lub tshuab;
e. Kev tuav ntawm cov khoom siv tsis ua haujlwm ntau;
f. Cov teeb meem uas yuav tsum tau them sai sai rau thaum lub sijhawm ua haujlwm;
g. Tsis tas li ntawd, nws tseem muab cov neeg siv nrog kev txhawb nqa kev pabcuam rau cov khoom nws tsim
2. Cov khoom siv tu
Lub tuam txhab cog lus tias:
ib. Cov cuab yeej siv tau lav rau ib xyoos pub dawb thiab khaws cia rau lub neej.
b. Kev sib tham pub dawb, kev hloov kho software thiab lwm yam kev pabcuam.
c. Muab kev pabcuam tsis tu ncua txhua ob lub hlis los kuaj xyuas lub tshuab ua haujlwm.
d. Lub sijhawm kev pabcuam neeg siv khoom yog nyob rau hauv 24 teev.
e. Kev txhawb nqa software thiab kho vajtse tseem muaj ntau tom qab lub warranty tas sij hawm.
