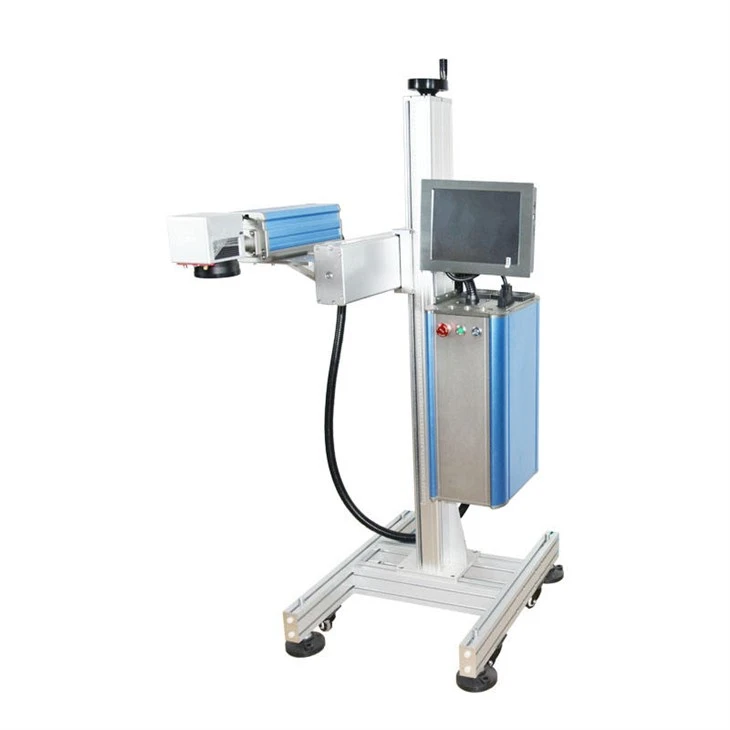

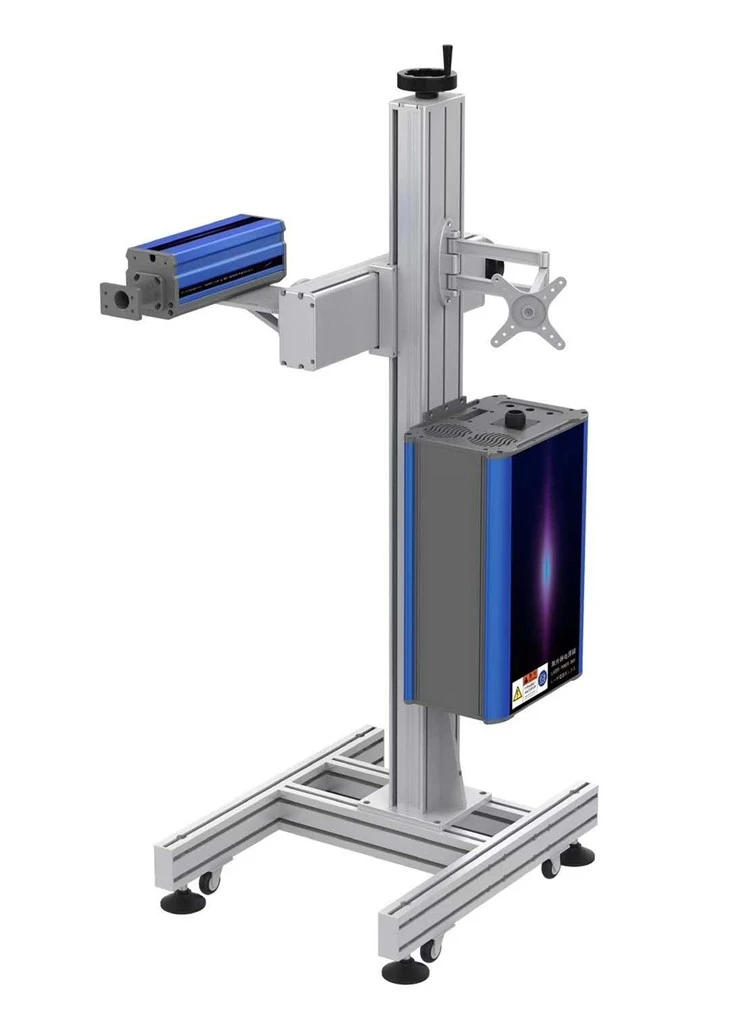

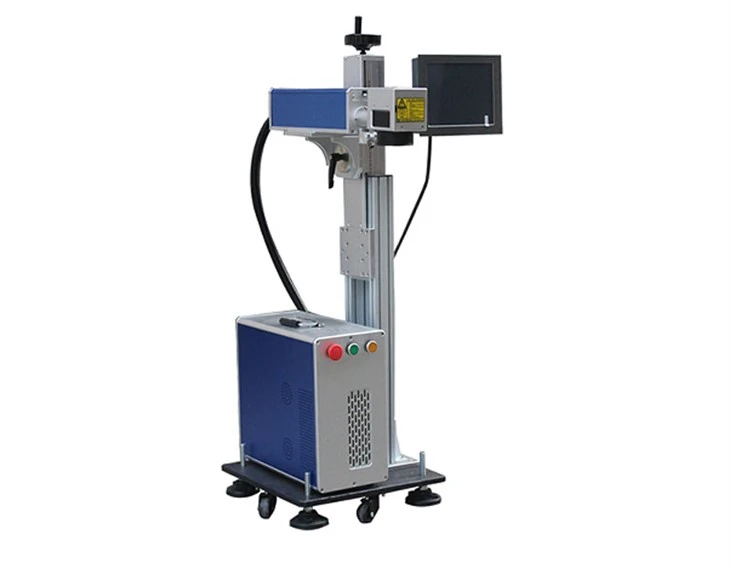

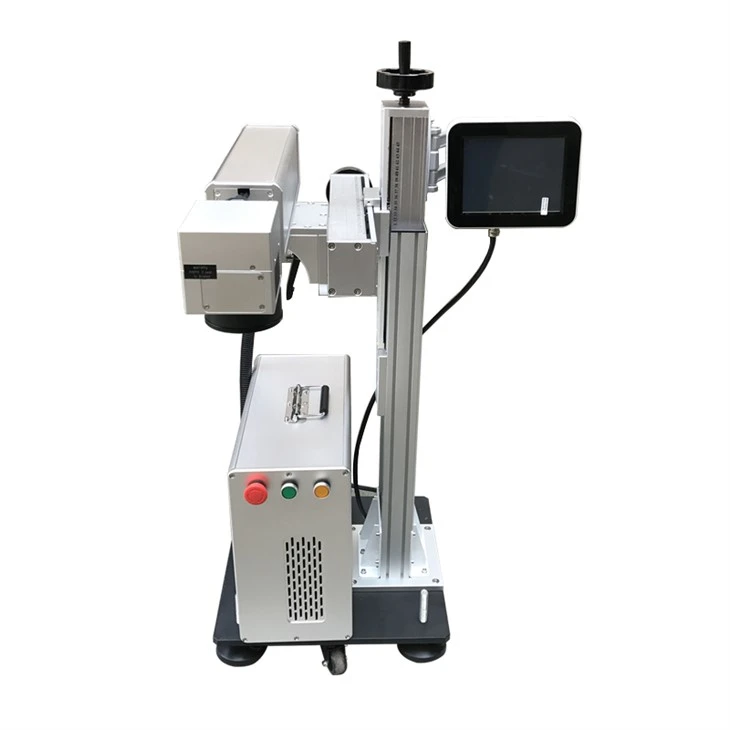

Fiber Flying Laser Marking Tshuab
Fiber ya laser npav tshuab
Khoom Description
Dotslaser fiber ntau laser tshuab yog lub tshuab hluav taws xob nrawm nrawm tsim los txhim kho cov khoom lag luam, nws tsuas yog siv rau hnub tsim khoom, tiv thaiv kev lag luam, kev kho mob thiab ntim khoom lag luam. Cov qauv no txhawb kev ua haujlwm xws li tsis siv neeg encoding, serial tooj, batch naj npawb, hnub tim, barcode, ob-dimensional code, tsis siv neeg tus lej hla, thiab lwm yam, kom tau raws li cov kev xav tau ntawm cov neeg siv khoom hauv kev lag luam sib txawv.
tshuab nta
Kev cim tau yooj yim
Fiber laser tshuab txais MAX industrial-qib siab kev ua haujlwm laser qhov chaw uas muaj kev ua haujlwm ruaj khov, kev ua haujlwm ceev ceev thiab cov cim ceev ntawm
Ntau yam
Fiber ya laser tshuab yog tsim rau kev kos npe online ntawm cov ntaub ntawv hlau feem ntau thiab qee cov ntaub ntawv tsis yog xim hlau nrog cov khoom siv hlau, PVC, HDPE, txhuas zaj duab xis, roj hmab thiab yas. Nws yog dav siv hauv kev tsim cov khoom tu tus kheej, ntim khoom noj thiab dej haus, cawv, khoom siv hluav taws xob, thiab lwm yam,.
Parameter
| Laser wavelength | 1064±5 |
| Tso zis zog stability | ＜3% |
| Ua hauj lwm lub neej |
Txog 100,000cov sijhawm ua haujlwm (tsis yog lub neej) |
| Kos ntau yam |
100-300mm(ntau yam xaiv tau) |
| Engraving qhov tob |
Tsawg dua lossis sib npaug li 1 hli (nyob ntawm lub zog thiab sijhawm) |
| Engraving ceev |
Tsawg dua lossis sib npaug li 10000mm / s |
| Rov ua qhov tseeb |
±0.002 |
| Yam tsawg kawg ntawm kab kab dav |
0.1 hli |
| Yam tsawg kawg nkaus qhov siab |
0.15 hli |
| Txoj kev txias |
Built-in cua txias |
| Qhov system fais fab mov |
500W / 220V / 50Hz (110Vcanbeconnected) |
| Kub humidity |
0 ~ 40 degree, 30% RH85%, cua txias yuav tsum tau nruab thaum siv sab nraud |
| Roj pos huab condensation |
Tsis pub |
| Kev khiav haujlwm |
Fly tswj system |
| Cov ntaub ntawv hom |
Lub software txhawb cov ntawv nyeem, QR code, barcode, serial tooj, graphics thiab lwm yam ntsiab lus cim |
| Qhov ntev |
660 X 510 X 1460 mm |
| Tag nrho qhov hnyav | Txog 66KG |
Siv tau kev lag luam:

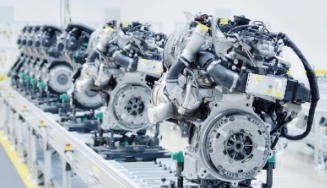

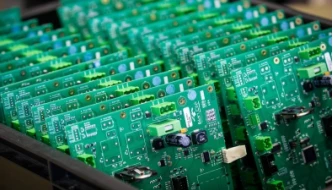

Cov khoom siv hluav taws xob thiab
khoom siv hluav taws xob

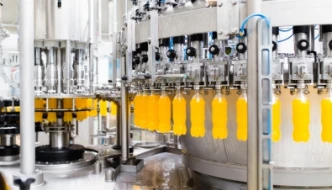

Khoom noj khoom haus thiab dej haus thiab
ceev ceev txav cov khoom siv

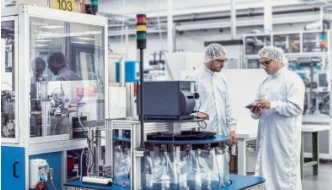

Tshuaj pleev ib ce, tus kheej thiab
Cov khoom tu tsev
Product details

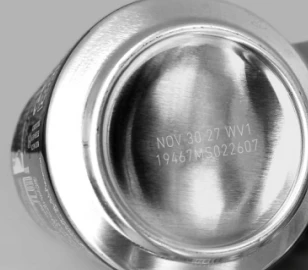

Marking ceev txog 200 Meters ib feeb
Qhov no yog qhov kev lag luam ceev tshaj plaws laser coding system, nrog rau cov cim
ceev txog li 200 m / min (ib kab ntawm 2MM-siab tus lej thiab cov ntawv),
uas yuav siv tau nyob rau hauv nruab nrab-ceev los yog high-ceev ntau lawm kab.

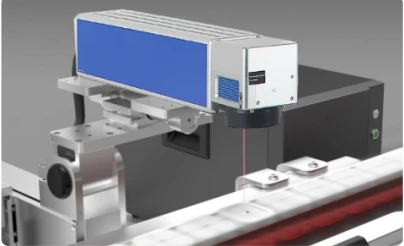

Txhim khu kev ntseeg thiab ruaj khov Fiber Laser Source
Nws txais MAX zoo fiber ntau laser lub teeb qhov chaw, uas yog nyob rau hauv lub teeb laser
Lub Zog Hluav Taws Xob thiab tsom cov nqaj muaj teeb ua tiav zoo dua lub logo zoo dua
thiab lub neej ua haujlwm ntawm lub laser tuaj yeem ncav cuag 100, 000 teev

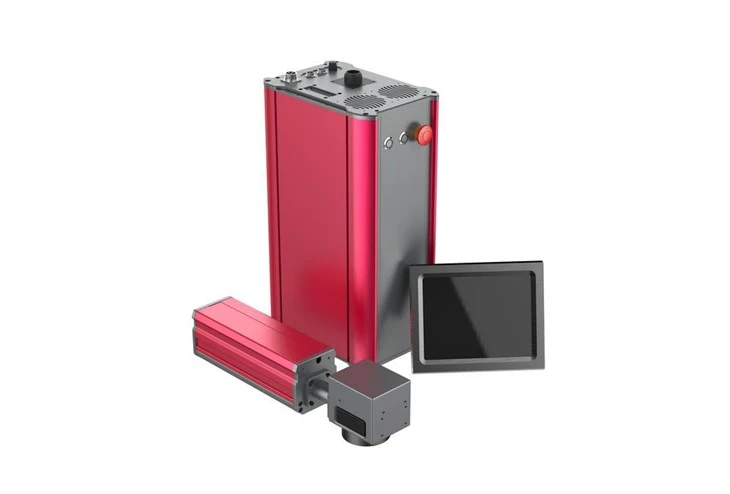

Compact Design Thiab Flexible Configuration
Cov qauv no siv lub tshuab luam ntawv compact laser npav lub taub hau kom ua tau yooj yim
kev koom ua ke los txo cov nqi installation thiab txhim kho qhov chaw yooj yim.
Yooj Yim Txhim Kho Txoj Kev, Yooj Yim Txhim Kho Txoj Haujlwm Kho
Cov qauv ya yog tsim tshwj xeeb rau cov kab ntau lawm,
uas tuaj yeem ua ke nrog cov kab ntau lawm rau kev teeb tsa

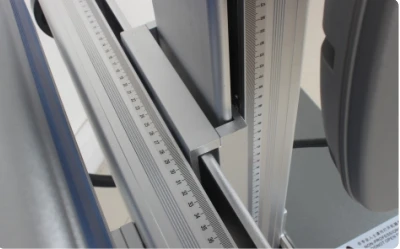

thiab siv. Lub thav duab tuaj yeem txav tau nce thiab nqis thiab sab laug thiab sab xis mus
kho, lub taub hau cim kuj tuaj yeem tig 360 degree rau kev kos.
Kev kho txhua hnub ntawm Fiber Laser Machine:
Kev tuav koj lub tshuab fiber ntau laser yog qhov tseem ceeb hauv kev ncua nws txoj sia thiab ua kom nws ua haujlwm ntawm qhov ua tau zoo.
1. Kev tu tsis tu ncua
Kev ntxuav cov plua plav ntawm lub tshuab yog tias muaj kev puas tsuaj rau lub tshuab sab hauv, uas tuaj yeem cuam tshuam nws txoj haujlwm. Los ntawm kev tu lub tshuab sab nrauv thiab lub lens tsom, koj ua kom pom tseeb, meej cov cim txhua zaus.
2. Kev soj ntsuam tas li
Tshawb xyuas lub tshuab tsis tu ncua kom paub cov cim ntawm hnav lossis muaj teeb meem tshwm sim. Nco ntsoov qhov xwm txheej ntawm cov kab hluav taws xob, kev sib dhos ntawm lub laser, thiab kev ua haujlwm ntawm cov cua txias. Yog tias lub tshuab yog dej txias, xyuas kom paub tseeb tias koj hloov cov dej rau cov dej txias. Kev kuaj xyuas tsis tu ncua yog tsim nyog los ntes cov teeb meem ntxov thiab zam teeb meem loj dua.
3. Kev ua haujlwm zoo ib puag ncig
Muab koj lub tshuab fiber ntau laser tso rau hauv ib puag ncig nrog qhov kub thiab txias thiab muaj plua plav tsawg. Cov xwm txheej hnyav tuaj yeem cuam tshuam rau lub tshuab ua haujlwm thiab tuaj yeem ua rau muaj kev puas tsuaj tsis tsim nyog.
4. Kev hloov kho software
Khaws koj lub tshuab software tshiab kom paub tseeb tias koj tau txais txiaj ntsig los ntawm cov yam ntxwv tshiab thiab kev txhim kho tshiab. Kev hloov tshiab tsis tu ncua tuaj yeem txhim kho lub tshuab kev ua haujlwm thiab cov neeg siv kev paub.
5. Kev cob qhia neeg siv
Xyuas kom txhua tus neeg ua haujlwm lub tshuab raug cob qhia kom raug. Kev nkag siab txog kev siv lub tshuab fiber ntau laser kom raug txo qis kev pheej hmoo ntawm kev puas tsuaj thiab txhim kho kev ua haujlwm tag nrho.
