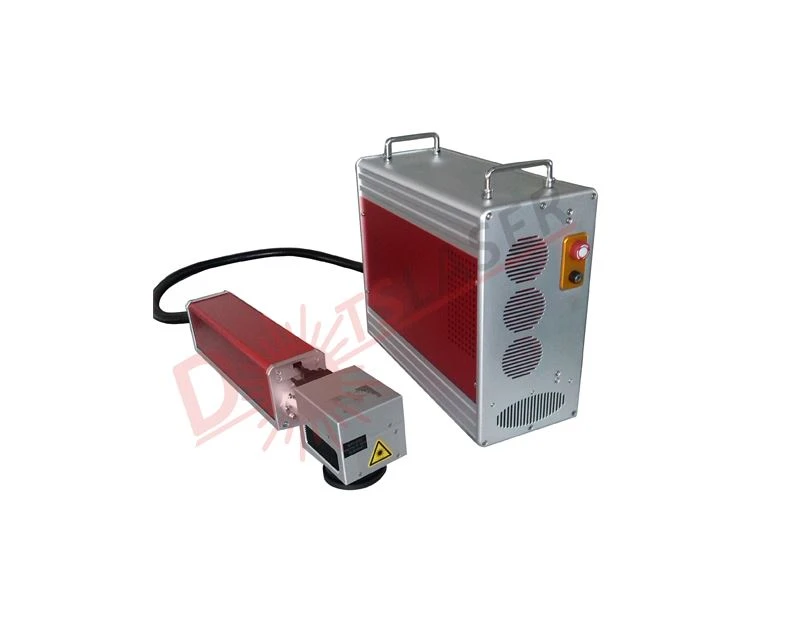

Laser Engraver Portable
Laser Engraver Portable
Khoom Description
Portable laser engravers yog compact, hnav, thiab yooj yim-rau- nqa laser npav tshuab. Cov cuab yeej no muab kev yooj yim ntawm kev nqa cov peev txheej engraving ntawm-tus-mus thiab zoo meej rau cov lag luam me, DIY enthusiasts, thiab artists uas xav tau ib tug saj zawg zog thiab ntau yam engraving cuab yeej.
Cov yam ntxwv tseem ceeb ntawm portable laser engravers
Compact tsim
Lub teeb yuag thiab yooj yim rau kev thauj mus los, lawv tuaj yeem siv rau ntau qhov chaw yam tsis muaj teeb meem.
Yooj yim ntawm kev siv
Cov neeg siv-phooj ywg software thiab intuitive tswj ua rau lawv haum rau ob qho tib si pib thiab cov tub txawg.
Hwj chim
Portable laser engravers muaj ntau theem zog kom haum rau ntau hom khoom thiab engraving qhov tob.
Ceev
Lub engraving ceev tuaj yeem nyob ntawm qeeb mus nrawm, nyob ntawm lub laser lub zog tso zis thiab cov khoom siv kos.
Ntau yam
Muaj peev xwm engraving ntawm ntau yam ntaub ntawv nrog rau qhov chaw tsim nyog.
Customizable Chaw
Nrog adjustable etching qhov tob, ceev, thiab lub zog teeb tsa, koj tuaj yeem ua tiav cov txiaj ntsig zoo raws li koj cov ntaub ntawv tshwj xeeb thiab cov kev xav tau.
Technical parameters
|
Qauv |
DS-LM20/DS-LM30/DS-LM50 |
|
Laser hom |
Fiber Laser, 1064nm wavelength |
|
Laser zog |
20W/30W/ 50W |
|
Txias qhov system |
Cua txias |
|
Beam zoo |
M2< 1.5 |
|
Laser wavelength |
1064 ± 1nm |
|
Kev hloov kho lub zog |
10~100% |
|
Ntau zaus ntawm mem tes |
1 ~ 4000KHz |
|
Fais fab mov |
220V / 50Hz / 8A (110V / 60Hz / 15A tuaj yeem xaiv) |
|
Tswj qhov system |
Original BJJCZ |
|
Software |
EZCAD |
|
Graphic format txhawb |
PLT, DXF, DST, SVG, JPC, NC, G, BOT, GBR, |
|
Chaw ua haujlwm |
Standard 110x110mm, yeem 150 * 150mm, 175x175mm, 200x200mm, 300x300mm, 400x400mm |
|
Marking qhov tob |
ib cim<1mm |
|
Marking ceev |
<8000mm/s |
|
Min. kab dav |
0.05 hli |
|
Repeatability raug |
0.003 hli |
|
Ua haujlwm kub |
0 ~ 40 degree |
|
Kev ua haujlwm system |
Standard nrog Windows 10 PC |
|
Kev ua haujlwm ib puag ncig |
Ntxuav thiab tsis muaj plua plav |
|
Warranty rau fiber ntau laser qhov chaw |
Ob xyoos |
Thaum xaiv lub portable laser engraver, xav txog cov hauv qab no:
Material compatibility: Xyuas kom meej qhov xaiv laser engraver yog sib xws nrog cov ntaub ntawv koj npaj yuav kos rau.
Lub zog laser: Txiav txim siab lub zog tsim nyog xav tau rau koj cov haujlwm tshwj xeeb engraving.
Qhov loj me ntawm thaj chaw ua haujlwm: Xaiv tus engraver nrog thaj chaw ua haujlwm loj uas haum rau koj cov haujlwm.
Software compatibility: Xyuas kom tseeb tias tus engraver lub software yog sib xws nrog koj lub computer lub operating system.
Cov peev nyiaj: Portable laser engravers tuaj ntawm ntau tus nqi ntsiab lus, yog li nrhiav ib qho uas haum koj cov peev nyiaj thaum ua tau raws li koj xav tau.
Portable laser engravers zoo heev haum rau hobbyists, cov lag luam me, thiab cov neeg ua yeeb yam vim lawv qhov yooj yim ntawm kev siv, yooj, thiab yooj yim. Txawm li cas los xij, lawv feem ntau tsis zoo rau cov haujlwm loj hauv kev lag luam lossis cov ntawv thov hnyav tshwj xeeb.
Peb Cov Khoom Paub meej
Digital ceev ceev scanner taub hau

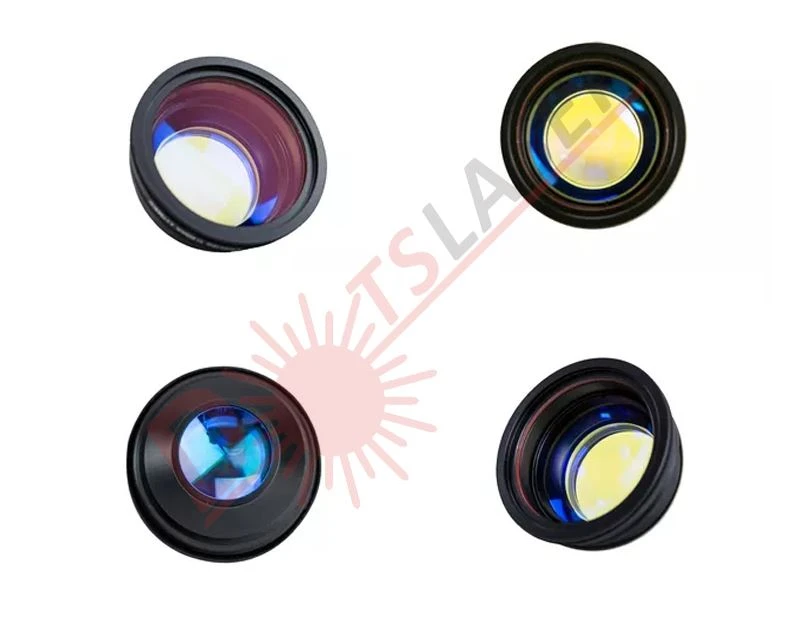

Nws siv silicon-plated tiv thaiv lens thiab cov khoom siv txawv teb chaws, uas tuaj yeem tiv taus lub zog ntau dua.
High standard cable thiab connectors

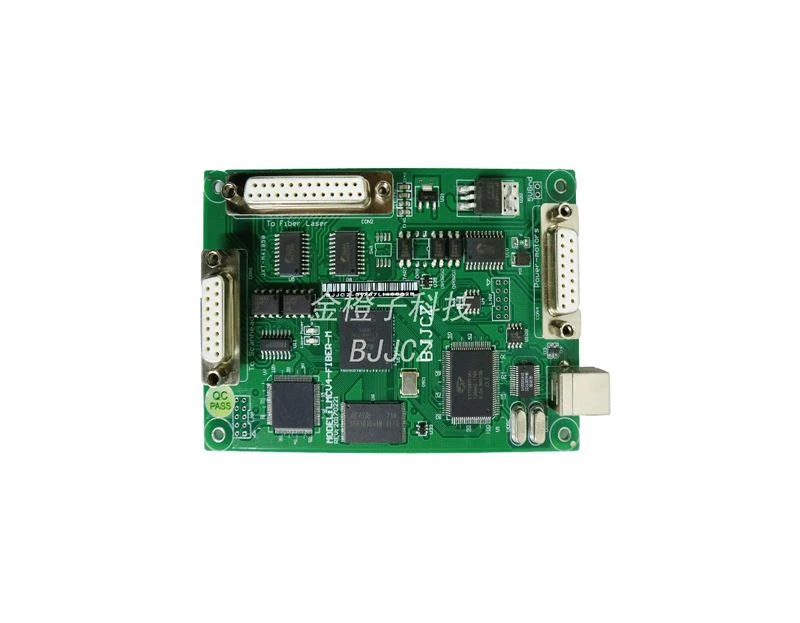

Sab saum toj hom tswj board -EZCAD
Cov lus nug nquag
Q1: Kuv tsis paub dab tsi txog lub tshuab no, hom laser twg kuv yuav tsum coj?
+
-
Peb yuav pab koj xaiv lub tshuab tsim nyog thiab ua kev daws teeb meem rau koj; koj tuaj yeem qhia peb yam khoom twg koj yuav kos / kos thiab qhov tob ntawm MARKING / ENGRAVING.
Q2: Thaum kuv tau txais lub tshuab no, tab sis kuv tsis paub yuav siv nws li cas. Kuv yuav ua li cas?
+
-
Peb yuav xa cov video ua haujlwm thiab phau ntawv qhia rau lub tshuab. Peb tus engineer yuav ua kev cob qhia online. Yog tias xav tau, peb tuaj yeem xa peb tus engineer rau koj qhov chaw rau kev cob qhia lossis koj tuaj yeem xa tus neeg teb xov tooj tuaj rau peb lub Hoobkas rau kev cob qhia.
Q3: Dab tsi yog consumables ntawm laser npav tshuab?
+
-
Nws tsis muaj consumable. Nws yog kev lag luam heev thiab siv tau zoo.
Ntim
-Peb-txheej ntim, ntxiv rau tuab plywood ntoo thawv ntim, ua kom muaj kev tiv thaiv tag nrho ntawm lub tshuab los ntawm ib puag ncig cuam tshuam hauv hiav txwv thiab huab cua.
