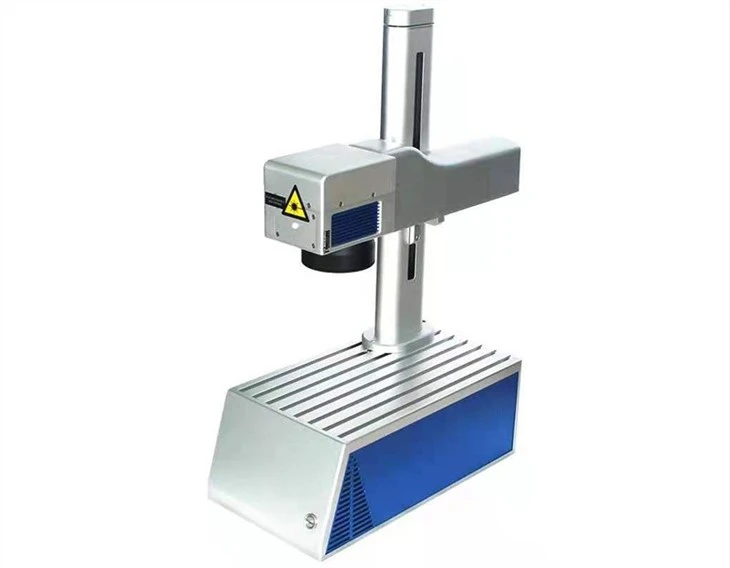

Me Laser Printing Tshuab
Khoom Description
Me Laser Printing Tshuab yog cov khoom lag luam zoo los ntawm peb cov khoom tsim thiab muaj cov yam ntxwv ntawm kev ua haujlwm zoo thiab ruaj khov. Peb cov khoom yog compact hauv cov qauv, lub teeb hauv qhov hnyav, me me hauv hneev taw, thiab yooj yim heev rau kev khaws cia thiab tuav. Nws tuaj yeem siv rau ntau qhov chaw sib txawv, xws li cov khw me me, qhov chaw ntawm tus kheej, kev lag luam me, thiab nws tuaj yeem kos ntau yam hlau thiab qee yam yas (ABS).
Cov Khoom Zoo
|
Laser Printing Tshuab siv lub laser evaporate cov khoom nto kom nthuav tawm cov khoom sib sib zog nqus los kos cov qauv zoo, cov cim lag luam thiab cov ntawv nyeem. |
||||
|
Txo cov nqi zog ua haujlwm zoo heev, txhim kho kev ua haujlwm ntau lawm, ua kom cov khoom zoo thiab kev ua haujlwm |
||||
| Txhim kho cov tsos thiab cov txiaj ntsig ntawm cov khoom lag luam. Nws yog lub sijhawm txuag thiab ua haujlwm tau zoo. | ||||
| Txoj kev teeb pom kev zoo siv txoj kev teeb pom kev sib txuas, uas muaj lub teeb ci siv hluav taws xob siab | ||||
| Cov txheej txheem tswj tau txais qhov tshwj xeeb tshaj tawm kev twv ua ntej algorithm thiab txhim kho kev tswj cov txheej txheem kom ntseeg tau tias kev ua haujlwm siab, ruaj khov thiab ua haujlwm tau zoo. |
kev sib piv ntawm cov khoom parameter
| Qauv | DS-LM20/DS-LM30 | ||
| Laser zog | 20W/30W | Pulse Repetition zaus | 1-1000kHz |
| Beam quality (㎡ | <1.6 | Qhov tob ntawm engraving (nyob ntawm cov khoom) | <5mm |
| Kev siv fais fab | Tsawg dua lossis sib npaug li 800W | Ua haujlwm voltage | Ib theem AC 220V / 110V 50 / 60HZ 5A |
| Laser wavelength | 1064nm ua | Chaw ua haujlwm | 100 × 100 hli |
| Repetition precision | ± 0.003mm | Max engraving ceev | Tsawg dua lossis sib npaug li 8000mm / s |
| Yam tsawg kawg kab dav | 0.01 hli | Kev kos duab | Chaw nres tsheb npav, disc teb, Rotary Marking |
| Cim loj | 0 5-110mm | Txias System | Cua txias |
| Kev taw qhia ntawm kev txhim kho cov khoom siv | Ib qho | Cable ntawm Length | 3m |
| Ua haujlwm kub ntau | 5-38 degree | Ua haujlwm av noo | 20%-80% |
| Net nyhav ntawm lub tshuab | 46kg ua | Dimension ntawm lub cev loj (L × W × H) | 550mm × 450mm × 175mm |
Daim ntawv thov
Me Laser Printing Tshuab tuaj yeem kos ntau yam khoom tsis yog xim hlau.
Cov khaub ncaws accessories, tshuaj ntim khoom, ntim cawv, architectural ceramics, ntim dej haus, txiav ntaub, roj hmab cov khoom, plhaub nameplates, khoom plig khoom plig, hluav taws xob Cheebtsam, tawv thiab lwm yam lag luam, engraving hlau thiab ntau yam uas tsis yog-metallic cov ntaub ntawv. rau kev ua ntawm qee cov khoom uas xav tau kev nplua thiab siab precision.
Cov khoom siv hluav taws xob, cov khoom siv hluav taws xob sib txuas (IC), cov khoom siv hluav taws xob, kev sib txuas lus txawb, cov khoom siv kho vajtse, cov cuab yeej siv, cov cuab yeej siv tau zoo, tsom iav thiab saib, cov hniav nyiaj hniav kub, nws pib qhov chaw, cov nyees khawm yas, cov khoom siv hauv tsev, cov kav dej PVC, cov khoom siv kho mob thiab lwm yam lag luam.
Cov ntaub ntawv siv tau suav nrog: zoo tib yam hlau thiab alloys (hlau, tooj liab, txhuas, magnesium, zinc thiab lwm yam hlau), tsis tshua muaj hlau thiab alloys (kub, nyiaj, titanium), hlau oxides (txhua yam hlau oxides tau txais), tshwj xeeb nto kho mob (phosphating, aluminium anodization, electroplating nto), ABS cov khoom (cov khoom siv hluav taws xob hauv tsev, cov khoom siv txhua hnub), number case (pob tshab cov yuam sij, cov khoom luam tawm), epoxy resin (cov khoom siv hluav taws xob ntim, insulating txheej.

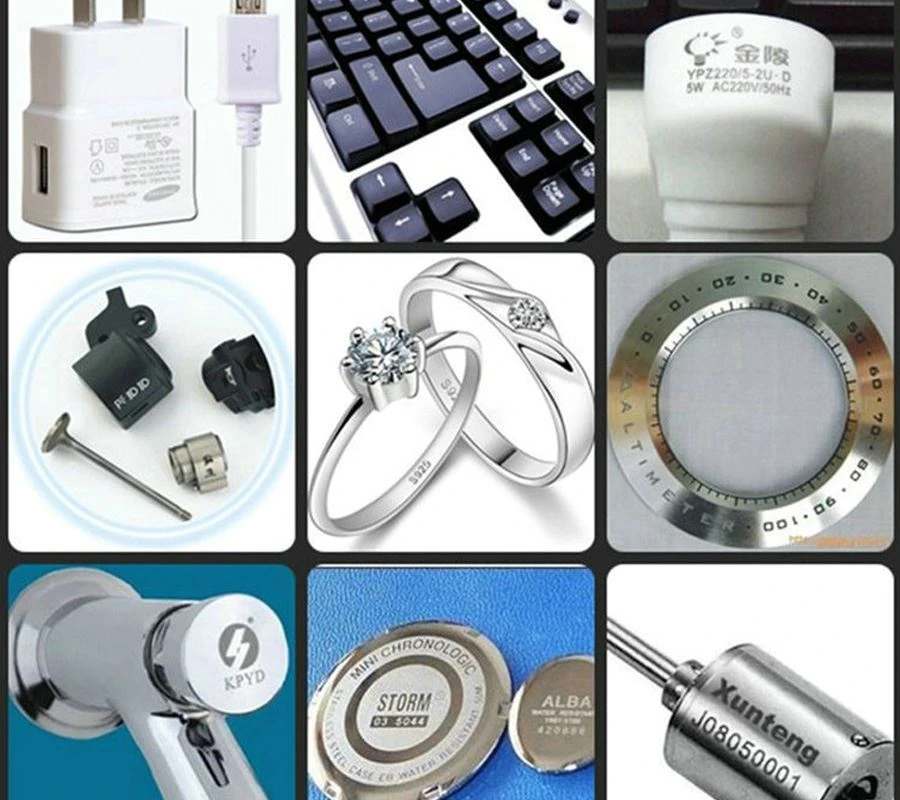

Kos cov qauv
Shipping thiab pob
