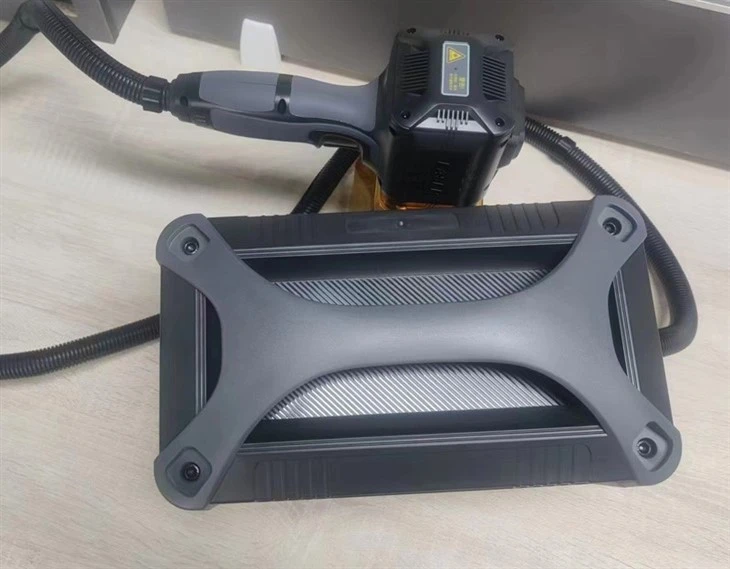

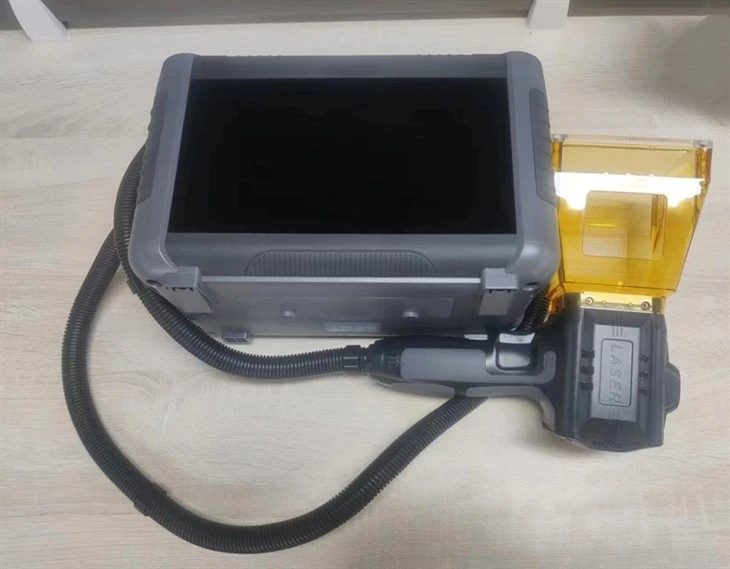

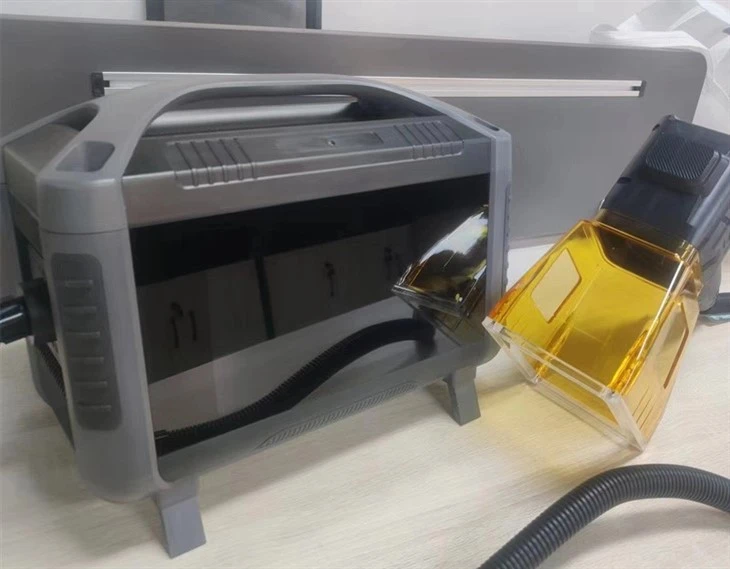

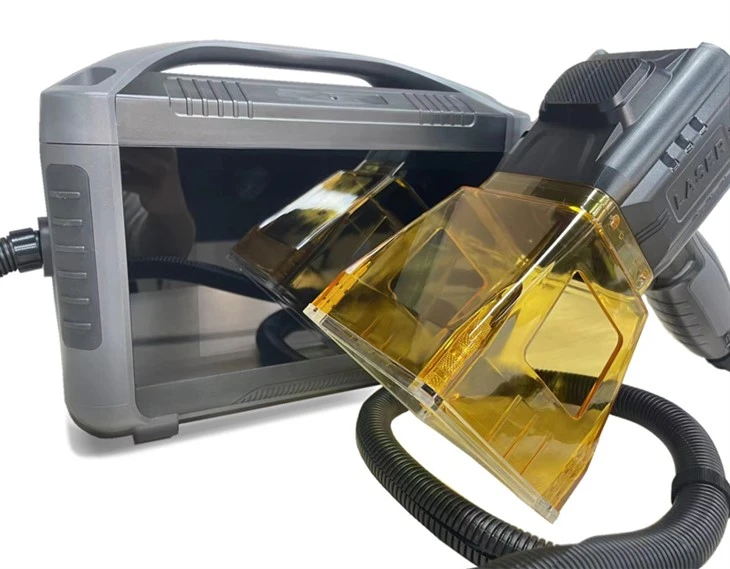

Mobile Laser Marking Tshuab
mobile laser npav tshuab
Khoom Description
Txawb laser npav tshuab yog ib qho kev txiav-ntug thiab cov thev naus laus zis tshiab siv rau kev kos ntau yam khoom. Nws yog ib qho khoom siv portable uas yooj yim nqa mus ncig thiab tuaj yeem siv rau kev kos rau ntawm ntau qhov chaw xws li hlau, yas, ceramics, thiab ntoo. Lub tshuab no siv lub teeb laser muaj zog los kos cov cim mus tas li ntawm cov khoom siv.

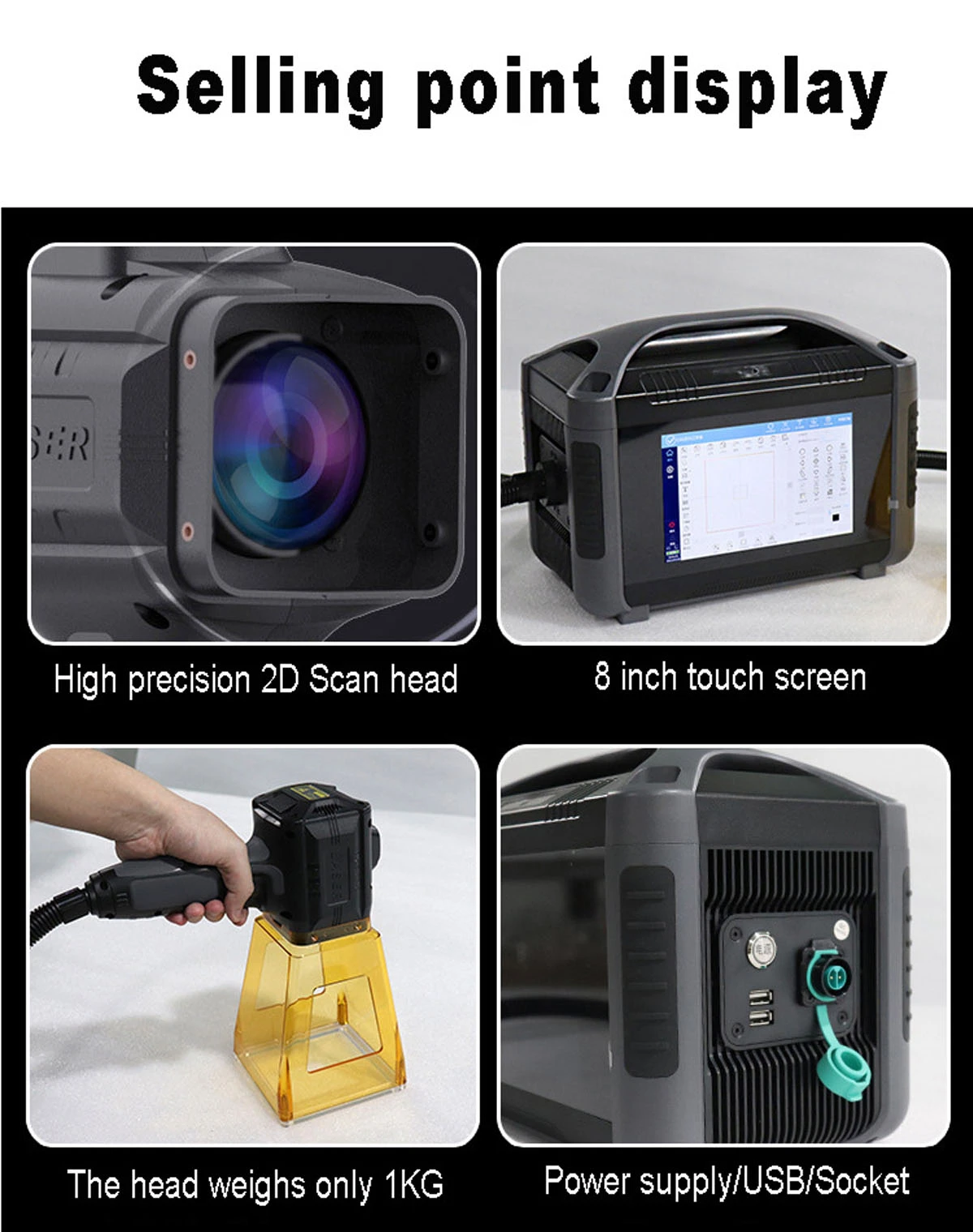

Cuaj yog vim li cas thiaj xaiv peb
1. Tag nrho qhov hnyav
Lub cev muaj zog ABS plhaub tag nrho 6.8kg
2.Optating system
Qhov kawg linux system ruaj khov kev ua tau zoo thiab teb ceev ceev
3.Processor
Kev ua haujlwm siab 8-core processor
4. Kov npo
8 nti kov npo ua haujlwm yooj yim dua
5.Qhov tseeb thiab ruaj khov
Infrared Positioning auto focus
6.Ib nias cim
Yooj yim rau kev khiav lag luam, esay siv
7. zog mov

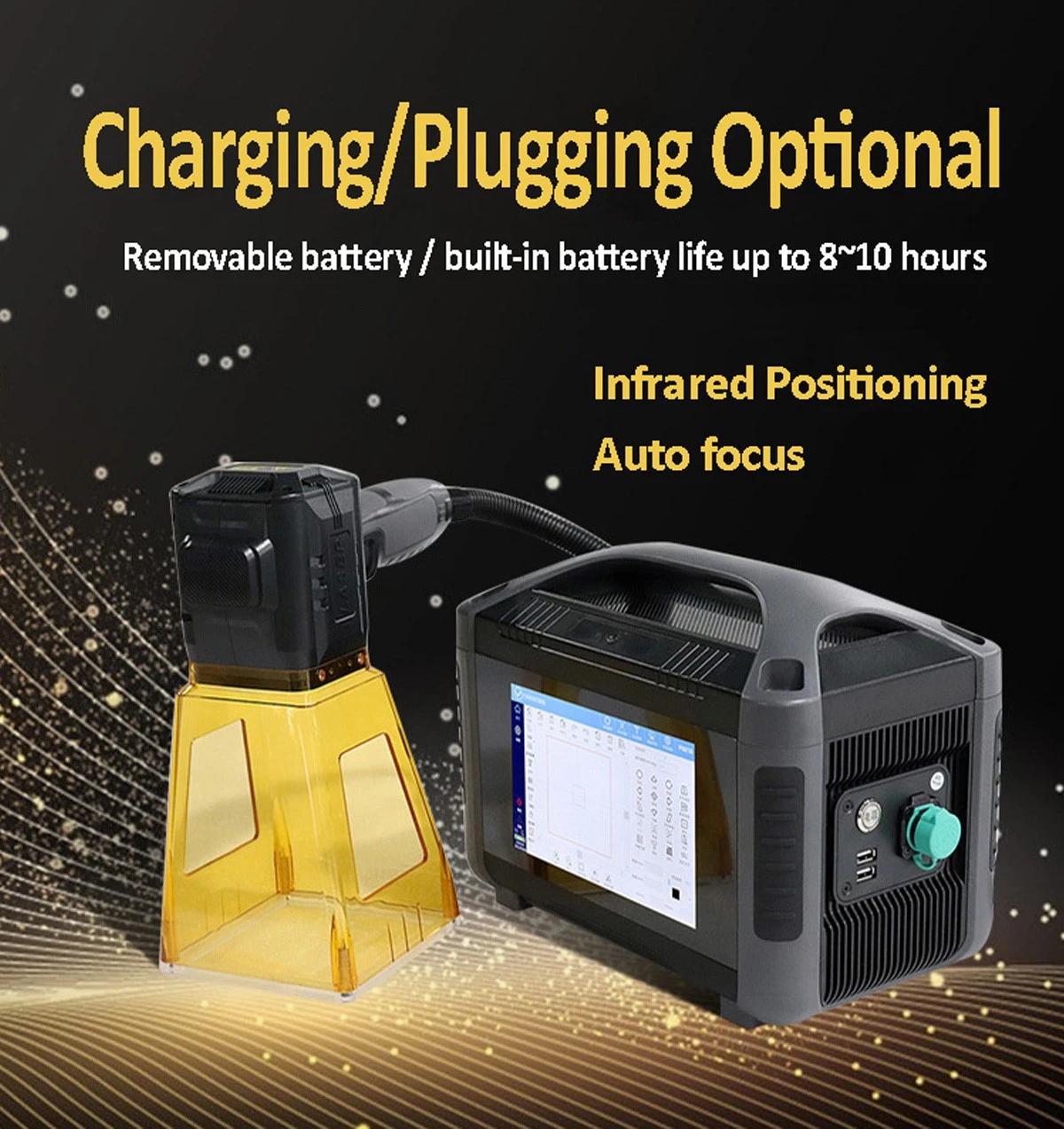

Charging / plugging yeem / tshem tau roj teeb
8.Nyeem USB flash
Txhawb USB flash los nyeem cov ntaub ntawv
Thaum xaiv lub xov tooj ntawm tes laser npav tshuab, xav txog yam xws li hom laser (CO₂, fiber ntau, thiab lwm yam), cim ceev, precision, ua hauj lwm cheeb tsam loj, compatibility nrog koj xav tau cov ntaub ntawv, yooj yim ntawm kev siv, software compatibility, thiab tag nrho. zoo thiab lub koob npe nrov ntawm cov chaw tsim khoom.
Parameter Introduction:
| npe khoom | Handheld laser marking tshuab | Master tswj | Integrated motherboard, 8-inch capacitor puv npo |
| Laser zog | 20W/30W | Min. kab cua | 0.03 hli |
| Chaw ua haujlwm | 70x70mm, 100x100mm | Marking efficiency | 800 cim (txog rau cov ntaub ntawv thiab cov ntsiab lus pinting) |
| Lub wavelength | 1064nm ua | Kos kab | Txhua yam nyob rau hauv qhov kev cim zoo |
| Kos npe ceev | Tsawg dua lossis sib npaug li 7000mm / s | Cim | Suav thiab Askiv, tus lej, thiab lwm yam qauv fonts |
| Hom phiaj | Lub teeb liab positioning.foousing | Qhov hluav taws xob | 110V / 220VAC, Lithium roj teeb (216wh) |
| Focal lens | 130 hli | Barcode | CODE 39, CODE 128, CODE 126, QR |

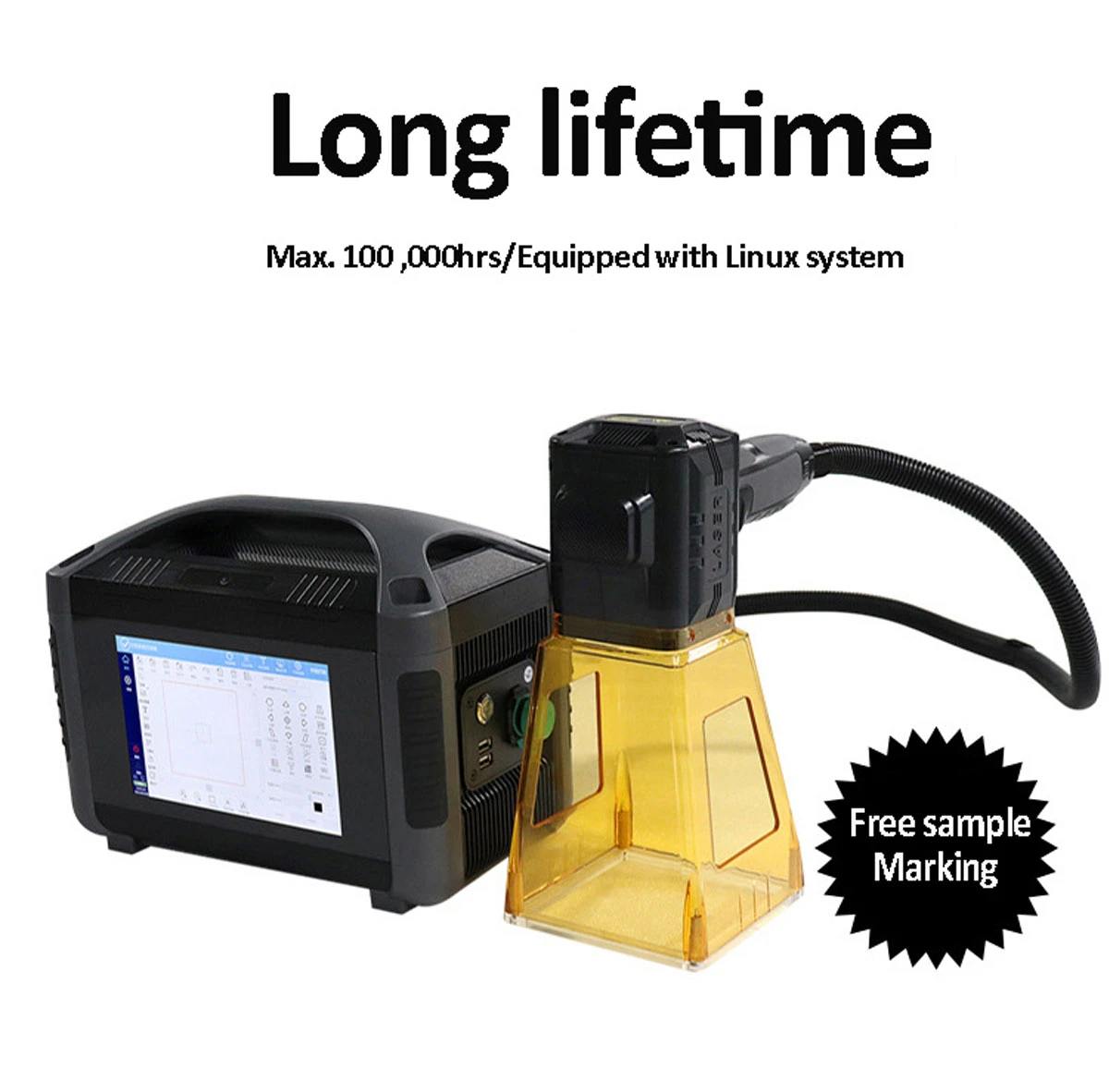

| Galvonometer | High-precision 2D scanning taub hau | Lifttime ntawm qhov chaw | 100, 000 teev |
| Kev khiav haujlwm | Linux qhov system | Warranty | 1 xyoo |
| Kev siv fais fab | 145-250W | Cov ntaub ntawv siv tau | Cov hlau tseem ceeb matenals thiab qee cov khoom tsis yog hlau |
| Rov ua dua | 0.01 hli | Dimension | 310 x 180 x 230 mm |
| Packing loj | 525x423x310mm | Ntim hnyav | 9, 5 Kg |
| Cov ntaub ntawv fomat | Cov ntawv nyeem, pattem, hnub tim, barcode, graphics, BMP, PU, PCX, DXF, jgp, gif, tga, png, tif, al, dst, plt, thiab lwm yam. | ||
Cov Khoom Paub meej
|

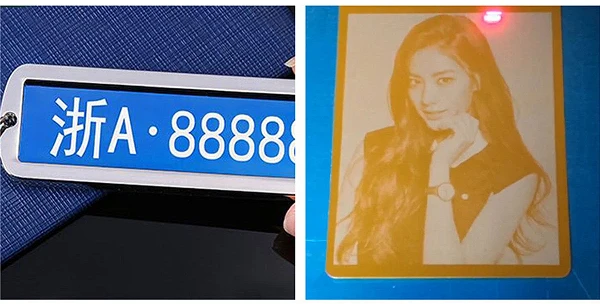

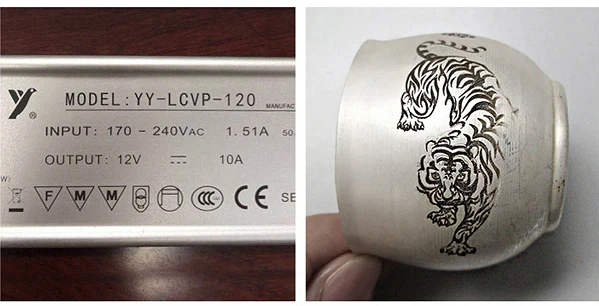

Daim ntawv thov teb: Ntau yam kev siv Feem ntau siv nyob rau hauv: kos npe rau ntawm yas, ectronics, hlau, ceramics, luam yeeb thiab lwm yam ntaub ntawv uas yuav tsum tau cov ntawv nyeem, qauv, bar code thiab lwm yam graphics, yooj yim thiab yooj yim kev khiav hauj lwm, ceev marking ceev, meej thiab lwm yam zoo ua rau zus tau tej cov kev lag luam ntau npaum npaum li cas.
Siv tau lndustries: Siv dav hauv kev sib xyaw ua ke chips, khoos phis tawj accessories muaj bearings, clocksand watches, eectronic thiab kev sib txuas lus khoom, aerospace li, ntau yam autoparts, cov khoom siv hauv tsev, hardwaretools, pwm, xov hlau thiab cables zaub mov ntim, Jewelrytobacco thiab tub rog graphics thiab Tex marking, thiab high- ntim ntau lawm kab ua haujlwm. |

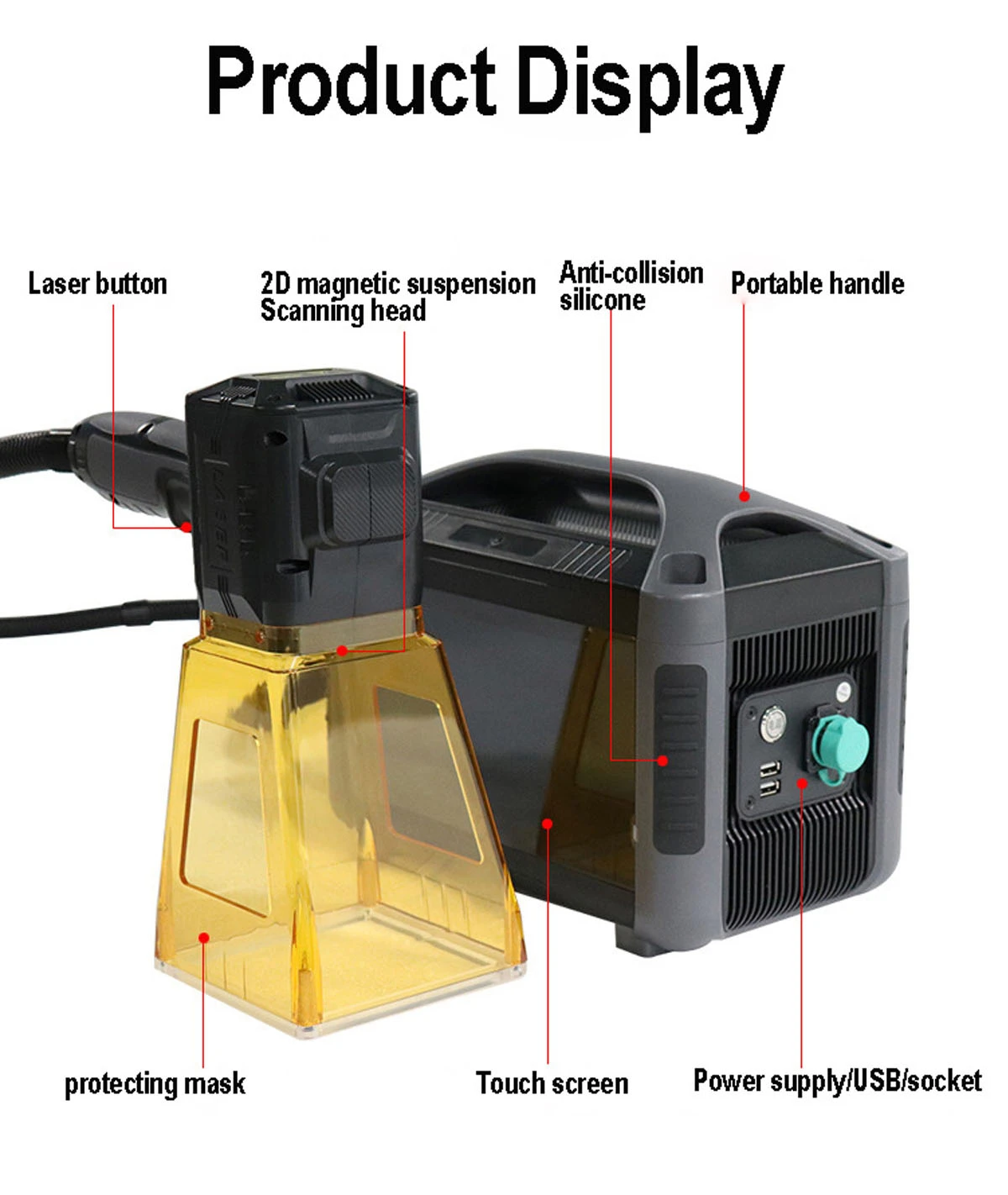

Cov qauv:

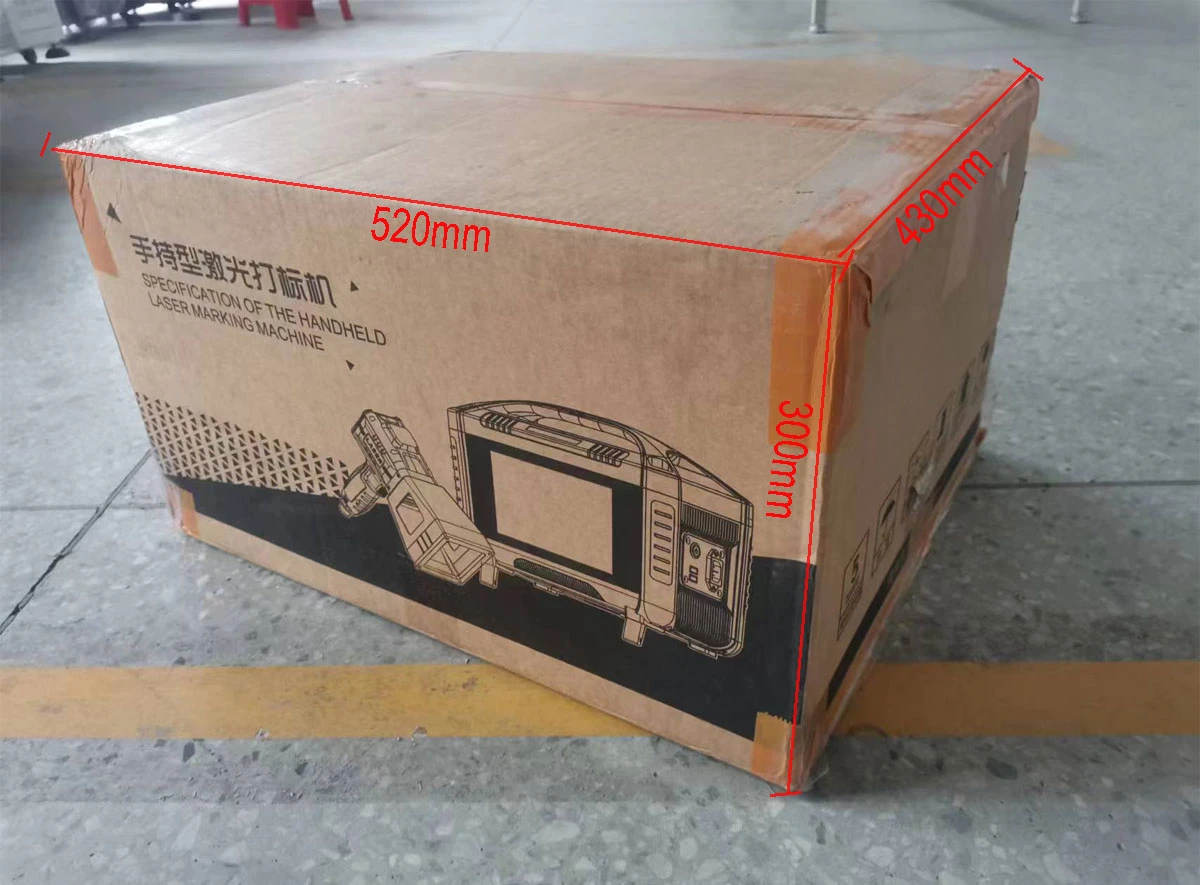

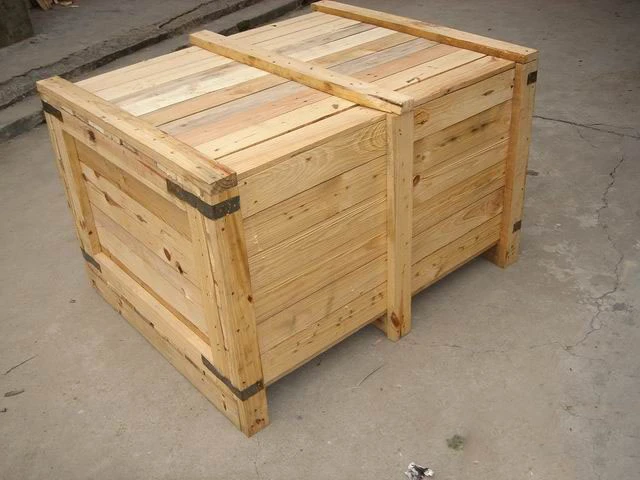

Ntim
Unpacking Ceev faj:
Txhua lub tshuab cim tau raug kuaj nruj ntawm lub Hoobkas, tsuas yog cov khoom tsim nyog rau kev xa khoom. Thaum koj tau txais cov khoom thauj, thov xyuas raws li hauv qab no. Yog tias koj muaj lus nug, thov hu rau tus neeg sawv cev lossis cov neeg ua haujlwm ntawm DOTSLASER.
● Seb puas muaj kev puas tsuaj lossis deformation thaum thauj.
● Paub meej tias tag nrho cov khoom ntawm cov npe ntim khoom yog lawm.
● Paub meej tias tus qauv ntawm cov khoom sib tw nrog lub npe (Operating voltage thiab KVA tooj).
● Xyuas kom tseeb tias tag nrho cov clamps yog nruj thiab tsis muaj cov khoom txawv teb chaws hauv lub cuab yeej.
● Paub meej tias cov nyees khawm ua haujlwm, cov keyboards yog qhov qub.
