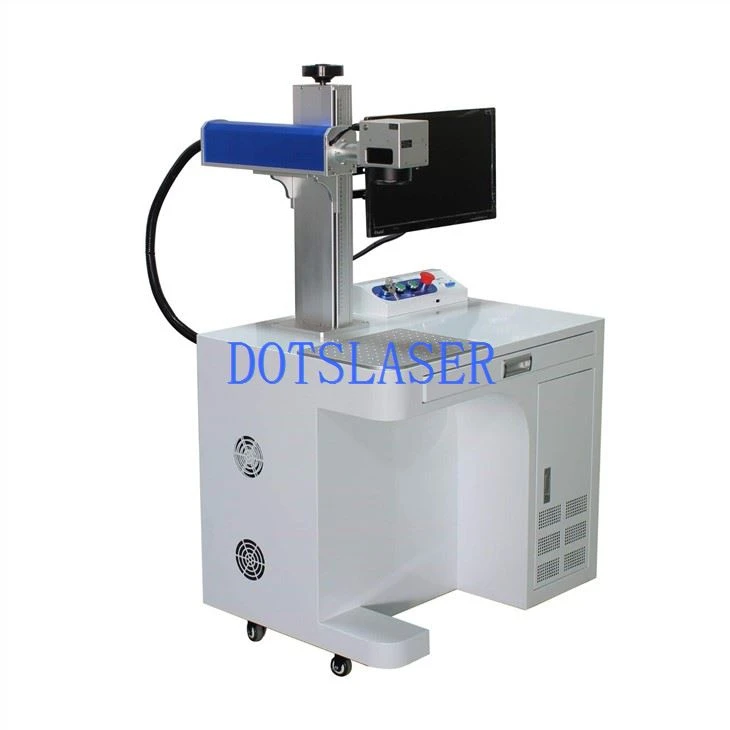

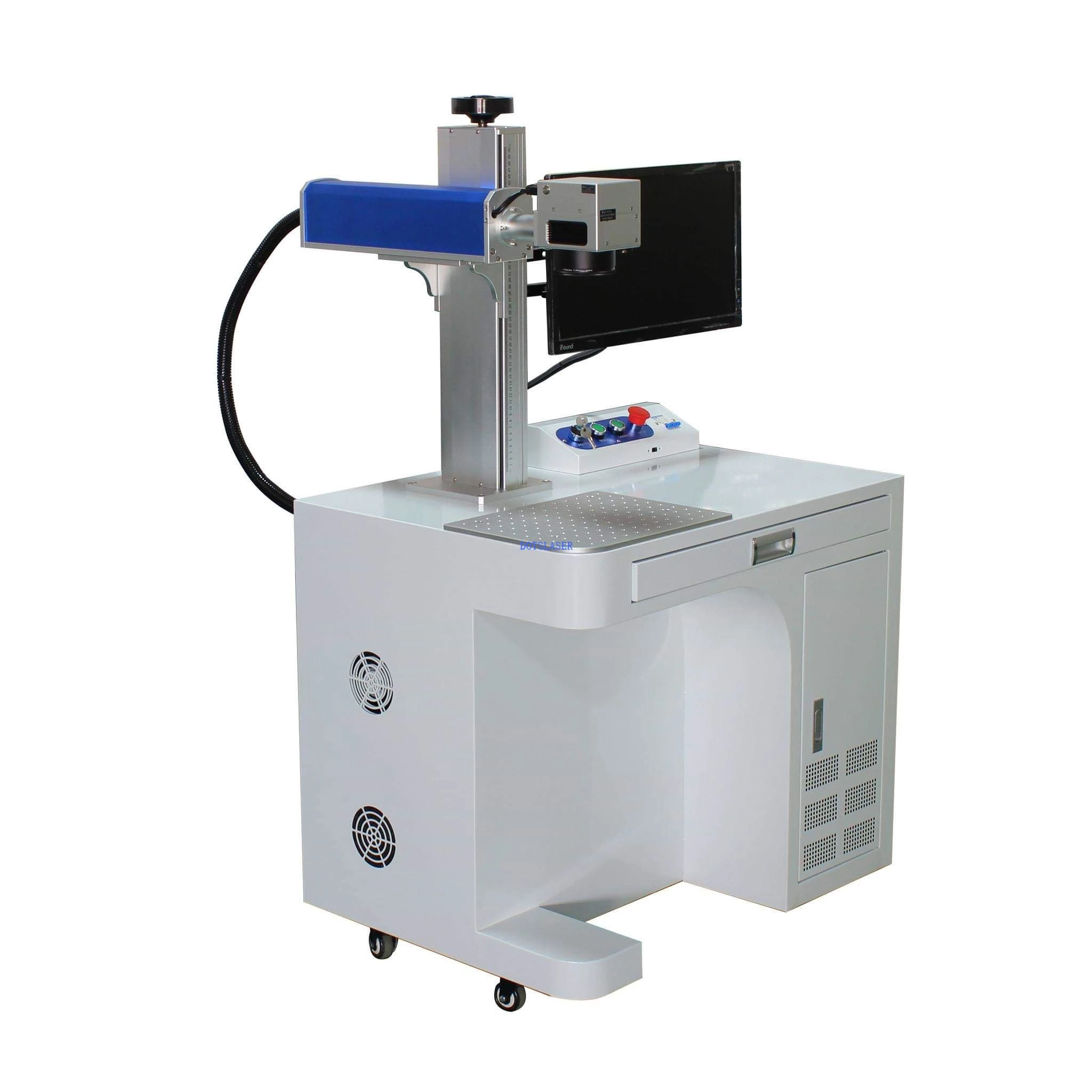

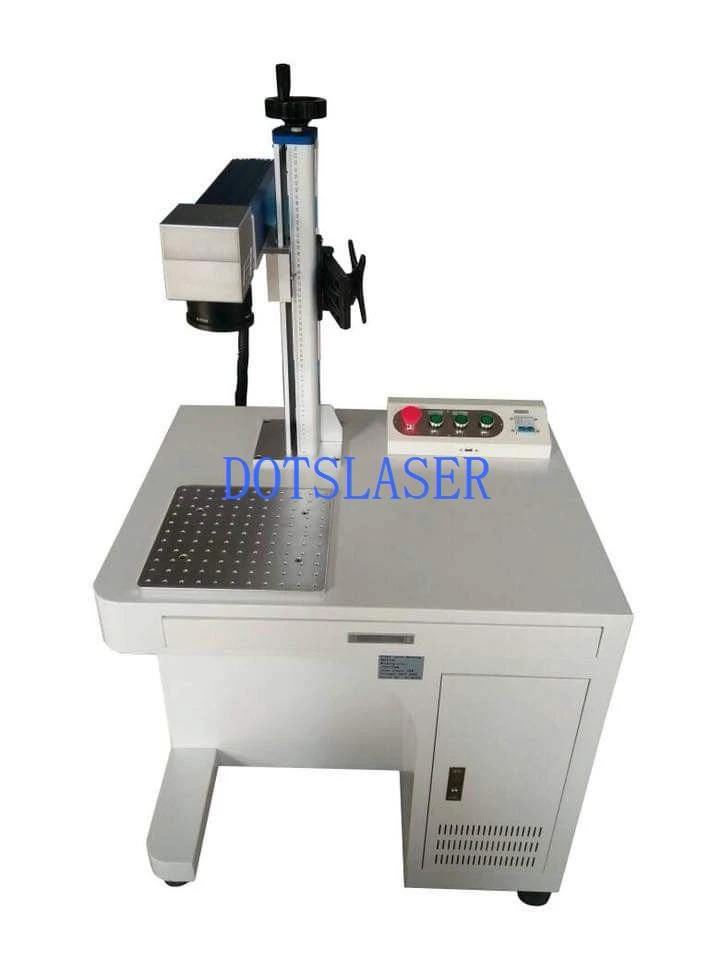

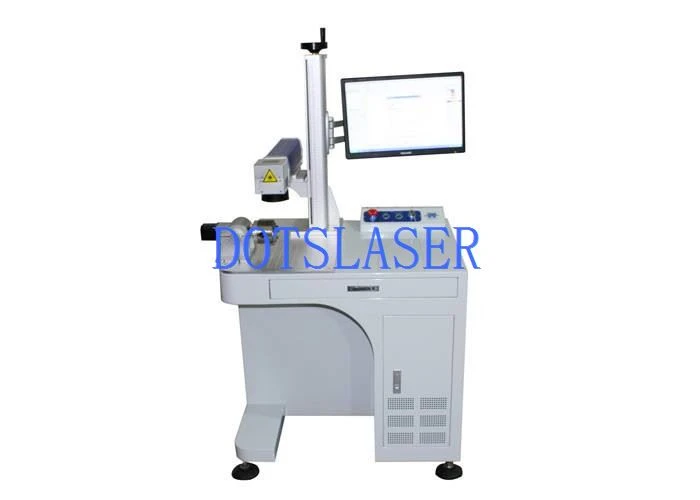

50w Fiber Laser tej tshuab
Khoom Description
50w Fiber Laser yog ua los ntawm cov khoom zoo raw khoom raws li tag nrho, nrog cov qauv compact, zoo heev thiab ruaj khov kev ua tau zoo, uas tuaj yeem ua tau raws li qhov xav tau ntawm cov neeg siv khoom feem ntau. Peb cov khoom yog ruaj khov thiab ruaj khov, nrog siab precision thiab ceev, thiab yog dav siv nyob rau hauv ntau yam lag luam. Nws muaj qhov zoo ntawm qhov me me, ruaj khov fiber ntau laser qauv, tsawg zog noj thiab tsis muaj hluav taws xob siab. 50w Fiber Laser tuaj yeem siv los ua cov khoom siv hlau, cov khoom siv hlau oxide, laser npav, ABS thiab lwm yam.
50w Fiber Laser tej tshuab
Tsis muaj
|
Qauv |
DS-LM 50 |
|
Laser zog |
50W |
|
Pulse Repetition Frequency |
1-200kHz |
|
Beam quality (㎡ |
<1.6 |
|
Qhov tob ntawm engraving (nyob ntawm cov khoom) |
<5mm |
|
Kev siv fais fab |
Tsawg dua lossis sib npaug li 1500W |
|
Ua haujlwm voltage |
Ib theem AC 220V / 110V 50 / 60HZ 5A |
|
Laser wavelength |
1064nm ua |
|
Chaw ua haujlwm |
100 × 100mm, 150 × 150mm |
|
Repetition precision |
± 0.003mm |
|
Max engraving ceev |
Tsawg dua lossis sib npaug li 8000mm / s |
|
Yam tsawg kawg kab dav |
0.01 hli |
|
Kev kos duab |
Chaw nres tsheb npav, disc teb, Rotary Marking |
|
Cim loj |
0 5-110mm |
|
Txias System |
Cua txias |
|
Kev taw qhia ntawm kev txhim kho cov khoom siv |
Ib qho |
|
Cable ntawm Length |
3m (5m yeem) |
|
Ua haujlwm kub ntau |
5-38 degree |
|
Ua haujlwm av noo |
20%-80% |
|
Net nyhav ntawm lub tshuab |
1 66kg |
|
Qhov loj me ntawm lub cev (L × W × H) |
1100mm × 85mm × 175mm |
Txoj Cai
Lub tshuab laser engraving tsim lub teeb laser los ntawm lub laser, uas yog kis tau los ntawm daim iav emitter thiab irradiated ntawm cov khoom siv los ntawm daim iav tsom, kom qhov kub thiab txias sai sai thiab vaporization tiav, thiab cov nyhuv txiav yog ua tiav los ntawm kev txav mus los. lub taub hau laser.
Lub khw me siv rau kev ua haujlwm me me, sib sib zog nqus engraving rau logo, npe phaj;
Laser tsis sib cuag ua, siab yooj, siab ceev, tsis muaj suab nrov, me me tshav kub-tshem tawm tsam, qhov chaw me me uas tuaj yeem tsom mus rau qib laser wavelength, thiab lwm yam.,
Nyob rau hauv cov nqe lus ntawm drilling, scribing, etching, txiav seem raug thiab kev ua tau zoo, tshwj xeeb tshaj yog kev sib cuam tshuam nrog tej yam ntaub ntawv (xws li polyimide) belongs rau "txias ua hauj lwm" ntawm "photochemical kev txiav txim", thiab cov "txias ua hauj lwm" yam tsis muaj carbonization nyhuv. tau txais, tshwj xeeb tshaj yog kev cuam tshuam nrog qee cov ntaub ntawv (xws li polyimide) belongs rau "kev ua haujlwm txias".

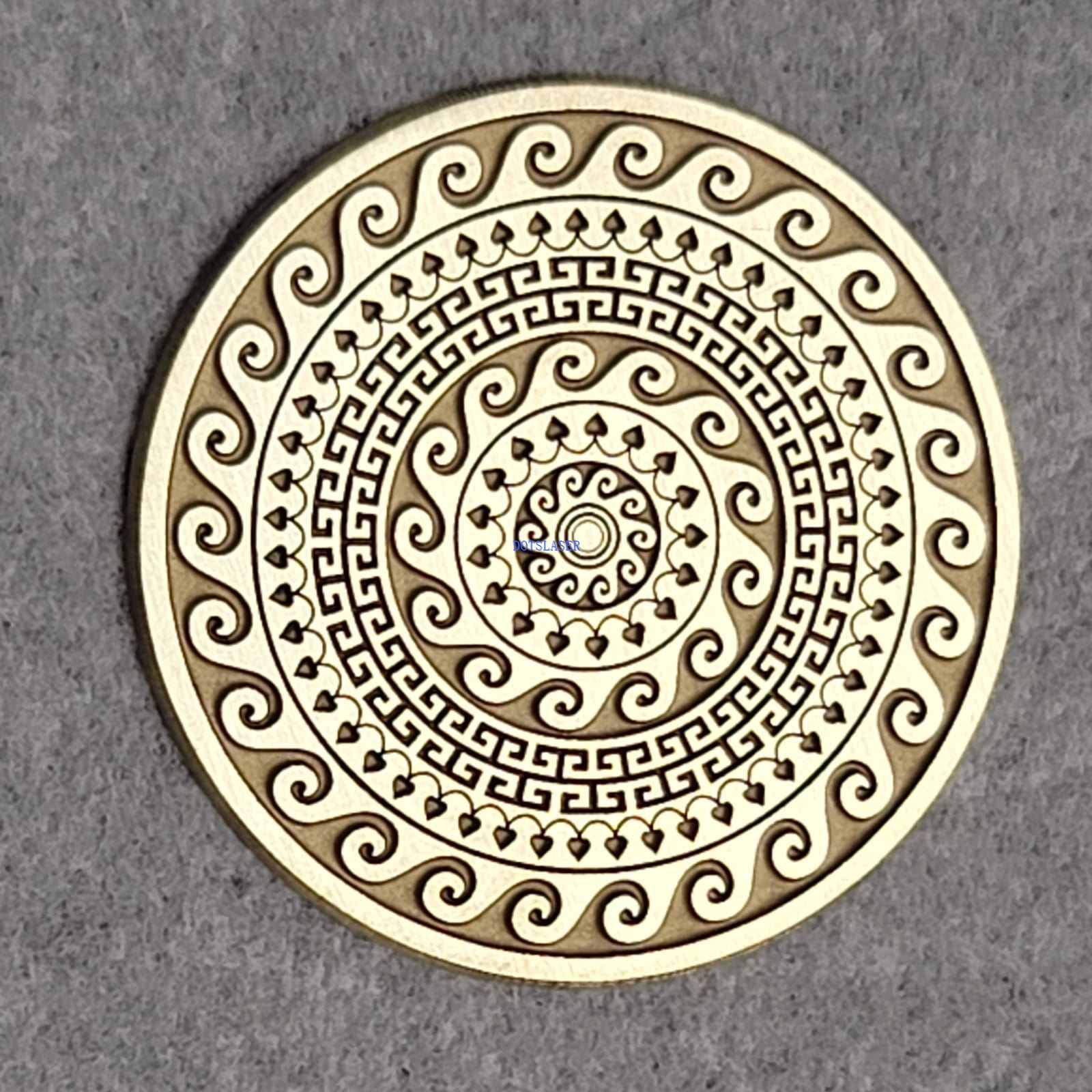

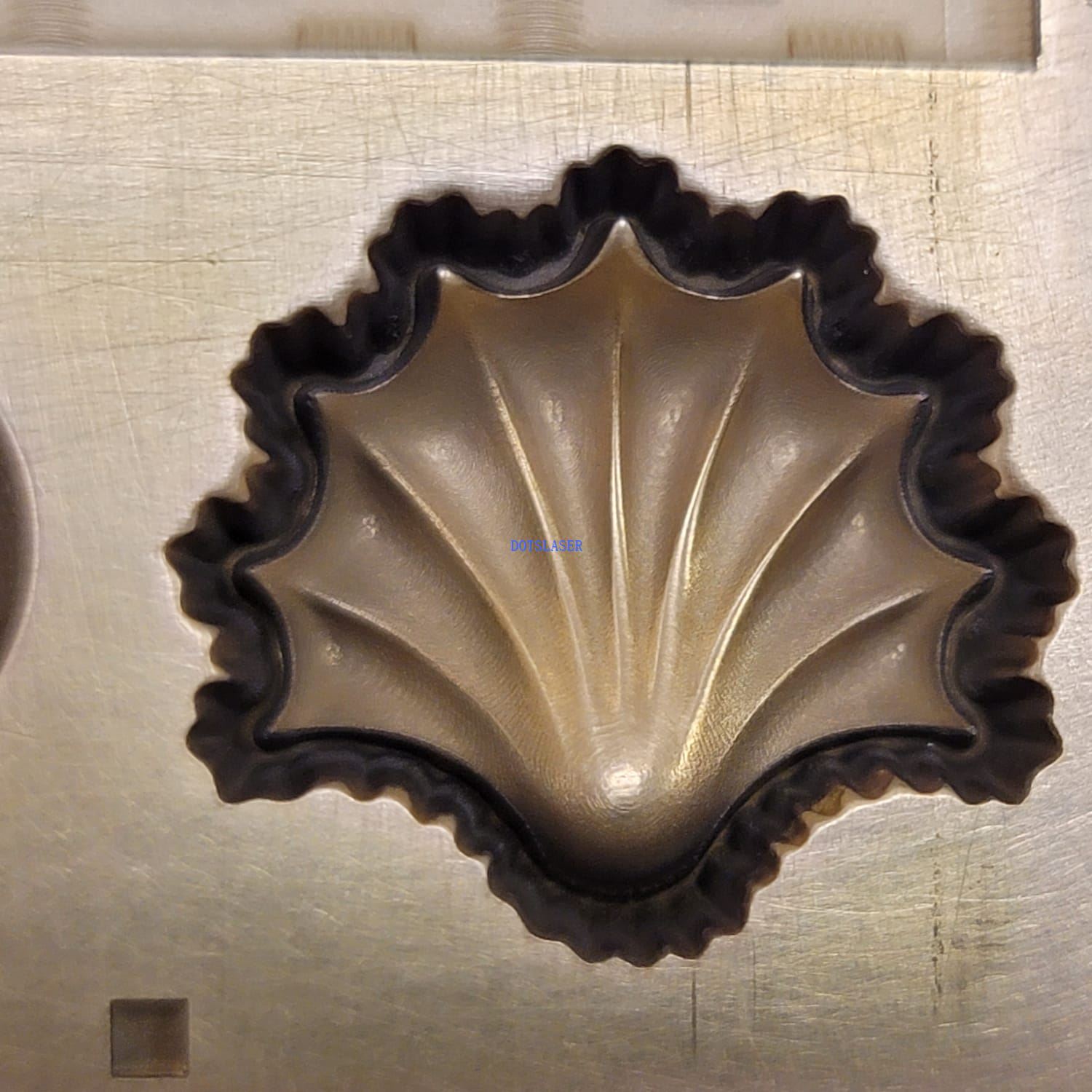

Kos cov qauv
DOTSLASER Factory
Kev xa khoom thiab pob
