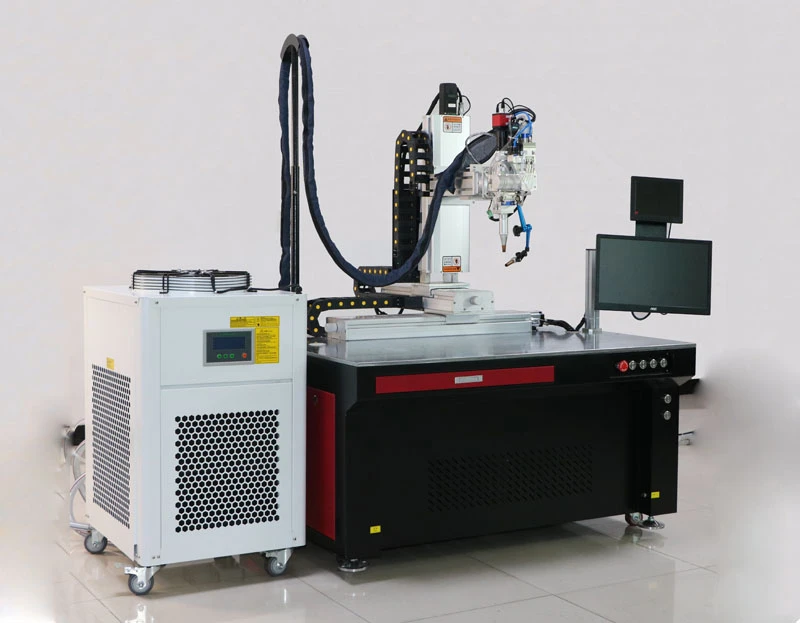

Nruam Laser Vuam System
Tsis tu ncua laser vuam system
Khoom Description
Peb zoo siab los nthuav qhia peb lub xeev-ntawm-tus-kos duab Nruam Laser Vuam System, kev siv thev naus laus zis tsim los muab cov kev daws teeb meem zoo, meej, thiab zoo vuam rau ntau yam khoom siv thiab kev siv. Cov txheej txheem siab heev no yog qhov zoo rau kev lag luam xws li tsheb, aerospace, hluav taws xob, kev kho mob, thiab lwm yam.
Ntsiab nta
Siab Vuam Ceev
Kev ua haujlwm siab ceev, tso cai rau koj kom sai fuse cov ntaub ntawv thiab ua tiav cov khoom lag luam zoo yam tsis muaj kev cuam tshuam cov vuam zoo lossis qhov tseeb.
Precision thiab Zoo
Tsawg tshav kub cuam tshuam cov cheeb tsam (HAZ) thiab tsis tshua muaj thermal distortion nyob rau hauv lub workpieces, uas ua rau muaj tseeb, huv si, thiab muaj zog welds.
Versatile Material Compatibility
Stainless hlau, txhuas, tooj liab, thiab txawm tias qee yam yas. Qhov versatility no ua rau nws haum rau ntau yam kev lag luam thiab kev siv.
Kev kho tsawg kawg nkaus thiab lub neej ntev
Kev saib xyuas tsis tshua muaj thiab cov khoom siv tau tsim rau kev ua haujlwm ntev. Tus nqi qis kawg nkaus, pab ua kom lub neej ntev ntawm lub cev, muab kev ua haujlwm ruaj khov thiab ruaj khov.
Automation thiab kev koom ua ke
Lub kaw lus tuaj yeem yooj yim ua ke rau hauv cov kab ntau lawm thiab sib xws nrog ntau hom kev ua haujlwm automation.
Tus neeg siv-phooj ywg interface
Qhov yooj yim-rau-siv software thiab intuitive neeg siv interface tso cai rau cov neeg ua hauj lwm input welding tsis, tswj profiles, thiab saib xyuas cov txheej txheem vuam.
Technical parameters ntawm nruam laser vuam system
|
Ntaus qauv |
DSLW-1000W-GXLX |
DSLW-1500W-GXLX |
DSLW-2000W-GXLX |
|
Laser hom |
fiber ntau laser |
||
|
Laser wavelength |
1080nm ± 5nm |
||
|
Hom kev ua si nawv |
Nruam/modulation |
||
|
Kho zaus |
1000HZ |
||
|
Ua kom pom tseeb ntau yam |
150-250mm yeem |
||
|
Fiber tub ntxhais txoj kab uas hla |
50-100um |
||
|
Fiber ntev |
10m |
||
|
Txoj kev Spectroscopic |
Precision zog spectroscopy los yog high-speed lub sij hawm spectroscopy |
||
|
Lub teeb hom |
QCW/PWM/CW |
||
|
Aiming thiab positioning system |
Teeb liab |
||
|
Vuam phom taub hau |
NWS - ND15 |
||
|
Rated zog |
3.5 KW TSI |
4.8 kWm |
7.5KW |
|
Lub zog txias ntawm chiller |
1.5P |
||
|
Txoj kev txias dej txias ambient kub |
20 degree -40 degree |
||
|
Qhov hluav taws xob |
220V ± 5V 50Hz / 40A |
||
|
Dimensions/Net nyhav |
Lub tshuab computer: 600 × 1200 × 1200mm |
243kg ua |
|
|
Chiller: 550 ×550 ×850 hli |
80kg |
||
Cov khoom siv
Automotive manufacturing thiab kho
Moulding txheej txheem, painting txheej txheem, sib dhos kab txheej txheem thiab tshuaj xyuas txheej txheem.
01
Aerospace Cheebtsam
Turbine hniav, cov khoom siv, cov khoom siv dav hlau
02
Electronics manufacturing
Circuit boards, connectors, vaj tse
03
Kev tsim khoom siv kho mob
Cov cuab yeej phais, implants, prosthetics.
04
General metalworking thiab fabrication
Sheet hlau sib dhos, cov kav dej, cov cuab yeej
05
Kev lag luam huv huv
Valves, tees, reducers, dej yeeb nkab txuas, kev lag luam roj teeb: roj teeb pob, lithium roj teeb electrodes,
06
Glassesframe kev lag luam
Stainless hlau, titanium Alloy thiab lwm yam ntaub ntawv rau tsom iav buckle, precision vuam ntawm cov ncej thiab lwm yam hauj lwm,
07
kho vajtse kev lag luam
Kettle, dej khob, impeller, stainless hlau tais, diode, txhuas alloy, sensor, rooj kov, txee, txawb xov tooj roj teeb, thiab lwm yam.
08
vim li cas ho xaiv peb?
Muaj kev ua tau zoo thiab kev ua tau zoo ntawm peb Nruam Laser Vuam System thiab hloov koj cov txheej txheem tsim khoom thiab kev tsim khoom.
Thov tsis txhob yig tiv tauj peb yog tias koj muaj lus nug, xav tau cov ntaub ntawv ntxiv, lossis xav teem sijhawm ua qauv qhia. Txhim kho koj cov kev ua haujlwm vuam thiab ua tiav cov txiaj ntsig zoo nrog peb cov qib siab Nruam Laser Vuam System.
ib-stop daws
pab neeg tshaj lij
siab zoo
Main technical nta thiab kev ua yeeb yam
 1. Cov kev tswj hwm yog ib qho kev tshaj lij plaub-axis tswj qhov tsim rau laser vuam. Nws muaj zog PC tswj thiab yooj yim rau kev pab cuam, debug thiab tswj. Nws tuaj yeem ua tiav tsis siv neeg lossis semi-automatic qhov chaw vuam, taub qab vuam, plooj vuam, thiab sealing vuam. Vuam ntawm dav hlau ncaj kab, arcs thiab arbitrary trajectories; |
| 2. Lub kaw lus yooj yim thiab txhim khu kev lag luam, yooj yim rau kev tswj, yooj yim rau kev khiav lag luam, yooj yim kawm, yooj yim to taub thiab yooj yim rau cov neeg siv; |
| 3. Nruab nrog 3-axis automatic worktable, super loj worktable, platform XY dual-axis motorized module, Z-axis txais lub hwj chim tawm nres lub cev muaj zog, thiab tuaj yeem nruab nrog rotating ncej thaum lub sijhawm. Rau cov khoom tshwj xeeb zoo li peb-dimensional, nws tuaj yeem paub txog 3D laser vuam, ceev ceev, lub neej ntev, siab raug. |
| 4. Customized automated tooling fixtures tuaj yeem ua ke nrog cov kab sib dhos, photoelectric sensors, pneumatic fixtures thiab lwm yam kev sib txuas rau kev ua haujlwm tsis siv neeg kom ua tiav cov khoom lag luam loj. |
| 5. Nws tuaj yeem ua lub sijhawm sib cais lossis lub zog sib cais, haum rau cov ntawv thov hauv ntau lub sijhawm ua haujlwm, kev siv ntau lub chaw ua haujlwm, thiab tuaj yeem siv dav hauv laser vuam xws li chaw vuam, txuas txuas txuas thiab kev lag luam hloov pauv. |
| 6. Txhawb nqa multi-channel optical fiber ntau tso tawm los txhim kho vuam efficiency, txuag cov cuab yeej siv, thiab txo qhov chaw ua haujlwm. Koj tuaj yeem xaiv ntau yam khoom siv fiber ntau los tso tawm lub teeb hauv lub sijhawm, lossis tso tawm lub teeb rau tib lub sijhawm raws li qhov xav tau, lossis ib qho kev sib xyaw ntawm ob, yog li nws tuaj yeem nqa tawm. Multi-beam simultaneous processing thiab multi-station processing muab tej yam kev mob rau ntau leej vuam; |
| 7. Tom qab lub laser dhau los ntawm cov khoom siv kho qhov muag, qhov chaw yuav zoo ib yam thiab ruaj khov, uas txhim kho qhov zoo ntawm cov vuam. Tom qab cov nqaj Laser yog tsom xam, ib qho chaw me tuaj yeem tau txais, lub zog hluav taws xob yog qhov siab, thiab nws tuaj yeem yog qhov chaw raug. Nws tuaj yeem siv rau kev sib dhos vuam ntawm micro thiab me me workpieces hauv cov khoom siv ntau lawm. |
| 8. Cov qauv thiab lub hauv paus ntsiab lus ua haujlwm ntawm txhua yam |
cov khoom siv thev naus laus zis

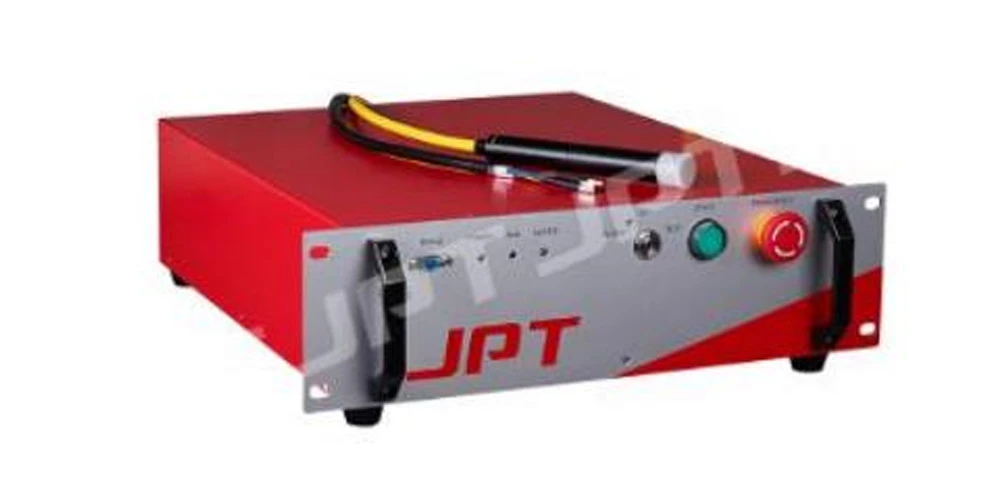

Fiber Nruam Laser qhov chaw

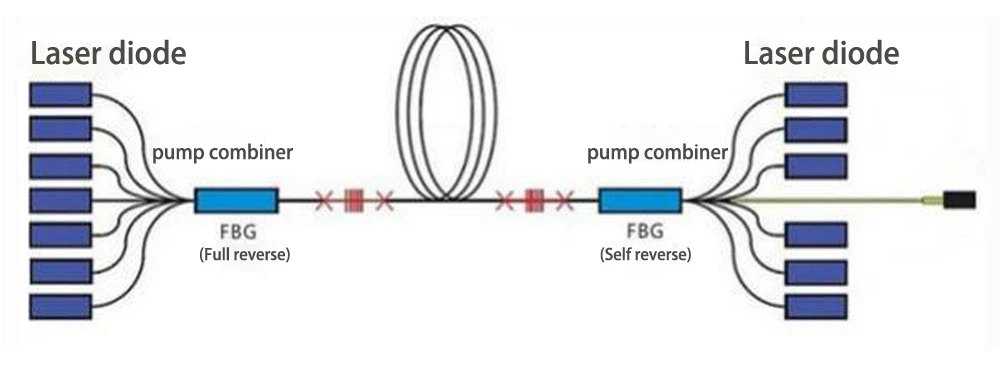

1)Fiber laser qhov chaw yog tsim los ntawm cov twj tso kua mis, coupler, tsis tshua muaj ntiaj teb-doped fiber, resonant kab noj hniav thiab lwm yam khoom.
Lub twj tso kua mis yog tsim los ntawm ib lossis ntau lub zog laser diode arrays. Lub twj tso kua mis tso tawm los ntawm nws yog ua ke rau hauv lub ntiaj teb tsis tshua muaj-doped fiber ntau li qhov nruab nrab ntawm cov twj tso kua mis tshwj xeeb, thiab cov photons ntawm lub twj tso kua mis wavelength yog absorbed los ntawm doped fiber nruab nrab.
2) Cov cuab yeej
Txhawm rau ntxuav lub optical fiber connector, koj yuav tsum tau ntxuav cov khoom hauv qab no:
ib. Cov hnab looj tes roj hmab tsis muaj hmoov los yog ntiv tes cots
b. Lint-dawb fiber optic tu ntaub thiab paj rwb swabs
c. Absolute ethanol, namely alcohol (optical grade, purity >99.5%)
Compressed cua (tsis muaj roj, tsis muaj dej)
d. microscope
5. Lub teeb ci (lub teeb nyem lossis lub xov tooj ntawm tes taw qhia)
Lub thawv tshwj xeeb laser tswj kuj muaj peb lub teeb tso zis hom: QCW (quasi-continuous), PWM (mem tes), thiab CW (nruam).
Qhov chaw sib txuas yog ntau fused thiab muaj qhov zoo nkauj dua.
Cov tub rau khoom hom tiv thaiv lub lens rau kev hloov pauv sai thiab yooj yim.
Rau qhov 4 6% cov kav dej thiab cov dej nkag thiab qhov hluav taws xob, nws yog ib qho tsim nyog los xyuas kom meej tias daim iav tsom hauv lub cev phom tuaj yeem lav qhov kub thiab txias los ua kom cov vuam nyhuv ruaj khov.
Argon nozzle:Nws tuaj yeem oxidize qhov vuam nto los ntawm txhua lub kaum sab xis, ua rau vuam nto smoother
thiab zoo nkauj dua.
Illumination teeb:Siv lub teeb tsom teeb xiav kom pom cov duab pom tseeb dua thiab yooj yim rau qhov chaw thiab
kev soj ntsuam.
Kev tu thiab kev daws teeb meem
Kev tshuaj xyuas thiab tu ntawm optical fiber connectors tseem ceeb yuav tsum tau saib xyuas:
Ua ntej siv cov fiber ntau optical connector ntawm lub laser, thov xyuas lub xeev huv thiab qib ntawm kev puas tsuaj ntawm lub lens tiv thaiv. Siv cov khoom siv plua plav lossis cov khoom siv kho qhov muag puas yuav ua rau muaj kev puas tsuaj loj rau lub laser.
Dotslasr Laser tsis xav tias muaj kev lav phib xaub rau kev puas tsuaj rau lub laser los ntawm kev siv cov khoom tsis huv fiber ntau.Yog hais tias lub fiber connector yog tampered nrog tus kheej, cov khoom yuav tsis txaus siab rau txoj cai warranty ntawm Dotslaser.
Thov hnav cov hnab looj tes tsis muaj hmoov los yog cov khoom ntxuav tes hauv qhov chaw tu cev. Yog hais tias lub fiber connector puas vim kev ua haujlwm tsis raug lossis siv cov txheej txheem tu tsis raug lossis tshuaj, DOTLaser yuav tsis muab warranty. Thaum ntxuav, qhov concentration ntawm ethanol kiag li yuav tsum siab tshaj 99.5%.
Guangzhou Dotslaser Co., Ltd. yog lub tuam txhab high-tech tshwj xeeb hauv kev tsim thiab tsim cov tshuab laser pwm vuam tshuab, laser npav tshuab, laser txiav tshuab, tsis siv neeg laser vuam tshuab, fiber ntau laser vuam tshuab thiab lwm yam khoom siv. Lub tuam txhab muaj cov kws tshaj lij R & D, kev tsim khoom, thiab pab pawg muag khoom, Sib sau ua ke lwm hom khoom siv tshuab laser, los ntawm kev tsim kho tshiab thiab txhim kho, nws tau dhau los ua cov chaw tsim khoom zoo tshaj plaws hauv kev lag luam laser.
DOTSLASER cov cuab yeej laser tau nthuav dav thoob plaws lub tebchaws. Peb ua raws li lub hauv paus ntsiab lus ntawm "kev ua lag luam zoo, kev ncaj ncees tsim cov khoom lag luam", sib zog ua kom muaj kev ntseeg siab nrog kev ua tau zoo, muaj sia nyob nrog kev ntseeg siab, muaj txiaj ntsig nrog kev tswj hwm, thiab kev txhim kho nrog cov txiaj ntsig, thiab peb tau cog lus ntxiv rau cov khoom tsim khoom thiab kev txhim kho thiab txhim kho cov khoom lag luam. kev pabcuam, thiab lwm yam, los muab cov neeg siv khoom kom tiav thiab zoo dua cov kev pabcuam.
01
Siab Zoo
Integrated Hoobkas lub zog los txhawb txhua yam ntawm cov cav tov customization, nrog cov ntawv hauv paus, iav puag, cov cuab yeej phais, aerospace.
02
Khoom siv Advanced
Peb lub Hoobkas tsim kev tshaj lij Fiber laser npav tshuab, UV laser npav tshuab, Laser txiav tshuab thiab laser vuam tshuab, thiab lwm yam.
03
Pab neeg tshaj lij
Peb lub Hoobkas muaj cov kws tshaj lij kev muag khoom thiab cov kws tsim tshuab, muab cov kev pabcuam zoo tshaj plaws rau cov neeg siv khoom.
04
Kev Pabcuam Kev Cai
Peb lub lag luam tenet yog: "Cov Neeg Siv Khoom Ua Ntej, Ua Ntej Ua Ntej, Lub Npe Ua Ntej". Cov neeg siv khoom txaus siab yog peb lub zog tsav tsheb loj tshaj plaws.
Cov qauv
Shipping thiab pob
Kev tu txhua hnub
● Tom qab ua haujlwm tiav, xyuas kom cov hauv pem teb huv si. Tom qab ntawd ntxuav lub tshuab nrog rau saum npoo ntawm lub tshuab, rooj plaub ntawm qhov kho qhov muag, qhov chaw ntawm lub monitor, lub rooj ua haujlwm, thiab lwm yam.
● Thov tua txhua ntu thiab lub zog loj thaum lawv huv si.
● Tshawb xyuas lub lens tsis tu ncua rau cov plua plav. Thaum nws huv si, siv cov paj rwb wool nrog ntau dua 95% cawv qib kho mob los so clockwise los ntawm qhov chaw ntawm lub lens. Thaum koj xav tau txav lub tshuab kom tsis txhob muaj pob. Txheeb xyuas qhov kev sib txuas ntawm cable raws li daim ntawv teev npe cable.
1. Kev ruaj ntseg zoo thiab kev pab cuam tom qab muag
Lub sijhawm lav ntawm cov cuab yeej yuav tsum yog 12 lub hlis txij li cov khoom siv los ntawm cov neeg siv khoom, kev teeb tsa thiab kev debugging tiav thiab cov khoom raug lees txais los ntawm tus neeg thov. Dotslaser muab qhov tseem ceeb rau kev ua haujlwm tom qab muag ntawm cov khoom, thaum cov khoom xa tuaj rau tus neeg siv, lub tuam txhab tam sim ntawd tsim cov ntaub ntawv cov neeg siv khoom tom qab muag, thiab tsis tu ncua taug qab tus neeg siv khoom siv cov xwm txheej, daws thiab teb tag nrho cov teeb meem ntawm tus neeg siv, tau txais cov neeg siv cov ntaub ntawv ceeb toom txog cov khoom siv tsis ua haujlwm, lub tuam txhab cov neeg ua haujlwm tuaj yeem ua cov lus teb sai hauv 2 teev. Yog tias kev taw qhia hauv xov tooj yog qhov nyuaj rau kev daws teeb meem, peb lub tuam txhab cov neeg ua haujlwm txawj tuaj yeem tuaj txog ntawm qhov chaw neeg siv khoom hauv 24 teev los muab kev txhawb nqa.
2. Kev teeb tsa thiab kev debugging
Ua ntej kev teeb tsa lub tshuab, peb lub Hoobkas yuav muab cov ntaub ntawv tsim nyog rau koj, qhov xav tau zoo 2 lub lis piam xa tuaj rau koj nyob ntawd, cov engineers ntawm Dotslaser yuav tuaj txog ntawm koj qhov chaw thiab tshuaj xyuas lub tshuab dua. Xyuas kom meej tag nrho cov xwm txheej ua tau raws li qhov yuav tsum tau ua ntawm installation thiab commissioning, cov cuab yeej yuav thauj mus rau lub sijhawm. Lub sijhawm teeb tsa thiab kev ua haujlwm ntawm cov cuab yeej siv yog li tsib hnub ua haujlwm, thawj peb hnub tau txuas nrog kev siv lub tshuab, thiab lub kaw lus ua haujlwm tom qab qhov kev pabcuam. Tus kws tshaj lij yuav cob qhia cov neeg ua haujlwm tsim nyog ntawm cov txheej txheem kev saib xyuas yooj yim thiab cov yam ntxwv ntawm kev ua haujlwm ntawm cov cuab yeej hauv ob hnub tom ntej
3. Kev pab txhawb nqa
Yog tias muaj teeb meem nrog ib feem ntawm lub cev thaum lub sijhawm lav, Dotslaser cov kws tshaj lij pabcuam kev pabcuam tau npaj los muab kev pabcuam hauv xovtooj lossis pib pabcuam ntawm qhov chaw, yog tias lub tshuab muaj teeb meem thaum lub sijhawm lav, thov hu rau peb ncaj qha !
