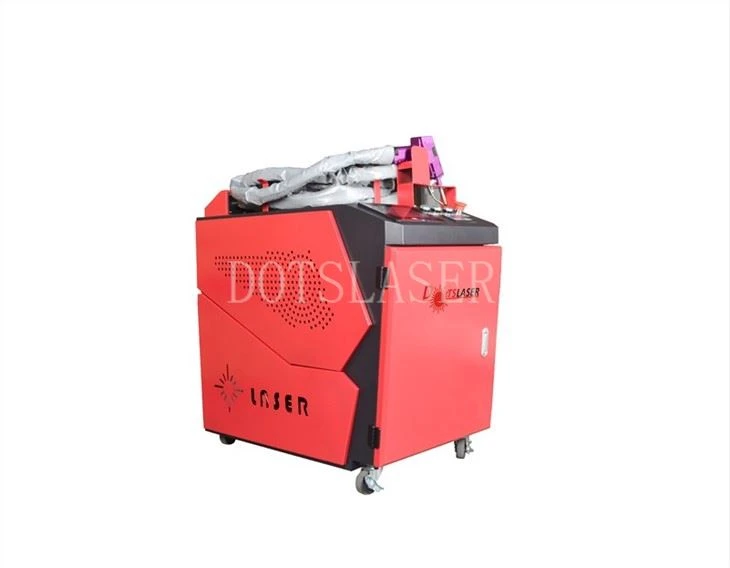

Stainless Hlau Vuam Tshuab
Stainless Hlau Vuam Tshuab
Khoom Description
Stainless hlau laser welding tshuab siv cov teeb pom kev zoo laser rau vuam stainless hlau Cheebtsam, uas ua rau cov welds meej thiab zoo. Cov thev naus laus zis no nrov hauv kev lag luam xws li tsheb, aerospace, cov cuab yeej kho mob, thiab cov khoom siv hluav taws xob, qhov xav tau kom raug, huv si, thiab cov txheej txheem vuam zoo ua lub luag haujlwm tseem ceeb hauv kev ua tau zoo ntawm tag nrho cov khoom kawg.
Cov yam ntxwv tseem ceeb ntawm stainless hlau laser vuam tshuab
High precision
Laser vuam tshuab muab siab precision thiab tswj, tso cai rau lub vuam ntawm txawm lub me thiab feem ntau intricate stainless hlau Cheebtsam.
Ceev vuam ceev
Laser welding enables ceev vuam ceev, uas yuav txhim kho productivity thiab txo lub sij hawm ntau lawm.
Tsawg cua sov input
Lub teeb laser tsom txo qis kev hloov pauv ntawm cov cua sov mus rau cov khoom nyob ib puag ncig, txo cov cua sov distortion thiab kev puas tsuaj rau cov khoom. Qhov no yog qhov tseem ceeb tshwj xeeb tshaj yog thaum vuam nyias lossis cov ntaub ntawv kub-rhiab.
Tsis muaj consumables
Laser vuam tshem tawm qhov xav tau ntawm cov ntaub ntawv muab tub lim, txo cov nqi khoom thiab ua kom yooj yim rau txoj kev vuam.
Seam zoo
Laser welded seams feem ntau muaj ib tug du, huv si tsos, nrog tsawg spatter thiab discoloration. Qhov no ua rau lawv zoo haum rau cov ntawv thov uas xav tau qib siab ntawm kev zoo nkauj lossis cov txheej txheem tom qab vuam txheej tsawg kawg nkaus.
Ntau yam ntawm cov ntaub ntawv
Stainless hlau laser vuam tshuab tuaj yeem ua kom haum ntau qib thiab thicknesses ntawm stainless hlau, ua rau lawv muaj ntau yam thiab haum rau ntau yam kev siv.
Tsis muaj
|
TSIS MUAJ. |
Lub npe |
Parameter |
|
1 |
Tshuab qauv |

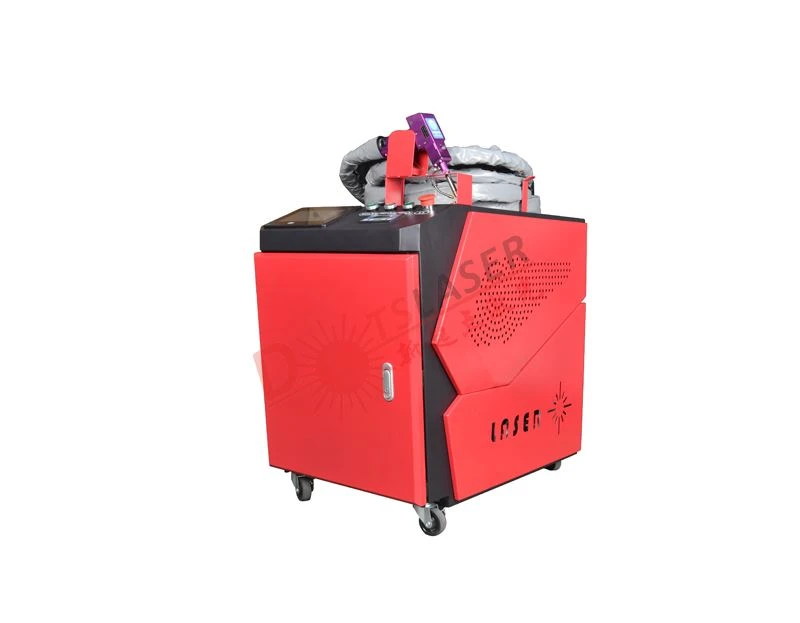

Tes tuav fiber ntau laser vuam tshuab |
|
2 |
laserzog |
1000W,1500W,2000W,3000W |
|
3 |
laser wave length |
1070 NIM |
|
4 |
Fiber ntauntev |
standard 10 M/ Ntau tshaj 15M |
|
5 |
ua haujlwm hom |
continuation/modulate |
|
6 |
Vuamceev ntau yam |
0~ 120 hli / s |
|
7 |
Cua txias chiller |
Industrial dej chiller |
|
8 |
Ua haujlwmib puag ncigqhov kub thiab txias |
15~35degree |
|
9 |
Humidity ntau ntawm kev ua haujlwm ib puag ncig |
< 70% No condensation |
|
10 |
Vuamtuabcov lus pom zoo |
05-3 hli |
|
11 |
Vuam qhov sib txawv yuav tsum |
Tsawg dua los yog sib npaug rau 0.5mm |
|
12 |
ua haujlwmhluav taws xob |
220 V |
Kev paub txog Stainless hlau
Cov nplooj ntawv stainless hlau feem ntau muaj teeb meem los ntawm deformation thaum vuam. Qhov no yog vim lub tshav kub ntawm lub vuam tshuab siv yog loj heev, uas tsis tsuas yog ua rau deformation, tab sis kuj hloov cov metallographic qauv ntawm daim ntawv, uas ua rau xeb nyob rau hauv lub vuam tom qab vuam. Txhawm rau daws qhov teeb meem ntawm stainless hlau deformation, lub tshuab txias vuam lossis lub tshuab laser vuam siv tau. Lub tshuab vuam txias muaj cov yam ntxwv ntawm qhov kub thiab txias thiab zoo nkauj tsos, qhov deformation tom qab vuam yog me me, thiab vuam seam zoo nkauj tsis muaj polishing.
Feem ntau siv shielding gases tau muab faib ua ntshiab argon shielding thiab sib xyaw roj shielding. Ib qho kev faib ua feem ntawm argon-nitrogen sib xyaw roj yog qhov tsim nyog rau kev vuam ntawm austenitic stainless hlau, thiab qee cov roj inert tsis siv vim lawv cov nqi siab. Argon-filling tiv thaiv yog ib txoj kev tiv thaiv rov qab ntau dua, uas muaj cov yam ntxwv ntawm kev tiv thaiv zoo dua qub, yooj yim rau tus tswv, siab huv, thiab siab dhau. Muab faib rau hauv kev tiv thaiv npog argon filling tiv thaiv txoj kev, ib nrab argon filling tiv thaiv txoj kev, vuam qhov ncauj ncaj qha filling argon kev twb kev txuas tiv thaiv txoj kev, thiab lwm yam.
Nyob ntawm qhov tuab ntawm cov khoom, lub laser fais fab ntau yam xaiv rau cov thicknesses sib txawv, thiab cov nyhuv vuam yuav tsis zoo tagnrho yog tias lub tshuab siv hluav taws xob qis qis siv rau cov phaj tuab heev.
Tam sim no, kev sib tw hauv kev lag luam laser vuam tshuab yog qhov hnyav, thiab muaj ntau lub tuam txhab loj thiab me. Nws raug nquahu kom nrhiav ob peb lub tuam txhab ntxiv los tham nrog thaum yuav khoom. Koj tuaj yeem xav txog lub laser, tswj qhov system, vuam teeb, dej txias, thiab lwm yam., thiab tom qab ntawd muab cov nqi sib tw, kev pab cuam tom qab muag, nqi kev ua haujlwm, thiab lwm yam, kev txiav txim siab zoo.

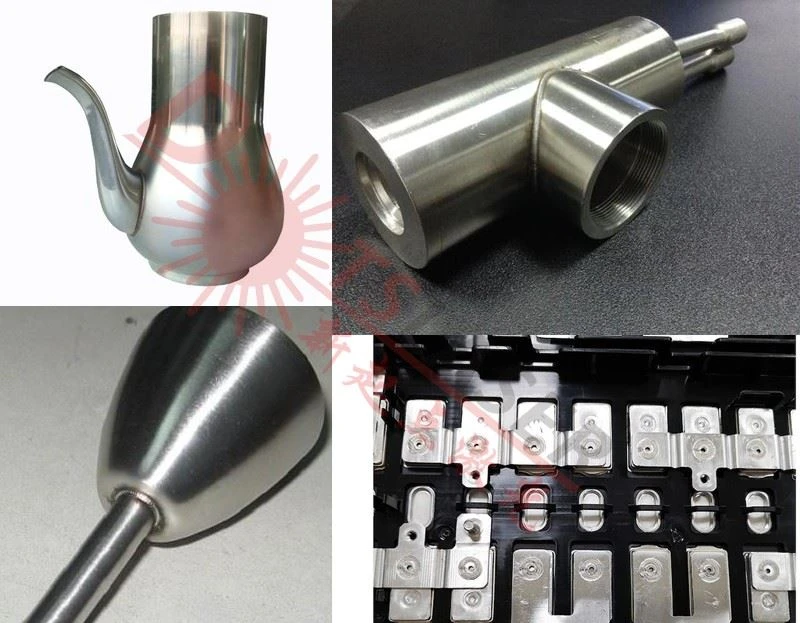

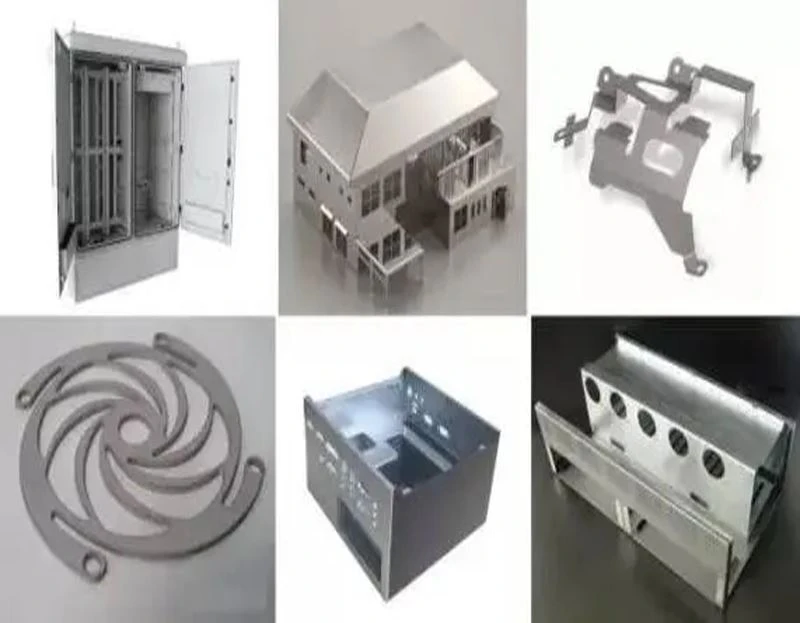

Cov qauv qhia
