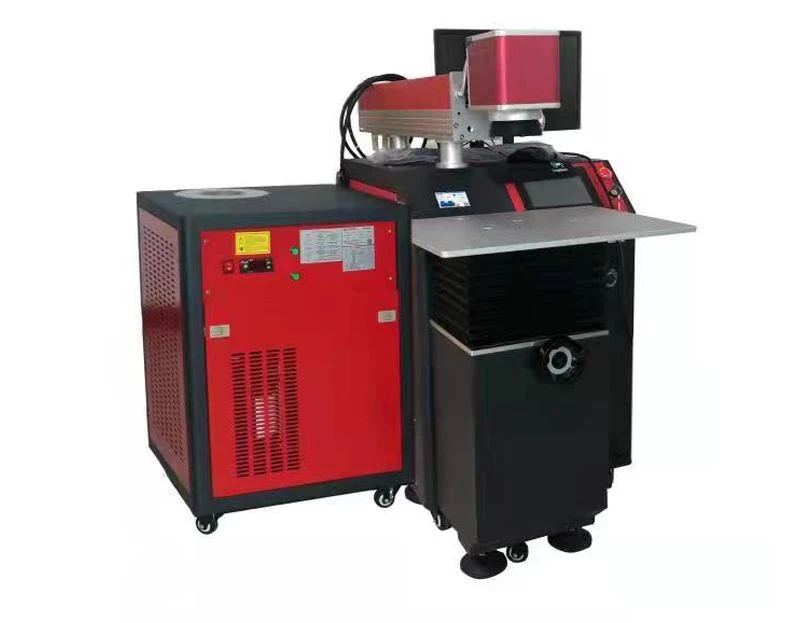

Galvo Laser Vuam Tshuab
Galvo Laser Vuam Tshuab
Khoom Description
Galvo Laser Vuam Tshuab siv high-zog laser pulses rau hauv zos tshav kub cov khoom nyob rau hauv ib tug me me cheeb tsam, thiab lub zog ntawm laser hluav taws xob kis mus rau sab hauv ntawm cov khoom los ntawm tshav kub conduction, melting cov khoom thiab tsim ib tug tshwj xeeb molten pas dej ua ke. Nws yog ib hom tshiab ntawm vuam txoj kev, feem ntau yog rau nyias-walled cov ntaub ntawv, precision qhov chaw. Nws tuaj yeem paub qhov chaw vuam, taub qab vuam, pawg vuam, foob vuam, thiab lwm yam, nrog rau qhov tob rau qhov dav piv, me me vuam dav, me me tshav kub cuam tshuam cheeb tsam, me me deformation, vuam ceev ceev, tiaj thiab zoo nkauj weld seam, tsis muaj kev kho mob los yog tsuas yog kev kho yooj yim tom qab vuam.
Qhov Zoo Tshaj Plaws
|
1. Precision Galvo laser vuam tshuab muab qhov tsis sib haum xeeb hauv kev vuam, txiav, thiab kos npe. Qhov no yog vim lawv qhov raug siab thiab rov ua dua. Cov tshuab siv lub teeb pom kev zoo laser los tsim cov vuam zoo, uas yog qhov zoo tagnrho rau cov khoom muag muag thiab qhov chaw. |
|
2. Ceev Galvo laser vuam tshuab yog incredibly ceev, zoo tagnrho rau loj ntau lawm. Lawv tuaj yeem txuas ntau qhov chaw hauv ib lub sijhawm luv luv, txo lub sijhawm tsim khoom thiab ua kom cov khoom tsim tau. Qhov no ua tiav vim tias cov tshuab siv lub zog siv hluav taws xob ceev ceev rau Weld cov ntaub ntawv, uas ua kom muaj txiaj ntsig sai thiab muaj txiaj ntsig. |
|
3. Ntau yam Galvo laser vuam tshuab muaj ntau yam zoo kawg nkaus, txhais tau tias lawv tuaj yeem vuam, txiav, thiab kos ntau yam ntaub ntawv, suav nrog hlau, yas, thiab ceramic. Lawv kuj tuaj yeem tswj cov duab sib txawv thiab qhov ntau thiab tsawg, ua rau lawv zoo tagnrho rau ntau yam kev siv. |
|
4. Yam tsawg kawg nkaus Thaum tshav kub kub cuam tshuam Galvo laser vuam tshuab tsim cov cheeb tsam uas muaj cua sov tsawg heev thaum lub sij hawm vuam txheej txheem. Qhov no txhais tau hais tias cov khoom raug welded muaj tsawg kawg nkaus kom tsis muaj kev cuam tshuam los yog kev sib hloov, kom ntseeg tau tias cov khoom siv welds zoo. Tsis tas li ntawd, qhov HAZ qis no ua rau muaj kev huv, zoo nkauj zoo nkauj weld. |
|
5. Kev tu qis Galvo laser vuam tshuab yuav tsum tau saib xyuas tsawg kawg nkaus, lub ntsiab lus ntawm kev tsim khoom poob qis. Cov tshuab yog tsim los nrog cov khoom siv ruaj khov, kom ntseeg tau tias lawv tuaj yeem tiv taus qhov chaw tsim khoom hnyav. |
|
Muaj feem ntau: ◆ Galvo Laser Vuam Tshuab tuaj yeem siv rau offline / online vuam ntawm cov khoom loj hauv hluav taws xob, kev sib txuas lus, kho vajtse thiab lwm yam lag luam. ◆ Cov cheeb tsam tseem ceeb suav nrog kev ua haujlwm siab laser qhov chaw vuam lossis sealing vuam ntawm lub xov tooj ntawm tes shields, hlau txawb xov tooj casings, hlau capacitor casings, hard disks, micro motors, sensors thiab lwm yam khoom muaj feem xyuam. ◆ Lub kaus mom roj teeb, cov khoom sib txuas, lub zog tsav vuam, cov xov tooj ntawm tes hlau, roj teeb tabs, sensors, lub koob yees duab ntawm lub xov tooj, cov hlau capacitor casings, watches, ntsuas li qub, micro motors, hlau shielding nets hauv computers. |
Performance thiab parameter
| Qauv | DS-LW 200 |
| Lub wavelength | 1.064µm |
| Rated zog | 200W |
| Ib leeg mem tes zog ntawm lub ntsiab lub teeb txoj kev | 120J |
| mem tes dav | 0 3-20ms(adjustable) |
| Adjustable qhov chaw loj | 0 2-2mm |
| Laser vuam zaus | 1-100Hz |
| Vuam qhov tob | {0}}1-2.0mm |
| Rov ua qhov tseeb | ± 0.005mm |
| Fais fab mov | 220V, 50/60Hz |
cov khoom siv technology

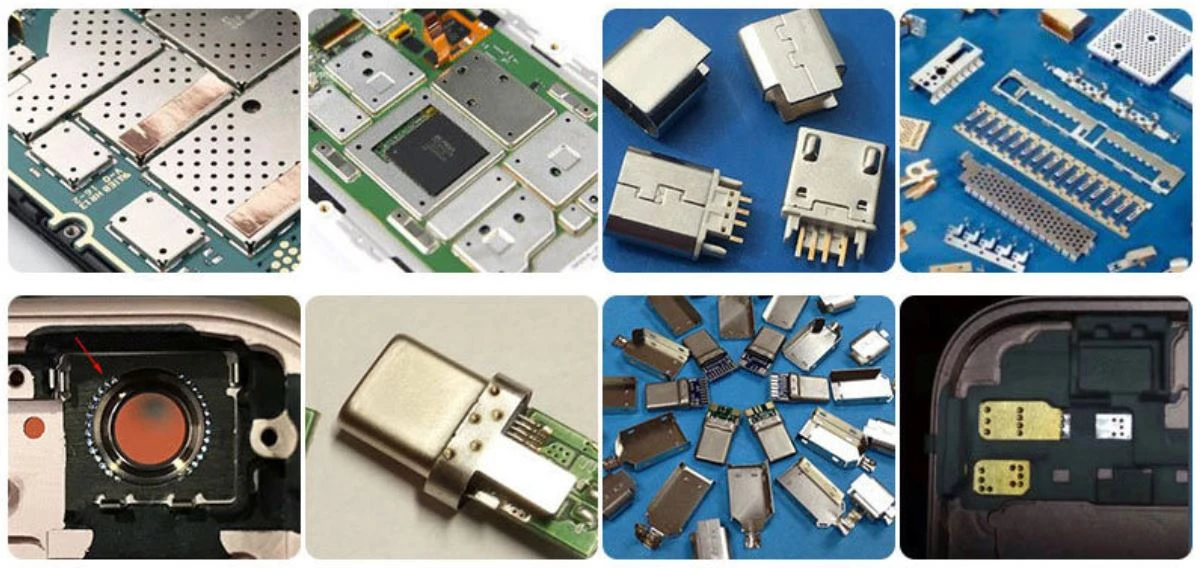

Spot vuam ntawm 3C cov khoom
Kev siv ntau yam, haum rau precision qhov chaw vuam.

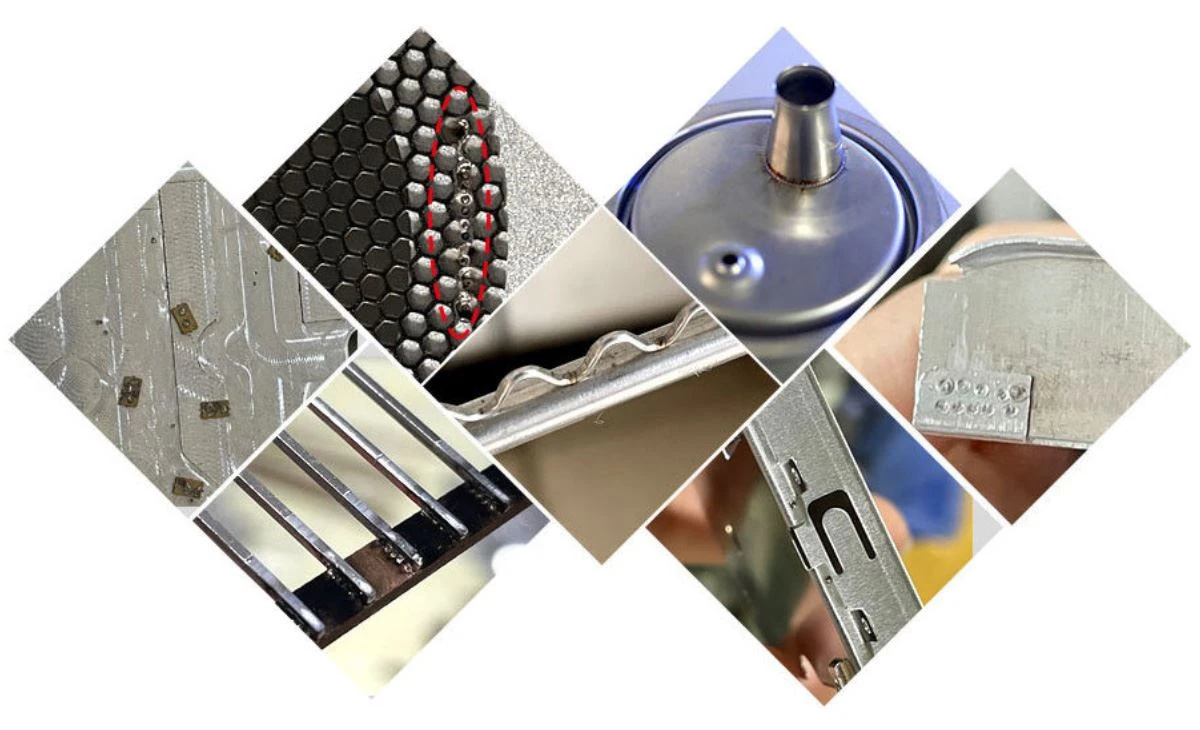

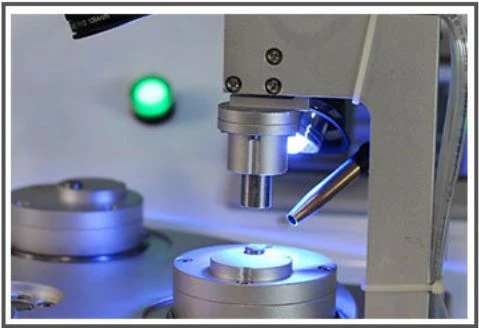

Precision vuam ntawm cov khoom sib xws
Yooj yim rau kev khiav lag luam thiab sai pib

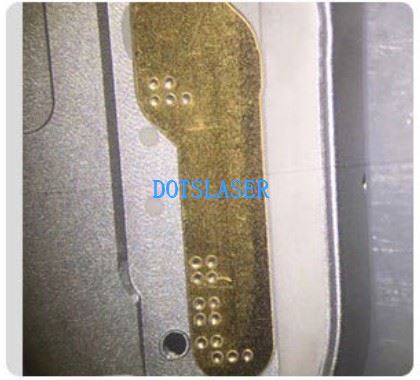

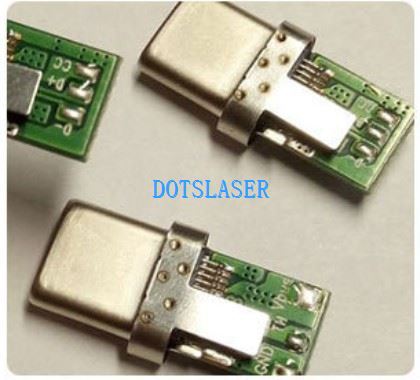

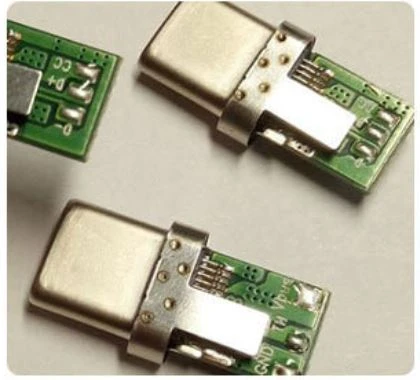

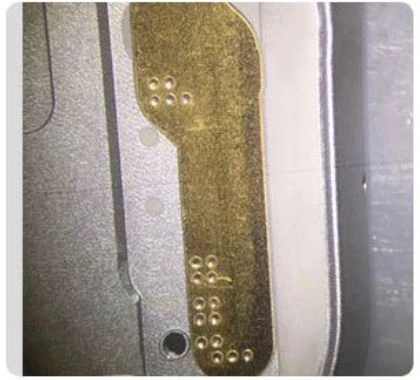

Spot vuam
(Cov khoom siv: stainless hlau, Kev nkag mus: 0.6mm)

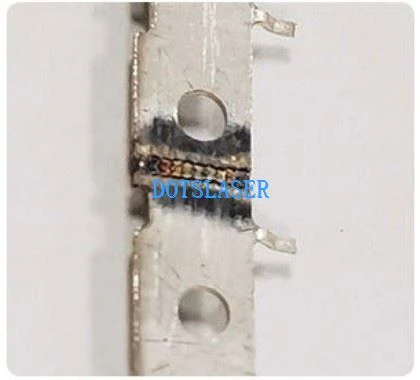

Splicing vuam
(Cov khoom siv: stainless hlau, Kev nkag mus: 0.8mm)
Cov Lus Qhia Ntau Lawm
Lens
Txhim kho lub peev xwm ntawm ntug beam nkag mus, homogenize lub illumination ntawm lub photosensitive nto ntawm lub detector, thiab them nyiaj rau lub teb curvature thiab distortion ntawm lub system.
Vuam phom
Kev ruaj khov thiab tsis tu ncua, qhov chaw vuam, pawg vuam, taub qab vuam, kaw vuam, thiab lwm yam.: vuam dav me me, me me tshav kub-tshem tawm tsam, du vuam, zoo nkauj tsos, thiab siab zog ceev.

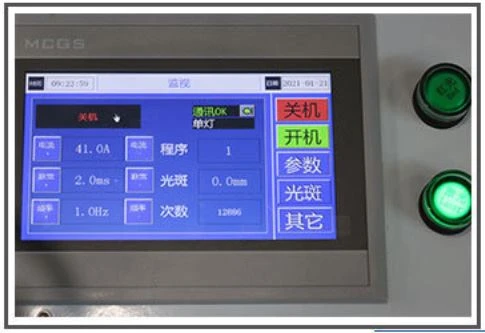

kov npo
Lub vijtsam kov yog siv rau tib neeg-lub computer kev sib cuam tshuam, lub interface yog intuitive, cov zaub yog meej, ntau yam tsis yooj yim to taub thiab kho, thiab nws yog ib qho yooj yim mus use.

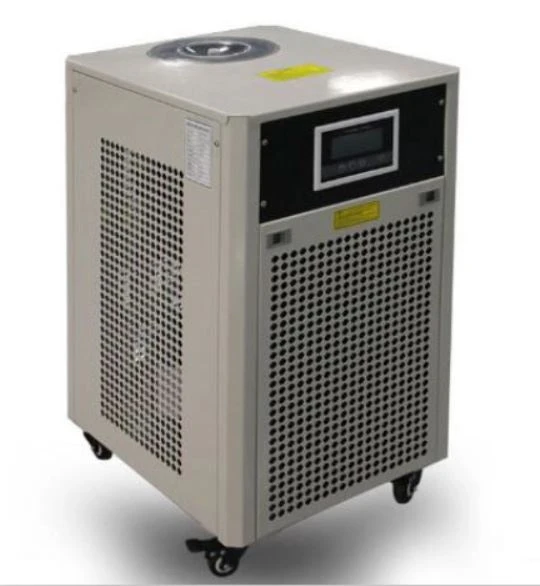

cais chiller
Lub tshuab cais chiller cia txias raws li qhov ntsuas kub ntawm lub kaw lus, nrog rau cov cua txias zoo thiab cov cua kub zoo, ua kom cov khoom siv muaj kev nyab xeeb, muaj kev tiv thaiv zoo ntawm cov khoom qub ntawm cov khoom siv sab hauv, thiab txhim kho cov kev pabcuam zoo. lub neej ntawm cov khoom siv.
