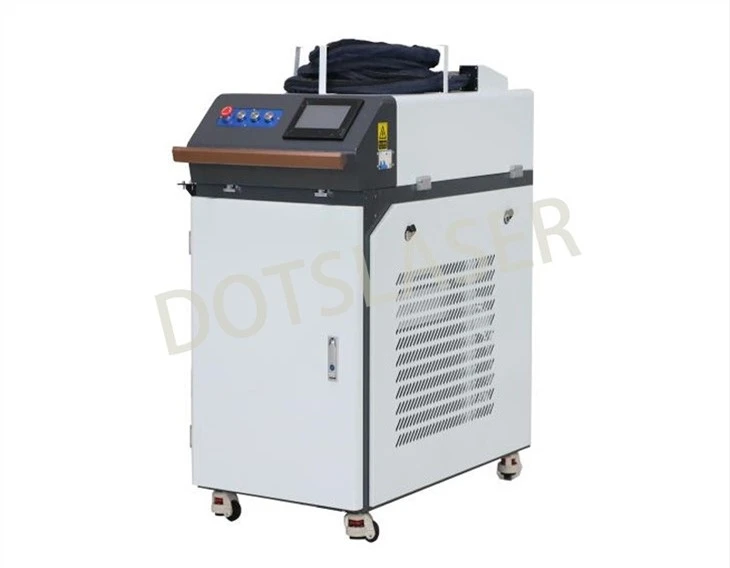

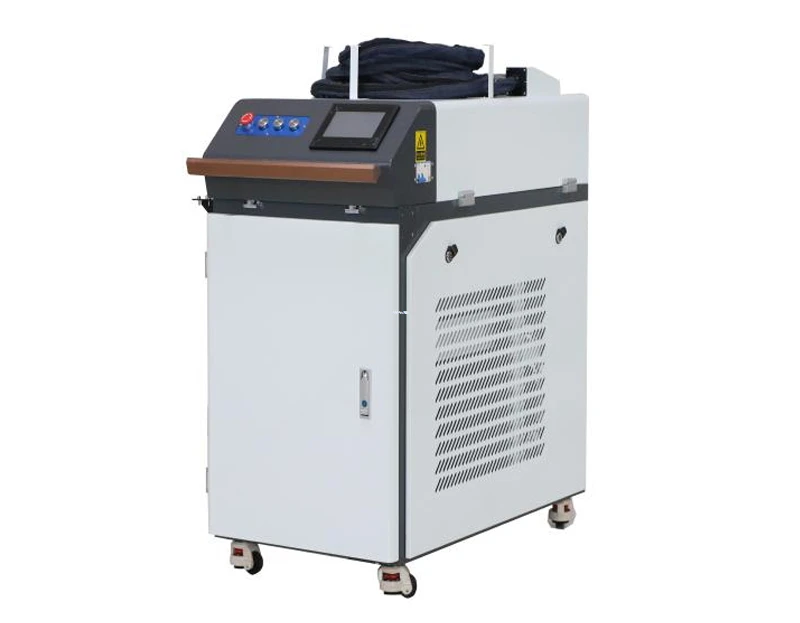

Txheej Painting Laser Ntxuav Tshuab
Txheej Painting Laser Ntxuav Tshuab
Khoom Description
Txheej thiab pleev xim rau Laser Cleaning Tshuab yog lub xeev-of-the-art tov rau tshem tawm cov coatings, pleev xim, thiab lwm yam deg kab mob los ntawm ntau yam ntaub ntawv. Cov txheej txheem zoo ib puag ncig thiab muaj txiaj ntsig zoo no siv cov cuab yeej laser muaj zog los ntxuav qhov chaw yam tsis muaj kev puas tsuaj rau cov substrate lossis tsim cov khib nyiab pov tseg. Nws yog qhov zoo tagnrho rau kev lag luam xws li automotive, aerospace, shipbuilding, restoration, thiab kev tsim khoom.
Ntsiab nta
Precision Ntxuav
Siv cov cuab yeej laser qib siab, lub tshuab xaiv tshem tawm cov xim, txheej, lossis cov khoom paug tawm ntawm qhov chaw uas muaj kev cuam tshuam tsawg kawg nkaus ntawm cov khoom siv hauv qab, khaws cia kev ncaj ncees ntawm ib feem lossis cov qauv.
Tsis muaj kev puas tsuaj
Laser tu yog cov txheej txheem tsis sib cuag thiab tsis yog abrasive, ua nws txoj hauv kev zoo tshaj plaws rau kev ua haujlwm nrog cov ntaub ntawv rhiab lossis cov khoom muag uas tuaj yeem raug puas los ntawm kev tu ib txwm.
Environmentally Friendly
Lub tshuab ntxuav laser ua kom tsis muaj kev puas tsuaj pov tseg, tshuaj lom neeg, lossis cov pa phem, txhawb kev ua haujlwm ruaj khov thaum txhawb cov neeg ua haujlwm noj qab haus huv thiab kev nyab xeeb.
Ua haujlwm siab
Txheej thiab pleev xim rau Laser Cleaning Tshuab tuaj yeem tshem tawm cov kab mob ntawm qhov chaw loj lossis qhov chaw tsis yooj yim, txo lub sij hawm ntxuav thiab txhim kho tag nrho kev ua haujlwm.
Ntau yam
Haum rau ntau qhov chaw, suav nrog hlau, iav, ceramic, pob zeb, thiab yas, lub tshuab ntxuav laser no zoo tagnrho rau ntau yam kev siv thoob plaws ntau hom kev lag luam.
Automotive Kev Lag Luam: Siv cov xim pleev xim zoo nkauj, tshem tawm xeb, los yog huv si weld seams ua ntej repainting los yog thov kev tiv thaiv corrosion.
Aerospace: Ntxuav cov dav hlau rhiab heev, cov khoom siv cav, lossis cov tshuab hluav taws xob tsis cuam tshuam kev ua haujlwm lossis ua rau muaj kev puas tsuaj.
Maritime & Shipbuilding: Tshem tawm marine kev loj hlob, xeb, xim, los yog txheej ntawm lub nkoj hulls, cia tank, los yog lwm yam marine qauv.
Kev kho dua tshiab: Npaj qhov chaw rau repainting los yog refinishing, tshem tawm cov qub xim txheej, graffiti, los yog lwm yam kab mob ntawm lub tsev, tsheb, los yog artifacts.
General Manufacturing: Ua cov kev kho deg, kev npaj ua ntej txheej, lossis kev saib xyuas cov haujlwm yam tsis muaj kev cuam tshuam rau kev ua haujlwm ntau lawm.

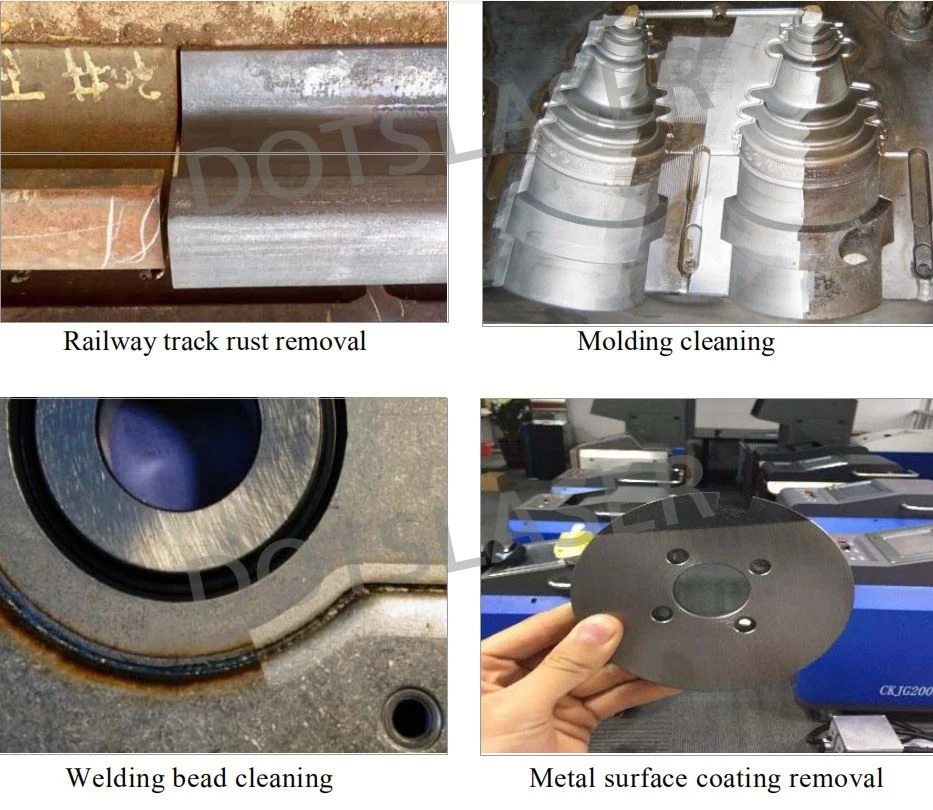

Cov khoom siv ntawm txheej painting laser tu tshuab
* Hlau lossis iav nto txheej tshem tawm, tshem tawm cov xim sai
* Ceev xeb thiab ntau yam oxides tshem tawm;
* Roj, resin, cov pos hniav, plua plav, stains, thiab tsim cov residue tshem tawm;
* Roughening ntawm hlau nto;
* Pwm tu, xws li log pwm, hluav taws xob pwm, pwm pwm thiab lwm yam .;
* Kev kho rau precision qhov chaw, tshem tawm roj;
* Kev tu ceev ntawm nuclear fais fab chav tsev tu;
Qhov zoo ntawm txheej painting laser tu tshuab
* High-tech laser tu tsis muaj kev sib cuag, tsis muaj kev puas tsuaj rau workpiece.
* Auto-focusing, nuv tu, precision thiab tsis muaj qhov kawg tu muaj peev xwm.
* Tsis muaj cov khoom siv thiab siv tau zoo.
* Tsis muaj kev tu nruab nrab, dej thiab tshuaj lom neeg xav tau.
* Tsis siv neeg thiab ua haujlwm yooj yim, nrog hluav taws xob, tuav lossis automation tu.
* Portable nrog lub teeb txee thiab universal log.
* Kev ua haujlwm siab tu, txuag lub sijhawm.
* System ruaj khov, kho dawb.
* Tsis muaj cov khoom siv thiab cov nqi siv tau zoo
Parameter ntawm txheej painting laser tu tshuab
Qauv: DS-LC1000, DS-LC1500, DS-LC2000
Laser zog: 1000W, 1500W, 2000W
wavelength: 1070 ± 5nm
Mode: CWJ
Zaus: 1000HZ
Txoj kab uas hla ntawm fiber ntau optical: 50-100um
Fiber cable ntev: 10m
Rated zog: 3.5KW / 4.5KW
Txias ntawm chiller: 1.5P / 2P
Lub hwj chim: 220V ± 5V
Txheej pleev xim Laser ntxuav tshuab Kev sib piv nrog cov qauv huv huv
|
Kev sib piv |
Laser ntxuav |
Tshuaj ntxuav |
Mechanical sib tsoo |
Qhuav dej khov |
|
Txoj Kev Ntxuav |
kev ntxuav tsis sib cuag |
tiv tauj tu |
Abrasive tiv tauj tu |
kev ntxuav tsis sib cuag |
|
Ua phem rau cov khoom siv hauv paus |
Tsis muaj |
Yog lawm |
Yog lawm |
Tsis muaj |
|
Ntxuav Efficiency |
Siab |
Tsawg |
Tsawg |
Nruab nrab. |
|
Siv tau |
Hwj chim |
Chemical Detergent |
Abrasive ntawv, grinder, abrasive pob zeb |
Dej khov qhuav |
|
Ntxuav tau |
Zoo heev, meej heev |
Nruab nrab, tsis sib xws |
Nruab nrab, tsis sib xws |
Zoo, tsis sib xws |
|
Precision Ntxuav |
Qhov tseeb tswj tau. High precision |
Uncontrollable, tsawg precision. |
Uncontrollable, nruab nrab precision. |
Uncontrollable, tsis zoo precision. |
|
Kev Nyab Xeeb / Ib puag ncig |
Tsis muaj kuab paug |
Tshuaj lom neeg |
Cov plua plav paug |
Tsis muaj kuab paug |
|
Kev ua haujlwm |
Yooj yim rau kev khiav lag luam, portable lossis automation yeem. |
Cov txheej txheem nyuaj, kev xav tau ntau dua ntawm tus neeg teb xov tooj. Kev tiv thaiv kev ua qias tuaj yuav tsum muaj. |
Xav tau ntau lub sijhawm & cov neeg ua haujlwm. Kev tiv thaiv kev ua qias tuaj yuav tsum muaj. |
Yooj yim rau kev khiav lag luam, portable lossis tsis siv neeg. |
|
Kev nqis peev |
Siab peev ntawm tshuab. Tab sis tsis muaj consumable, tsawg tu nqi |
Tsawg peev ntawm tshuab. Tab sis kim consumables |
Nruab nrab peev ntawm tshuab. Tus txiv neej-lub zog nqi siab. |
Nruab nrab peev ntawm tshuab. High consumable nqi. |
Qauv qhia ntawm txheej painting laser tu tshuab
