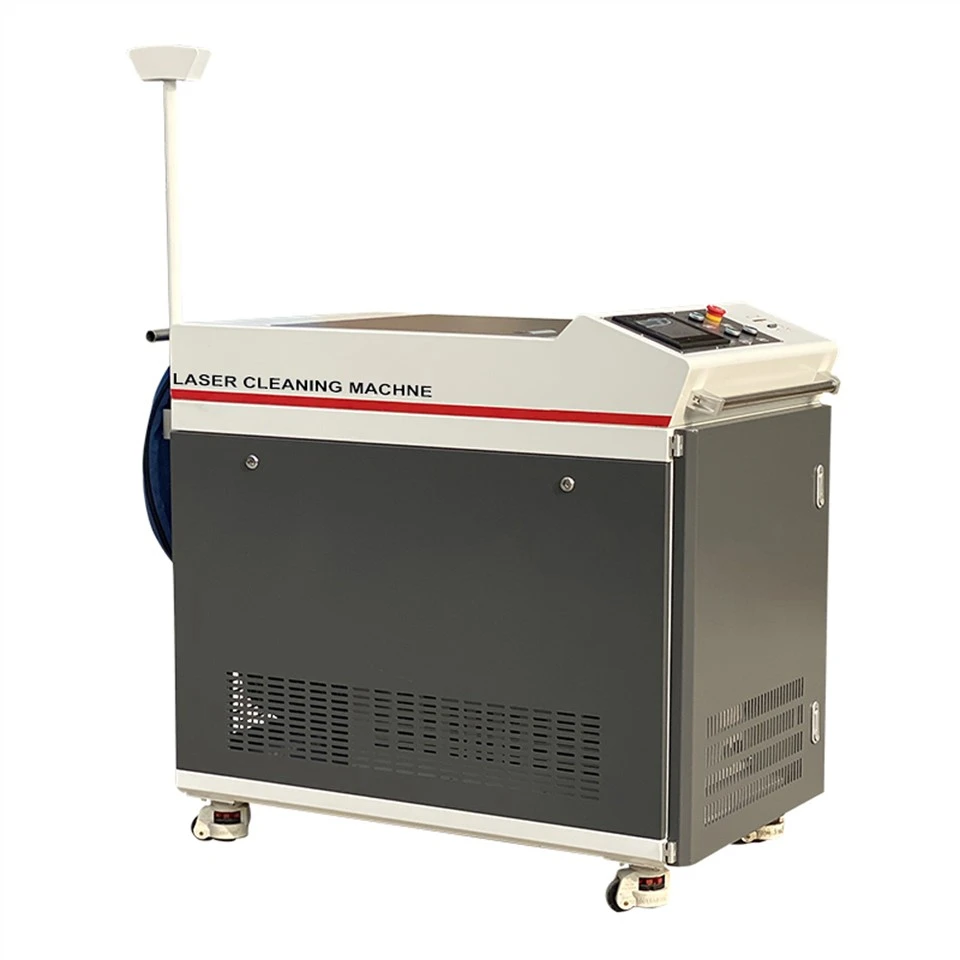

Fiber Laser Ntxuav Tshuab
Fiber Laser Ntxuav Tshuab
Khoom Description
Fiber laser cleaning machines yog cov cuab yeej siv siab tshaj plaws uas siv lub zog fiber ntau lasers kom tshem tawm cov khoom tsis zoo xws li xeb, xim, thiab cov kab mob los ntawm ntau qhov chaw. Cov tshuab no tau loj hlob hauv kev muaj koob meej vim lawv cov kev ua tau zoo, kev ua tau zoo, thiab eco-phooj ywg mus kom ze rau kev ntxuav qhov chaw.
Cov txheej txheem ntawm kev ntxuav nrog fiber ntau laser cuam tshuam nrog kev siv ntau txhiab micro-pulses ib ob. Cov pulses no tsim cov plasma me me tawg nyob rau hauv qhov chaw uas lub laser tsom. Tom qab ntawd cov khoom tshem tawm yog vaporized thiab rhais tawm, tawm hauv qhov chaw huv si. Cov txheej txheem tu yuav siv qhov chaw yam tsis tau kov qhov chaw, uas tshem tawm qhov kev pheej hmoo ntawm kev puas tsuaj rau cov khoom siv thiab txo cov khoom poob.
Qhov zoo ntawm Fiber laser tu tshuab
1. Precision:Fiber laser tu tshuab tuaj yeem raug tsom rau thaj chaw uas xav tau, tshem tawm tsuas yog cov khoom siv tsis xav tau thaum khaws cia kev ncaj ncees ntawm qhov chaw hauv qab.
2. Ceev:Laser tu yog sai dua li lwm txoj kev tu, tso cai rau kev tsim khoom ntau ntxiv.
3. Tsis-abrasive thiab eco-friendly:Tsis zoo li abrasive tu txoj kev uas tsim cov khoom pov tseg thiab tuaj yeem ua rau hnav rau saum npoo, laser tu yog cov txheej txheem tsis sib cuag uas tsis tsim cov khoom pov tseg lossis kev puas tsuaj rau cov khoom.
4. Versatility:Fiber lasers tuaj yeem ntxuav ntau yam ntaub ntawv, suav nrog hlau, yas, ceramics, thiab cov khoom sib xyaw.
5. Tsis muaj consumables:Laser tu tsis tas yuav tsum tau consumables xws li tshuaj los yog abrasive xov xwm, txo cov nqi khiav hauj lwm thiab ua rau nws ib tug ntau environmentally phooj ywg tshuaj.
Thaum xaiv lub tshuab fiber ntau laser ntxuav, xav txog yam xws li lub zog laser, scanning cheeb tsam, qib ntawm automation, thiab kev ua haujlwm yooj yim. Qhov kev xaiv zoo yuav nyob ntawm qhov kev xav tau tshwj xeeb thiab cov kev xav tau ntawm koj daim ntawv thov.
Tsis muaj
|
Qauv |
Qauv: DS-C200 |
Qauv: DS-C500 |
DS-C1000 |
DS-C1500 UAS |
DS-C2000 |
|
Laser zog |
200W |
500W |
1000W |
1500W |
2000W |
|
Laser hom |
Pulse/Nruam |
||||
|
Laser wavelength |
1064nm{1}} ua |
||||
|
Hom cua txias |
Cua txias / dej txias (Cov dej txias tshaj 500W) |
||||
|
Hom dej txias |
Purified dej / laser tshwj xeeb antifreeze / cawv + dej |
||||
|
Ua haujlwm dej kub |
18-35 degree (kev siv ntau yam) |
||||
|
Ntxuav taub hau hnyav |
1.2 kg ib |
||||
|
Tag nrho lub zog |
Tsawg dua los yog sib npaug rau 200-3000W |
||||
|
Luam theej duab dav |
10-120 hli |
||||
|
Ua haujlwm kub |
15 degree -55 degree |
||||
Txoj Cai Ua Haujlwm
1. Lub laser tsim los ntawm phosgenation / photolysis laser ntawm Fiber Laser ntxuav tshuab tuaj yeem ua kom pom tseeb los ntawm qhov kho qhov muag kom ua tiav qib siab ntawm lub zog concentration. Lub teeb pom kev laser tuaj yeem tsim ntau txhiab degrees lossis txawm tias kaum tawm txhiab tus degrees nyob ib puag ncig ntawm lub focal point, ua rau qhov chaw ntawm cov khoom adherent Nws vaporizes lossis decomposes tam sim ntawd.
2. Optical peeling ua rau cov ntawv txuas rau saum npoo ntawm cov khoom cua sov thiab nthuav dav los ntawm kev txiav txim ntawm lub laser. Thaum lub zog nthuav dav ntawm cov khoom txuas rau ntawm qhov chaw ntawm cov khoom yog ntau dua li qhov adsorption quab yuam ntawm nws thiab cov substrate, cov khoom txuas rau ntawm qhov chaw ntawm cov khoom yuav raug cais tawm ntawm qhov chaw ntawm cov khoom.
1. Kev ntxuav hauv kev lag luam hluav taws xob. Kev lag luam hluav taws xob yuav siv lasers tshem tawm oxides, thiab kev lag luam hluav taws xob tsim nyog rau lasers tshem tawm oxides. Ua ntej lub rooj tsav xwm Circuit Court yog soldered, cov khoom siv pins yuav tsum tau deoxidized kom huv si los xyuas kom meej cov nyhuv ntawm hluav taws xob tiv tauj, thiab cov pins yuav tsum tsis txhob puas thaum lub sij hawm decontamination txheej txheem.
2. Pretreatment rau brazing thiab welding Laser vuam npaj yog ib qho ntawm ntau daim ntawv thov ntawm laser tu, uas yuav pab tshem tawm ferrous thiab non-ferrous hlau, lubricants thiab lwm yam kab mob nyob rau saum npoo ntawm hlau thiab txhuas, thiab npaj rau high-zoo vuam. .
3. Kev tu cov pwm thaum lub sij hawm tsim khoom, kev tu lub log pwm yuav tsum ceev ceev thiab txhim khu kev qha kom txuag tau lub sijhawm poob. Vim tias txoj kev ntxuav lub laser tuaj yeem txuas nrog optical fiber los ntxuav qhov chaw tuag ntawm cov pwm los yog qhov chaw uas tsis yooj yim los ntxuav, nws yooj yim siv.

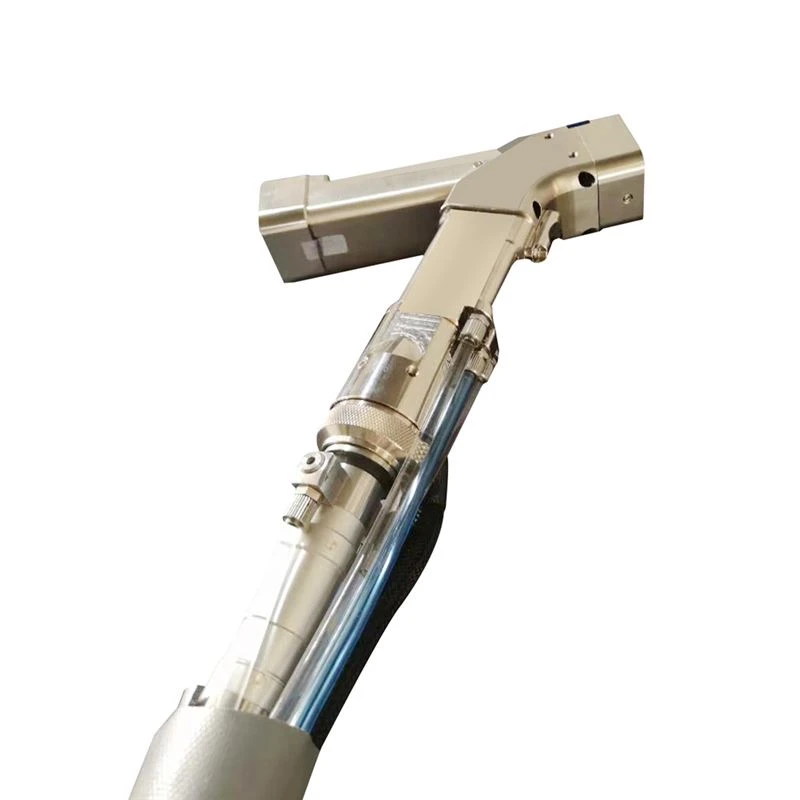

Vuam Phom

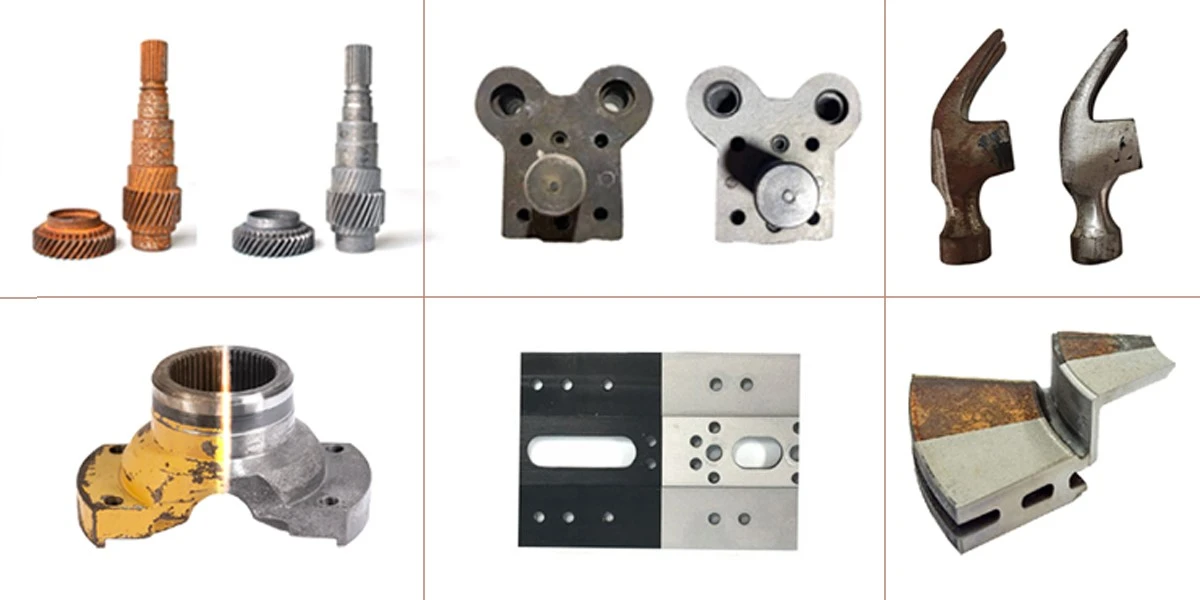

Cov qauv
