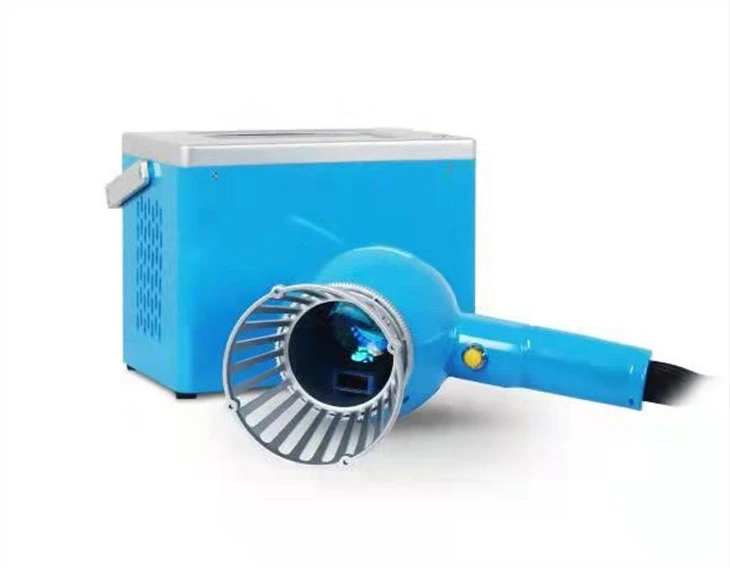

Handheld Wireless Laser Marking Tshuab
1.Handheld wireless Laser npav
2.Smart laser npav.
3.Me me, lub teeb yuag, yooj yim txav mus los.
4.Operator tuaj yeem nqa tau txhua qhov chaw thiab cim.
5.Wireless, tsuas yog them yog ok.Koj tuaj yeem khij thaum ntsaws
6.Kov npo los kho cov cim cim

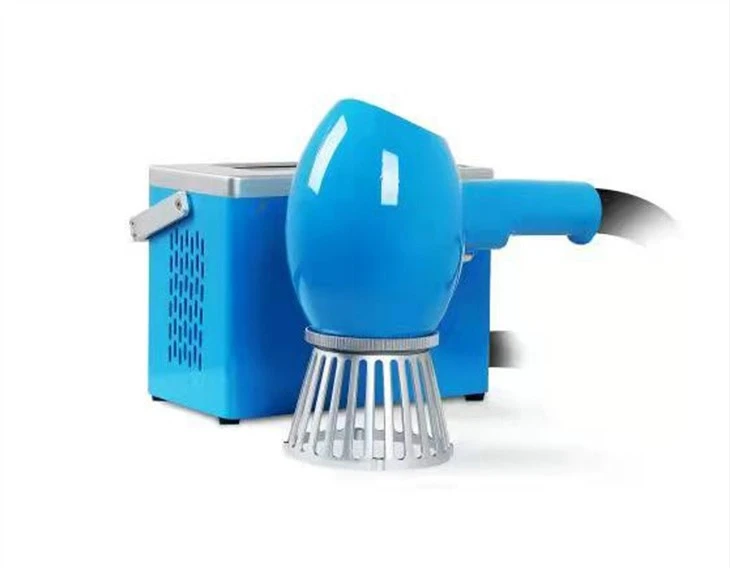

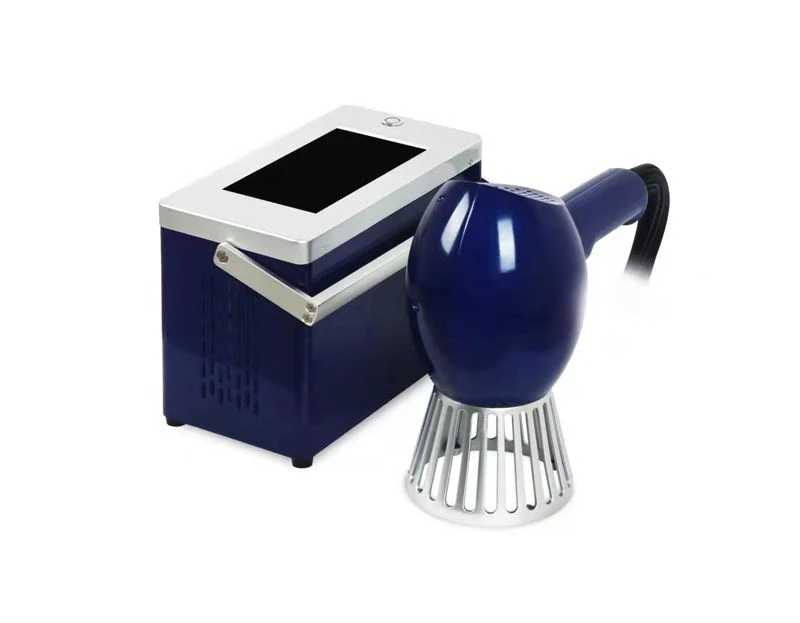

Handheld wireless laser npav tshuab
Khoom Description
Lub handheld wireless laser npav tshuab yog portable, roj teeb-powered, tag nrho automatic marking tshuab. Vim nws lub zog muaj zog 24V rechargeable lithium roj teeb lub zog, nws tuaj yeem tswj tau 6-8 teev ntawm kev ua haujlwm nyob rau hauv ib txwm siv, muaj zog endurance, tsis muaj cable rub, thiab zam lub txaj muag ntawm lub hwj chim tam sim ntawd thaum siv. Nrog nws lub teeb yuag thiab ntau lub zog, nws yog qhov tshwj xeeb tshaj yog tsim rau kev kos zoo meej ntawm cov khoom loj, hnyav lossis nyuaj-rau-tsav workpieces.
Khoom zoo
1. Wireless marking
★ Nws tau nruab nrog 24V lithium roj teeb kom ua tiav wireless.
★Nws tuaj yeem ua haujlwm tau rau 6-8 teev nyob rau hauv ib txwm siv thiab muaj kev ua siab ntev.
★ Tsis siv neeg pib-nres tsim, tsis siv neeg kaw tom qab 60 vib nas this ntawm standby, txuag lub zog thiab txo kev noj.
2. 100% portable.
★ Qhov hnyav ntawm tag nrho lub tshuab yog 6KG; lub cim lub taub hau tsuas yog 1.25KG; nws yog me me thiab lub teeb, thiab tuaj yeem luam tawm txhua lub sijhawm thiab nyob qhov twg.
★ Nws yog qhov tshwj xeeb tshaj yog tsim rau kev kos loj, hnyav lossis nyuaj txav workpieces.
★ Lub nra tshwj xeeb yog yooj yim rau kev thauj mus los.
3. Lub teeb pom kev zoo
★ Siv cov qib siab fiber ntau 20W laser
★ High electro-optical conversion efficiency, zoo tso zis beam zoo thiab muaj kev ntseeg siab.
★ Nws tuaj yeem hloov pauv mus rau cov ntaub ntawv tsis yog xim hlau thiab qee cov ntaub ntawv tsis yog xim hlau
4. nplooj ntawv ua haujlwm zoo
★ DOTSLASER ywj siab coding system, muaj nuj nqi muaj zog, ua haujlwm yooj yim.
★ Nws txhawb cov ntawv nyeem, qauv, QR cov lej, barcodes, lej lej, duab, thiab lwm yam.
★Tus tswv tsev txais linux system, uas muaj kev nyab xeeb, ruaj khov thiab txhim khu kev qha.
Laser Parameter
| Qauv | Q8 |
| Laser qhov chaw qauv | DS-20X |
| Output zog | 20W |
| Beam zoo M2 | Tsawg dua los yog sib npaug rau 1.4 |
| Pulserepetition zaus | 27-60kHz |
| Laser wavelength | 1064±5 |
| Tso zis zog stability | <3% |
| Lub neej ua haujlwm | Kwv yees li 100, 000 teev (Tsis yog lub neej) |
Optical zog
| Kos thaj tsam | 80mm * 80 hli |
| Engraving qhov tob | Tsawg dua lossis sib npaug li 1 hli (nyob ntawm lub zog thiab lub sijhawm) |
| Engraving ceev | 10000m/s |
| Rov ua dua | ±0.002 |
| Min cim kab dav | 0.1 hli |
| Yam tsawg kawg nkaus qhov siab | 0.15 hli |
Siv ib puag ncig
| Battey lub neej | Nws tuaj yeem ua haujlwm rau 6-8 teev nyob rau hauv ib txwm siv hauv ib hnub |
| Txoj kev Coling | Built-in cua txias |
| Qhov system fais fab mov | 500W / 100-240V / 50 / 60Hz |
Lwm yam tsis muaj
| Kev khiav haujlwm | linux system |
| Cov ntaub ntawv | Lub software txhawb cov ntawv nyeem, qauv, ob-dimensional code, barcode, serial tooj, graphics thiab lwm yam ntsiab lus cim (tus qauv USB input) |
| Dimension | Tswj chassis: 250X135X195 mm Marking taub hau: 250X120X260 mm |
| Tshuab hnyav | Tshuab 6kg, Marking taub hau 1.25kg |
Qhov nruab nrab tso zis zog: 20W
6 ~ 8 teev roj teeb lub neej ntev

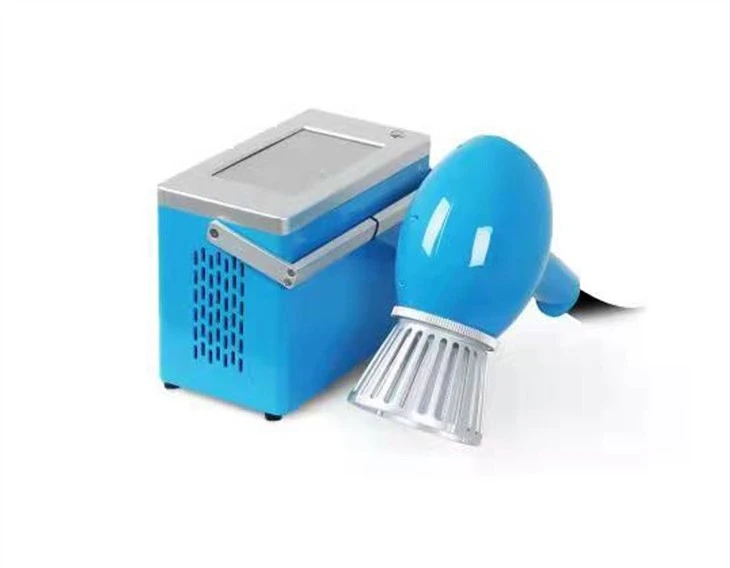

Q8 muaj zog, ruaj khov thiab txhim khu kev qha. Qhov hnyav ntawm lub tshuab yog 6 kg. Nws lub taub hau cim tsuas yog 1.25 kg.
Nws muaj ergonomic kov, uas yog xis tuav thiab yooj yim rau kev khiav lag luam.
Nws txhawb rear USB interface. Lub software txhawb kev kos cov ntsiab lus xws li cov ntawv nyeem, qauv, ob-dimensional code, bar code, serial tooj, thiab cov duab.

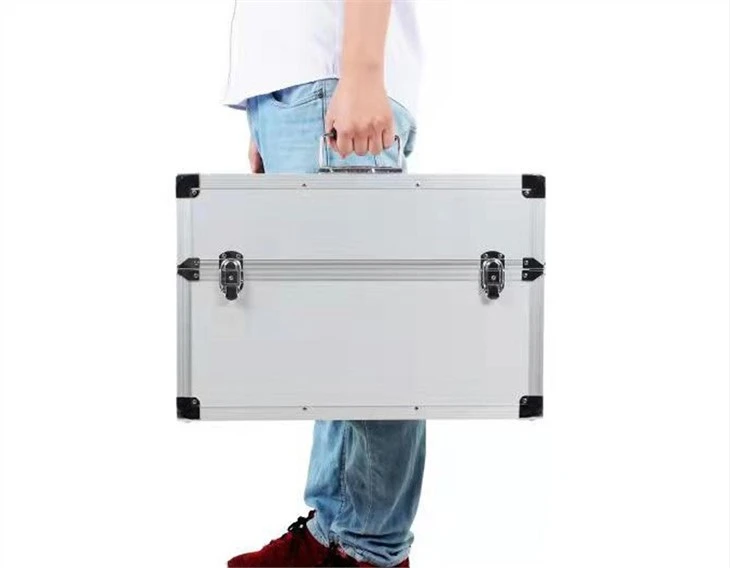

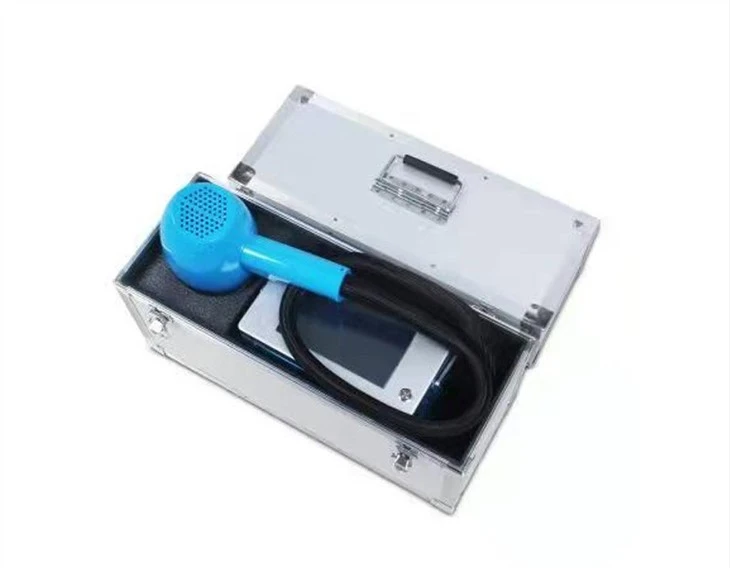

Q8 muaj lub thawv tshwj xeeb rau kev khaws cia yooj yim thiab tuaj yeem nqa mus rau qhov chaw sib txawv. Nws yog ib qho me me rechargeable laser npav tshuab ntawm lub khw.

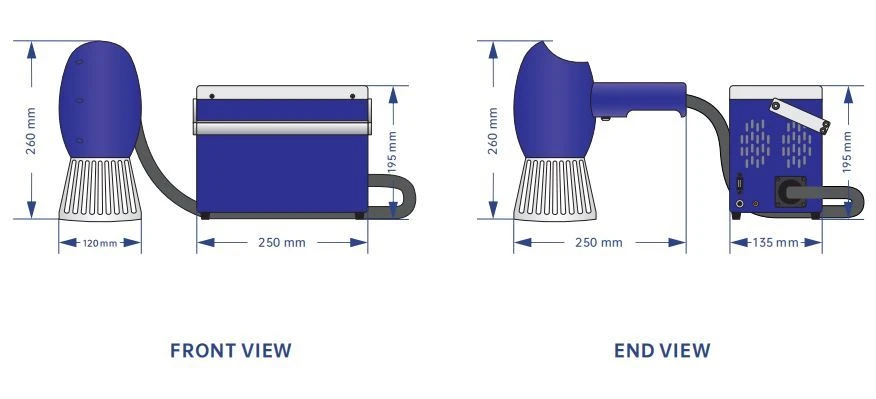

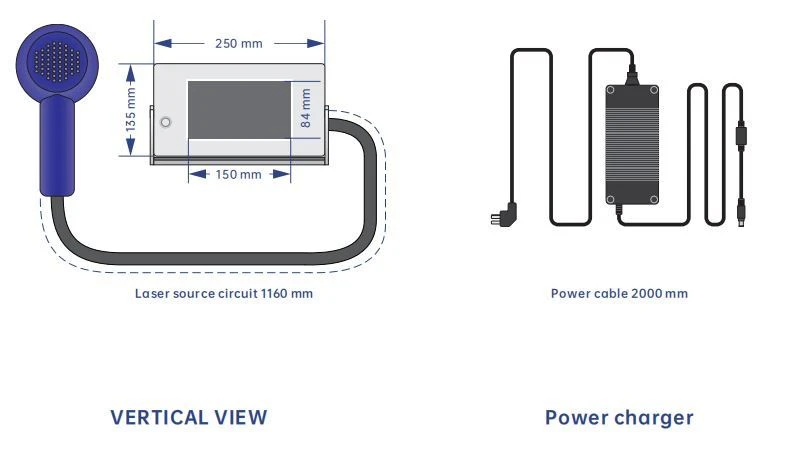

Khoom loj
Daim ntawv thov:
aerospace kev lag luam

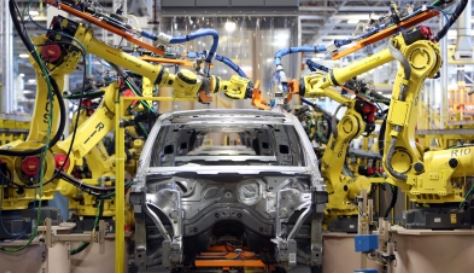

tsheb tsim kev lag luam
kev tsim kho tshuab kev lag luam
kev lag luam hluav taws xob

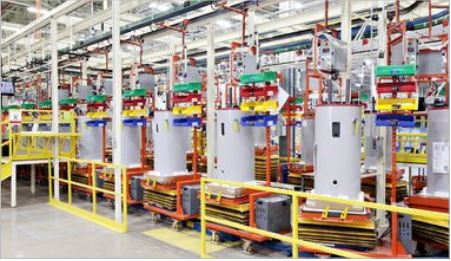

kev lag luam khoom siv hauv tsev
Hlau ua kev lag luam
Cov yam ntxwv ntawm cov khoom
Tsis siv neeg pib thiab nres tsim, txuag hluav taws xob thiab txo kev siv
Ntxiv tsis siv neeg pib-nres tsim, nws yuav cia li nres tom qab 60 vib nas this ntawm standby thiab rov pib dua los ntawm tapping lub vijtsam; Lub sijhawm standby tuaj yeem hloov kho kom txuag tau lub zog tsis tsim nyog.

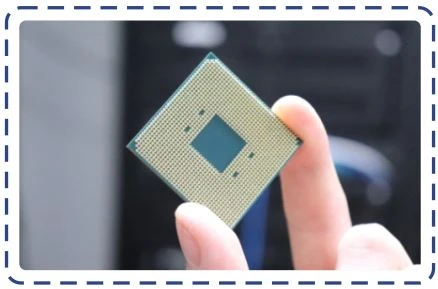

Yim-core Cpu, Configure Linux System
Tus tswv tsev txais yuav ib qho 8-core processor thiab nruab nrog Linux system nrog qib kev ruaj ntseg siab. Nws muaj kev ua haujlwm ruaj khov, cov lus teb ceev ceev thiab tsis yooj yim rau kev lom thiab poob qis.

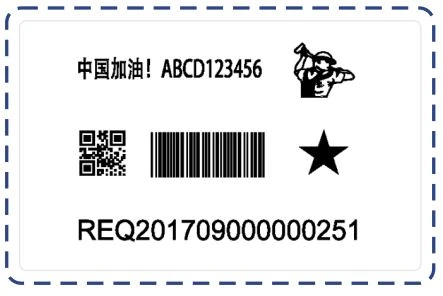

Diversified Marking Cov Ntsiab Lus, Txhawb Cov Lus Customization
rear USB interface, txhawb software: ntawv nyeem, qauv, QR code, barcode, serial tooj, graphics thiab lwm yam ntsiab lus cim. Nws txhawb kev khiav hauj lwm qhov system lus customization.
CustomizedLogo
Nplooj ntawv khau raj ntawm lub operating system thiab LOGO nyob rau sab laug ces kaum tuaj yeem hloov kho.
Marking nyhuv

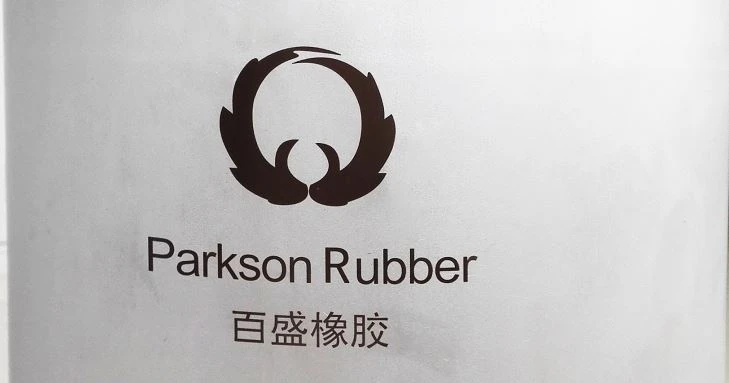

Hlau aluminium

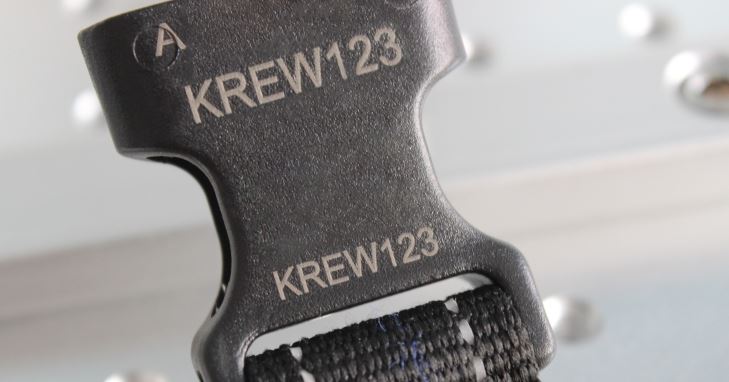

Yas tawv

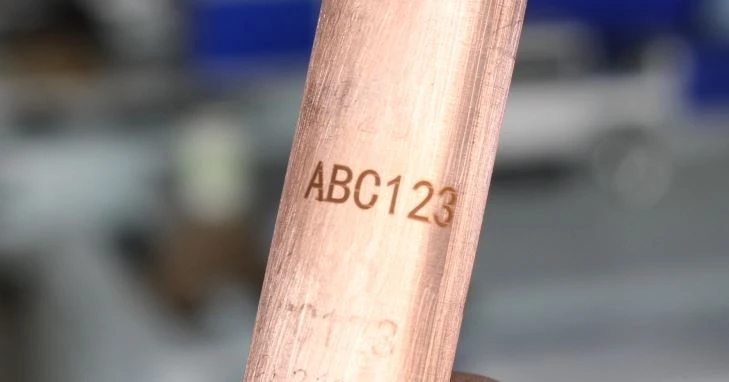

Hlau tooj

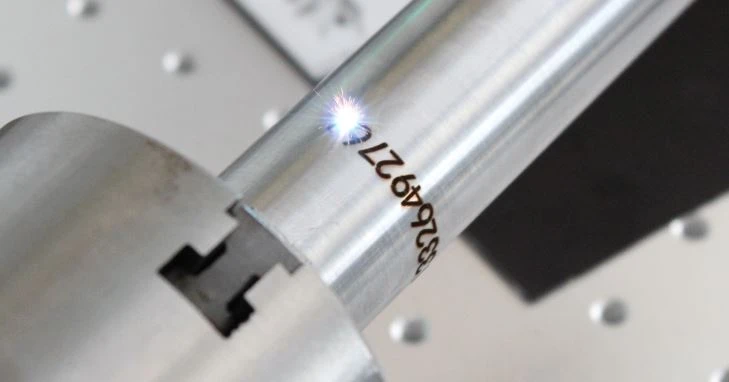

Hlau hlau

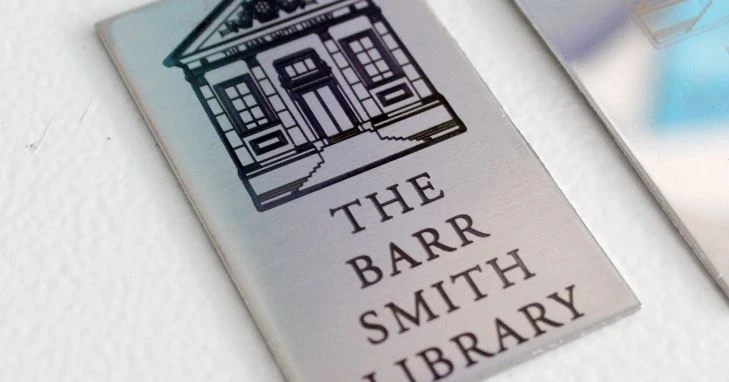

Hlau hlau

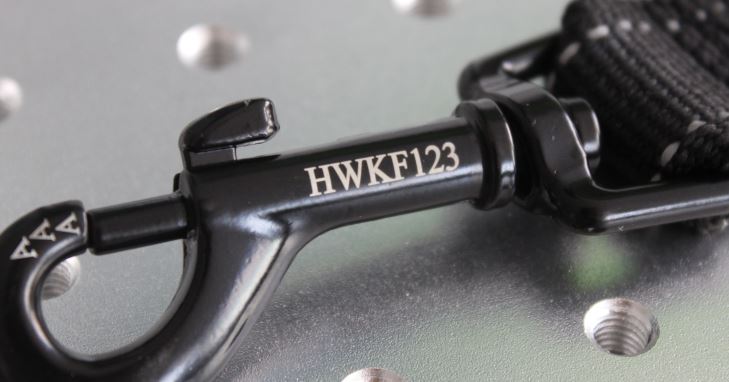

Cov khoom siv pleev xim
Shipping & Pob
