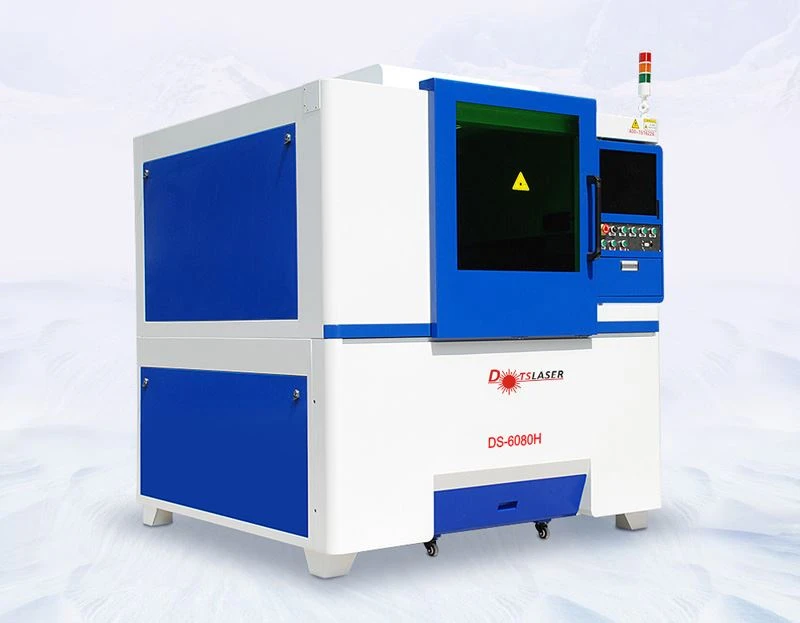

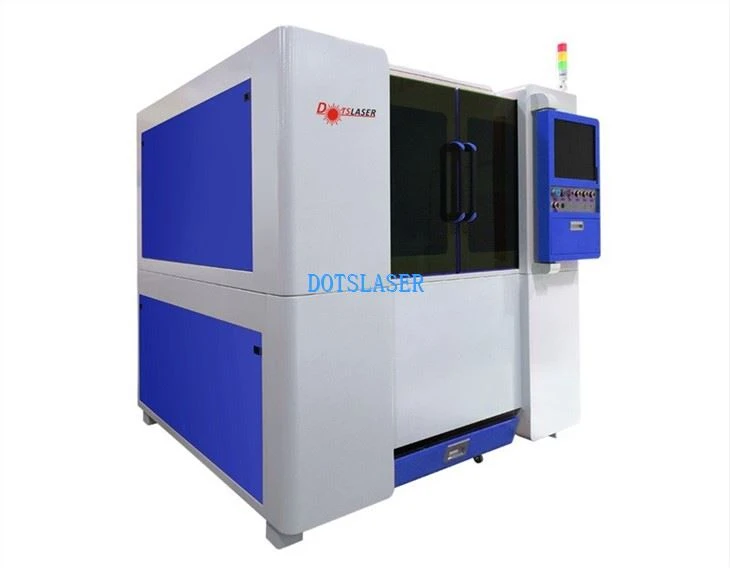

PCB Board Laser Txiav
Qhov siab tshaj plaws txiav 6 hli tooj liab thiab txhuas substrate.
Txiav teb yog xaiv tau.
Cov khoom txiav yog dav, suav nrog tooj dag, tooj liab, txhuas, stainless hlau, PCB board, thiab lwm yam.
Laser zog: 1000W-3000W
PCB Board Laser Txiav
Khoom Description
PCB Board Laser Txiav muaj ntau yam kev siv thiab tuaj yeem ua ntau yam ntaub ntawv xws li tooj liab, txhuas, stainless hlau, hlau, pcb boards, thiab cov khoom sib nqus. Cov ntawv loj yog xaiv tau, thiab qhov ntev tuaj yeem hloov kho raws li tus neeg siv cov kev xav tau ua. Kev txiav ceev yog ceev, cov nyhuv yog du thiab tiaj tus, qhov kev txiav tsis muaj kev ntxhov siab, thiab nws yog du thiab tiaj tus yam tsis muaj shearing burrs.

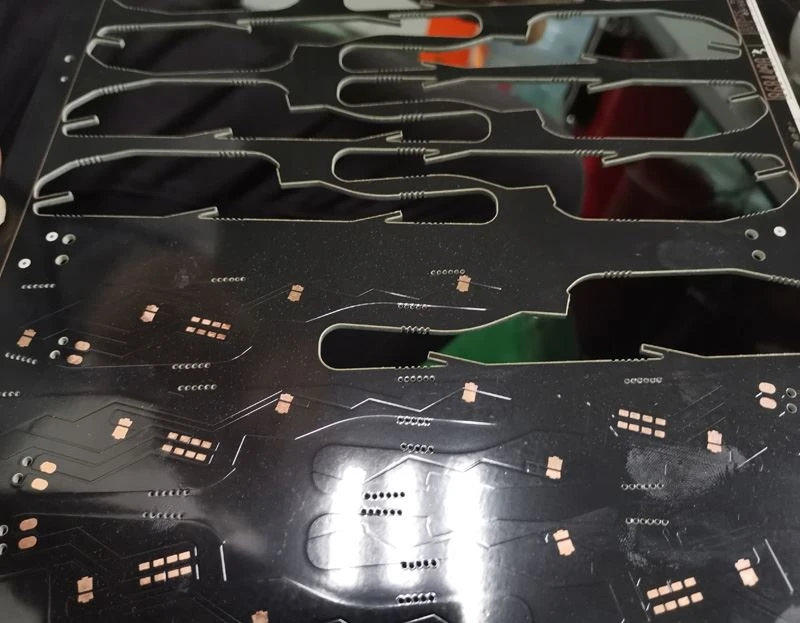

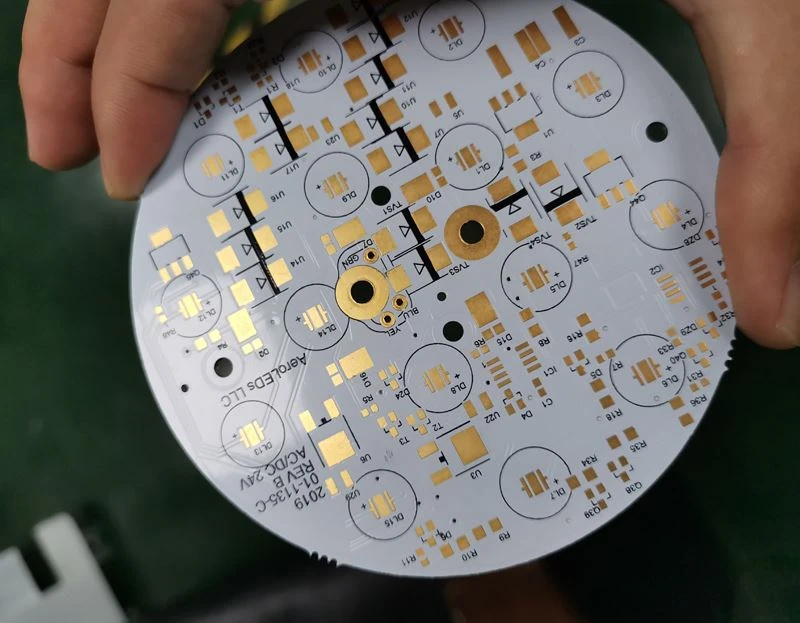

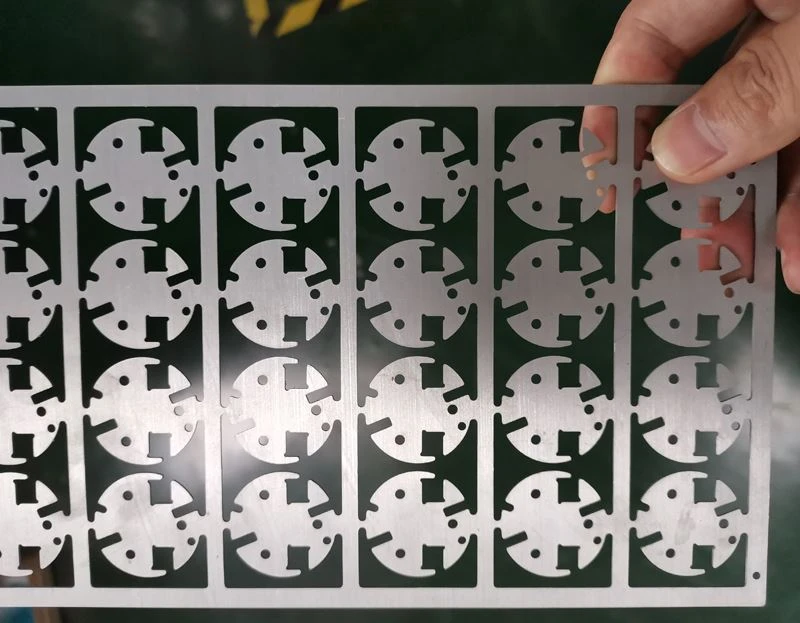

Ua ntej, cia peb saib yuav ua li cas txiav PCB board, Circuit Court board, tooj liab thiab txhuas substrate board los ntawm precision laser txiav system.
Nta thiab kev ua haujlwm
★ Marble puag.
★ Tag nrho cov gantry ob chav tsav qauv.
★ Kev tiv thaiv ib puag ncig qhov cua.
★ Anti heev laser reflective fiber ntau laser generator
Me-hom tooj liab thiab aluminium substrate txiav
★ Lub sij hawm ntev batch ruaj khov txiav thickness tsawg dua 6 hli, txwv txiav thickness ntawm 6 hli tooj liab thiab txhuas substrates;
★ Qhov loj ntawm hom yog xaiv tau, thiab qhov ntev tuaj yeem hloov kho raws li tus neeg siv cov kev xav tau.
★ Muaj ntau yam khoom siv, tsis tsuas yog tuaj yeem ua cov tooj liab, txhuas, tab sis kuj ua cov hlau tsis muaj steel, hlau, PCB boards, ntau yam alloys, thiab lwm yam.
Technical parameter
| Qauv | DS-60680H |
| Laser zog | 1000W / 1500W / 2000W / QCW750W |
| Laser wavelength | 1070 ± 10nm |
| Txiav ntau yam | 600mm * 800mm (lwm yam yog customizable) |
| Txiav kab dav | 0.05~0.15mm (nyob ntawm cov khoom siv) |
| Txiav thickness | Tsawg dua los yog sib npaug li 3mm / 6mm (aluminium, tooj liab) |
| Txiav ceev | 5000-20000mm/min(nyob ntawm cov khoom) |
| Txiav raug | ± 0.02mm |
| Txiav cua siab | 1. |
| Rated zog noj | 10KW / 18KW TSI |
| Fais fab mov | AC220V / 60A, 380V / 40A |
| Txias | Dej txias |
| Ua haujlwm ib puag ncig | Tsis muaj kev vibration, qhov cua zoo, kub 10 ~ 38 degree |
| Dimension | L1820mm * W1750mm * H1950mm |
| Qhov hnyav | 1800 KG |
Luv luv qhia txog PCB Board Txiav System

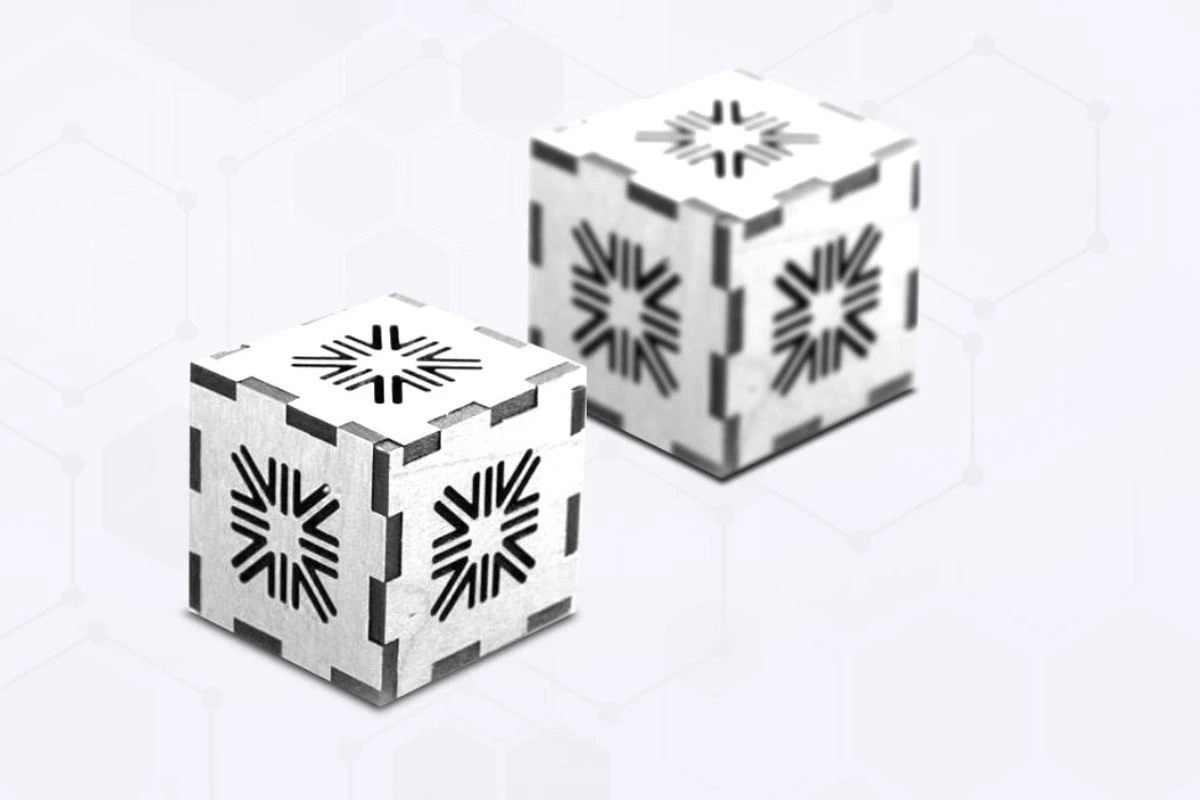

Nqaim txiav seam, me phaj deformation
★ Laser txiav muaj me me tshav kub-cuam tshuam cheeb tsam thiab me phaj deformation
★ Txiav seam: {{0}}.05 ~ 0.15mm
★ Laser txiav ceev ceev, thiab txiav tsis muaj kev ntxhov siab.
★ Kev ua haujlwm siab, zoo rov ua dua, tsis muaj kev puas tsuaj rau saum npoo ntawm cov khoom ★ Qhov tseeb: ±0.02mm

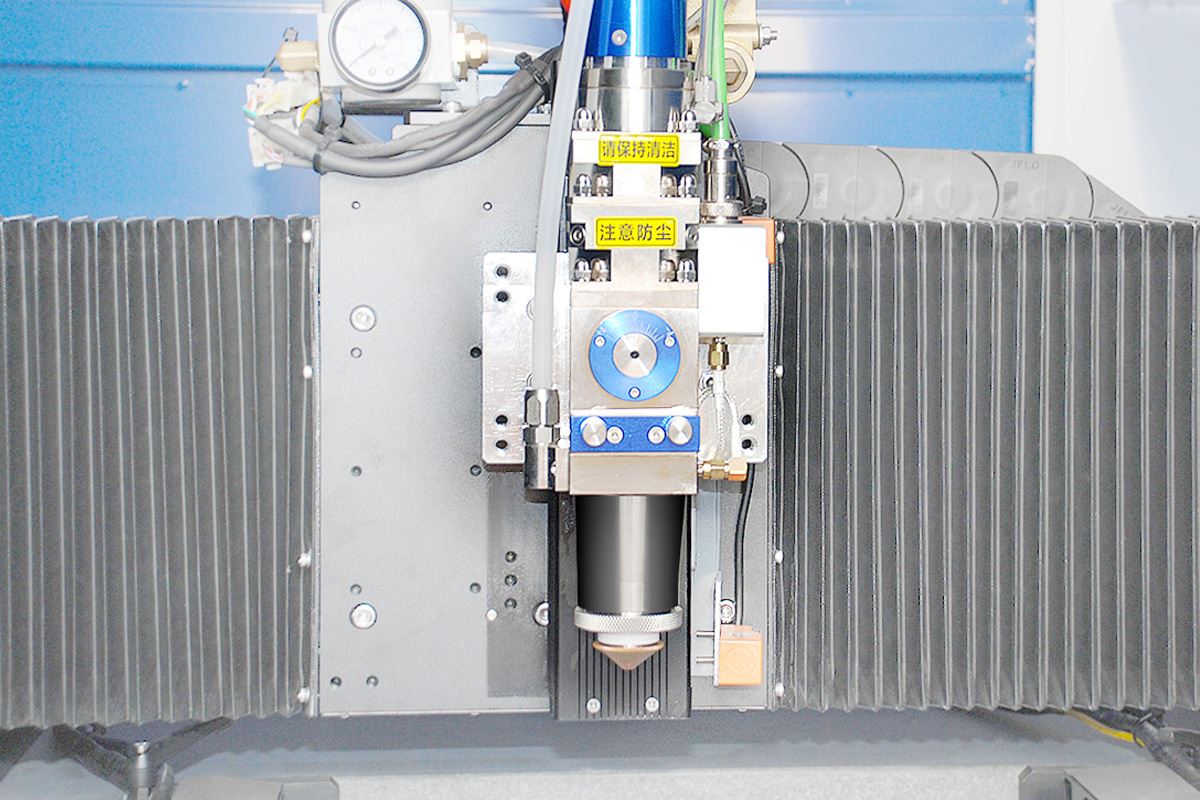

Txoj kev txiav yog txiav optimized
★ Tau tshaj ntau hom ntaub ntawv, xws li DXF, GERBER.
Active tiv thaiv system
Kev tiv thaiv kev sib tsoo
★ Lub taub hau txiav thiab qhov chaw txiav yog khaws cia ntawm qhov chaw nyab xeeb txhua lub sijhawm. Nyob rau tib lub sijhawm, nws muaj qhov kov nres ua haujlwm kom txo tau qhov kev pheej hmoo ntawm kev sib tsoo.
Kev tiv thaiv kev txawj ntse
★ Tsis siv neeg tshawb xyuas qhov kev khiav hauj lwm ntawm cov khoom txav mus los, thiab thaum muaj qhov txawv txav, lub kaw lus yuav muab cov lus qhia rhiab thiab txiav txim kom sai, kom muaj kev ruaj ntseg ntawm cov khoom siv.
System ntse tswb.
★ Cov cuab yeej kuaj xyuas tus kheej, lub tswb tsis txawv txav ntawm lub ntsiab interface, txo cov kev phom sij zais thiab txhim kho kev ua haujlwm ntawm cov cuab yeej tshawb nrhiav qhov txawv txav.C

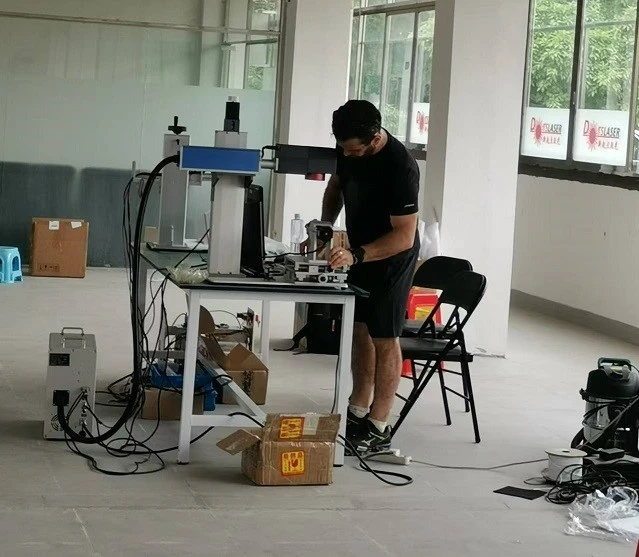

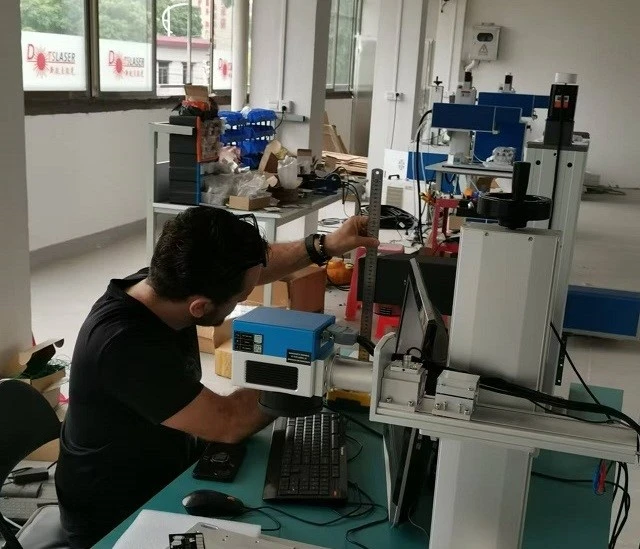

Cov neeg siv khoom tuaj rau DOTSLASER'S lub Hoobkas
