Ntawm Fly Fiber Laser Marking Tshuab
Ntawm Fly Fiber Laser Marking Tshuab
Khoom Description
Nyob rau ntawm Fly Fiber Laser Npav Tshuab yog ib daim ntawv tshiab ntawm cov cim txheeb ze rau qhov zoo li qub laser npav. Raws li lub npe implies, nws yog ib daim ntawv ntawm laser marking nyob rau saum npoo ntawm cov khoom thaum cov khoom yog txav mus rau ib sab ntawm cov kab ntau lawm, uas txhais tau hais tias nws muab cov khoom tso rau ntawm txoj siv conveyor, cia nws hla lub tshuab laser thiab tom qab ntawd txiav. cim nws los ntawm induction. Cov cim zoo li qub yog thawj zaug kho cov khoom ntawm lub rooj kos npe thiab tom qab ntawd siv lub tshuab laser kom ua tiav cov khoom cim.
Fly Fiber Laser Marking Tshuab yog lub zeem muag ntawm kev lag luam kev ua haujlwm, thiab nws muaj qhov ua haujlwm zoo ntawm kev txuag tib neeg lub sijhawm thiab lub zog. Thaum lub sij hawm cov txheej txheem, cov khoom yog tas li ntawm cov kab ntau lawm. Cov ntws, yog li zoo heev txhim kho cov efficiency ntawm ntau lawm.
Ntawm Fly Fiber Laser Marking Tshuab VSStatic Laser Marking Tshuab Hauv Cov Lus Qhia Ua Haujlwm
1.Nyob rau ntawm Fly Fiber Laser Npav Tshuab muaj cov ntawv sau muaj zog thiab cov duab ua haujlwm, thiab tuaj yeem tsim cov batch naj npawb thiab serial tooj ntawm lub dynamic laser npav tshuab online.
2.Lub ntse tswj interface tuaj yeem hloov pauv mus rau ntau yam khoom siv automation thiab sensors, thiab cov software ua haujlwm tuaj yeem hloov kho tau yooj yim raws li cov xwm txheej tshwj xeeb, uas yuav txhim kho ntau lub zog thiab txo qis zog.
|
Daim ntawv thov: Cov khoom siv kho mob, khoom noj khoom haus thiab dej haus ua neej nyob, haus luam yeeb, cawv, thiab kev lag luam hluav taws xob.
Industrialized Thiab Heavy Industrial Khoom:nws pib qhov chaw, khoom siv tes ua khoom siv thiab cov khaub ncaws accessories, thiab lwm yam. Daim ntawv thov hauv biopharmaceuticals thiab cov ntaub ntawv hauv tsev kuj muaj ntau yam kev lag luam. Nrog rau txoj kev loj hlob ntawm lub regional tiam sis, txoj kev loj hlob zeem muag ntawm ya laser npav tshuab yuav ua kom lawv horizons thiab yuav tsis raug kho nyob rau hauv cov teb ib leeg. Txoj kev sib yuav Ntau yam muaj feem cuam tshuam. |
Tsis muaj
|
Yam khoom yam khoom Model |
Fly laser npav tshuab |
|
|
Tshuab General tshuab |
Cov khoom siv tshuab |
Aluminium qauv |
|
Lub tshuab hluav taws xob laser |
Fiber laser qhov chaw |
|
|
Tso zis zog |
30W |
|
|
Laser wave length |
1064nm ua |
|
|
Lens |
High precision 2-dimensional scanning system |
|
|
Marking ceev |
Tsawg dua lossis sib npaug li 18000mm / s |
|
|
Main tswj system |
Kev sib xyaw ua ke ntawm motherboard, kos 7 nti npo |
|
|
Kev khiav haujlwm |
DOTSLASER |
|
|
Txias qhov system |
AIR |
|
|
Laser npav |
Focal zoom lens |
focal ntev 110mm |
|
Hom kab kos |
Raster font, vector font rau xaiv |
|
|
Min. kab dav |
0.01 hli |
|
|
Repeatability raug |
0.003 hli |
|
|
Chaw ua haujlwm |
100mmx100mm / 180mm × 180mm |
|
|
Qhov chaw |
Red light positioning thiab focusing |
|
|
Cov kab kos |
Tsis muaj kev txwv hauv cheeb tsam ua haujlwm |
|
|
Ceev |
0 ~ 200m / min (nyob ntawm cov khoom siv) |
|
|
Txhawb hom lus |
Fonts |
Suav thiab Lus Askiv, Tus lej, xws li suav suav suav cov qauv repertoire |
|
Cov ntaub ntawv |
BMP/DXF/HPGL/JPEG/PLT |
|
|
Code |
CODE 39, CODE 128, CODE 126, QR |
|
|
Lwm yam |
Hwj chim |
220V / 50HZ |
|
Kev siv fais fab |
800W |
|
|
Net nyhav |
35kg ua |
|
|
Loj |
730mmX137mmX192mm |
|
|
Ua haujlwm ib puag ncig |
Sab nraud kub 0 degree - 45 degree ; Humidity ntawm 95% lossis tsawg dua; Lub condensation; Tsis muaj kev vibration |
|

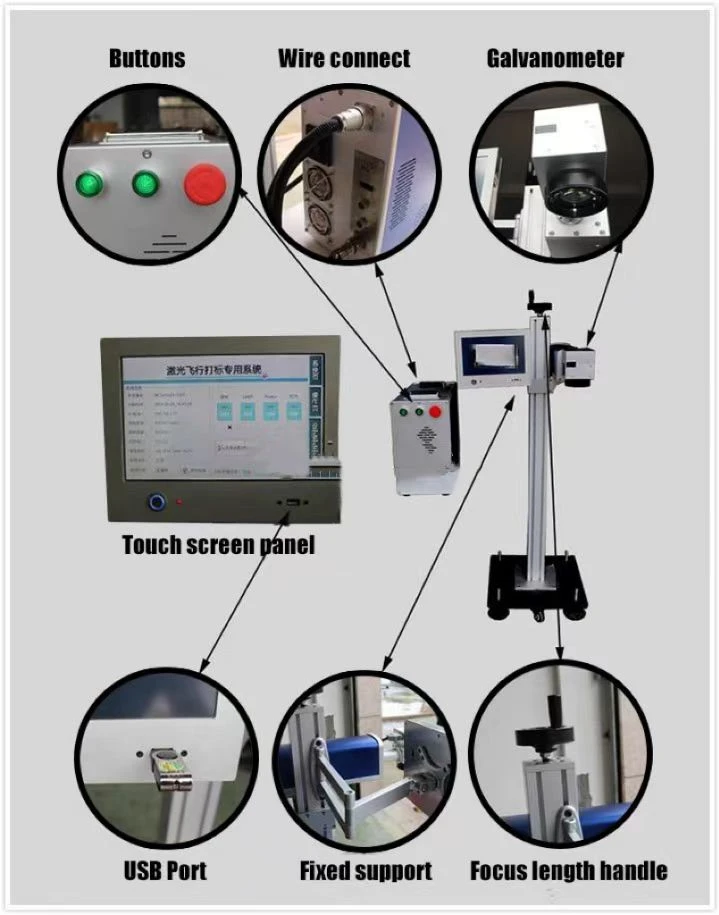

tshuab cov ntsiab lus

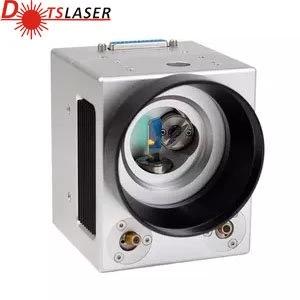

1. Aperture Scan Head
Siv computer graphics software hauv kev muab cov duab kos duab, kos duab nrog siab
efficiency, tsis muaj distortion, thiab lwm yam zoo heev txhim kho qhov zoo ntawm lub laser cim thiab ceev.
2. Rotary ntaus ntawv [yeem]
Siv cov kauj ruam tsav kom paub txog cov lej tswj, qhov ceev tuaj yeem tswj tau los ntawm lub computer liberalisation.
3. Raycus lossis IPG laser souree
Siv lub tshuab laser tshaj plaws hauv Suav teb, lub sijhawm lub neej tuaj yeem nce 100.000 teev
4. X, Y adjustable rooj (yeem)
X axis adiustable range160mm.Y axis adjustable range 90mm, Flexibility, mesa muaj ntau lub qhov ntsia hlau, yooj yim thiab kev cai installaton, tshwj xeeb fixture
kev lag luam platform
5. Zoo zoo F-theta lens
lmprove lub peev xwm ntawm ntug teeb meem teeb meem rau lub detector ua rau kev sojntsuam ntawm lub
nto ntawm photosensitive uas tsis yog-uniform illuminaton uniformity
6. Tswj vaj huam sib luag
Humanized tswj qhov system, qhov tshiab USBdustproof plug yog teem, tswj qhov system
yooj yim kawm, tuaj yeem siv offline

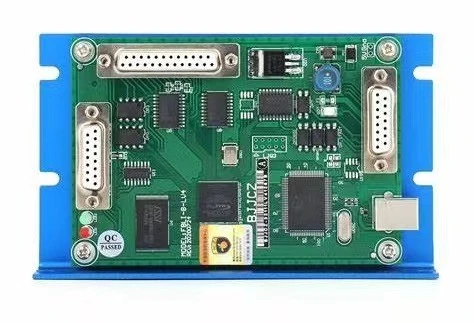

7. tswj daim npav
Feem ntau siv nyob rau hauv lub galvanometer laser npav system, kho vajtse ua cov ntaub ntawv, ceev, siab precision, txhawb kev kub ceev ya lub functio
Cov qauv
FAQ
Q1: Kuv tsis paub dab tsi txog lub tshuab no, hom laser twg kuv yuav tsum coj?
Q2: Lub sijhawm them nyiaj yog dab tsi?
Q3: Dab tsi yog consumables ntawm laser npav tshuab?
Q4: Dab tsi yog pob, nws puas yuav tiv thaiv cov khoom?
