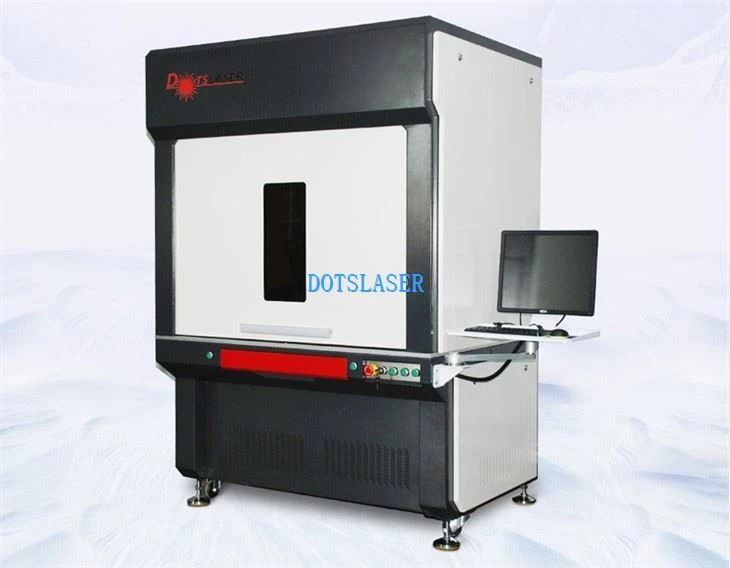

Precious Hlau Laser Tej Tshuab
Precious Hlau Laser Tej Tshuab

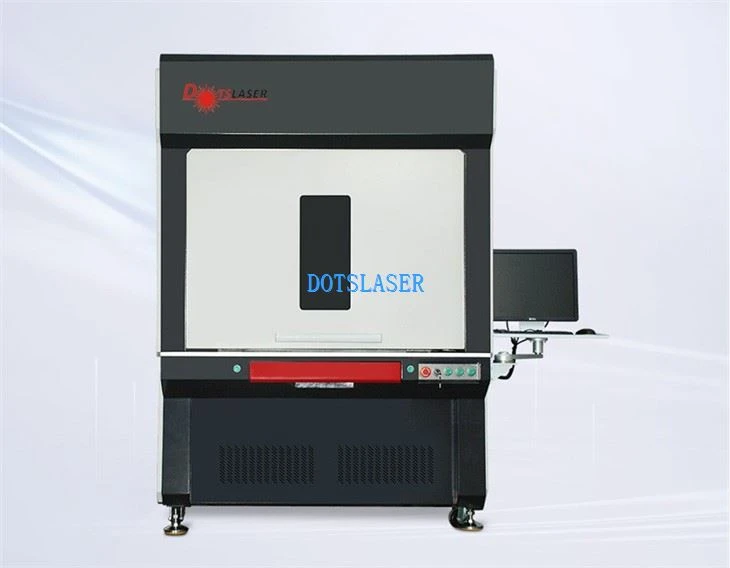

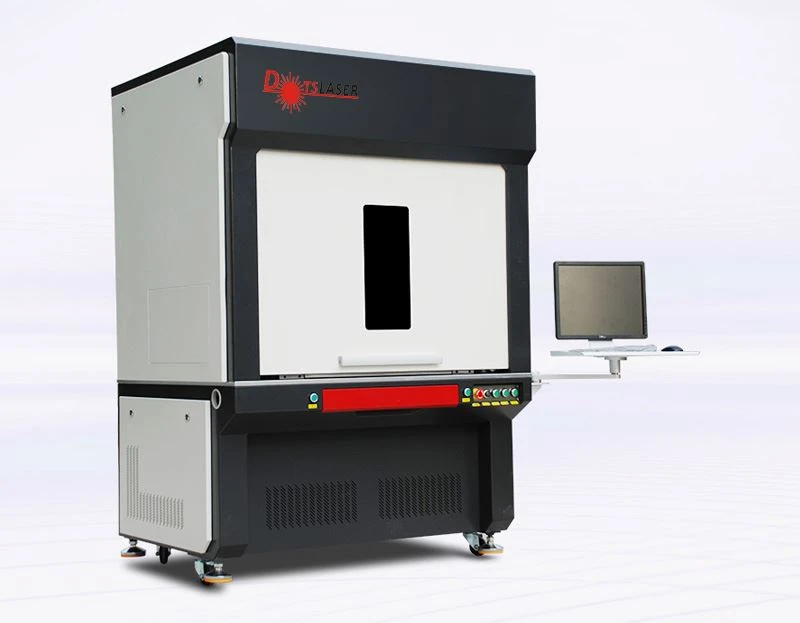

Khoom Description
Precious Hlau Laser Tej Tshuab tuaj yeem kho lub laser ntshuam thiab txiav lub taub hau raws li kev lag luam hniav nyiaj hniav kub, nws muaj qhov zoo ntawm laser beam zoo rau kev txiav cov hlau zoo xws li kub, khoom kub, 9K-24K kub, 925 nyiaj, sterling nyiaj , thiab lwm yam. Cov qauv tsim kho qhov muag tshwj xeeb thiab kev tiv thaiv kev cuam tshuam siab laser isolator tuaj yeem ua rau cov hlau zoo nkauj laser txiav tshuab tau yooj yim txiav cov kub ntshiab, nyiaj sterling thiab lwm yam ntaub ntawv zoo heev uas tsis yooj yim ua rau lub laser.
Nta
Precious Hlau Laser Tej Tshuab tuaj yeem nruab nrog qhov kev xaiv rotary axis kom yooj yim txiav bracelets, rings, round tubes, thiab lwm yam.
Nws siv cov khoom siv plua plav rov qab nrog cov khoom tsim tshwj xeeb tsim los tiv thaiv qhov poob ntawm cov hmoov kub, qhov tsawg kawg nkaus poob.Nws muaj lub zog laser siab, qhov txiav slit muaj qhov tob rau qhov dav piv, me me tshav kub cuam tshuam cheeb tsam, me me deformation thiab ceev txiav. ceev.
1.Tsawg distortion ntawm qhov chaw vim yog ib cheeb tsam me me thaum tshav kub kub cuam tshuam
2.Intricate ntu txiav
3.Nqaim kerf dav
4.Siab heev repeatability
Qhov zoo

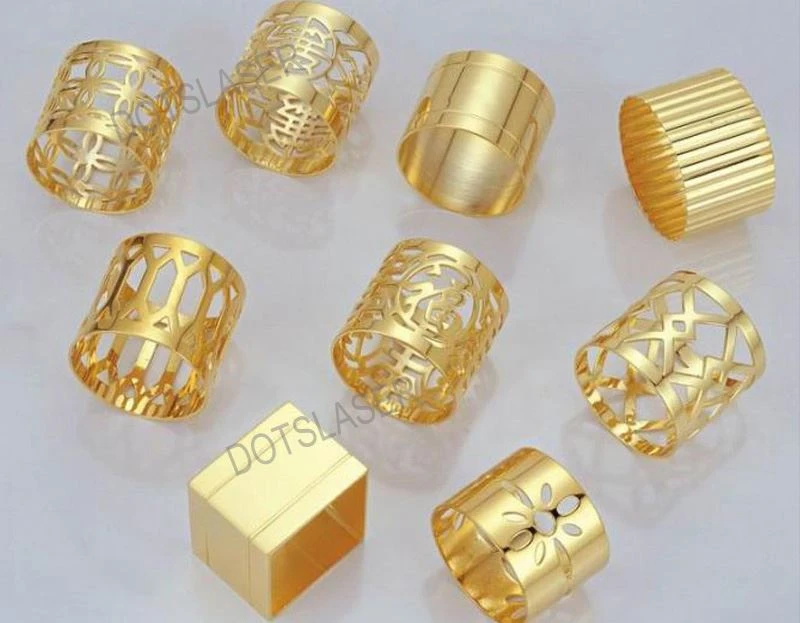

Rotary index yog xaiv tau, uas ua rau puag ncig, zoo li bracelets, rings lossis lwm yam hniav nyiaj hniav kub tuaj yeem txiav tau yooj yim.
Kev txiav ceev ceev, piv nrog qis zog txiav lossis lwm yam kev daws teeb meem, lub sijhawm txiav yog 5 ~ 20 npaug tsawg dua.
Cov ntug txiav yog du, tsis muaj kev txiav burrs, tsis xav tau polishing tom qab txiav.
Txiav thickness ntau dua, qhov siab tshaj plaws tuaj yeem txiav 3 hli siab cov khoom siv, xws li kub, nyiaj, txhuas, 6 hli rau stainless, steel khoom.
Txhawb PLT, DXF, AI hom ntawv, uas ua rau kev ua haujlwm hloov tau yooj yim.
Imported laser generator, txiav lub taub hau thiab servo lub cev muaj zog thiab customized siab precision suab modular, kom paub tseeb tias zoo tshaj plaws txiav zoo.
Imported high-progress capacitive sensor, kuaj qhov siab ntawm lub taub hau thiab worktable, thiab tsom lub taub hau txiav.
Lub neej ntev, lub neej ntev ntawm qhov tseem ceeb ntawm qhov chaw laser tuaj yeem yog 100, 000 teev qhov siab tshaj plaws, lub tshuab ruaj khov heev, yuav luag tsis muaj txij nkawm.
Kev tiv thaiv kev txawj ntse: automatically txheeb xyuas qhov kev khiav hauj lwm ntawm cov khoom txav, thiab thaum muaj qhov txawv txav tshwm sim, lub kaw lus nkag siab thiab xa cov lus qhia sai sai kom tsis txhob ua haujlwm, ua kom cov khoom ruaj ntseg.
System ntse tswb: cov cuab yeej tshuaj xyuas tus kheej, lub ntsiab lus sib cuam tshuam lub tswb ceeb toom, txo qis kev phom sij, thiab txhim kho kev ua haujlwm ntawm cov cuab yeej tshawb nrhiav qhov txawv txav.
Daim ntawv hnub
| Khoom npe | Precious hlau laser txiav tshuab |
| Qauv | DS-3040H,DS-6060H |
| Laser zog | 1500W/2000W/3000W |
| Laser wavelength | 1070 ± 10nm |
| Txiav teb | 300mm * 400mm / 600mm * 600mm |
| Txiav seam | Qhov siab tshaj plaws 0.15mm (nyob ntawm cov khoom siv) |
| Txiav thickness | Qhov siab tshaj 3mm |
| Idling ceev | Qhov siab tshaj plaws 250mm / s |
| Worktable raug | ± 0.03mm |
| Rated zog noj | Lub cev tseem ceeb Tsawg dua lossis sib npaug li 10KW |
| Fais fab mov | Lub cev tseem ceeb 380V / 50Hz |
| Txhawb cov ntaub ntawv | DXF, PLT, AI, thiab lwm yam |
| Qhov hnyav | Kwv yees: 1200KG |

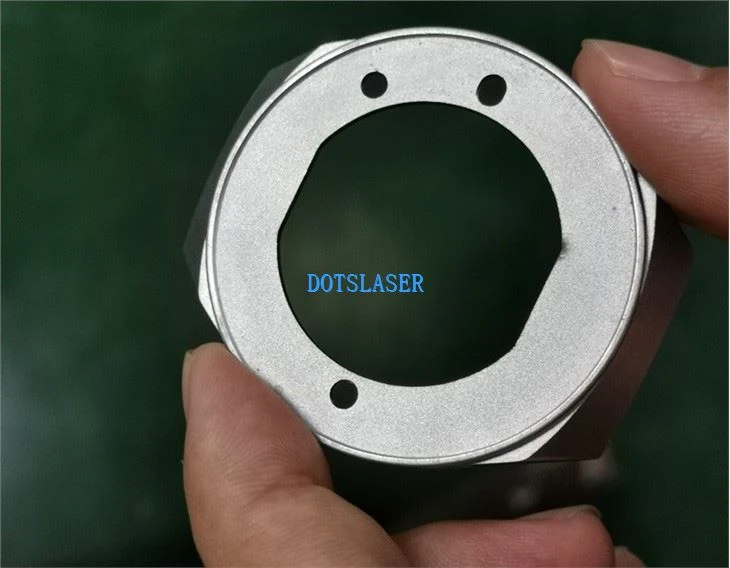

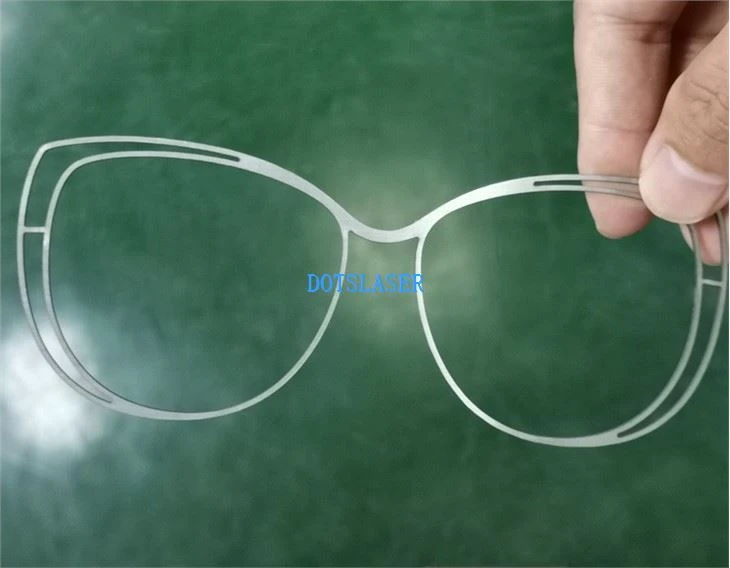

Siv rau hauv kev txiav cov hlau zoo xws li kub thiab nyiaj, kho vajtse, hniav nyiaj hniav kub, tsom iav, tooj liab thiab txhuas substrate PCBs, nws pib qhov chaw, xov tooj ntawm tes structural qhov chaw, hlau xov tooj ntawm tes plhaub, hlau suab plhaub, hlau saib thav ntawv, thiab lwm yam.

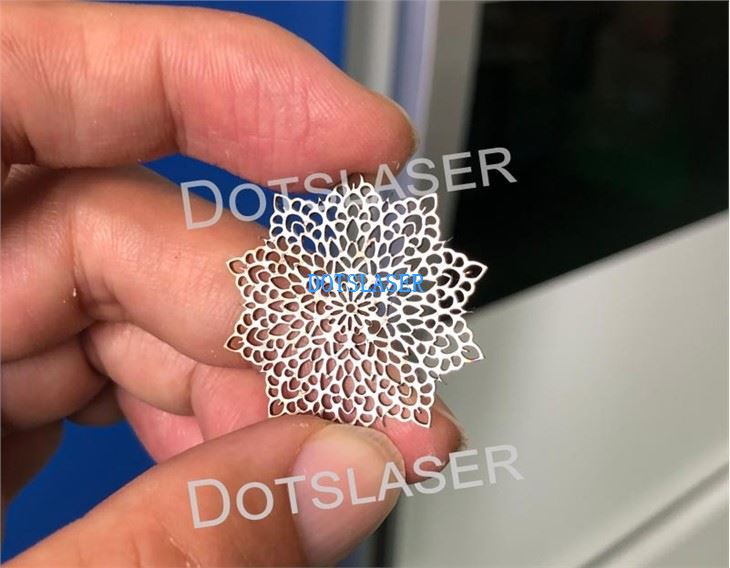

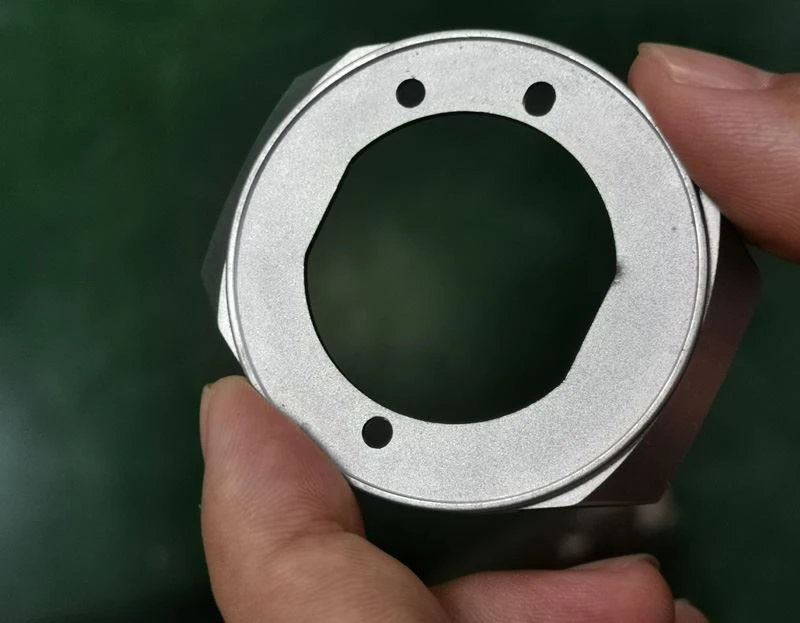

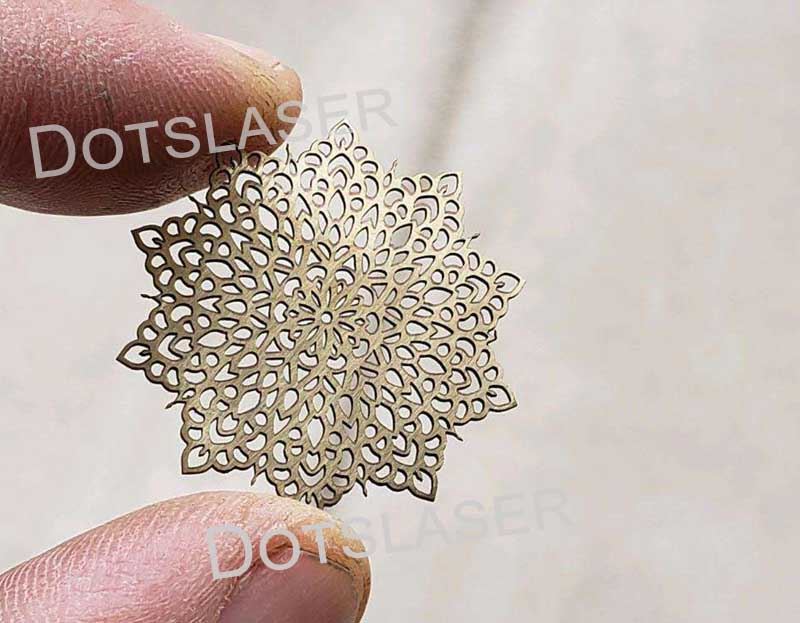

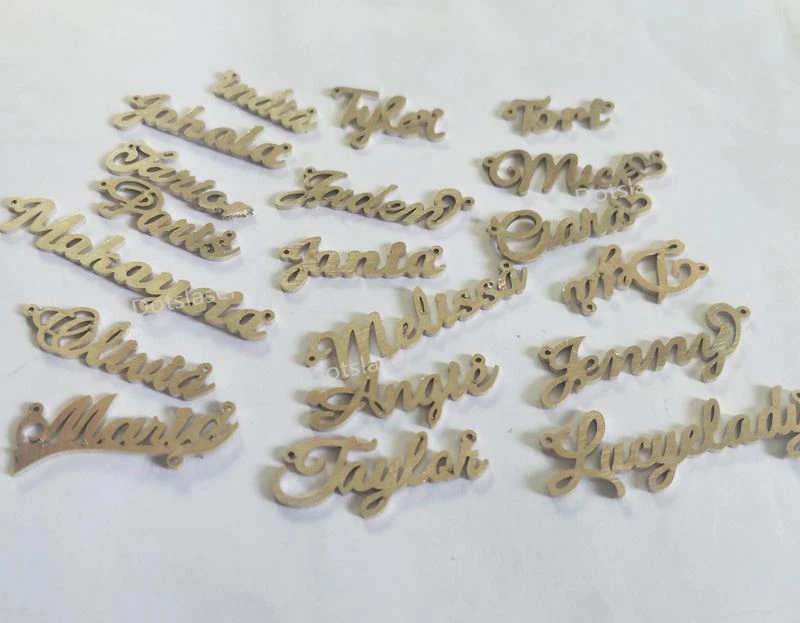

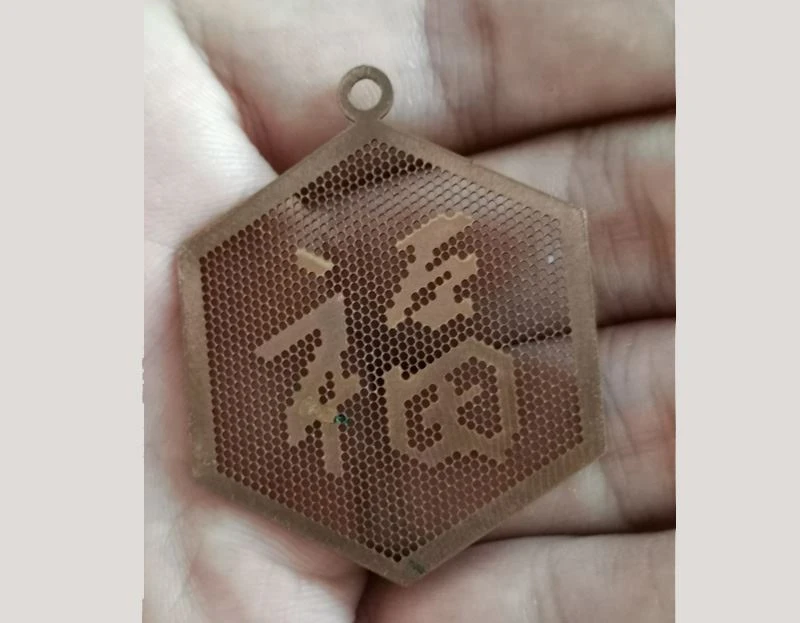

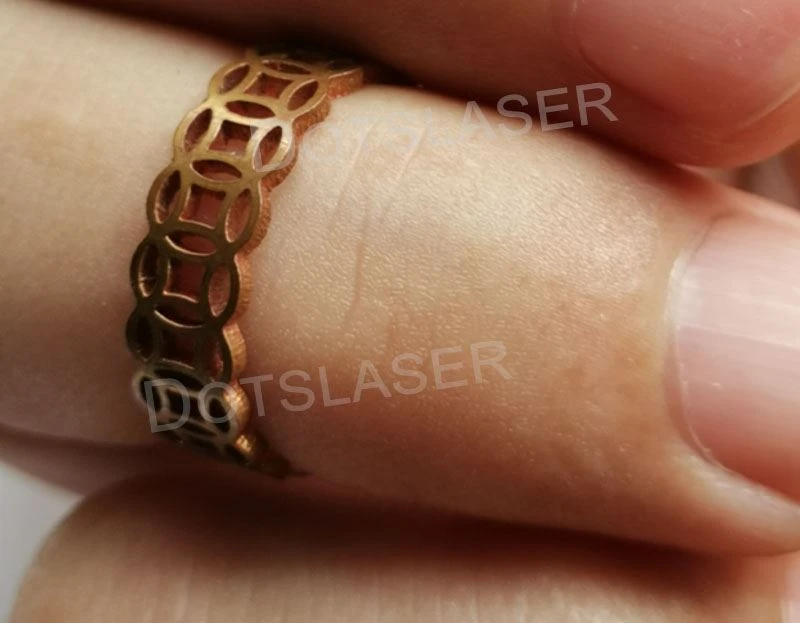

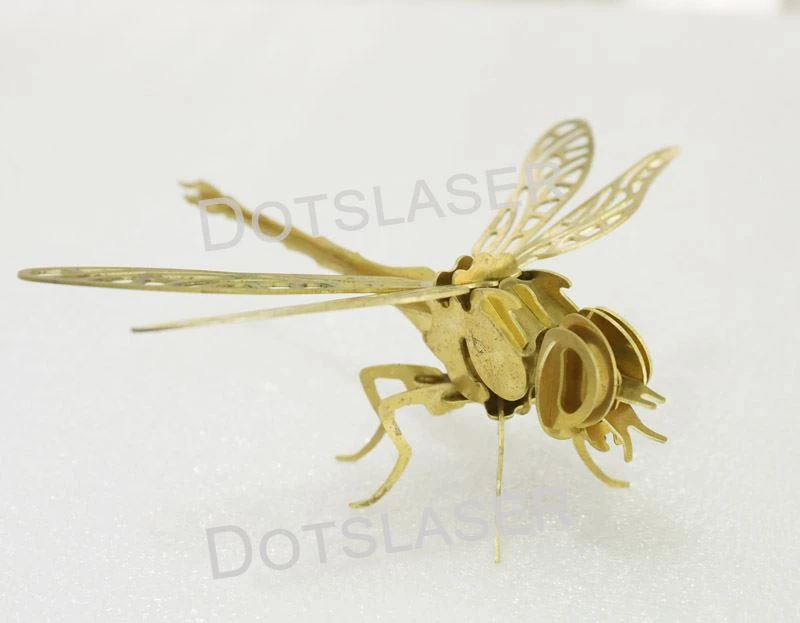

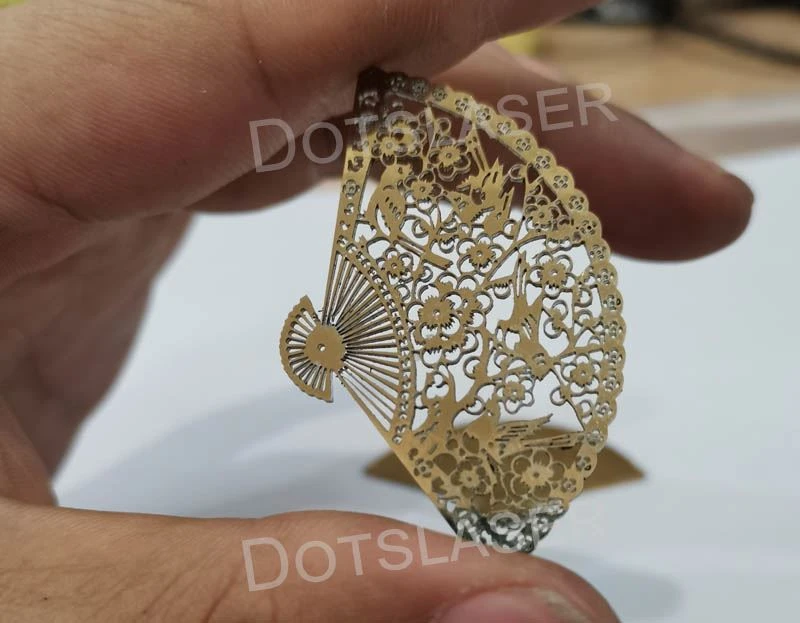

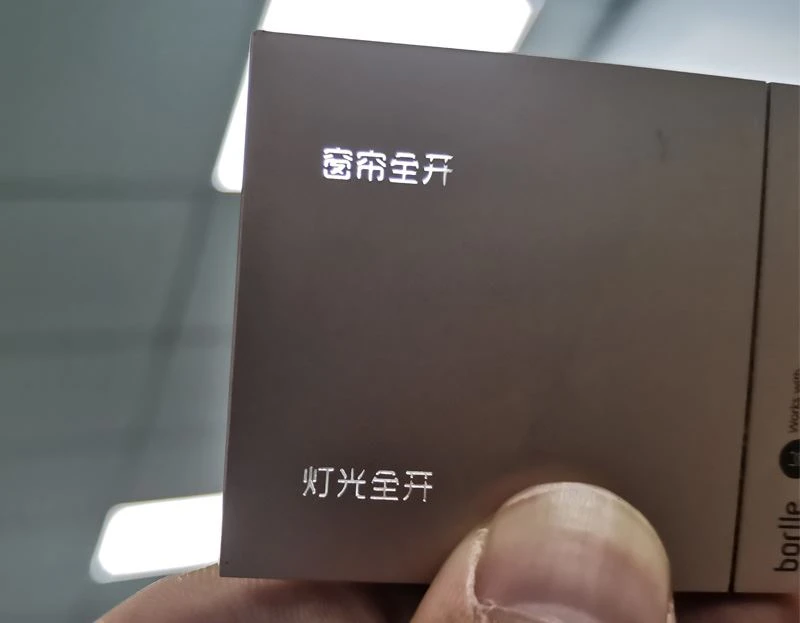

Cov qauv qhia
