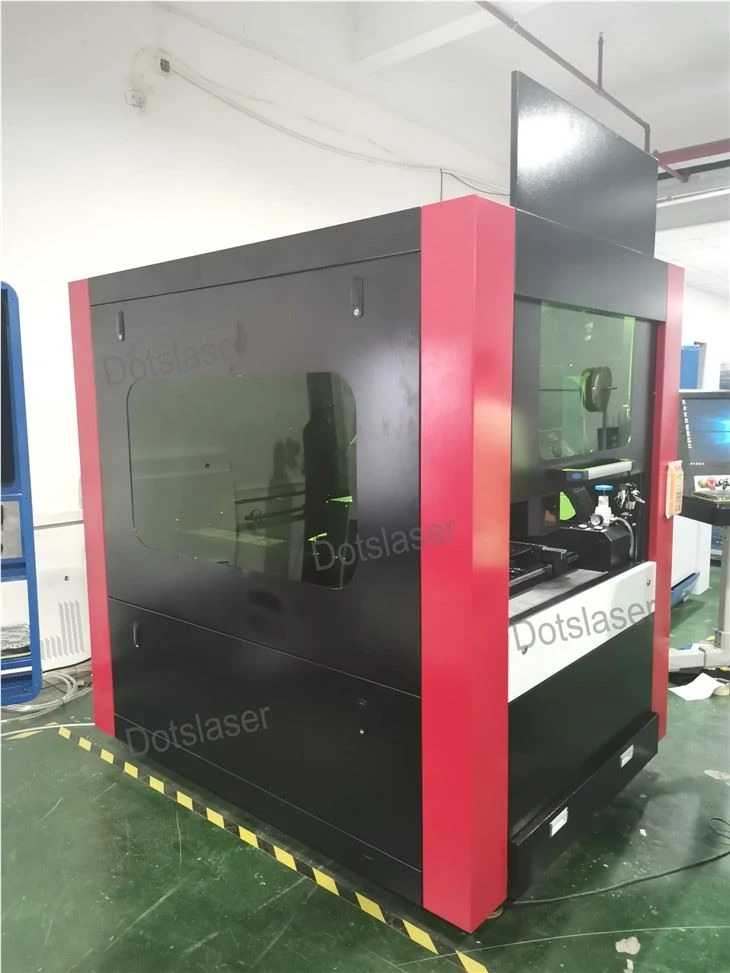

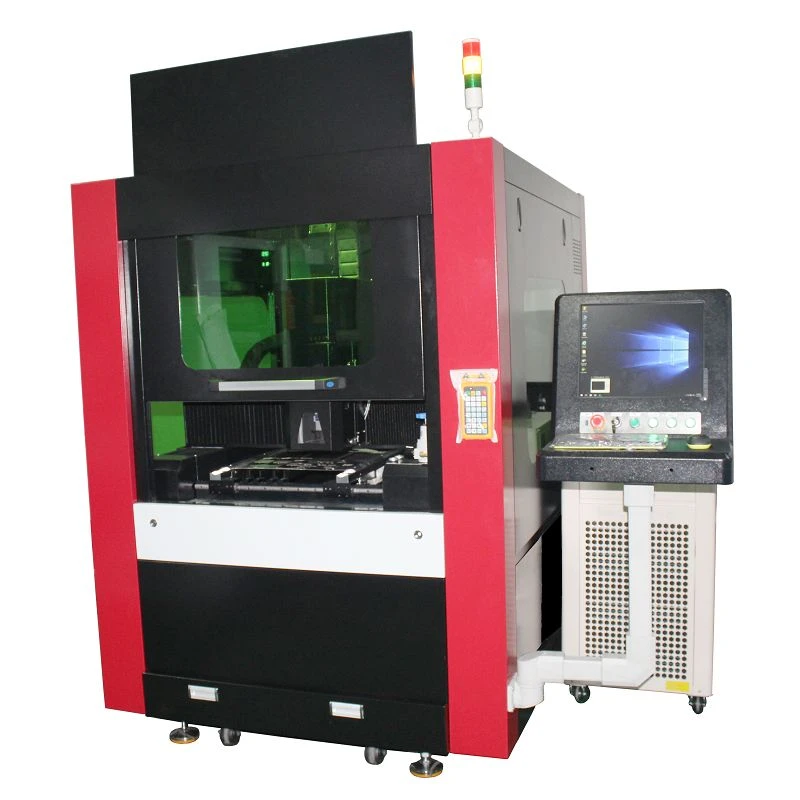

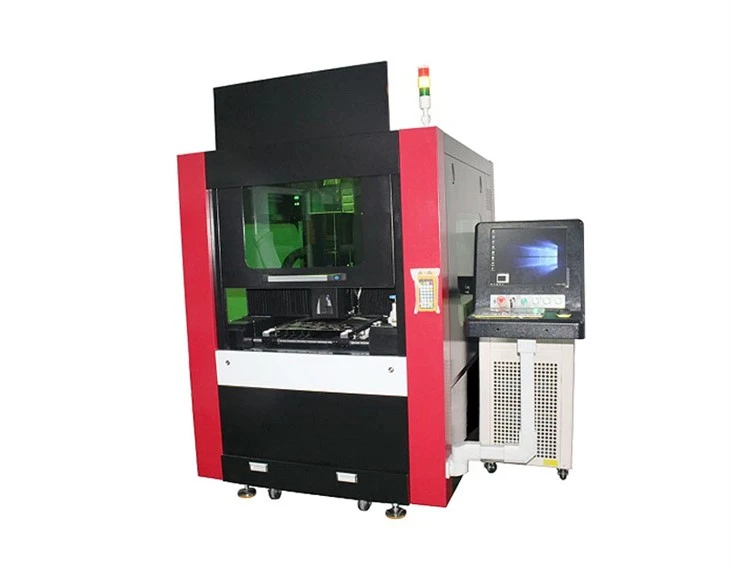

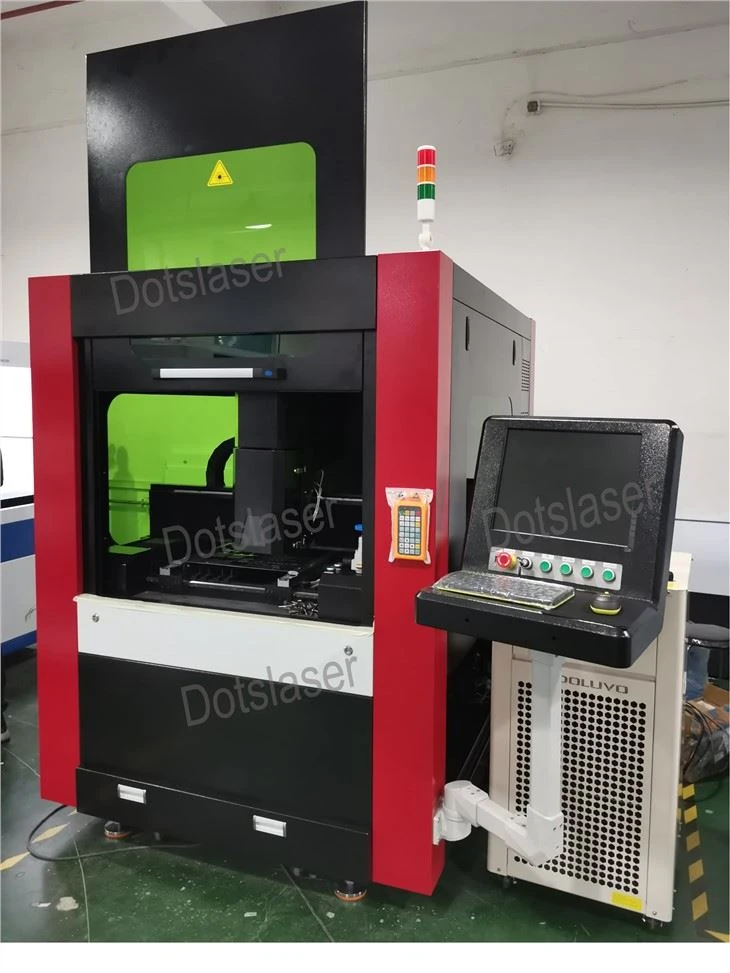

High Precision Fiber Laser Tej Tshuab
High Precision Fiber Laser Tej Tshuab
Cov khoom lag luam
Txhua feem ntawm cov cuab yeej siab-precision fiber cutter yog ua tiav los ntawm cov cuab yeej siv tau muaj txiaj ntsig los yog cov cuab yeej siv thiab qhov tseeb ntawm tag nrho cov tshuab yuav mus txog tus qauv. Nws laser yog kom dop lub twj tso rau hauv lub ntsuas hluav taws xob, thiab tom qab ntawd los ntawm Laser Coupling, thiab thaum kawg ua kom lub cev kho kom haum rau lub teeb laser. Qhov zoo dua ntawm hom laser no yog tias nws yooj yim dua cov qauv ntawm cov khoom siv, kom muaj kev nce qib ntxiv, thiab txo tus nqi siv.
tshuab zoo
Ceev: Lub dotslaser cutter yog ho nrawm dua li cov co2Laser tej tshuab. Qhov no yog vim lub zog siab dua ntawm fiber ntau lasers, tso cai rau lawv txiav tuab cov ntaub ntawv ntawm tus nqi nrawm dua.
Txhim Kho Tej:Fiber ntau cov cuab yeej yog meej thiab tuaj yeem txiav cov duab thiab cov qauv tsim nrog qhov ntsuas siab. Qhov no yog vim lawv lub taub hau laser me me, thiab muaj peev xwm los tswj kom pom tseeb dhau mus deb.
Qhov txiaj ntsig txaus: Fiber Laser Cutters tau raug nqi ntau dua cO2Laser cutters vim tias lawv haus tsawg zog, xav tau tsawg dua kev txij nkawm, thiab ntev dua.
Cov Ntaub Ntawv Xav: Fiber ntau laser cutters tuaj yeem txiav ntau cov ntaub ntawv, nrog rau cov hlau, cov yas, thiab ceramics, ua rau lawv xaiv ntau yam rau ntau daim ntawv thov.
Automation:Cov roj fiber ntau lub cav tuaj yeem siv lub zog tag nrho kom ua tiav cov khoom lag luam txuas ntxiv thiab tsis muaj kev cuam tshuam. Lawv kuj tseem tuaj yeem sib xyaw nrog lwm cov txheej txheem tsim khoom, xws li vuam thiab khoov.
Kev tiv thaiv ib puag ncig:Piv nrog tsoos co2 Laser tej tshuab, fiber ntau laser txiav tshuab tsim tsawg npaum cas pov tseg thiab haus lub zog tsawg dua, yog li lawv yog ib puag ncig ib puag ncig.
Daim ntawv thov ntawm fiber ntau laser hauv txiav cov ntawv hlau sib txawv hauv txoj kev sab nraud sab nraud, lub taub hau laser, roj, thiab lwm yam.
1. Lub ci ci leaser yog kis ncaj qha rau lub taub hau laser ntawm lub khoos kas kho qhov muag tau mus rau hauv cov cuab yeej siv hluav taws xob hauv lub tshuab. Lub cuab yeej siv siv rau ob lub zog tsav hom rau kev ua haujlwm sai thiab sib npaug.
2. Khib thiab Pinion thiab Servo Motors tau teeb tsa hauv ob sab, tso cai rau ob tus pinion thiab khib tsav tsheb raws li ob chav servo lub cev muaj zog tsav. Cov teeb tsa no ua kom muaj zog yuam kev ntawm cov nqaj thiab ua haujlwm synchronized.
3. Nws kuj tau txais cov iav helical iav khib kev sib kis kis tus txheej txheem, uas yog ruaj khov thaum ua haujlwm.
Tsis
|
Tus qauv |
Ds -6060 h |
|
LASER Fais |
1.5kw -3 kw |
|
Laserlub paj |
1070~ 1080nm |
|
Ua Haujlwm Loj |
600x600mm |
|
Txiavqhov tuab |
1~ 2 hli tooj liab, tooj dag, txhuas, 1 ~ 2 hli kub, nyiaj |
|
Photoelectric hloov zuj zus efficiency |
25-30% |
|
Txiavkev ua yog |
±0.1 hli |
|
Max tsiv ceev ceev |
80000mm / min |
|
Max Loadingqho hnyav |
600kg |
|
Tshuab qhov hnyav |
1400kg |
|
Laserlub neej |
100, {000 hrs |
|
Cua txias hom |
Dej-Txias |
|
X axismus kev deb |
600mm |
|
Y axis taug kev |
600mm |
|
Z axismus kev deb |
60mm |
|
XYZ Axis Qhov Chaw Raug |
{0. 02 hli |
|
XY Axis Max txoj hauj lwmhov ceev |
36mfeeb |
|
Xy axis Max nrawm |
0.8G |
|
Nruablub peev xwm |
8KVA |
|
Rated Hwj Chim Hluav Taws Xob |
220V 50-60 hz |
|
Txhawb nqalub hau kev |
Plt.Dxf.dwg.ai |
|
Tshuab Loj |
1950 * 1650 * 2050mm |
| Hom ntawmKev phais | mus txua ntxivdej ntas |
| Kev Xeem Lus Qhia | Muab |
| Daim duabCov Khoom Noj Ua Si | Muab |
| Kev lav | 1 xyoo |
|
Daim Ntawv Thov: Nws tuaj yeem siv nyob rau hauv sheet ua, aviation, khoom siv hluav taws xob, khoom siv hluav taws xob, khoom plig, khoom siv, adornment, tshaj tawm, hlau Ua lag luam ua khoom lag luam ntau yam khoom lag luam ua haujlwm. |
Yuav ua li cas tswj cov fiber ntau laser txiav tshuab?
1. Huv lub tshuab tsis tu ncua
Hmoov av, khib nyiab, thiab cov plaub hau hlau tuaj yeem khaws tau nyob rau hauv thaj chaw ua haujlwm, cuam tshuam qhov tseeb ntawm lub nqaj laser thiab ua kom lub tshuab ua kom puas tsuaj rau cov khoom siv. Txhawm rau tiv thaiv qhov no los ntawm kev tshwm sim, koj yuav tsum tau ntxuav lub tshuab tsis tu ncua siv daim ntaub mos muag, cua compressed, lossis nqus tsev nqus. Nco ntsoov ua kom lub cheeb tsam ua haujlwm huv thiab dawb ntawm swb, thiab tshem tawm cov khib nyiab uas tuaj yeem muaj.
2. Tshawb xyuas thiab hloov lub taub hau txiav tsis tu ncua
Cov txiav taub hau yog ib qho tseem ceeb heev ntawm cov fiber ntau laser txiav tshuab. Nws yuav tsum tau kuaj xyuas tsis tu ncua rau kev hnav thiab kua muag, thiab hloov raws li xav tau. Lub taub hau yuav tsum tau ntxuav nrog daim ntaub mos muag thiab lubricated raws li cov chaw tsim khoom cov lus qhia.
3. Nco ntsoov lub tshuab ua tau zoo
Cov cuab yeej txiav fiber ntau yuav tsum tau kuaj xyuas kom muaj kev ua kom nruj ua ntu zus. Misaligned tshuab tuaj yeem ua rau cov txiav tsis raug, uas tuaj yeem ua rau cov ntaub ntawv khib nyiab thiab lub sijhawm ua haujlwm. Nws raug nquahu kom koj muaj tus kws tshaj lij tus kws tshaj lij kev sim thiab kho lub tshuab yog tias koj tsis paub tseeb tias yuav ua li cas koj tus kheej.
4. Khaws lub tshuab lubricated
Lub tshuab yuav tsum tau kom muaj lubricated kom zoo los tiv thaiv kev hnav thiab kua muag ntawm nws cov chaw txav. Nco ntsoov siv cov roj nplua nyeem thiab ua raws cov chaw tsim khoom cov lus qhia rau lubrication.

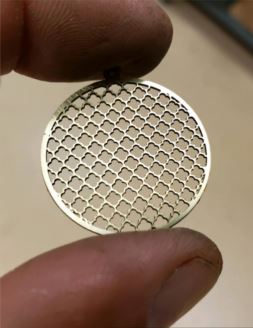

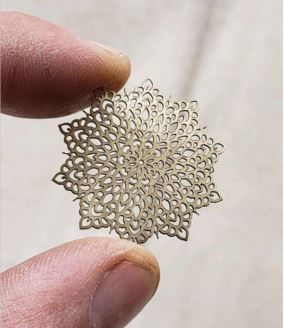

Kuaj
 |
 |

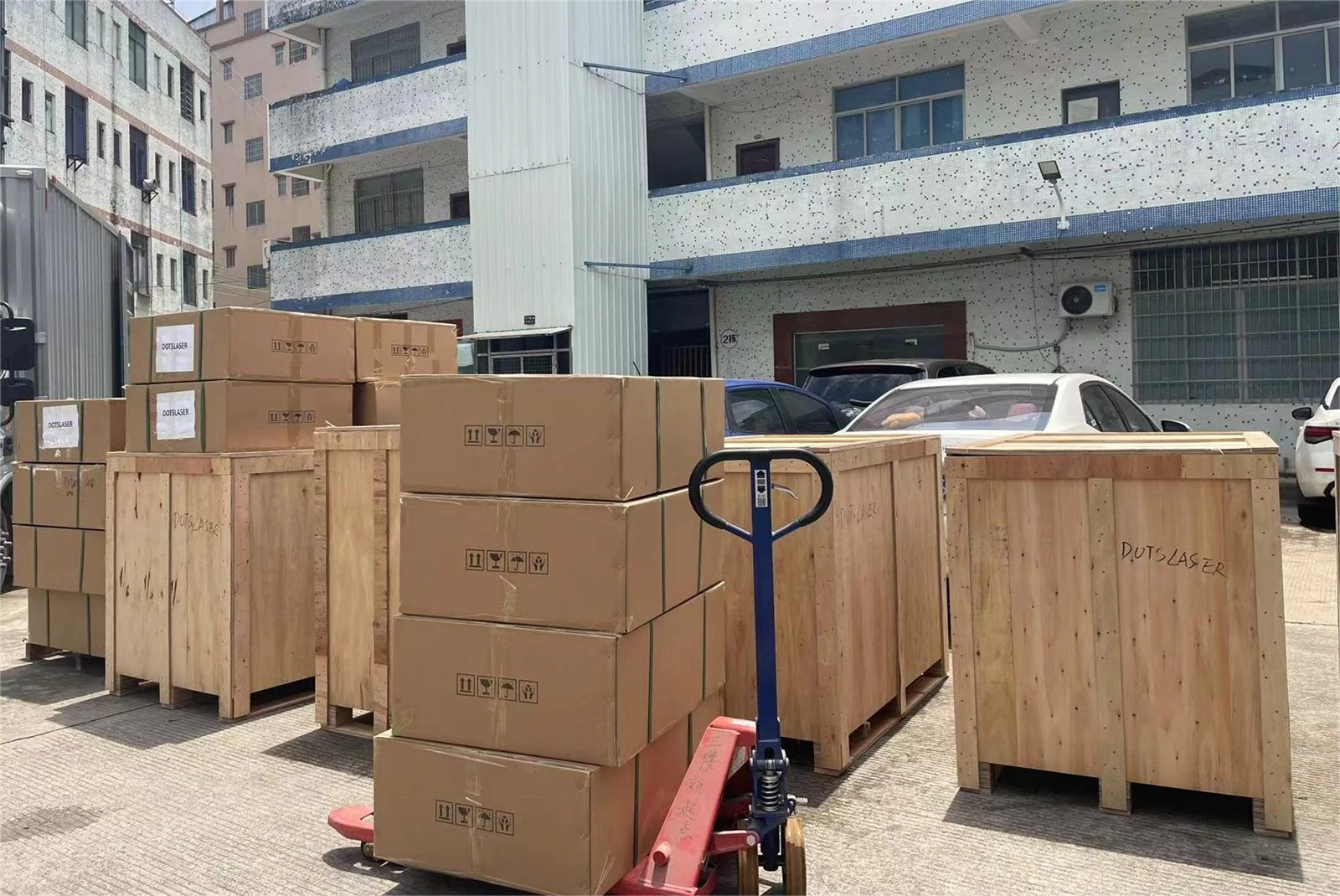

Shipping & Packing
Cov Lus Cog Tseg thiab Cov Zwj Ceeb:
1. VCD kev cob qhia, kev teeb tsa yooj yim
2. Cov sijhawm ua: 7-10} ua haujlwm nruab hnub
3. Hiav txwv shipping thiab tsheb thauj khoom
4. TT / Western Union / Paypal / Ali Kev Lag Luam Kev Them Nyiaj
5. 24 teev teb
Cov FAQ
Q1: Yuav ua li cas pob?
Q2: Lub pob puas yuav puas thaum thauj mus los?
Q3: Yuav ua li cas rau nruab thiab khiav lub tshuab?
Q4: Kuv yuav ua li cas yog tias lub tshuab mus tsis ncaj ncees lawm?
