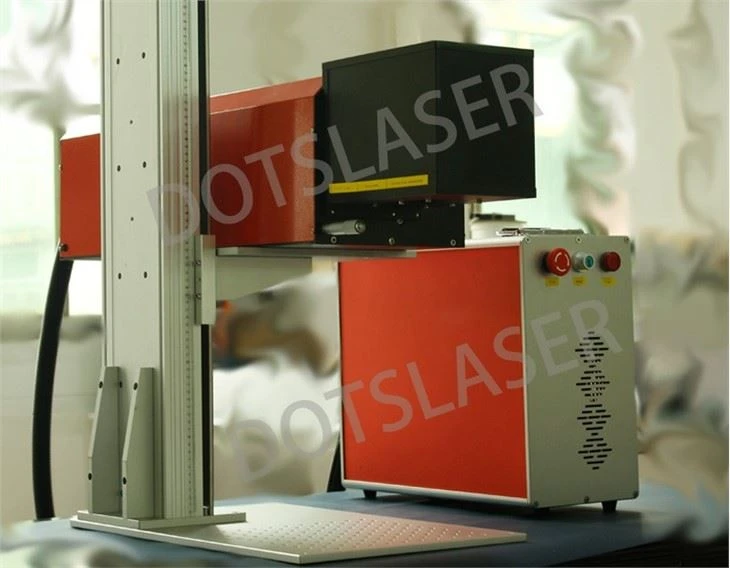

dynamic focus laser

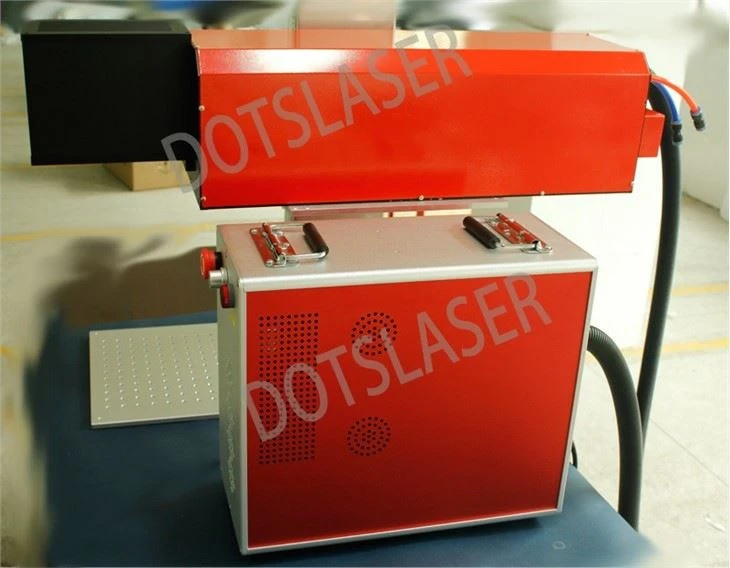

portable galvo laser machine

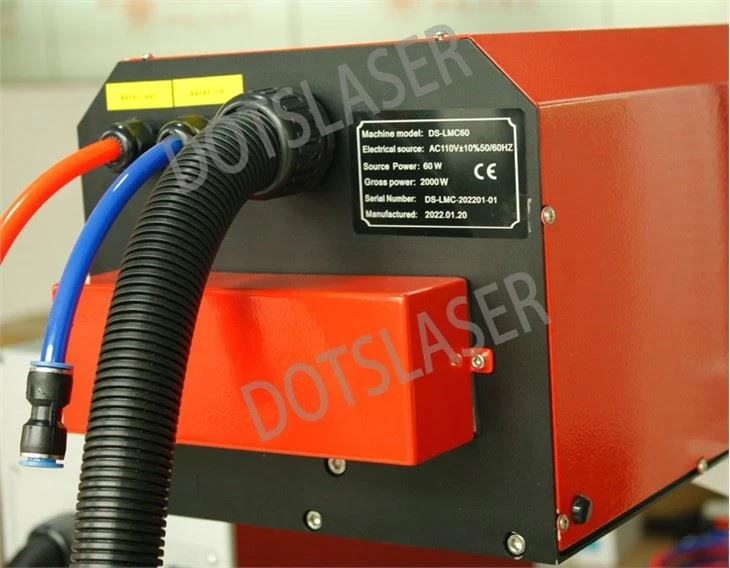

small galvo laser

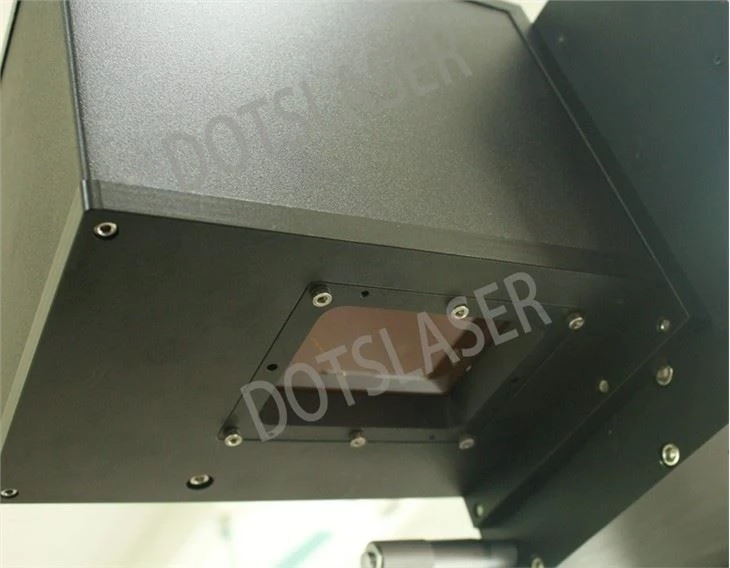

split CO2 galvo laser machine

3D 60W Dynamic Focus CO₂ Laser

3d 60W dynamic tsom CO2 laser nrog 60W lub zog, 3D dynamic tsom galvo-hom raws li qhov system, 400x400mm ua hauj lwm cheeb tsam. me me thiab lub teeb yuag, haum rau feem ntau cov cim los yog engraving los yog tej hauj lwm txiav. raug nqi.

Xa kev nug

Khoom Taw qhia

3D 60W Dynamic Focus CO₂Laser

Khoom Description

3d 60W dynamic tsom CO₂laser yog tswj los ntawm lub computer nrog tshwj xeeb maub los. Nws siv 10.64um laser beam kom nthuav dav, ua kom pom tseeb, thiab tom qab ntawd tswj qhov deflection ntawm lub galvanometer, thiab raug rho tawm haujlwm ntawm qhov chaw ua haujlwm raws li qhov kev txiav txim siab ua ntej, kom qhov chaw ua haujlwm yog vaporized kom ua tiav cov cim cim. 3d 60W dynamic tsom CO₂laser tsim los ntawm peb lub tuam txhab muaj cov kab teeb pom kev zoo, kev ua haujlwm ruaj khov thiab tsis muaj kev saib xyuas, thiab tsim nyog rau cov chaw ua haujlwm loj, ntau yam, high-speed, high-precision nruam ntau lawm.

3D 60W Dynamic Focus CO₂Laser yog ntau yam laser system uas siv cov pa roj carbon dioxide (CO₂) laser qhov chaw nrog lub zog ntawm 60 watts thiab ua ke nrog dynamic focusing technology. Lub tshuab no tso cai rau lub tshuab laser los kho nws qhov kev tsom xam sai thiab raug rau 3-sib nqus engraving, cim, thiab txiav rau ntau yam khoom siv hlau uas tsis sib xws lossis nkhaus.

Cov yam ntxwv tseem ceeb thiab cov txiaj ntsig ntawm 3D 60W Dynamic Focus CO₂Laser

Dynamic Focusing:Cov txheej txheem no yoog mus rau qhov tsis sib xws lossis tsis sib xws thiab kho lub laser tsom raws li, tso cai rau cov txiaj ntsig zoo thiab zoo ib yam thaum ua haujlwm ntawm cov khoom nkhaus lossis cov khoom nyuaj yam tsis muaj kev cuam tshuam los ntawm phau ntawv.

Versatility:CO₂lasers muaj peev xwm engraving thiab txiav ntau yam ntaub ntawv uas tsis yog-hlau, xws li ntoo, tawv, acrylic, ntaub, iav, roj hmab, thiab ib co plastics.

Cov txheej txheem tsis sib cuag:Laser engraving thiab txiav yog cov txheej txheem tsis sib cuag, txo qhov kev pheej hmoo ntawm kev puas tsuaj rau cov khoom siv thiab ua kom huv si nrog cov khib nyiab tsawg.

Yooj yim siv:Modern CO₂laser tshuab tuaj nrog cov neeg siv-phooj ywg graphic interfaces thiab software, tso cai rau cov neeg siv los tsim thiab tswj cov haujlwm yooj yim ua ntej xa cov ntaub ntawv mus rau lub laser system rau kev tua.

Cov ntaub ntawv siv tau

3D 60W dynamic tsom CO₂laser yog tsim rau laser engraving thiab laser txiav ntawm ntau yam uas tsis yog-hlau cov ntaub ntawv, xws li tawv, ntaub, ntawv, PVC, roj hmab, ntoo, ceramics, iav, yas, thiab lwm yam.

3D 60W dynamic tsom CO₂laser yog dav siv hauv cov ntaub ntawv khau, khaub ncaws, ntim, khoom ua si, khoom noj, dej haus, tshuaj, tshuaj pleev ib ce txhua hnub thiab lwm yam lag luam.

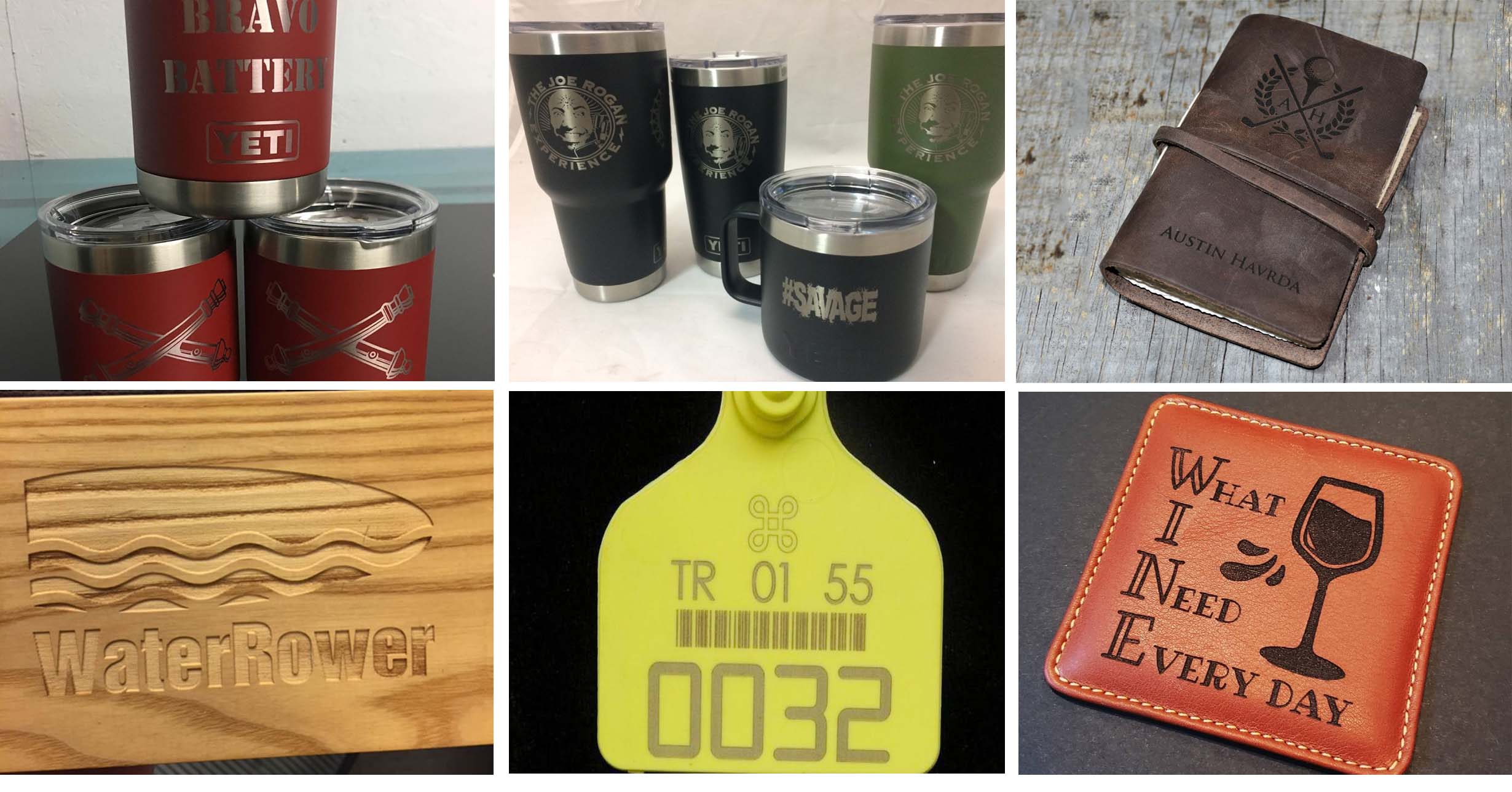

Muaj peev xwm siv 3D 60W Dynamic Focus CO₂Lasers

Signage thiab décor:Tsim thiab txiav cov cim acrylic, ntoo plaques, los yog kho kom zoo nkauj hauv tsev thiab kev lag luam.

Cov khoom siv tawv nqaij:Ua cov khoom tawv tawv tus kheej, xws li hnab, hnab nyiaj, lossis siv tawv, los ntawm kev kos duab zoo nkauj.

Arts thiab crafts:Tsim kom ntxaws artwork thiab intricate designs ntawm cov ntaub ntawv xws li ntoo, iav, los yog ntaub.

Textile thiab khaub ncaws:Txiav thiab qauv ntaub rau khaub ncaws, accessories, thiab khoom vaj khoom tsev.

Thaum xaiv 3D 60W Dynamic Focus CO₂Laser, xav txog tej yam xws li lub cev compatibility nrog cov ntaub ntawv hom, workspace yuav tsum, precision, ua ceev, yooj yim ntawm kev siv, muaj software, thiab kev txhawb los ntawm cov chaw tsim tshuaj paus. Cov xwm txheej no ua kom ntseeg tau tias lub tshuab laser ua tau raws li koj cov kev xav tau tshwj xeeb thiab muab kev pom zoo rau koj cov haujlwm.

Technical parameters

Qauv	DS-LWM 30	DS-LMC 60
Laser fais fab tso zis	>30W	>60W
laser wavelength	10640 ± 10 nm
Aperture ntawmua galvotaub hau	30 hli
Kos thaj tsam	300x300mm / 400x400mm
Z axistsom	±20 hli
Pulse zaus	1 ~ 100KHZ
Maxcimceev	8000mm / s
Rov ua qhov tseeb	± 0.001 hli
Min.line dav	0.22 hli
Min. cwj pwm loj	0.35 hli
Txias	Cua txias
Ua haujlwm temp	5 ~ 35 degree
Cov av noontau	< 70% Tsis muaj condensation
Qhov hnyav tag nrho	65 KG
Hwj chimmuab	AC220V ± 10%, 50Hzlos yog AC110V ± 10%, 60Hz

Core zoo

DOTSLASER tau koom tes nrog sab saum toj European laser R & D thiab kev tsim khoom loj. Raws li lub hauv paus ntawm cov qauv kub muag, nws tau tsom mus rau kev tshawb fawb thiab kev tsim kho, thiab tau tsim lub tshuab laser npav rau tawv, ntoo thiab ntaub. 10 kev hloov kho tshiab ntawm DOTSLASER yuav coj koj mus rau lub sijhawm tshiab hauv kev ua haujlwm laser hauv ntiaj teb.

Cov qauv qhia

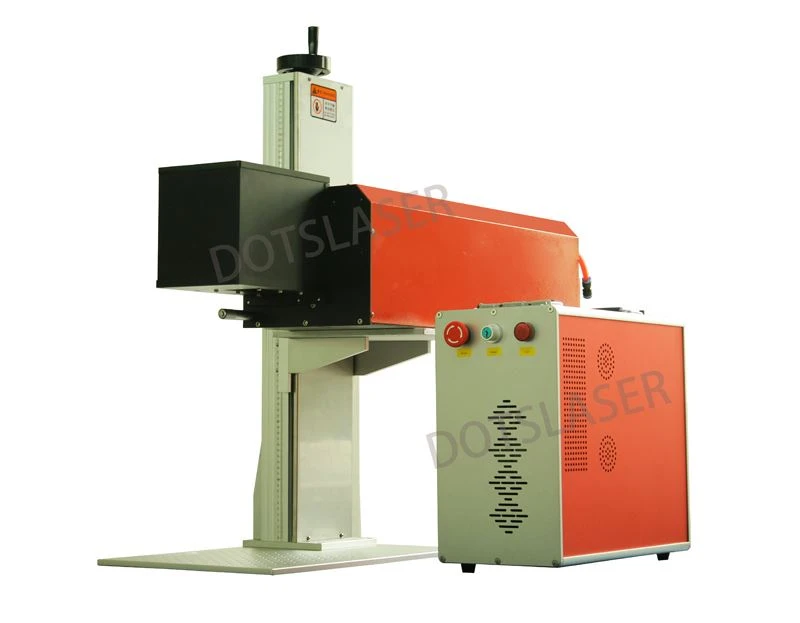

3d 60W dynamic focus CO<sub>2</sub> LASER

Cov khoom lag luam saib

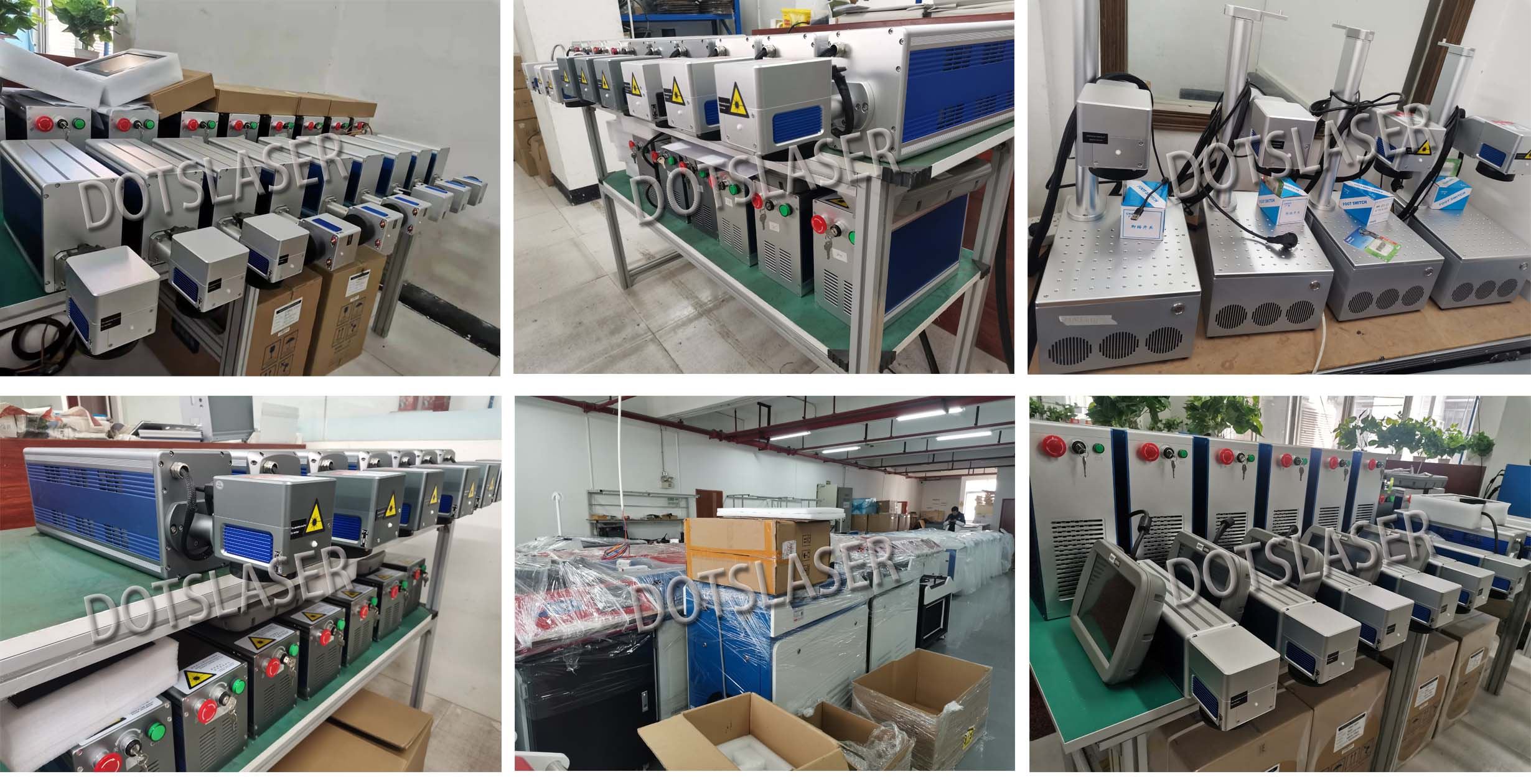

DOTSLASER CO<sub>2</sub> LASER MACHINE

FAQ

Q1: Dab tsi warranty ntawm 3d 60W dynamic tsom CO₂laser?

A1: Ob xyoos lav ntawm laser qhov chaw, ib xyoos warranty ntawm galvo lub taub hau, xws li, lub hwj chim mov, khoom siv tsis tau nyob rau hauv warranty, DOTSLASER cog lus los txhawb koj kev pab txhua lub sij hawm dawb.

Q2: Koj puas muaj phau ntawv qhia txog 3d 60W dynamic tsom CO₂laser?

A2: Yog lawm, peb tuaj yeem xa koj cov lus qhia ntxaws ntxaws thiab cov yeeb yaj kiab hais txog yuav ua li cas khiav qhov system no, thiab peb cov kws tshaj lij yuav qhia koj yog tias koj muaj lus nug. tag nrho cov kev txhawb nqa no yog pub dawb.

Q3: Koj puas muaj daim ntawv pov thawj los txhawb nqa thiab xa tawm cov tshuab?

A3: Yog lawm, peb muaj CE, FDA, thiab lwm yam ntawv pov thawj uas tuaj yeem pab koj import cov khoom.
