Hlau Thiab Cable Laser Marking Inkjet tshuab luam ntawv
Hlau thiab cable laser npav inkjet tshuab luam ntawv yog ntau thiab nrov dua, Vim hais tias cov qauv loj ntawm cov khoom siv hlau thiab cable feem ntau yog me me thiab tsis sib xws, yog li kev tsim precision siab. Raws li cov khoom siv laser marking siab heev, laser npav tshuab yog hloov cov khoom siv coding tsoos vim nws muaj ntau yam zoo, thiab tau dhau los ua qhov kev xaiv tshiab tshaj plaws rau cov hlau thiab cable manufacturers.

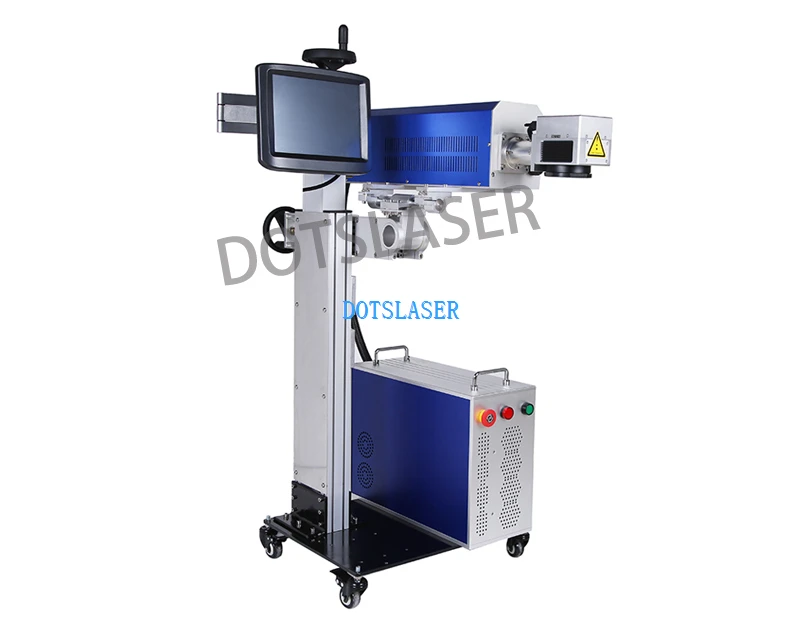

Hlau thiab Cable Laser Marking Inkjet tshuab luam ntawv
Khoom Description
Hlau thiab cable laser npav inkjet tshuab luam ntawv yog cov tshuab tshwj xeeb tsim los kos cov xov hlau thiab cables nrog cov ntaub ntawv txheeb xyuas, xws li cov lej xov tooj, barcodes, lossis cov ntsiab lus tsim khoom. Cov tshuab cim no feem ntau siv hauv kev lag luam uas kev txheeb xyuas thiab txheeb xyuas cov kab hluav taws xob yog qhov tseem ceeb, xws li kev sib txuas lus, tsheb, hluav taws xob, thiab aerospace.
Qhov zoo ntawm cov hlau thiab cable laser npav inkjet tshuab luam ntawv
| High precision | Ob lub laser thiab inkjet npav thev naus laus zis muab cov kev daws teeb meem siab tshaj plaws rau kev luam ntawv thiab kev ua kom pom tseeb, nyeem tau, thiab cov cim ruaj khov ntawm cov kab hluav taws xob. |
| Tsis tiv tauj | Cov txheej txheem tsis sib tiv tauj ua kom ntseeg tau tias tsis muaj lub cev muaj zog siv rau cov kab hluav taws xob thaum lub sij hawm kos, txo qhov kev pheej hmoo ntawm kev puas tsuaj ntawm cable. |
| Ntau yam | Cov tshuab luam ntawv tuaj yeem tswj tau ntau hom cable, cov ntaub ntawv rwb thaiv tsev, thiab txoj kab uas hla. |
| Kev saib xyuas tsawg | Niaj hnub no, high-zoo laser thiab inkjet npav tshuab feem ntau xav tau kev saib xyuas tsawg, ua rau cov nqi qis dua. |
| Lub ntsiab nta | |
| 1. Nws tuaj yeem ua tau raws li cov kev cai dav dav, thiab tib lub sijhawm, kev ua haujlwm ruaj khov zoo thiab cov ntsiab lus laser npav tau ua tau raws li qhov yuav tsum tau ua kom pom tseeb, ruaj khov thiab yooj yim-rau-kev paub qhov txawv ntawm cov khoom siv hlau thiab cable. | |
| 1. Nws tuaj yeem ua tau raws li cov kev cai dav dav, thiab tib lub sijhawm, kev ua haujlwm ruaj khov zoo thiab cov ntsiab lus laser npav tau ua tau raws li qhov yuav tsum tau ua kom pom tseeb, ruaj khov thiab yooj yim-rau-kev paub qhov txawv ntawm cov khoom siv hlau thiab cable. | |
| 3. Haum rau high-speed ntau lawm kab cim (10,000mm/s). | |
| 4. Lub logo tom qab laser npav yog ruaj khov, yuav tsis hnav thiab ploj, thiab cov ntawv luam tawm yog me me li 0.8 hli, uas ua tau raws li cov ntawv luam tawm ntawm cov ntaub ntawv me me, thiab tuaj yeem luam tawm ntau yam duab lossis lub Hoobkas. cov ntawv thiab cov ntawv pov thawj, xws li TUV, UL, CE, thiab lwm yam. | |
| 5. Lub laser ncaj qha reacts nrog rau saum npoo ntawm cov khoom, uas qhia ib tug cim nyhuv yam tsis consumables. | |
| 6. Cov cim tshwj xeeb software tuaj yeem muab cov ntaub ntawv cim npe zoo ib yam thiab lub sijhawm tiag tiag yam tsis muaj kev cuam tshuam rau kev ua haujlwm tas mus li thiab siv tag nrho cov txheej txheem tsim khoom. | |
Laser npav: Laser marking machines siv tsom laser beams los tsim high-contrast, mus tas li, thiab abrasion-resistant marks ntawm hlau thiab cable rwb thaiv tsev nto yam tsis muaj kev puas tsuaj. Lawv haum rau ntau yam ntaub ntawv, xws li PVC, Teflon, thiab ntau yam thermoplastics. Feem ntau siv lasers rau hlau thiab cable cim yog fiber ntau lasers, CO2lasers, thiab UV lasers, txhua tus muaj cov txiaj ntsig sib txawv nyob ntawm cov ntaub ntawv thiab cov kev xav tau.
Inkjet npav: Cov tshuab luam ntawv inkjet siv cov txheej txheem tsis sib cuag los siv cov cim cim rau hauv kab hluav taws xob. Lawv leverage yog Continuous Inkjet (CIJ) lossis Drop-on-Demand (DoD) thev naus laus zis kom raug tsim cov qhab nia siab. CIJ cov tshuab luam ntawv yog nyiam rau cov ntawv thov ceev, thaum DoD cov tshuab luam ntawv muab kev daws teeb meem siab dua thiab cov nqi qis dua.
Parameters
|
Qauv |
DS-LWM 30 |
DS-LMC 60 |
|
Laser fais fab tso zis |
>30W |
>60W |
|
laser wavelength |
9.3μm/10.6μm |
|
|
Kos thaj tsam |
100x100mm (tus qauv) |
|
|
Pulse zaus |
1 ~ 100KHZ |
|
|
Max marking ceev |
8, 000mm/s |
|
|
Font hom ntawv |
Dot, ib kab, Muaj tseeb hom |
|
|
Code hom ntawv |
Feem ntau 1D & 2D codes muaj |
|
|
Txhawb interface |
USB, TCP / IP, RS219 rau encoder thiab sensor |
|
|
Rov ua qhov tseeb |
± 0.001 hli |
|
|
Min. kab dav |
0.1 hli |
|
|
Min. cwj pwm loj |
0.2 hli |
|
|
Txias |
Cua txias |
|
|
Ua haujlwm temp |
5 ~ 35 degree |
|
|
Net nyhav |
80 KG |
|
|
Fais fab mov |
AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz |
|
Thaum xaiv cov hlau thiab cable laser npav inkjet tshuab luam ntawv, xav txog cov hauv qab no:
Tshuab luam ntawv: Txiav txim siab seb laser npav lossis inkjet npav yog qhov zoo tshaj plaws rau koj cov kev xav tau tshwj xeeb ntawm kev kos cov kav ntev, ceev, zoo, thiab tus nqi.
Material compatibility: Xyuas kom meej tias lub tshuab luam ntawv yog sib xws nrog cov ntaub ntawv rwb thaiv tsev thiab cable hom siv hauv koj daim ntawv thov.
Qib Automation: Qee lub tshuab kos npe muab tag nrho automation nrog kev sib koom ua ke ntawm cable tuav thiab txiav peev xwm, uas tuaj yeem txhim kho cov khoom tsim tau zoo.
Printing ceev: Xyuas kom meej tias lub tshuab luam ntawv lub cim ceev ua tau raws li lossis tshaj koj cov kev xav tau ntau lawm kom tsis txhob muaj fwj.
Kos npe software: Ntsuas cov software uas muab nrog lub tshuab luam ntawv kom paub tseeb tias kev sib raug zoo, kev siv yooj yim, thiab muaj cov cim cim tsim nyog lossis kev xaiv xaiv.

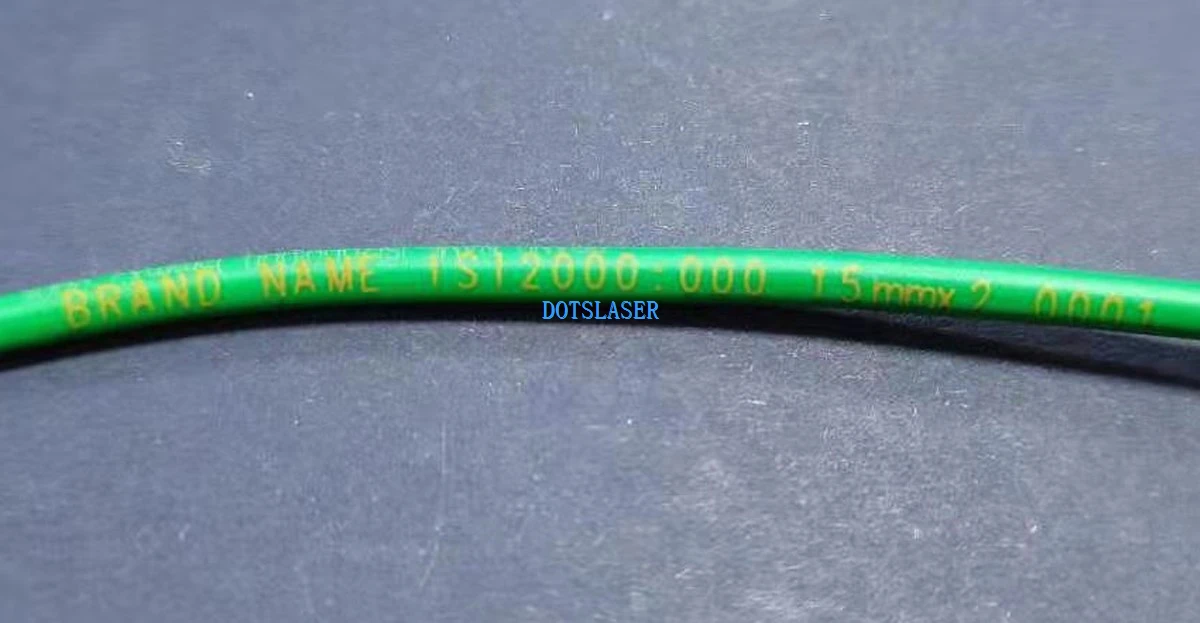

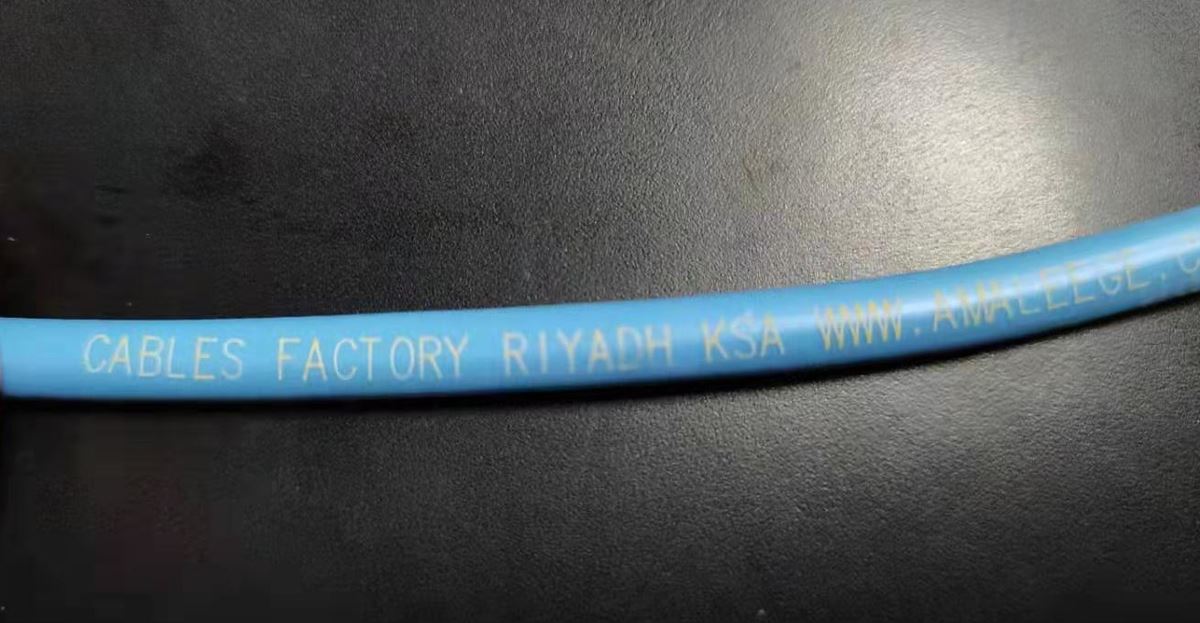

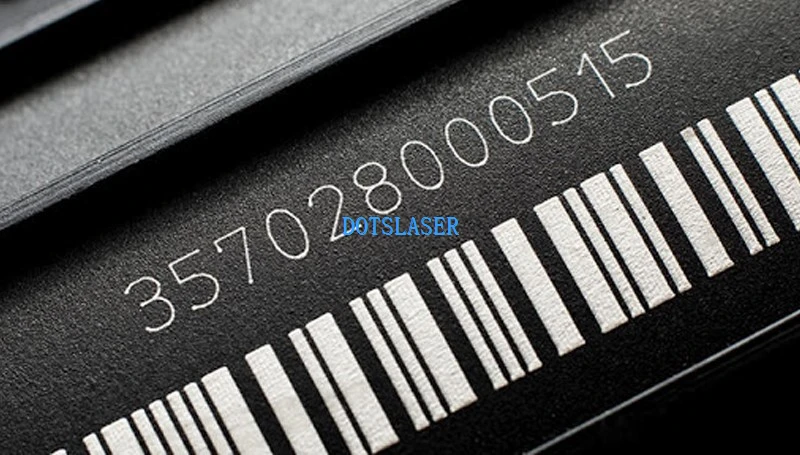

Cov qauv qhia
