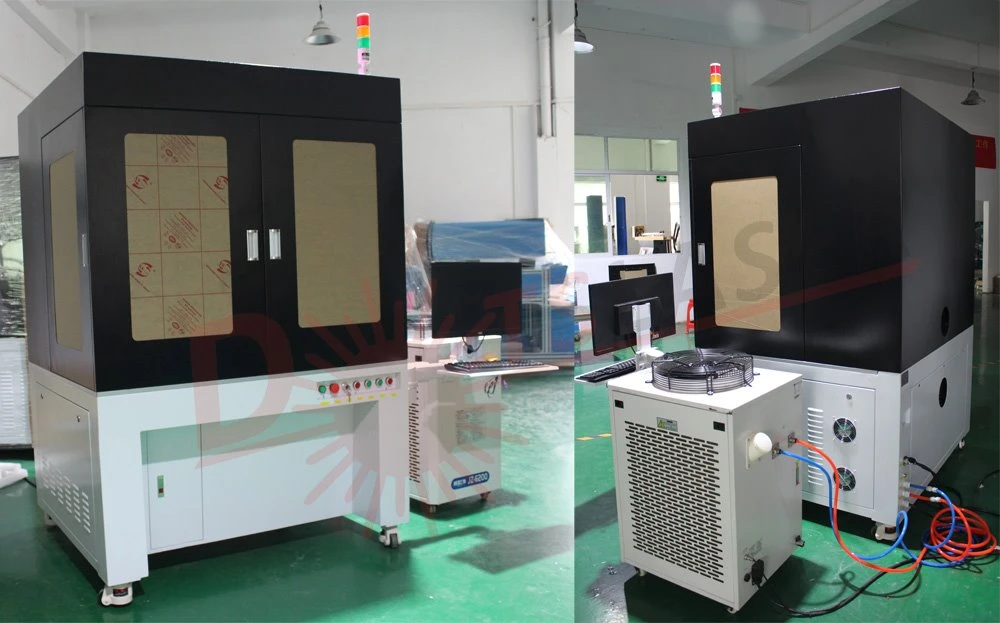

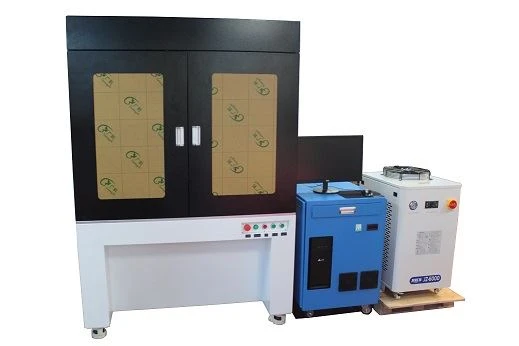

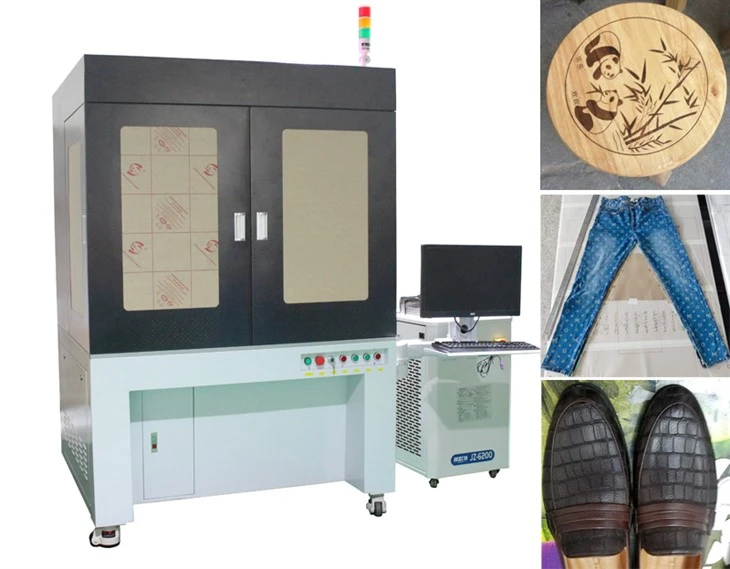

Enclosure Ncej Enclosure Ncej CO₂ Galvo Laser Tshuab
Enclosure Frame CO2galvo laser tshuab
Khoom Description
The Enclosure Frame CO2Galvo Laser Tshuab yog lub tshuab ua haujlwm siab laser txiav thiab engraving tshuab uas yog tsim los rau precision thiab ceev. Lub tshuab no yog tsim los tswj ntau yam khoom siv, suav nrog ntoo, acrylic, tawv, thiab lwm yam. Nrog nws cov thev naus laus zis laser zoo thiab cov software siab heev, qhov system no muab cov txiaj ntsig zoo txhua lub sijhawm.
Tsis muaj
|
TSIS MUAJ. |
Lub npe |
DS-LMC series Galvo laser system |
|
1 |
Tshuab qauv |
DS-LMC150/DS-LMC250/DS-LMC350 |
|
2 |
Max laserzog |
150W/250W/350W |
|
3 |
laser wavelength |
10.6μm |
|
4 |
Beam zoo |
＜1.2㎡ |
|
5 |
Lub luag haujlwm lub voj voog txwv |
Tsawg dua lossis sib npaug li 60% |
|
6 |
Min. kab dav |
0.17mm (nyob ntawm cov khoom siv) |
|
7 |
Qhov loj me me |
0.4 hli |
|
8 |
Max marking ceev |
Tsawg dua lossis sib npaug li 8,000mm/s |
|
9 |
Chaw ua haujlwm |
400x400mm / 500x500mm / 600x600mm / 800x800mm |
|
10 |
Txias |
Dej txias |
|
11 |
Kev ua haujlwm ib puag ncig qhov kub thiab txias |
5 ~ 35 degree |
|
12 |
Humidity ntau ntawm kev ua haujlwm ib puag ncig |
< 70% No condensation |
|
13 |
Fais fab mov |
220V, 50/60Hz |
|
14 |
Kev siv fais fab |
6 KW |
Qhov zoo ntawm DOTSLASER

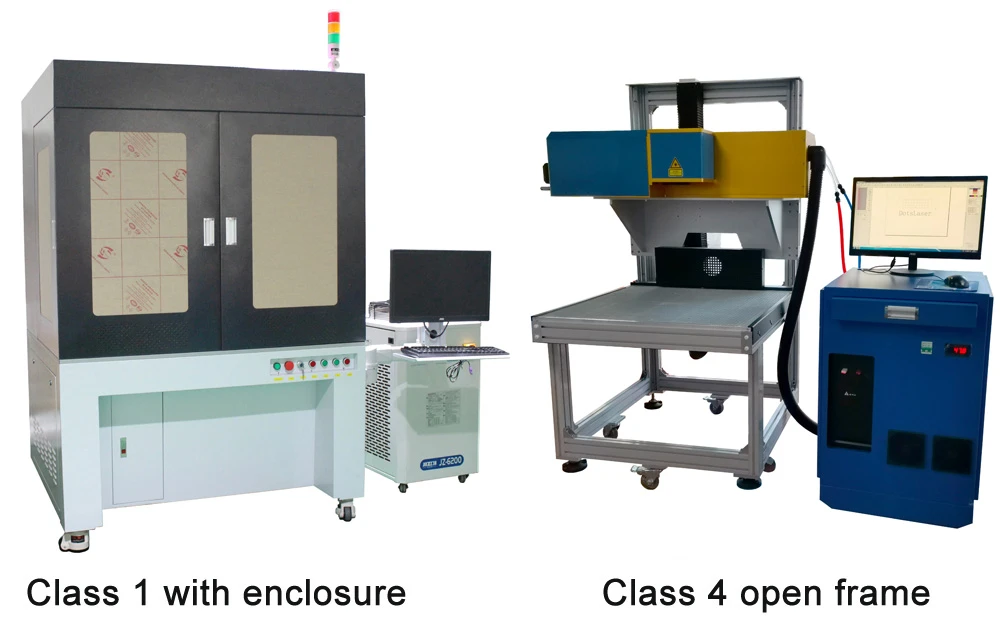

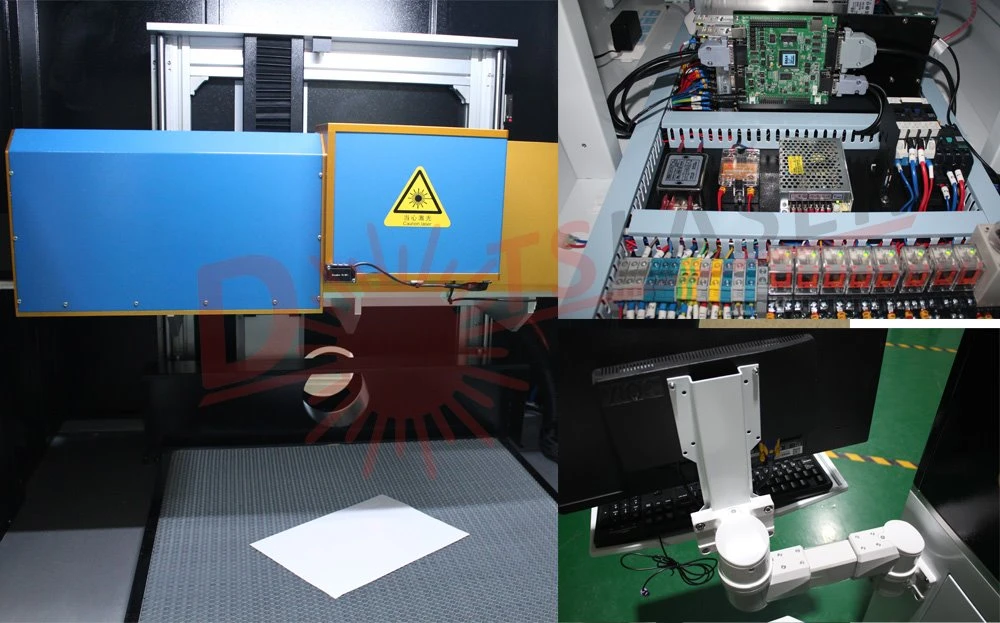

1.Class 1 qib enclosed ncej rau kev nyab xeeb
VS
Chav kawm 4 theem txaus ntshai qhib ncej
Laser yog teeb meem rau tib neeg lub cev, yog tias koj nyob ze ntawm lub teeb laser hauv lub sijhawm ua haujlwm ntev yam tsis muaj kev tiv thaiv, koj yuav raug mob los ntawm hluav taws xob muaj zog. Yog li ntawd, ib tug zoo enclosed ncej yog heev tseem ceeb rau cov neeg siv.

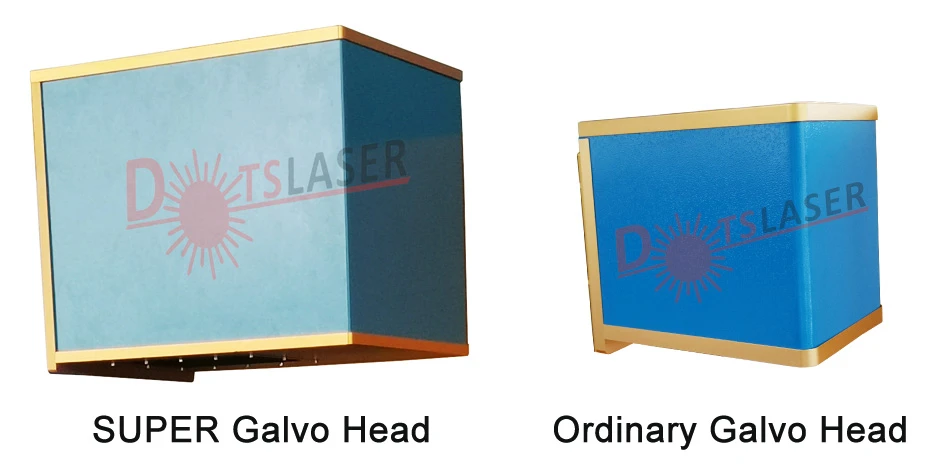

2. SUPER Galvo Lub Taub Hau Laser
Ntau thaj chaw ua haujlwm dav.
Ntau qhov tseeb thiab ntau txoj kab zoo.
nrawm dua.

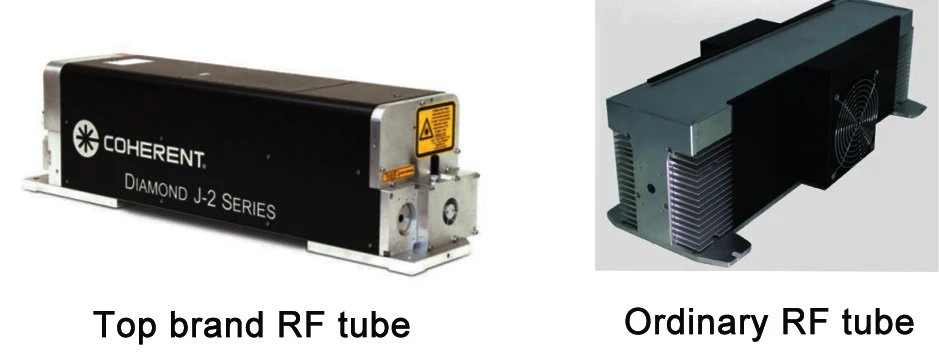

3. Sab saum toj hom RF raj
Laser qhov chaw / lub tshuab hluav taws xob yog qhov tseem ceeb hauv lub tshuab laser tag nrho, yog li qhov ruaj khov thiab zoo beam zoo laser qhov chaw / lub tshuab hluav taws xob tseem ceeb heev, peb sib sau cov cav tov nrog ib qho zoo tshaj plaws hlau RF raj ua "lub siab". tus nqi thiab muaj qhov ua tau zoo dua.

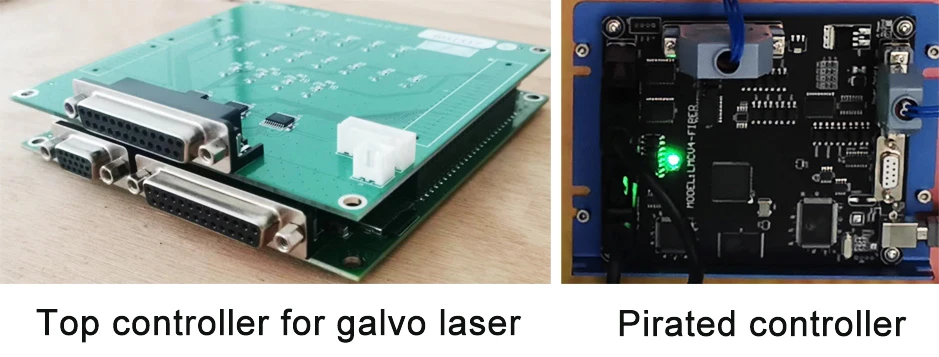

4. Tus tswj
Tus maub los yog lub hlwb ntawm lub cev, tus maub los paub tab thiab txhim khu kev qha yog qhov tseem ceeb heev, ib yam nkaus, nws tuaj yeem ua cov lus txib lossis qhov program rau lub khoos phis tawj, tom qab ntawd txuas mus rau cov tshuab ua haujlwm zoo li koj xav tau. sib raug, yog tias tus maub los tsis muaj kev ntseeg siab, nws tsis tuaj yeem ua qhov tseeb lossis zoo meej rau cov tshuab ua haujlwm zoo. Yuav kom txuag tau tus nqi, qee tus neeg sib tw tau txais kev tswj tsis zoo lossis txawm tias tus tswj pirated, uas ua rau muaj teeb meem ntau rau cov neeg siv.
The Enclosure Frame CO2Galvo Laser Tshuab nta lub compact thiab ruaj khov thav duab uas yog tsim los ntawm cov ntaub ntawv zoo kom ntseeg tau ntev thiab ruaj khov. Qhov kev tsim kho tag nrho ntawm lub tshuab no ua kom ntseeg tau tias nws muaj kev nyab xeeb siv rau txhua qhov chaw. Qhov chaw kaw kuj suav nrog cov kiv cua tso tawm uas tshem tawm cov pa taws thiab plua plav thaum lub sijhawm txiav thiab kos duab, ua kom lub chaw ua haujlwm huv si thiab tsis muaj teeb meem.
Lub tshuab yog nruab nrog lub siab ceev CO2laser uas boasts lub wavelength ntawm 10.64 micrometers, xyuas kom meej precision txiav thiab engraving. Lub laser beam yog qhia los ntawm high-speed galvanometer scanner uas muaj peev xwm txav tau ceev li 50,000mm/s. Qhov no tso cai rau lub tshuab txiav thiab engraving cov ntaub ntawv ntawm tus nqi ceev thaum tuav cov qib siab ntawm qhov tseeb.
The Enclosure Frame CO2Galvo Laser Tshuab kuj tau nruab nrog cov software siab heev uas tso cai rau tus neeg siv upload cov qauv ncaj qha rau lub tshuab. Lub software muaj peev xwm nyeem tau ntau hom ntawv, suav nrog DXF, BMP, AI, PLT, thiab ntau dua.

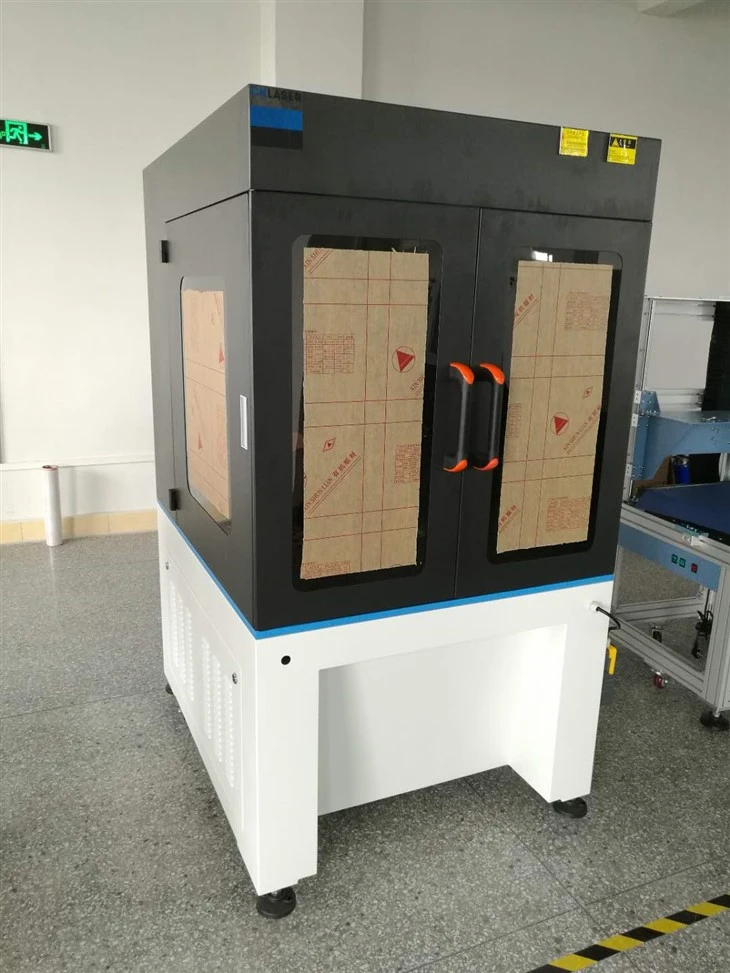

Cov ntsiab lus ntawm enclosure frame CO2galvo laser tshuab
Cov qauv qhia
Ntim thiab shipping.
Unpacking Ceev faj:
Txhua lub tshuab cim tau raug kuaj nruj ntawm lub Hoobkas, tsuas yog cov khoom tsim nyog rau kev xa khoom. Thaum koj tau txais cov khoom thauj, thov xyuas raws li hauv qab no. Yog tias koj muaj lus nug, thov hu rau tus neeg sawv cev lossis cov neeg ua haujlwm ntawm DOTSLASER.
● Txawm tias muaj kev puas tsuaj lossis deformation thaum thauj.
● Paub meej tias tag nrho cov khoom ntawm cov npe ntim khoom yog lawm.
● Paub meej tias tus qauv ntawm cov khoom sib xws nrog lub npe phaj (Kev ua haujlwm voltage thiab KVA tus lej).
● Xyuas kom tseeb tias tag nrho cov clamps nruj thiab tsis muaj cov khoom txawv teb chaws hauv lub cuab yeej.
● Paub meej tias cov nyees khawm ua haujlwm, cov keyboards yog qhov qub.
