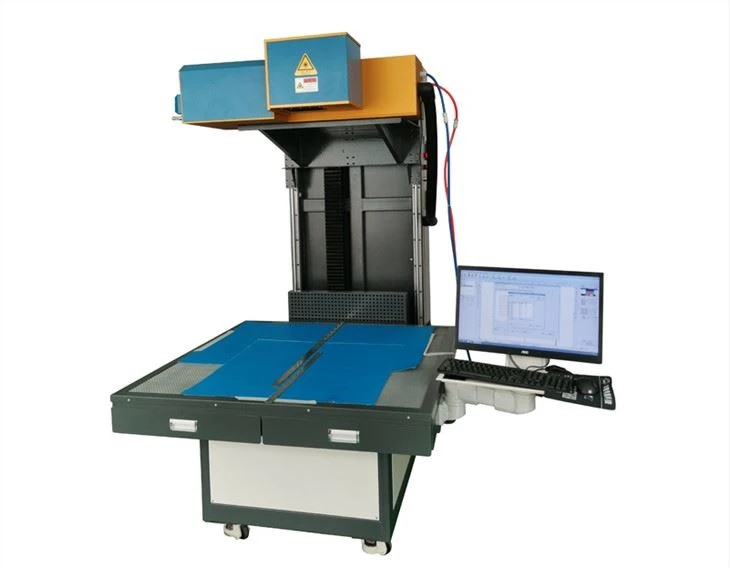

Jeans Laser Etching Tshuab
Jeans Laser Etching Tshuab
Khoom Description
peb lub tswv yim Jeans Laser Etching Machine, tsim tshwj xeeb rau kev zam thiab textile kev lag luam. Cov tshuab txiav-ntug no tso cai rau koj los tsim cov qauv tsim tshwj xeeb thiab qhov muag pom ntawm denim thiab lwm yam ntaub ntawv nrog qhov tsis sib xws thiab qhov zoo. Qhov zoo tshaj plaws rau cov lag luam tsom rau kev tsim cov khaub ncaws, kev tsim kho, thiab kev tsim zam, peb cov Jeans Laser Etching Machines muab cov kev daws teeb meem zoo thiab muaj txiaj ntsig los txhawb koj cov khoom mus rau qib tom ntej.
Ntsiab nta
Advanced Laser Technology
Peb cov Jeans Laser Etching Machines siv lub xeev-of-the-art laser technology los tsim cov ncauj lus kom ntxaws thiab intricate designs ntawm denim thiab lwm yam ntaub ntawv ntaub. Cov txheej txheem tsis sib cuag etching ua kom cov ntaub ruaj khov thaum xa cov duab siab, qauv, thiab cov khoom lag luam.
Kev ua tau zoo thiab ceev ceev
Nruab nrog high-speed laser systems, peb cov cav tov txo cov sij hawm ua tiav qhov project, ua kom ceev ceev thiab txhim kho cov khoom tsim tau.
Tus neeg siv-phooj ywg interface
Ib qho intuitive kov npo interface ua kom muaj kev ua haujlwm tsis sib haum, tso cai rau cov tswv lag luam kom yooj yim nkag mus, saib xyuas kev nce qib, thiab tswj tag nrho cov txheej txheem etching. Qhov no user-friendly system minimizes downtime thiab maximizes productivity.
Customizable Chaw
Nrog adjustable etching qhov tob, ceev, thiab lub zog teeb tsa, koj tuaj yeem ua tiav cov txiaj ntsig zoo raws li koj cov ntaub ntawv tshwj xeeb thiab cov kev xav tau.
Cov yam ntxwv muaj kev nyab xeeb zoo
Peb cov Jeans Laser Etching Machine yog tsim los nrog cov yam ntxwv ntawm kev nyab xeeb tsim nyog xws li cov ntaub thaiv npog, qhov cua tshuab, thiab cov tshuab kaw tsis siv neeg.
Siv tau ntev thiab txhim khu kev qha
Ua nrog cov ntaub ntawv zoo thiab cov khoom siv, Jeans Laser Etching Machines muab kev ua haujlwm ntev.
Tsis muaj
|
TSIS MUAJ. |
Lub npe |
DS-LMC series Galvo laser system |
|
1 |
Tshuab qauv |
DS-LMC250/DS-LMC350 |
|
2 |
Max laser zog |
250W/350W |
|
3 |
laser wavelength |
10.6μm |
|
4 |
Uakuv quality |
＜1.2㎡ |
|
5 |
Lub luag haujlwm lub voj voog txwv |
Tsawg dua lossis sib npaug li 60% |
|
6 |
Min.kabdav |
0.22 hli (nyob ntawm cov khoom siv) |
|
7 |
Qhov loj me me |
0.4 hli |
|
8 |
Max marking speb |
Tsawg dua lossis sib npaug li 8,000mm/s |
|
9 |
Chaw ua haujlwm |
1200 x 1200 mm |
|
10 |
Cooling |
Dejtxias |
|
11 |
Kev ua haujlwm ib puag ncig qhov kub thiab txias |
5 ~ 35 degree |
|
12 |
Humidity ntau ntawm kev ua haujlwm envirkev xav |
< 70% Nocondensation |
|
13 |
Fais fab mov |
220V, 50/60Hz |
|
14 |
Kev siv zogptio uan |
＜6KW |
Lub Jeans Laser Etching Machine yog zoo meej rau ntau yam kev siv hauv kev lag luam zam thiab textile, suav nrog, tab sis tsis txwv rau:
Denim thiab fabric garment customization
Kev tsim cov khoom lag luam thiab kev siv lub logo
Kev sib koom tes tsim kev kos duab
Kev pabcuam tus kheej thiab monogramming
Txhim khu peb cov khoom muab thiab nyob ua ntej ntawm kev sib tw nrog peb cov Jeans Laser Etching Machine.
Yog tias koj muaj lus nug lossis xav teem sijhawm ua qauv qhia, thov tsis txhob yig tiv tauj peb. Cia peb cov kev daws teeb meem zoo tshaj plaws pab koj tso koj txoj kev muaj tswv yim thiab hloov pauv txoj hauv kev koj tsim zam.
Qhov zoo ntawm laser etching tshuab
| 1.Ecological kev tiv thaiv ib puag ncig | Tsis xav tau tshuaj los yog dej. Kev ntxuav dav dav tuaj yeem ua tiav tom qab ua tiav, uas ua rau luv luv ntawm cov txheej txheem kev tu ib txwm siv thiab txo cov pa phem heev, uas yog nyob rau hauv txoj kab nrog kev lag luam ntsuab tam sim no, lub zog huv thiab tsis muaj tshuaj reagent. |
| 2. nplua nuj ua technology | tuaj yeem hloov kho ntau yam ntawm cov ris tsho npuag miv whiskers, folds, ragged, hnav, snowflake thiab lwm yam teebmeem thiab ntau yam ntawm tus kheej tus qauv carved, zoo nkauj ntshiab, tsis ploj. |
| 3. Kev ua tus kheej | Tsuas yog engraving folds. Whiskers. Rags. Fried snowflake thiab lwm cov txheej txheem ib txwm muaj, nws tuaj yeem ua cov duab, cov paib, cov qauv, txhua tus qauv rubbing tus kheej, xws li cov duab, tuaj yeem ua tiav los ntawm laser. |
| 4. Kev lag luam thiab kev ua haujlwm siab | Raws li cov qauv sib txawv ntawm kev ua ib nkawm ris tsho tsuas yog 30 vib nas this, lub zog hauv 0.01-0.05 kwh, ib lub tshuab tuaj yeem hloov tau 6 lub tshuab ntxuav tes, 7 yuan ib teev hluav taws xob nkaus xwb. |
| 5. Yooj yim thiab yooj yim rau kev khiav lag luam | Rau tus neeg ua haujlwm tshiab, tsuas yog siv 1 lossis 3 hnub kev cob qhia yog ok. |
Cov txheej txheem dav dav ntawm kev ua cov ris tsho yuav tsum tau mus los ntawm cov ntaub dyeing, weaving, txiav, xaws thiab qee cov ntsiab lus ntawm cov txheej txheem, thiab cov txheej txheem tseem ceeb los txiav txim siab cov txiaj ntsig ntawm cov ris tsho tuaj yeem hais tias yog laser etching txheej txheem, thev naus laus zis ntawm laser etching. tuaj yeem daws qhov teeb meem hauv cov txheej txheem ua txhua yam ntawm denim ntaub.
Laser yog siv nyob rau hauv tus txheej txheem ntawm denim laser etching los yog puas. Cov txheej txheem digital tuaj yeem zam qhov tsis zoo ntawm cov txheej txheem ib txwm muaj, qhov ua tau zoo yog 10 npaug ntawm cov txheej txheem ib txwm muaj, txuag dej thiab emission txo qis dua 50%, cov txheej txheem ua haujlwm tsis yog qis dua rau cov txheej txheem ib txwm muaj.
cov khoom siv thev naus laus zis
Siv lub khoos phis tawj los tsim qauv, ntaus ntawv, ua cov ntaub ntawv, thiab tom qab ntawd siv CO2laser engraving tshuab ua lub laser beam raws li lub computer typesetting cov lus qhia rau saum npoo ntawm cov khaub ncaws fabrics rau high-temperature etching, cov xov paj nyob rau hauv lub kub etched seem yog ablated.
Roj gasification, tsim qhov sib txawv qhov tob thiab ntiav etch, tsim cov qauv lossis lwm yam kev ntxuav. Paj ntaub kuj tuaj yeem siv rau hauv cov duab kos, xws li hlaws, hlau, rov qab kho cov khoom siv hlau thiab lwm yam ntaub ntawv, txhim khu kev kos duab.
Shipping thiab pob
