Portable 3D CO2 Laser Engraver

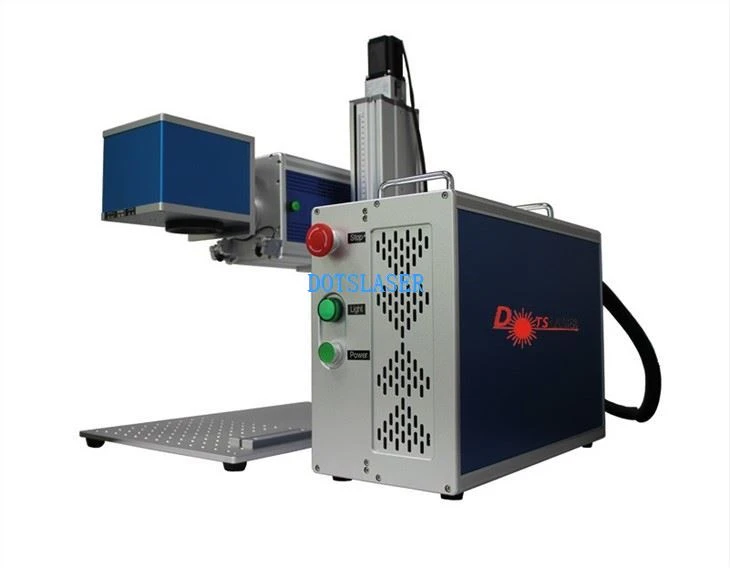

CO2 laser engraver

Portable 3D CO2 Laser Engraver

Portable 3D CO2 Laser Engraver yog dav siv rau engraving ntawm ntoo, tawv tiag, tawv tawv, PU, PVC, ABS, PCB board, ntau yam khoom yas, textile, cardboard, txais tos board, xyoob, roj hmab, iav, ceramics, khoom plig, electronics , thiab lwm yam.

Xa kev nug

Khoom Taw qhia

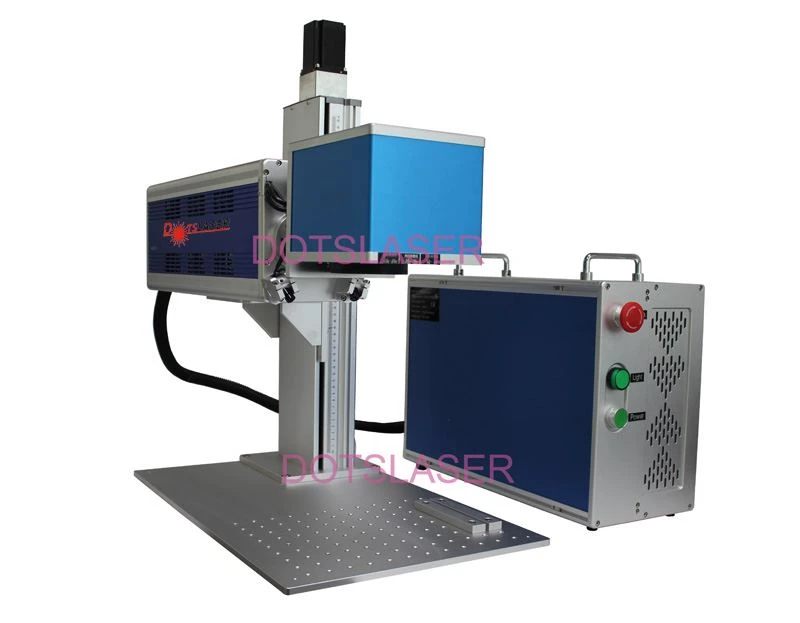

Portable 3D CO₂Laser Engraver

Khoom Description

Portable 3D CO₂Laser Engraver yog dav siv rau engraving ntawm ntoo, tawv tiag, tawv tawv, PU, PVC, ABS, PCB board, ntau yam khoom yas, textile, cardboard, txais tos board, xyoob, roj hmab, iav, ceramics, khoom plig, electronics, thiab thiaj li. ntawm. Nws siv daim iav tsom iav tsom rau CO₂laser beam ntawm cov ntaub ntawv saum npoo kom yaj cov khoom, thaum tshuab tawm cov khoom melted nrog compressed gas coaxial rau lub laser beam, thiab ua rau lub laser beam thiab cov ntaub ntawv txav mus rau ib leeg nyob rau hauv ib tug tej yam trajectory, yog li tsim ib tug tej yam duab. ntawm qhov txiav.

Nta thiab kev ua haujlwm

1.Portable 3D laser engraver txais yuav los yog Tuam Tshoj sab saum toj hom hlau kaw-tawm RF CO₂laser, nrog ruaj khov thiab txhim khu kev qha kev ua tau zoo, siab repeatability thiab positioning raug, zoo marking kab.

2. Nrog 3-axis dynamic tsom, uas ua rau lub laser beam sib npaug zos rau qhov chaw ua hauj lwm, lub zog sib txawv tsuas yog 5% ntawm nruab nrab cheeb tsam thiab ntug cheeb tsam.

3. Ib puag ncig tus phooj ywg thiab tsis muaj kev phom sij: tsis tsim cov tshuaj lom neeg muaj kev phom sij rau ib puag ncig thiab tib neeg lub cev, thiab yog ib txoj hauv kev zoo rau ib puag ncig.

4. Ntxiv nta muaj, xws li nws pib tsom mus nrhiav engraving nrug, tsom finder, teb index, ya cim.

5.Ntau qhov chaw ua haujlwm dav dav muaj, tsoos 2D CO₂laser engraver ib txwm tsuas muaj 300mm * 300mm ua hauj lwm cheeb tsam siab tshaj plaws thiab kab dav yog tuab, tab sis portable 3D CO₂laser engraver tuaj yeem teeb tsa qhov chaw ua haujlwm siab tshaj plaws li 400mm * 400mm thiab nrog cov kab nyias nyias. thiab cov ntawv engraved tsis deformed.

Tsis muaj

Qauv	DS-LMC30; TSW-LMC60; DS-LMC100
Laser zog	>30W,>60W,>100W
Laser wavelength	10640nm, 9300nm
Beam zoo	㎡<5
Rov ua dua zaus	0-25KHZ
Chaw ua haujlwm	100mm * 100mm ~ 400mm * 400mm
Laser qhov chaw	Imported RF raj los yog Tuam Tshoj sab saum toj hom RF raj
Txias	Dej / cua txias
Engraving qhov tob	Tsawg dua los yog sib npaug li 3 hli
Marking kab dav	7000mm / s
Yam tsawg kawg kab dav	0.1 hli
Yam tsawg kawg nkaus	0.35 hli
Fais fab mov	220V ± 10%, 50 / 60HZ, 10A

Qauv ua yeeb yam

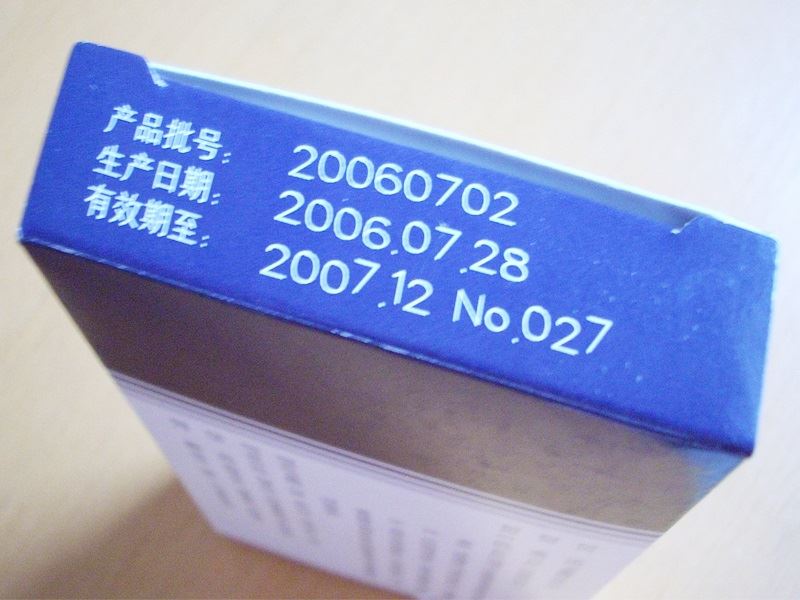

ntawv lub thawv cim

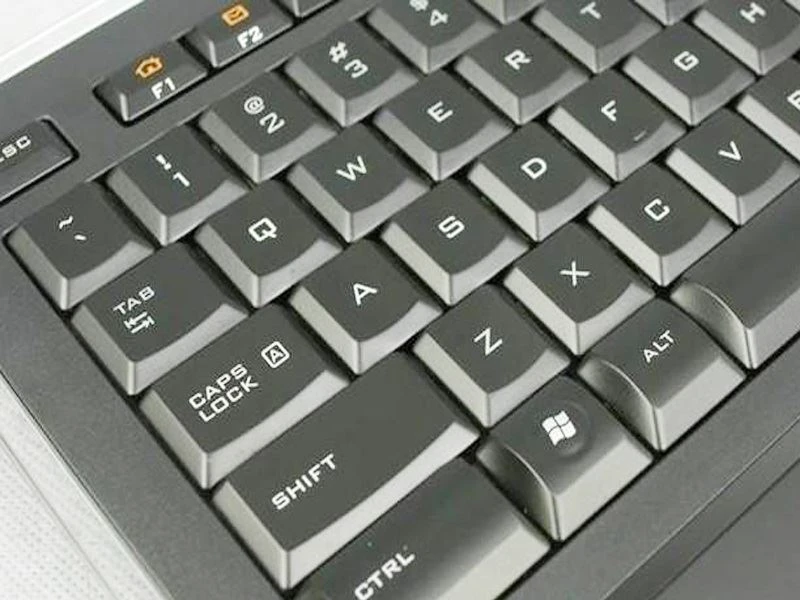

keyboard engraving

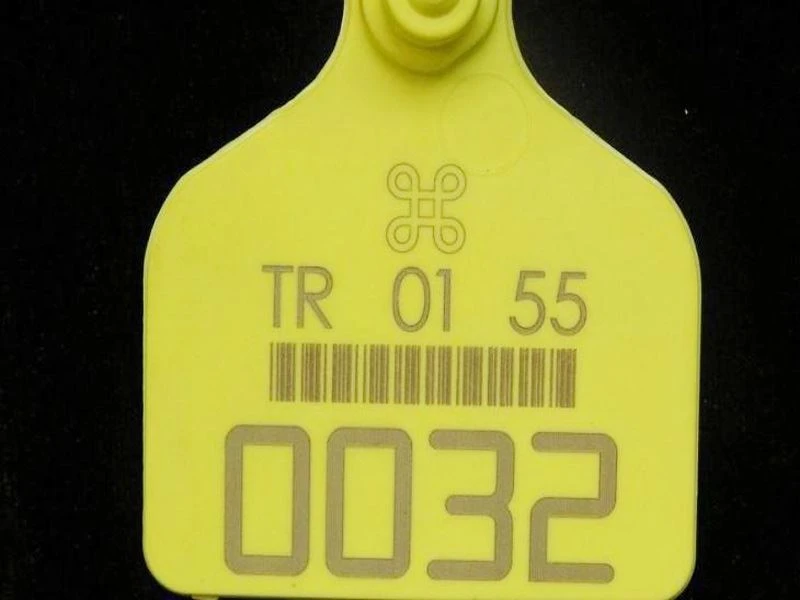

Animal ear tag 2D code laser marking.jpg

Tsiaj pob ntseg tag 2D code laser npav

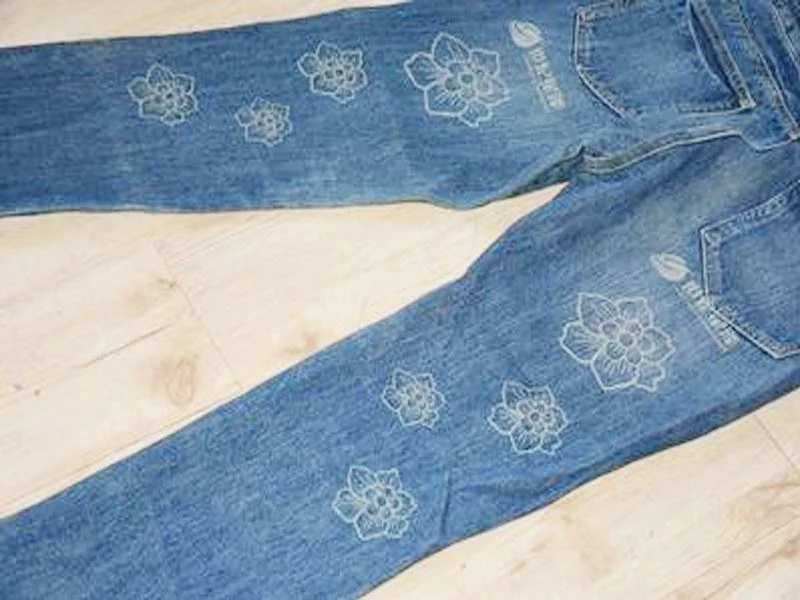

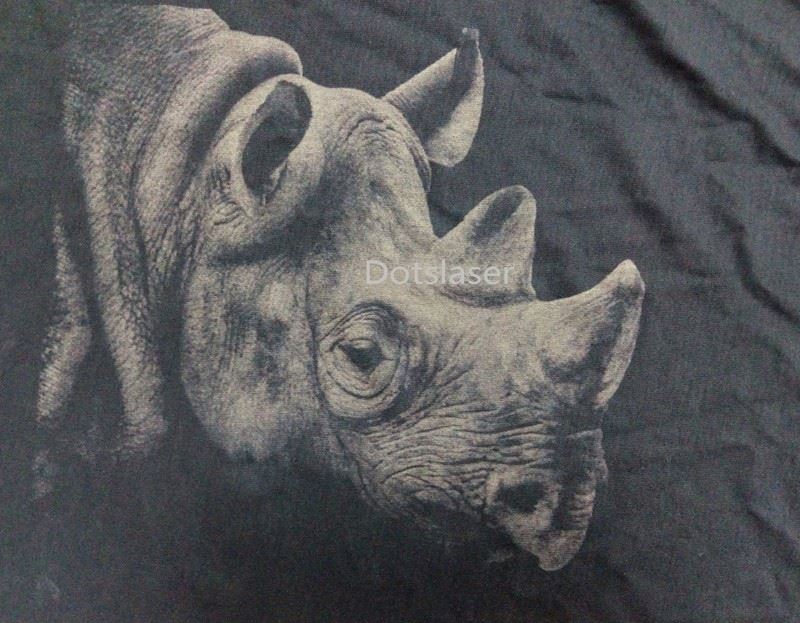

Jeans laser engraving

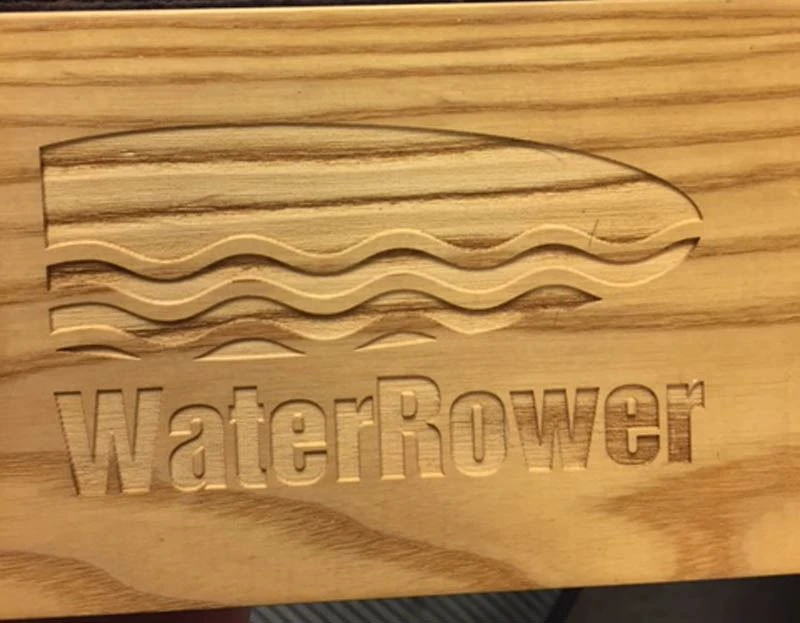

Ntoo engraving

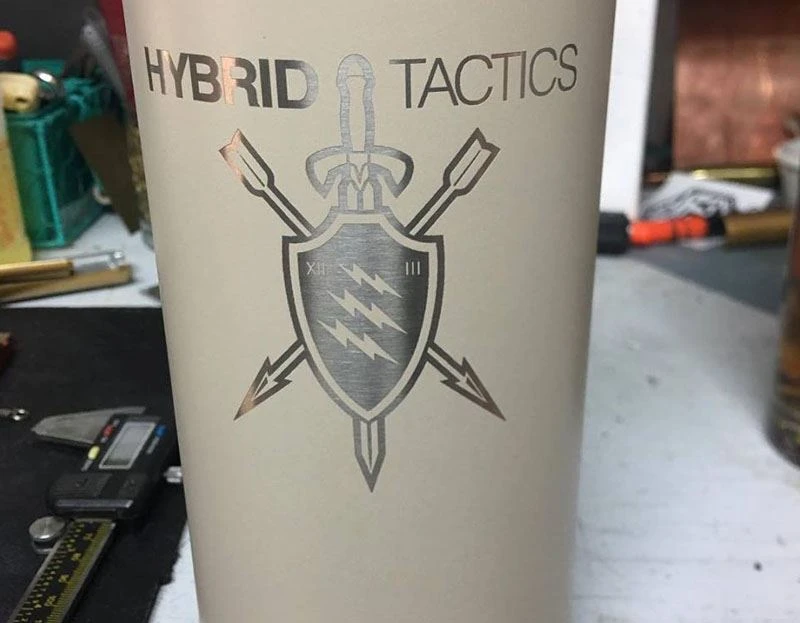

Tumbler engraving

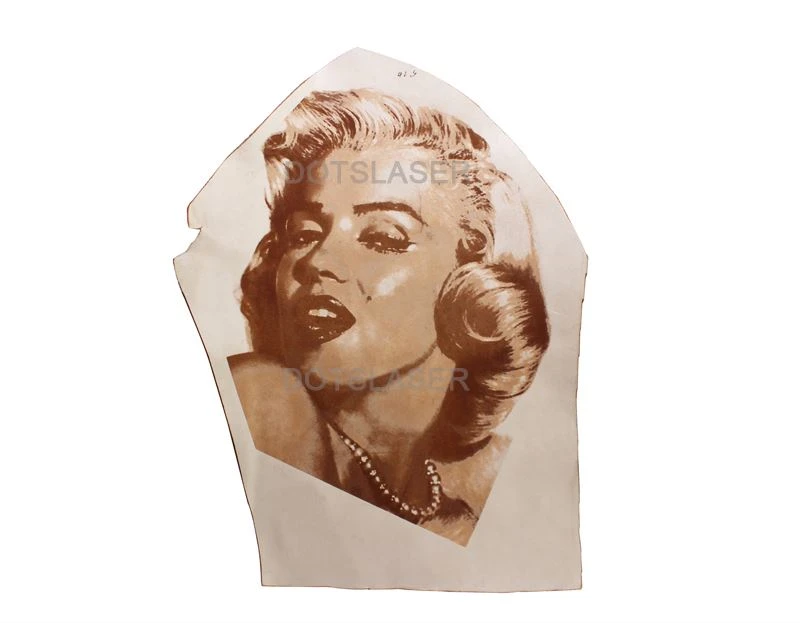

Tawv engraving

Shipping thiab pob

FAQ

Q1: Yam khoom twg koj tuaj yeem muab tau?

A1: Peb yog cov chaw tsim khoom ntawm fiber ntau laser npav tshuab, CO₂laser npav tshuab, UV laser npav tshuab, fiber ntau laser vuam tshuab, fiber ntau laser tu tshuab, fiber ntau laser txiav tshuab.

Q2: Koj puas tuaj yeem them nqi lossis tsis ua cov qauv kuaj?

A2: Koj tuaj yeem xa cov qauv rau peb rau kev sim, txhua qhov kev sim ua haujlwm yog dawb.

Q3: Lub sijhawm xa khoom twg peb tuaj yeem tau txais lub tshuab?

A3: Feem ntau lub sijhawm xa khoom yog 3 ~ 7 hnub ua haujlwm tom qab them nyiaj ua ntej, thaum lub caij tsis khoom, lub sijhawm xa khoom yog 7 ~ 10 hnub ua haujlwm.

Q4: Yog tias lub tshuab muaj qhov yuam kev lossis puas, peb yuav ua li cas?

A4: Peb pab neeg ua haujlwm tom qab muag yuav pab koj nrhiav thiab daws qhov yuam kev lossis kev puas tsuaj.
