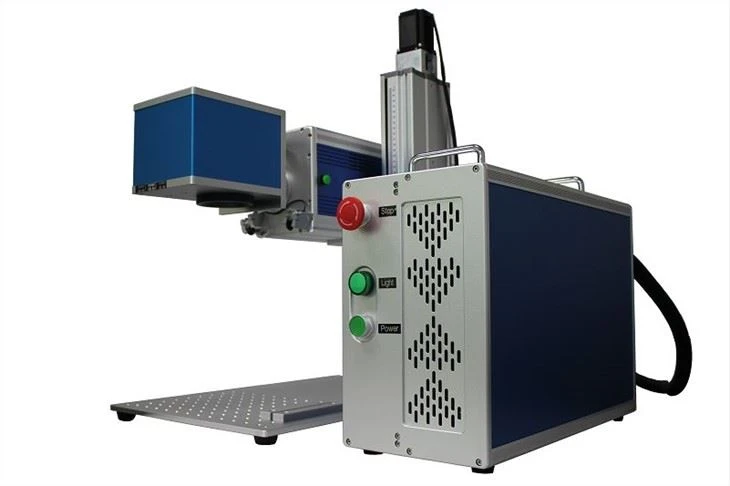

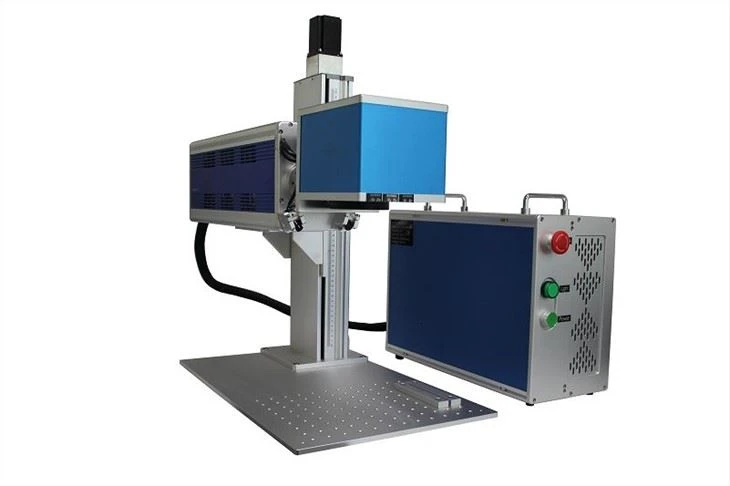

2D CO₂ Laser Marking Tshuab
2D CO₂ Laser Marking Tshuab
Khoom Description
2D CO₂ laser npav tshuab yog hom laser engraver uas siv cov pa roj carbon dioxide (CO₂) laser ua nws qhov chaw rau kev kos thiab kos ntau yam ntaub ntawv. CO₂ lasers tau siv dav vim lawv qhov kev ua tau zoo thiab muaj peev xwm ua tau ntau yam khoom xws li ntoo, acrylic, iav, ntawv, tawv, roj hmab, ntaub, thiab qee yam yas.
Lub 2D CO₂ laser npav tshuab ua haujlwm los ntawm kev taw qhia lub teeb tsom mus rau cov khoom siv saum npoo, uas ua rau muaj qhov tseeb, qhov sib txawv siab. Cov txheej txheem no tuaj yeem siv tau rau ob qho tib si cim kev ua haujlwm (xws li barcodes, QR codes, serialization) thiab lub hom phiaj zoo nkauj (xws li, logos, kos duab tsim).
Cov yam ntxwv tseem ceeb ntawm 2D CO₂ laser npav tshuab
High precision
CO₂ lasers tso cai rau kev sib tw, cov ncauj lus kom ntxaws ntawm ntau yam ntaub ntawv nrog cov neeg raug siab thiab rov ua dua, ua kom cov txiaj ntsig zoo ib yam.
Ceev
Cov txheej txheem laser npav yog ceev, tso cai rau kev ua haujlwm tau zoo thiab nce kev tsim khoom.
Khoom siv versatility
CO₂ lasers tuaj yeem ua haujlwm nrog ntau yam khoom siv, ua rau lawv haum rau ntau daim ntawv thov thiab kev lag luam.
Software compatibility
Laser npav tshuab feem ntau tuaj nrog software uas sib xws nrog ntau hom qauv tsim, ua rau cov neeg siv tsim qauv thiab tswj cov cim cim.
|
Cov ntaub ntawv siv tau: Cov ntaub ntawv tsis yog xim hlau, tawv, tawv tawv, ntoo, xyoob, khaub ncaws accessories, duab los qhia, roj hmab.
Siv tau kev lag luam: 2D CO₂ Laser Marking Tshuab yog siv rau hauv cov khoom siv tes ua khoom plig, rooj tog zaum, tawv khaub ncaws, kos npe rau kev tshaj tawm, qauv tsim, ntim khoom noj, khoom siv hluav taws xob, ntim khoom kho mob, luam ntawv phaj, lub plhaub npe, thiab lwm yam. |
Tsis muaj
|
Qauv |
DS-LWM 30 |
DS-LMC 60 |
|
Laser fais fab tso zis |
>30W |
>60W |
|
laser wavelength |
10640 ± 10 nm |
|
|
Kos thaj tsam |
100x100mm (tus qauv) / 175x175mm / 200x200mm / 300x300mm |
|
|
Pulse zaus |
1 ~ 100KHZ |
|
|
Max marking ceev |
8000mm / s |
|
|
Rov ua qhov tseeb |
± 0.001 hli |
|
|
Min. kab dav |
0.1 hli |
|
|
Qhov loj me me |
0.2 hli |
|
|
Txias |
Cua |
|
|
Ua haujlwm temp |
5 ~ 35 degree |
|
|
Humidity ntau |
< 70% No condensation |
|
|
Qhov hnyav tag nrho |
65 KG |
|
|
Fais fab mov |
AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz |
|
| Tswj Software | EZCAD | |
| Machinery Test Report | Muab | |
| Warranty | 1 xyoo | |
| Video tawm-kev soj ntsuam | Muab | |
| Cov ntsiab lus tseem ceeb | Laser qhov chaw | |
Peb ib txwm nyob ntawm koj qhov kev pabcuam thaum koj xav tau
Thaum xaiv 2D CO₂ laser npav tshuab, xav txog cov yam ntxwv xws li lub zog laser, cim thaj tsam loj, kev sib koom ua ke, yooj yim ntawm kev siv, thiab software compatibility. Lub zog laser ntau dua tso cai rau kev cim nrawm dua thiab txiav, thaum lub cim loj dua muaj qhov yooj yim dua rau kev ua haujlwm nrog ntau qhov ntau thiab tsawg.
2D CO₂ Laser Marking Tshuab tso tawm laser beam ua cov cim mus tas li ntawm cov khoom siv ntau yam. Cov txiaj ntsig ntawm kev kos yog kom nthuav tawm cov khoom sib sib zog nqus los ntawm evaporation ntawm cov khoom nto, yog li kos cov qauv zoo, cov cim lag luam, hnub tim, LOGO lossis ntawv nyeem. Tam sim no, CO₂ laser npav tshuab feem ntau yog siv rau qee lub sijhawm uas yuav tsum tau ua kom zoo dua thiab siab dua. Nws tuaj yeem ua tau raws li feem ntau ntawm cov ntawv thov uas yuav tsum tau ua raws li kev ua tau zoo thiab qhov tseeb ntawm qhov chaw, thiab ua kom lub cev ruaj khov mus ntev.
Dab tsi yog qhov txawv ntawm 2D thiab 3D laser?
2D laser scanners yog qhov zoo rau kev ntsuas qhov ntev thiab dav ntawm cov khoom, ua rau lawv zoo meej rau kev soj ntsuam saum npoo, tab sis 3D lasers muab cov ncauj lus kom ntxaws txog cov khoom geometrical zog. Qhov tseeb thiab kev daws teeb meem.
Cov qauv
Shipping thiab pob
FAQ
Q1: Kuv tsis paub dab tsi txog 2D CO₂ laser npav tshuab?
A: Peb yog cov chaw muag khoom laser, Peb yuav pab koj xaiv lub tshuab tsim nyog thiab ua cov tshuaj rau koj; koj tuaj yeem qhia peb yam khoom twg koj yuav kos / kos thiab qhov tob ntawm MARKING / ENGRAVING.
Q2: Thaum kuv tau txais 2D CO₂ laser npav tshuab, kuv tsis paub yuav siv nws li cas, koj puas tuaj yeem pab kuv?
A: Peb yuav xa cov video ua haujlwm thiab phau ntawv qhia rau lub tshuab. Peb tus engineer yuav ua kev cob qhia online. Yog tias xav tau, peb tuaj yeem xa peb tus engineer rau koj qhov chaw rau kev cob qhia lossis koj tuaj yeem xa tus neeg teb xov tooj tuaj rau peb lub Hoobkas rau kev cob qhia.
Q3: Dab tsi yog consumables ntawm 2D CO₂ laser npav tshuab?
A: Nws tsis muaj consumable. Nws yog kev lag luam heev thiab siv tau zoo.
Q4: Muaj pes tsawg hnub rau kev tsim khoom?
A: Feem ntau, lub sijhawm ua haujlwm yog nyob rau hauv 5 hnub ua haujlwm tom qab tau txais cov nyiaj them poob haujlwm.
