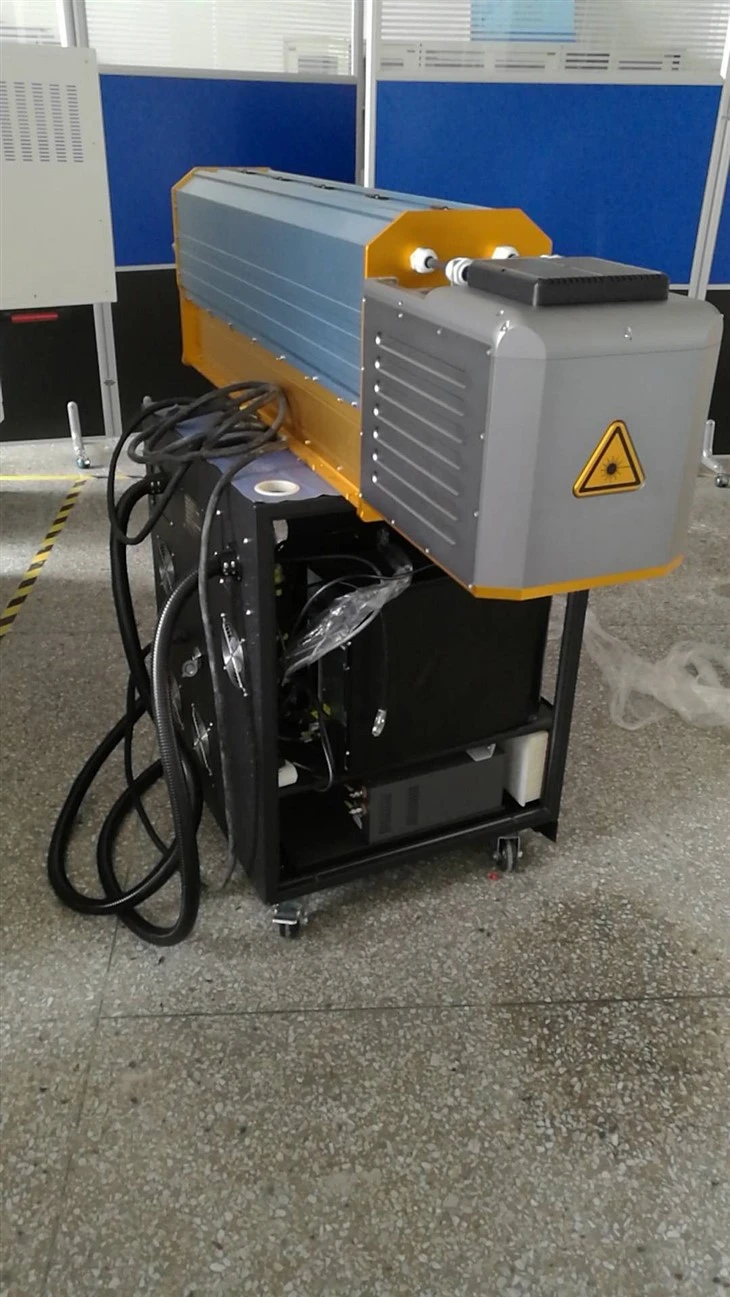

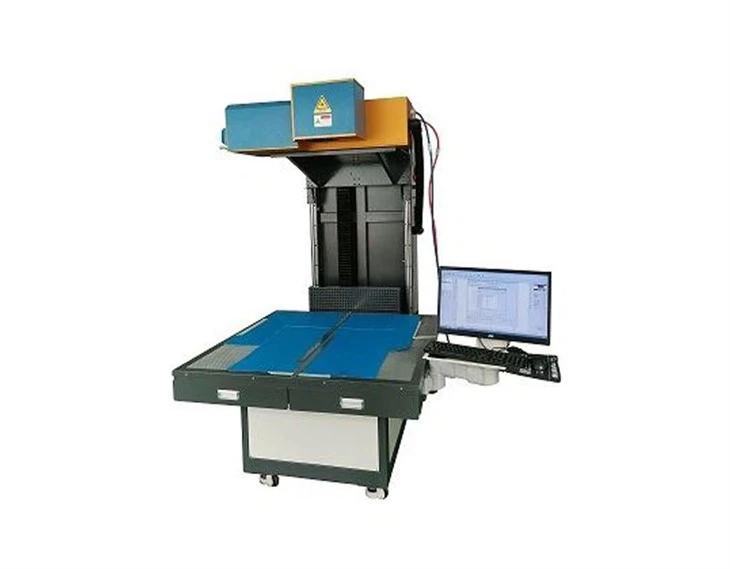

CO2 Laser Marking Tshuab Hlawv Khaub Ncaws Crafts
CO2Laser npav tshuab hlawv khaub ncaws crafts
Khoom Description
CO2Laser npav tshuab yog cov cuab yeej siv high-tech uas tuaj yeem kos thiab txiav ntau yam ntaub ntawv. Thaum nws los hlawv khaub ncaws crafts, CO2laser npav tshuab yog qhov kev xaiv zoo tshaj plaws vim lawv tuaj yeem yooj yim tsim cov qauv tsim thiab tsim ntawm cov ntaub. Lub teeb laser yog qhov tseeb heev thiab tsis ua rau muaj kev puas tsuaj rau daim ntaub. Tsis tas li ntawd, cov txheej txheem yog ceev thiab ua tau zoo, ua rau nws zoo meej rau ntau lawm. Tsis tas li ntawd, CO2laser npav tshuab kuj tseem siv tau los kos lwm cov ntaub ntawv xws li ntoo, yas, thiab hlau. Lub tshuab laser no zoo heev rau kev tsim khoom plig tus kheej, khoom plig, thiab cov khoom txhawb nqa.
tshuab nta
High precision
The CO2 Laser npav tshuab muaj peb qhov kev tsom xam qhov system ua rau lub tshuab muaj qhov chaw ua haujlwm loj dua thiab qhov zoo tshaj qhov chaw ntawm lub cheeb.Qhov no txhais tau hais tias koj tuaj yeem tsim cov qauv tsim thiab cov qauv zoo nrog qhov tseeb thiab nthuav dav.
Ntau yam
The CO2Laser npav nrog me me tsom qhov chaw thiab lub zog ntau dua uas tsim nyog rau kev txiav, xuas nrig ntaus thiab kos duab.
Durability
The CO2 laser npav tshuab tsim cov cim tas li ntawm cov khaub ncaws crafts. Qhov no ua rau cov qauv tsim thiab cov qauv siv tau ntev dua thiab siv tau ntev dua, uas ua rau kom muaj kev npau taws ntawm cov khaub ncaws.
High precision thiab high speed marking / txiav
Marking kev ua tau zoo ua kom du ntse txiav ntug. Cov txiaj ntsig ua tiav yog qhov nruab nrab ntau dua, tsis muaj siab dhau lossis qis zog txhaj rau hauv ib feem.
Ib puag ncig tus phooj ywg
Lub kaw lus yog tsim los nrog sab nraud ob-kab kev lag luam dej txias, Lub CO2Laser npav tshuab siv cov txheej txheem tsis muaj tshuaj lom thiab tsis zoo rau ib puag ncig. Lub tshuab tag nrho ua haujlwm ruaj khov thiab muaj kev siv hluav taws xob qis dua.
Parameter
|
Laser raj tsis muaj |
Max tso zis muaj peev xwm | 250W |
| Nominal Peak Pov | Ntau tshaj lossis sib npaug rau 450W | |
| Hom Zoo | M2Tsawg dua los yog sib npaug rau 1.2 | |
| Duty Cycle Limit | Tsawg dua los yog sib npaug li 70% | |
| Hom Laser | CO2 | |
| Laser wavelength | 10.6μm | |
|
Kos npe kev ua tau zoo |
Hom ntawv cim |
Qauv, Lo lus, Barcode, QRcode, Hnub tim, Serial Number |
| Kos cim hom | Qauv thiab cov lus ntawm vectordiagram & bitmap | |
| Kos thaj tsam | 400X400-700X700(mmXmm) Kho tau | |
| Kev Ntsuas Qhov tob | 0-5mm (Raws li cov ntaub ntawv) | |
| Marking Ceev | <7000mm/s | |
| Min Kab Dav | 0.3mm (Raws li cov ntaub ntawv) | |
| Min Cim | 0.4 hli | |
| Rov ua qhov tseeb qhov tseeb | 0.01 hli | |
| Tshuab ntaub ntawv | Tag Nrho Lub Zog | 6 KW |
| Fais fab mov | AC220V / 50Hz / 30A | |
| Txoj kev txias | Qhov ntsuas kub tsis tu ncua dej txias chav tsev | |
| Ua haujlwm kub | 15-30 degree | |
| Ua haujlwm av noo | <75 No condensation | |
| Ua haujlwm ib puag ncig | Tsis muaj plua plav, tsis muaj kev vibration | |
| Tshuab Packing Size | 1010 * 1340 * 1740 hli | |
| Tswj txee packing loj | 1060 * 660 * 1100 hli | |
| Chiller packing loj | 660 * 760 * 1080 hli |

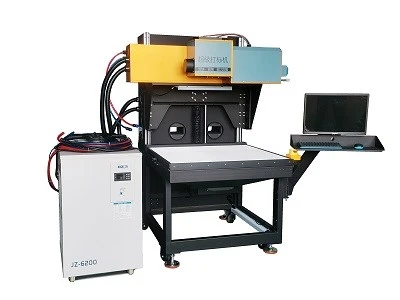

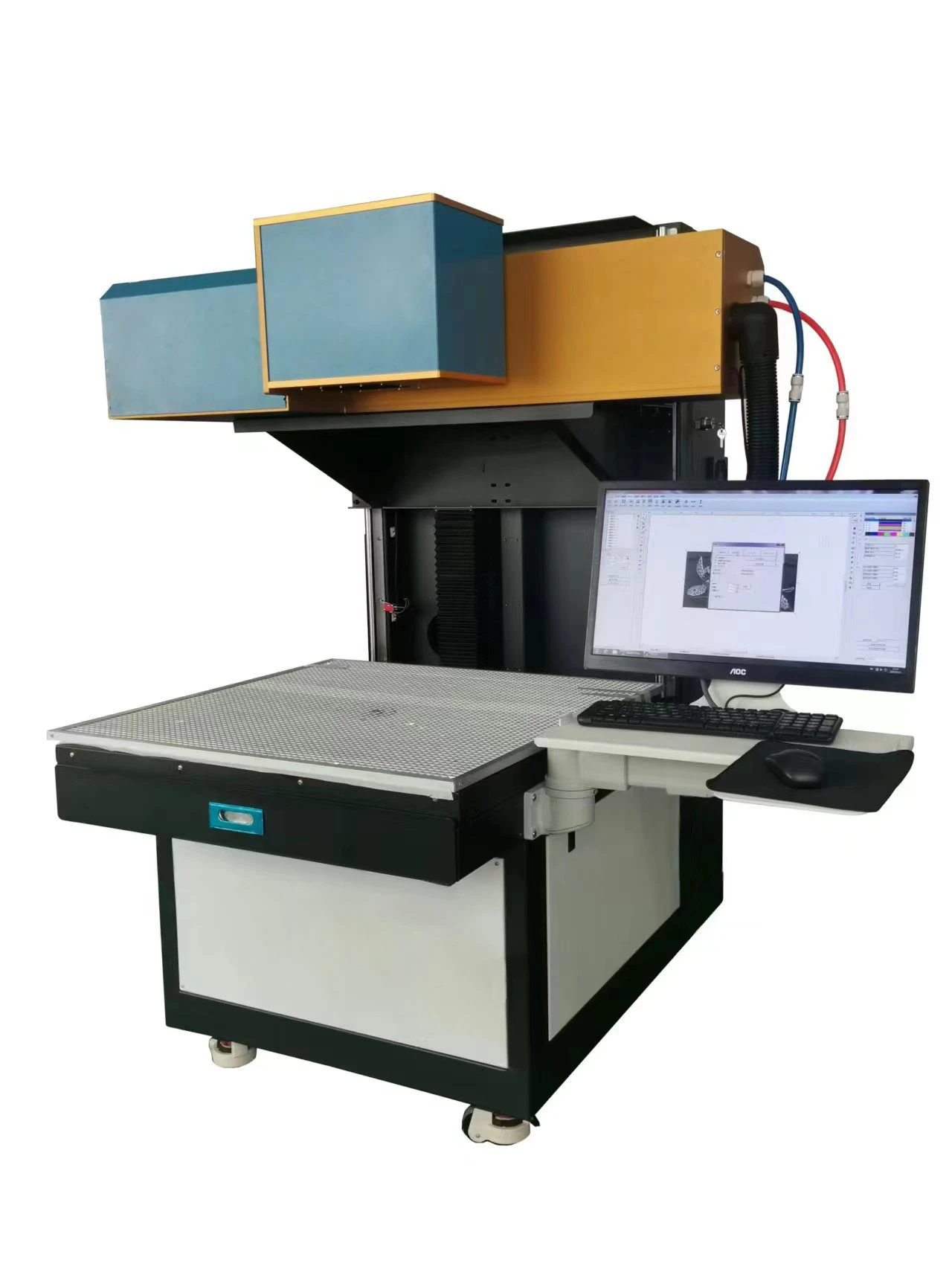

Peb Axis Dynamic CO2Laser Marking Tshuab yog dav haum rau cov kev lag luam, xws li tshav kub hloov zaj duab xis (Paillette, TPU cov ntaub ntawv, Reflective hloov zaj duab xis, thiab lwm yam), tawv, ntoo thawv, ntawv card, khaub ncaws denim, illuminator, txawb kev sib txuas lus, pwm, precision machinery, IT Digital plhaub, Tub rog aviation Cheebtsam, handicrafts, Advertisement kho kom zoo nkauj, thiab lwm yam.
Raws li cov txheej txheem tshiab, muaj ntau yam kev siv laser hauv kev lag luam khaub ncaws. Laser engraving thiab txiav technologies tam sim no tau lug siv nyob rau hauv ntau yam tsoos tsho industries, ntaub ntau lawm units, lwm yam textile thiab tawv industries. Nyob rau hauv cov ntaub hluavtaws, laser txiav ua tiav cov npoo zoo li lub laser melts thiab fuses ntug, uas tsis txhob muaj teeb meem ntawm fraying ua los ntawm cov pa riam cutters. Tsis tas li ntawd, kev siv laser txiav yog nce siv tawv vim qhov tseeb ntawm cov khoom txiav. Hauv kev zam accessories, laser txiav tuaj yeem siv los tsim cov qauv tshiab thiab txawv txawv.
Hauv laser txiav lub laser yog siv los txiav cov ntaub rau hauv cov qauv uas xav tau. Lub laser zoo heev yog tsom rau ntawm cov ntaub nto, uas ua rau kom qhov kub thiab txias thiab txiav yuav tshwm sim vim vaporization. Nquag CO2lasers yog siv los txiav cov ntaub. Tsis zoo li cov tsoos riam txiav, lub laser beam tsis ua blunt thiab tsis tas yuav sharpening.

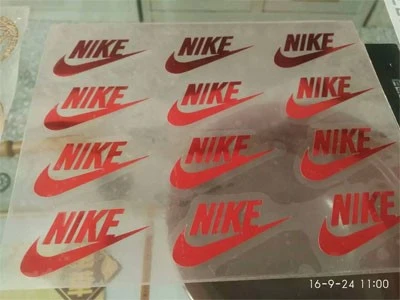

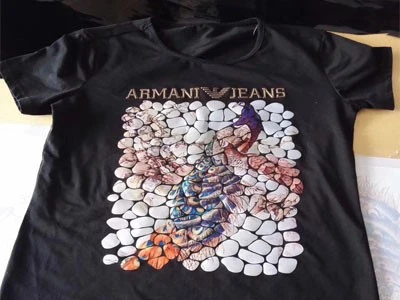

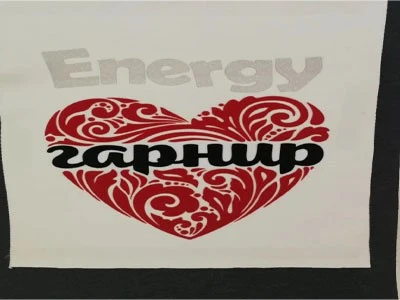

Cov qauvNtawm Laser burning cloths craft
Shipping thiab pob
Cov yam ntxwv ntawm kev siv Laser suav nrog:
 Laser txiav, laser engraving thiab laser perforation ua ke nyob rau hauv ib kauj ruam |
| Tsis muaj mechanical hnav, li no zoo zoo |
| Tsis muaj fixation ntawm cov khoom yuav tsum tau vim tsis muaj quab yuam ua |
| Tsis muaj ntaub fraying nyob rau hauv hluavtaws fibers vim tsim ntawm fused npoo |
| Ntxuav thiab tsis muaj lint-dawb txiav ntug |
| Cov txheej txheem yooj yim vim kev sib xyaw ua ke hauv computer tsim |
| Tsis tshua muaj siab precision nyob rau hauv txiav contours |
| Kev ua haujlwm siab ceev |
| Tiv tauj tsis tau, hnav-dawb txheej txheem |
| Tsis muaj chips, tsawg pov tseg thiab txuag nqi tseem ceeb |
