Uv Laser Hlau Marking
UV Laser Hlau Marking
Khoom Description

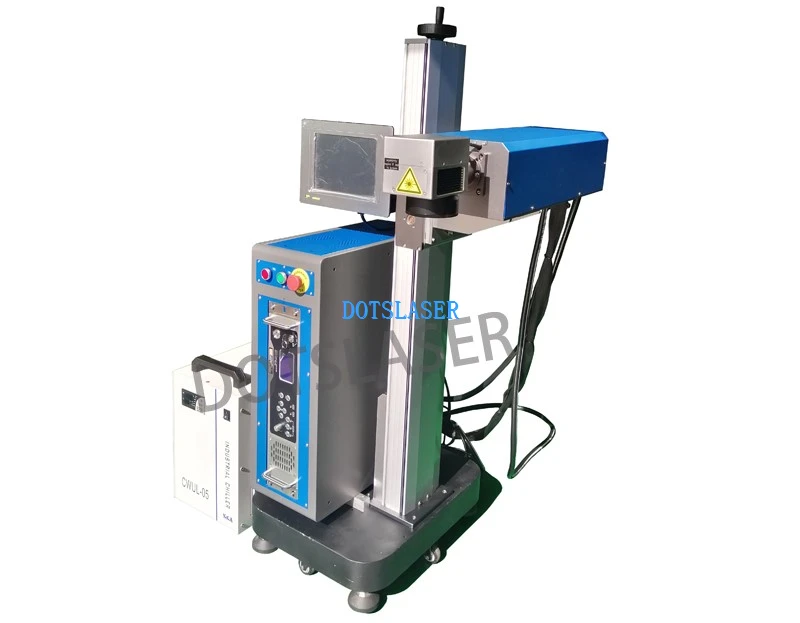

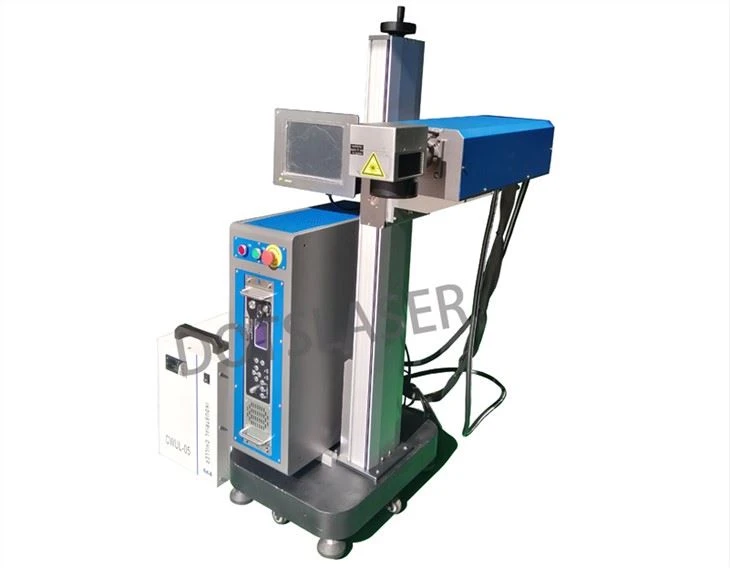

UV laser hlau npav tshuab yog cov tshuab tshwj xeeb tsim los siv ultraviolet (UV) lasers rau kos cov xov hlau thiab cables. Cov tshuab no feem ntau muab tso rau hauv cov kab ntau lawm los ntxiv kev txheeb xyuas, traceability, thiab branding cov ntaub ntawv ncaj qha mus rau cov xov hlau. Cov cim yog qhov sib txawv siab, ruaj khov, thiab tsis yooj yim tampered nrog.
yam tseem ceeb
Laser Hom:Xaiv lub kaw lus uas siv UV laser nrog lub wavelength feem ntau nyob ib ncig ntawm 355 nm. Qhov no yog qhov tseem ceeb tshwj xeeb rau cov txheej txheem "txias" uas txo cov cheeb tsam kub thiab zoo dua rau cov ntaub ntawv rhiab heev.
Laser Hom:Xaiv lub kaw lus uas siv UV laser nrog lub wavelength feem ntau nyob ib ncig ntawm 355 nm. Qhov no yog qhov tseem ceeb tshwj xeeb rau cov txheej txheem "txias" uas txo cov cheeb tsam kub thiab zoo dua rau cov ntaub ntawv rhiab heev.
Cov ntaub ntawv sib xws:Xyuas kom tseeb tias UV laser hlau npav tshuab yog tsim los siv nrog cov khoom siv hlau thiab cov khoom siv rwb thaiv tsev hauv koj cov txheej txheem tsim khoom, xws li cov thermoplastics, thermosets, thiab fluoropolymers.
Marking Ceev:Tshawb xyuas cov cim ceev kom lav tias lub tshuab xaiv tau ua tau raws li koj cov kev xav tau ntau lawm thiab kev xa tawm.
Software nta:Xyuas kom meej tias cov software suav nrog tso cai rau koj los tsim thiab tswj cov ntaub ntawv sib txawv, logos, barcodes, QR codes, thiab lwm yam thiab tuaj yeem ua tau raws li koj cov kev cai cim. Kev sib raug zoo nrog lwm cov tshuab (ERP, MES, thiab lwm yam) kuj tseem ceeb rau kev sib koom ua ke ntawm lub tshuab cim npe rau hauv koj cov khoom ua haujlwm.
Automation thiab Integration:Tshawb nrhiav cov tshuab uas tuaj yeem yooj yim sib xyaw rau hauv koj cov kab ntau lawm thiab uas muaj kev xaiv tuav, xws li xaim noj, txiav, thiab stripping.
Vision Systems:Yog tias kev tswj xyuas qhov zoo yog qhov tseem ceeb, xav txog cov tshuab uas sib xws nrog cov tshuab luam ntawv lossis tshuab pom lub tshuab kom paub meej cov cim.
Yooj yim ntawm kev siv thiab tu:Cov neeg siv-phooj ywg interfaces thiab cov khoom siv nkag tau yooj yim yog qhov tseem ceeb rau kev saib xyuas ceev thiab tsawg kawg downtime.
Kev Pabcuam thiab Kev Pabcuam:Tshawb xyuas qib kev txhawb nqa, kev xaiv kev pabcuam, thiab kev cob qhia los ntawm lub tshuab tsim khoom. Kev nkag mus rau kev txhawb nqa tsis tu ncua tuaj yeem yog qhov tseem ceeb rau kev ua kom zoo dua koj cov txheej txheem xaim hlau thiab txo qis sijhawm.
Tsis muaj
|
Qauv |
DS-UV 3 |
DS-UV 5 |
DS-UV 10 |
|
Laser fais fab tso zis |
>3W |
>5W |
>10W |
|
laser wavelength |
355nm ua |
||
|
Xaiv txoj kev |
flymarking |
||
|
Kos thaj tsam |
70x70mm ~ 175x175mm |
||
|
Pulse zog |
＞200µJ |
||
|
Tus nqi rov ua dua |
20 ~ 150KHz |
||
|
Max marking ceev |
8, 000mm/s |
||
|
Beam zoo |
＜1.2 ㎡ |
||
|
Min. kab dav |
0.01 hli |
||
|
Rov ua qhov tseeb |
± 0.003mm |
||
|
Txias |
Cua / Dej txias |
||
|
Ua haujlwm temp |
15-35 ° C |
||
|
Qhov hnyav tag nrho |
90 KG |
||
|
Qhov loj ntawm lub tshuab |
800x600x1250mm |
||
|
Fais fab mov |
AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz |
||
Niaj hnub no, ultraviolet laser hlau npav tshuab (alias: ultraviolet laser hlau npav tshuab, ultraviolet laser hlau inkjet tshuab luam ntawv) tau nkag mus rau hauv kev lag luam cable.Ultraviolet laser hlau npav tshuab tuaj yeem ua tau raws li qhov tseeb thiab ruaj khov ntawm kev lag luam.

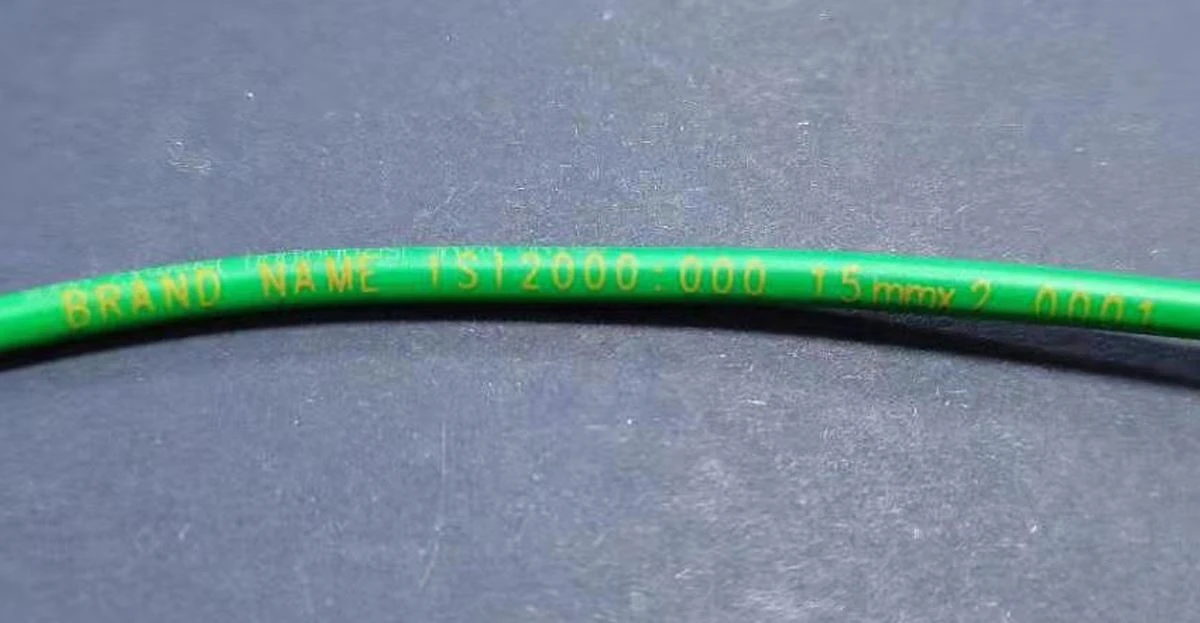

Ultraviolet laser hlau npav tshuab yog siv rau kev kos npe hauv kev lag luam cable, uas txhais tau hais tias hnub tim, batch naj npawb, hom, serial tooj, QR code thiab lwm yam cim ntawm cov khoom cable tsis tuaj yeem hloov pauv thaum lawv tau txau, uas ua lub luag haujlwm ntau dua. hauv kev tiv thaiv cuav; nws txhais tau tias Nws tuaj yeem tiv taus qee yam khoom cuav thiab tsis zoo thiab tiv thaiv cov tuam txhab lag luam tsis raug cai los ntawm kev siv nws; nws txhais tau hais tias nws tuaj yeem tiv thaiv kev ntxhov siab hauv kev lag luam hlau thiab cable rau qee yam, yog li txhim kho cov khoom zoo ntawm cov xaim thiab cable.
Cov qauv qhia
DOTSLASER yog ib qho ntawm cov kws tshaj lij laser tuam ntxhab nyob hauv Suav teb uas tau tshawb fawb thiab tsim UV lasers. Nws muaj ntau yam ntawm cable laser npav tshuab: npog carbon dioxide laser npav tshuab, fiber ntau laser npav tshuab, thiab ntsuab laser npav tshuab. , UV laser npav tshuab.
