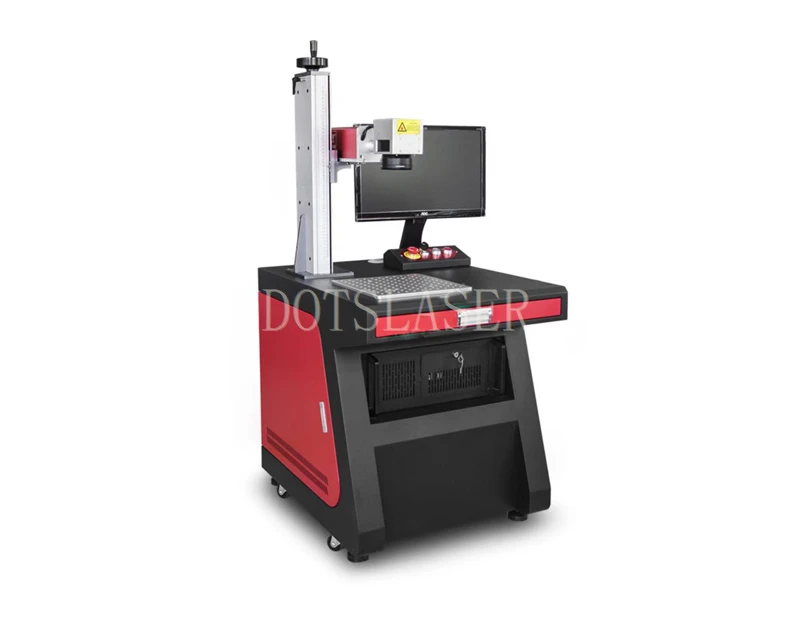

Fiber Laser npav 60W
Fiber Laser npav 60W
Khoom Description
Lub tshuab 60W Fiber Laser yog lub cuab yeej muaj zog thiab muaj txiaj ntsig rau kev txiav thiab kos ntau yam ntaub ntawv, suav nrog tab sis tsis txwv rau cov hlau, yas, thiab ntoo. Nws qib siab ntawm precision ua kom raug thiab du txiav, thaum nws ceev txiav ceev txuag lub sijhawm thiab ua kom cov khoom tsim tau.
Fiber laser 60W qhov zoo
High precision thiab raug
Lub 60W fiber ntau laser enables precision nyob rau hauv ib tug micron theem, kom paub tseeb tias ntse thiab intricate engravings los yog cov cim.
Kev ua haujlwm siab ceev
Vim nws lub zog tso zis ntau, 60W fiber ntau laser tuaj yeem ua haujlwm ntawm qhov nrawm nrawm, tso cai rau kev tsim khoom ntau ntxiv hauv cov ntawv thov xws li kev tsim khoom loj thiab kev tsim qauv sai.
Lub neej ua haujlwm ntev
Fiber lasers muaj lub neej ntev dua piv rau lwm hom lasers, xws li CO2los yog diode lasers. Lawv kuj muaj kev saib xyuas tsawg, txo tus nqi tag nrho ntawm kev ua tswv cuab.
Zog efficiency
60W fiber ntau laser siv lub zog tsawg, ua kom muaj cua sov tsawg. Qhov no txhais kom txo cov nqi ua haujlwm thiab txo qhov cuam tshuam ib puag ncig.
Ntau yam kev siv
60W fiber ntau lasers tuaj yeem ua ntau yam ntaub ntawv, xws li hlau (stainless steel, aluminium, tooj liab, thiab lwm yam), plastics, ceramics, ua rau lawv haum rau kev lag luam xws li tsheb, aerospace, electronics, textile, thiab lwm yam.
Ib qho yooj yim kev koom ua ke thiab compatibility
Fiber lasers tuaj yeem ua ke nrog ntau lub tshuab software thiab tshuab, ua rau lawv hloov tau yooj yim thiab hloov tau rau cov kev xav tau ntau lawm.
|
TSIS MUAJ. |
Lub npe |
Fiber laser npav tshuab |
|
1 |
Tshuab qauv |
Qauv: DS-LM60 |
|
2 |
Laserzog |
60W |
|
3 |
Laser wavelength |
1064nm ua |
|
4 |
Pulse energy(µJ) |
1.5mj |
|
5 |
Tus nqi rov ua dua |
10 ~ 1000KHz |
|
6 |
Pulse wib idth |
Adjuruaj khov |
|
7 |
Beam zoo |
＜1.2㎡ |
|
8 |
Marking Beamyamter |
0.055~0.065 hli |
|
9 |
Laser qib |
Chav Kawm 4 |
|
10 |
Rov ua duaacy |
±0.003mm |
|
11 |
Min. kab dav |
0.05 hli |
|
13 |
Max cimceev |
8000mm/s |
|
14 |
Chaw ua haujlwm |
150mmx150mm / 200mmx200mm (yeem) |
|
15 |
Covling |
Air |
|
16 |
Kev ua haujlwm ib puag ncig qhov kub thiab txias |
15-35 ° C |
|
17 |
Humidity ntau ntawm kev ua haujlwm environment |
20~80% tsis condensing |
|
18 |
Ua haujlwm voltage |
220V, 50/60Hz |
|
19 |
Kev siv fais fabio ibn |
Tsawg dua los yog sib npaug1500W |
Fiber laser 60W yog dav siv rau ntau hom hlau qhov chaw
| Electronics: Kev kos rau ntawm cov ntawv luam tawm Circuit Board (PCBs), cov khoom siv hluav taws xob, cov khoom sib txuas, IC chips, thiab cov khoom siv hluav taws xob, xws li smartphones thiab laptops. Lub tshuab tuaj yeem siv los tsim QR cov lej, cov lej cim, thiab lub logo txhawm rau txhim kho traceability thiab branding. |
| Automotive: Kev kos npe ntawm cov khoom xws li lub cav thaiv, pistons, bearings, gears, thiab lwm yam khoom siv kho tshuab pab ua kom muaj kev sib raug zoo, kev tswj xyuas zoo, thiab ua raws li cov cai hauv kev lag luam. Nws kuj tseem siv rau kev tsim cov log tsheb, roj teeb, thiab cov khoom siv tsheb. |
| Aerospace: Aerospace Cheebtsam yuav tsum muaj qhov tseeb thiab ruaj khov rau kev txheeb xyuas, traceability, thiab kev nyab xeeb. Lub 60W Fiber Laser Npav Tshuab yog haum rau lub hom phiaj no, muab qhov tsim nyog precision thiab durability. |
| Kho mob: Cov cim meej meej, pom tseeb, thiab ruaj khov yog qhov tseem ceeb rau cov khoom siv kho mob thiab cov khoom cog. 60W fiber ntau laser npav tshuab tuaj yeem tsim cov cim cim npe, cov chaw tsim khoom logo, thiab lwm yam ntaub ntawv tsim nyog ntawm cov khoom siv los ntawm ntau yam ntaub ntawv, suav nrog stainless hlau, titanium, thiab ceramics. |
| Cov hniav nyiaj hniav kub: Lub tshuab tuaj yeem siv los ua tus kheej cov hniav nyiaj hniav kub thiab kos cov qauv tsim, ntawv, logos, lossis cov cim cim tshwj xeeb ntawm cov hlau muaj txiaj ntsig thiab cov alloys, xws li kub, nyiaj, platinum, thiab lwm yam. |
| Tooling: Kev kos cov cuab yeej thiab cov khoom siv nrog cov lej, cov lej cim, lub logo, thiab cov lus qhia ntawm cov neeg siv txhim kho kev taug qab thiab ua raws li cov qauv kev tswj hwm zoo. |
| Ntim: 60W fiber ntau laser tuaj yeem siv los kos cov ntaub ntawv xws li barcodes, QR cov lej, hnub tsim khoom, thiab cov lej batch ntawm cov khoom ntim xws li yas thiab hlau, ua kom pom tseeb thiab ruaj khov. |
Fiber laser 60W lub taub hau scanner
-
High-speed scanning: Lub taub hau scanning yog tsim los ntawm cov galvanometers siab heev uas tuaj yeem raug thiab sai redirect lub laser beam. Qhov no tso cai rau cov cim kev kub ceev, ua kom muaj txiaj ntsig zoo, thiab txo cov sijhawm ua haujlwm.
-
Precision thiab raug: Lub taub hau scanning lub siab-precision iav, motors, thiab tswj algorithms xyuas kom meej tias lub laser beam yog teem kom raug rau ntawm cov khoom nto, ua rau kom huv si, ntse, thiab intricate markings.
-
Dav dav ua haujlwm: Lub taub hau scanning tuaj yeem ua ntau yam ntawm cov cim cim, ua rau nws haum rau ntau yam kev siv thiab cov khoom siv qhov ntev. Qhov no muab qhov yooj yim rau kev yoog rau cov haujlwm sib txawv.
-
Tsim kom muaj zog thiab txhim khu kev qha: Lub taub hau scanning qhov kev tsim kho ruaj khov thiab cov khoom siv zoo ua rau nws tiv taus hnav, ua kom lub neej ua haujlwm ntev nrog kev saib xyuas tsawg.
-
Kev sib koom ua ke yooj yim: Scanning lub taub hau tuaj yeem yooj yim ua ke nrog cov laser npav tshuab thiab software uas twb muaj lawm, ua kom muaj kev sib txuas thiab ncaj nraim.
Daim ntawv thov ntawm fiber ntau laser 60W
Laser npav thiab engraving: Nrog 60W fiber ntau laser, koj tuaj yeem kos lossis kos ntau yam ntaub ntawv xws li hlau (stainless steel, aluminium, tooj dag, thiab lwm yam), ceramics, plastics, thiab composites nrog siab precision. Qhov no yog qhov tshwj xeeb tshaj yog nyob rau hauv cov haujlwm xws li electronics, hniav nyiaj hniav kub, automotive, thiab aerospace, qhov twg cov ncauj lus kom ntxaws, logos, barcodes, thiab serial tooj yuav tsum tau.
Laser txiav: Txawm hais tias 60W fiber ntau laser tej zaum yuav tsis muaj zog txaus los txiav cov hlau tuab zoo li cov lasers siab, nws tseem tuaj yeem txiav cov ntaub ntawv nyias xws li hlau foils, yas zaj duab xis, thiab textiles nrog qhov tseeb zoo. Qhov no pom cov ntawv thov hauv electronics, ntim, thiab kev lag luam zam.
Kev kho deg thiab texturing: 60W fiber ntau laser tuaj yeem siv rau ntau yam kev kho deg, xws li ntxuav, stripping, thiab texturing. Qhov no tuaj yeem siv tau rau hauv tsheb, aerospace, thiab pwm tsim kev lag luam los tsim cov txheej txheem tshwj xeeb los yog tshem tawm cov kab mob thiab cov txheej txheem.
Micromachining: Precision qhov chaw tsim khoom, tshwj xeeb hauv kev lag luam xws li cov cuab yeej kho mob, microelectronics, thiab precision engineering, feem ntau xav tau kev siv 60W fiber ntau laser rau micromachining cov haujlwm. Qhov no suav nrog kev drilling micro qhov, txiav cov kab me me, lossis sau cov qauv nrog qhov raug siab.
Anodized aluminium npav: A 60W fiber ntau laser muaj zog txaus los kos cov anodized txhuas los ntawm kev tshem tawm cov txheej txheem anodized yam tsis muaj kev puas tsuaj rau cov khoom siv hauv qab. Qhov no muaj txiaj ntsig zoo rau kev kos lub logo, barcodes, thiab tsim cov ntsiab lus hauv kev lag luam xws li cov neeg siv khoom siv hluav taws xob thiab cov khoom siv tsheb.
Xim cim: Nrog kev tswj xyuas meej ntawm lub sijhawm mem tes thiab zaus, 60W fiber ntau laser tuaj yeem ua tiav tswj oxidation ntawm
stainless hlau thiab titanium nto, ua rau muaj ntau yam xim. Cov txheej txheem no yog siv dav hauv cov ntawv siv kho kom zoo nkauj, tshwj xeeb tshaj yog hauv kev lag luam hniav nyiaj hniav kub.
Solar cell processing: Nrog kev loj hlob tseem ceeb ntawm lub zog tauj dua tshiab, 60W fiber ntau laser tuaj yeem ua haujlwm hauv precision txiav, scribing, thiab drilling ntawm lub hnub ci hlwb rau im
ua pov thawj lawv lub zog-hloov efficiency.

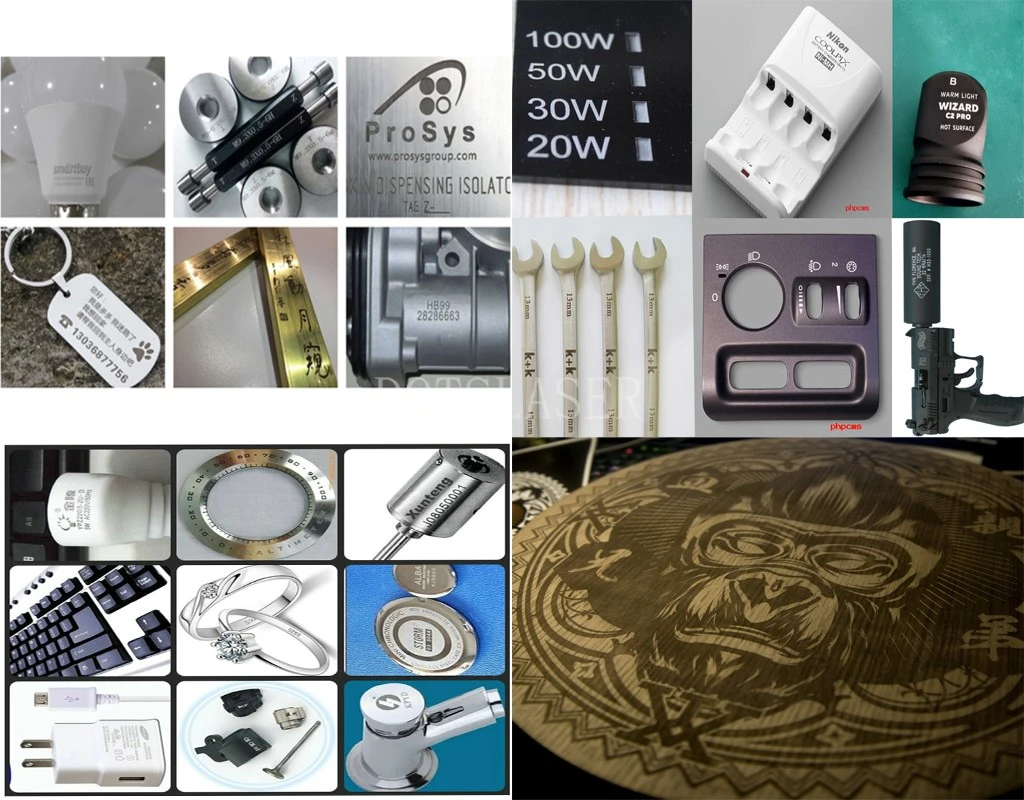

Cov qauv engraving ntawm fiber ntau laser 60W

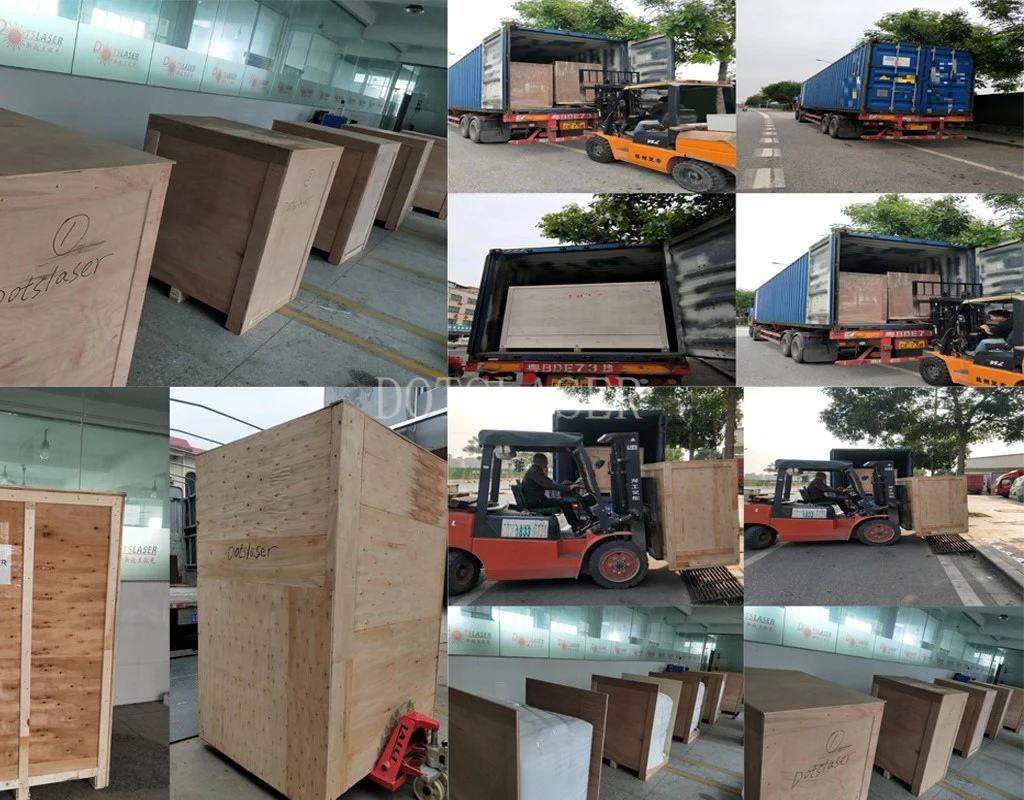

Kev xa khoom ntawm fiber ntau laser 60W

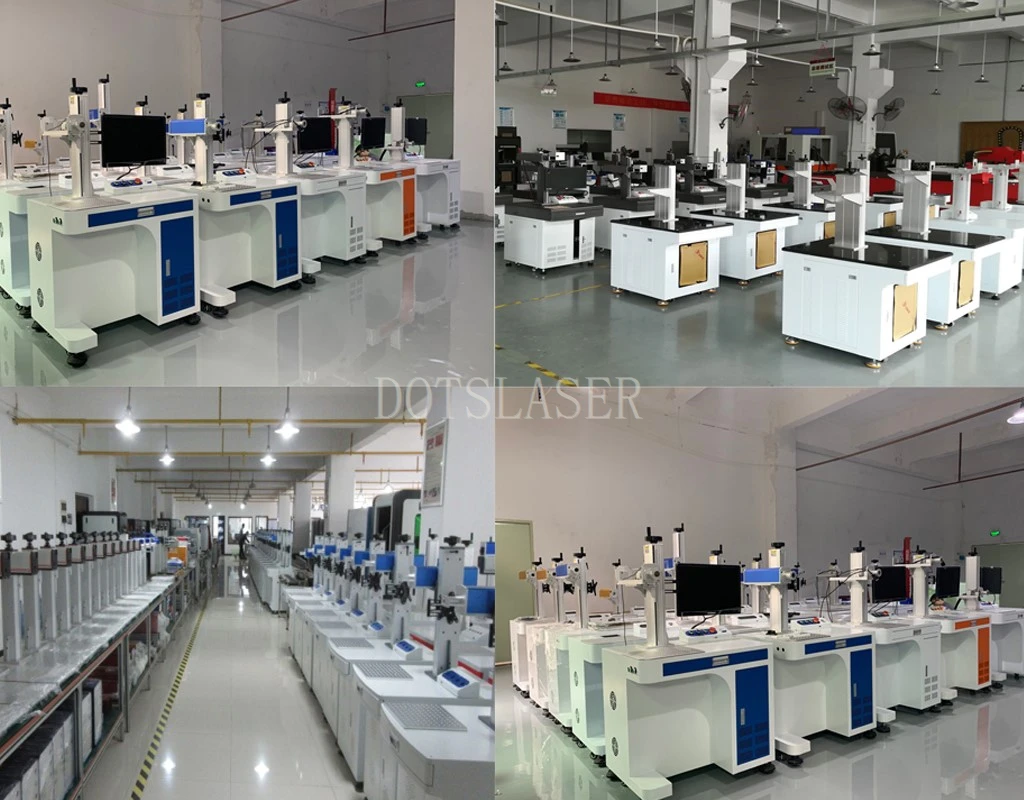

DOTLASER Factory
