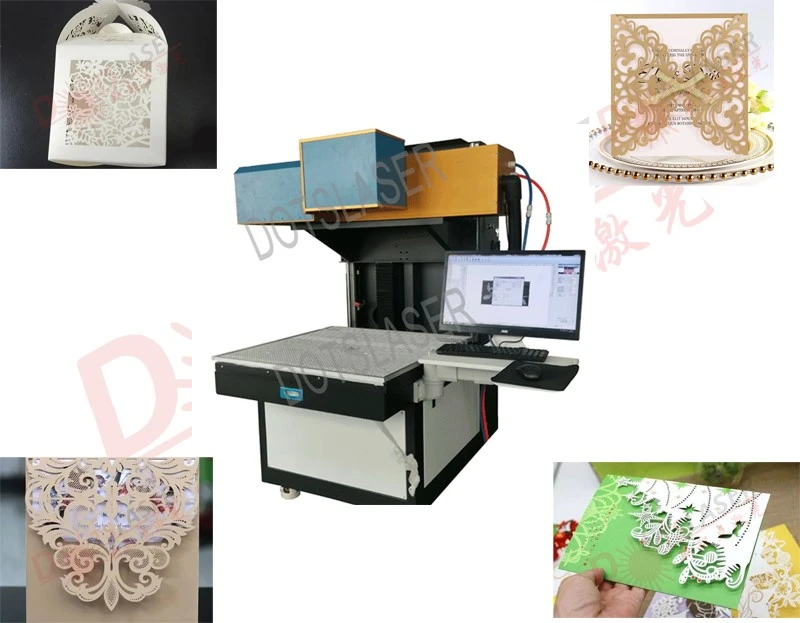

CO₂ Laser Txiav Card
CO2Laser Txiav Card
Khoom Description
CO2laser txiav daim npav tshuab tau dhau los ua neeg nyiam hauv kev lag luam txais tos daim npav. Lub tshuab laser no siv cov pa roj carbon dioxide ua nws qhov nruab nrab ua haujlwm los tsim cov kab hluav taws xob siab zog.
Tshuab zoo
| High Precision:High precision txiav vim lub tsom teeb pom kev zoo thiab cov teeb pom kev zoo laser uas tuaj yeem txiav tau yooj yim los ntawm cov thicknesses sib txawv thiab cov duab. |
|
The CO2laser txiav daim npav tshuab yog ntau yam ntau yam thiab tso cai rau kev hloov kho ntawm ntau yam qauv thiab cov duab nrog yooj yim, muab kev ua kom zoo dua qub thiab kev ua tiav. |
| The CO2laser txiav daim npav tshuab yog ib qho yooj yim rau kev khiav lag luam, muaj cov nqi kho mob tsawg, thiab tuaj yeem ua haujlwm rau lub sijhawm ntev yam tsis hnav thiab tsim kua muag. Lub tshuab laser kuj ua kom huv si txiav tsis tas yuav tsum tau ua tom qab tsim khoom. |
| Lwm qhov txiaj ntsig tseem ceeb ntawm lub tshuab no yog tias nws yog eco-phooj ywg thiab tsim cov khib nyiab tsawg. The CO2laser txiav daim npav tshuab kuj tseem muab sijhawm hloov pauv sai dua, tso cai rau kev tsim cov khoom lag luam zoo hauv lub sijhawm tsawg. |
The CO2laser txiav daim npav tshuab muaj ntau yam txiaj ntsig rau nws cov neeg siv, suav nrog kev ua haujlwm siab, ntau yam, siv tau yooj yim, txij nkawm qis, thiab eco-friendliness, thiab lwm yam.
Tsis muaj
|
Qauv |
DS-Galvo laser tshuab |
|
Laser zog |
50W-300W |
|
Laser wavelength |
10 640nm |
|
Ua haujlwm loj |
400mmx400mm / 500mmx500mm / 800x800mm |
|
Txiav thickness |
1 ~ 3mm ntawv, tawv, Pu thiab lwm yam (Nyob ntawm cov khoom siv) |
|
Engraving ceev |
8000mm / s |
|
Engraving raug |
± 0.003mm |
|
Tshuab hnyav |
480kg ua |
|
Kev xaiv |
Rotary los yog disk rotary |
|
Txias hom |
Dej txias |
|
Kev siv fais fab |
Tsawg dua lossis sib npaug li 20KW |
|
Rated zog voltage |
220V 50-60Hz |
|
Txhawb hom ntawv |
PLT.DXF.DWG.AI |
|
Warranty |
Ib xyoos |
laser txiav yog dab tsi?
Laser txiav yog ib txoj hauv kev zoo thiab zoo ntawm kev txiav ntau yam ntaub ntawv nrog kev siv lub laser beam. Nws yog feem ntau siv hauv kev lag luam xws li tsheb, kev tsim khoom, thiab engineering. Cov txheej txheem cuam tshuam ncaj qha rau cov teeb pom kev zoo ntawm lub teeb mus rau cov khoom kom raug txiav, uas ua rau nws yaj, hlawv lossis vaporize. Laser txiav muab qhov tseeb zoo, ua kom huv thiab meej txiav uas yuav tsum tau ua tiav tsawg kawg nkaus.Ntxiv mus, nws muaj txiaj ntsig zoo thiab txo cov khoom pov tseg, ua rau nws muaj kev xaiv zoo rau ib puag ncig. Zuag qhia tag nrho, laser txiav yog ib qho tseem ceeb thev naus laus zis uas txhim kho qhov nrawm thiab zoo ntawm kev tsim khoom thiab qhib qhov muaj peev xwm tshiab rau kev tsim thiab muaj tswv yim.
Cov qauv

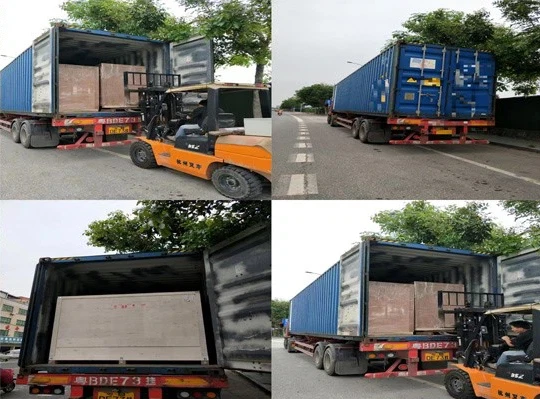

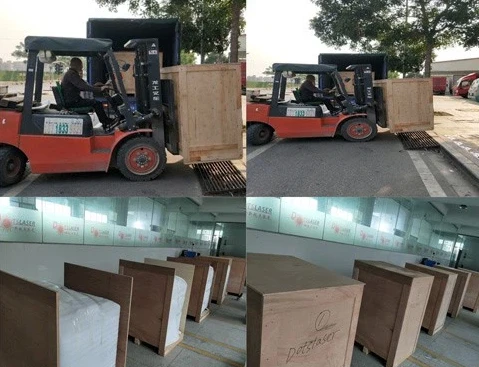

Shipping thiab pob
1. Kev ruaj ntseg zoo thiab kev pab cuam tom qab muag
Lub sijhawm lav ntawm cov cuab yeej yuav tsum yog 12 lub hlis txij li cov khoom siv los ntawm cov neeg siv khoom, kev teeb tsa thiab kev debugging tiav thiab cov khoom siv tau txais los ntawm tus neeg thov. Dotslaser muab qhov tseem ceeb rau kev ua haujlwm tom qab muag ntawm cov khoom, thaum cov khoom xa tuaj rau tus neeg siv, lub tuam txhab tam sim ntawd tsim cov ntaub ntawv cov neeg siv khoom tom qab muag, thiab tsis tu ncua taug qab tus neeg siv khoom siv cov xwm txheej, daws thiab teb tag nrho cov teeb meem ntawm tus neeg siv, tau txais cov neeg siv cov ntaub ntawv ceeb toom txog cov khoom siv tsis ua haujlwm, lub tuam txhab cov neeg ua haujlwm tuaj yeem ua cov lus teb sai hauv 2 teev. Yog tias kev taw qhia hauv xov tooj yog qhov nyuaj rau kev daws teeb meem, peb lub tuam txhab cov neeg ua haujlwm txawj tuaj yeem tuaj txog ntawm cov neeg siv khoom hauv 24 teev los muab kev txhawb nqa.
2. Kev teeb tsa thiab kev debugging
Ua ntej kev teeb tsa lub tshuab, peb lub Hoobkas yuav muab cov ntaub ntawv tsim nyog rau koj, qhov xav tau zoo 2 lub lis piam xa tuaj rau koj nyob ntawd, cov engineers ntawm Dotslaser yuav tuaj txog ntawm koj qhov chaw thiab tshuaj xyuas lub tshuab dua. Xyuas kom meej tag nrho cov xwm txheej ua tau raws li qhov yuav tsum tau ua ntawm installation thiab commissioning, cov cuab yeej yuav thauj mus rau lub sijhawm. Lub sijhawm teeb tsa thiab kev ua haujlwm ntawm cov cuab yeej siv yog li tsib hnub ua haujlwm, thawj peb hnub tau txuas nrog kev siv lub tshuab, thiab lub kaw lus ua haujlwm tom qab qhov kev pabcuam. Tus kws tshaj lij yuav cob qhia cov neeg ua haujlwm tsim nyog ntawm cov txheej txheem kev saib xyuas yooj yim thiab cov yam ntxwv ntawm kev ua haujlwm ntawm cov cuab yeej hauv ob hnub tom ntej
3. Kev pab txhawb nqa
Yog tias muaj teeb meem nrog ib feem ntawm lub cev thaum lub sijhawm lav, Dotslaser cov kws tshaj lij pabcuam kev pabcuam tau npaj los muab kev pabcuam hauv xovtooj lossis pib pabcuam ntawm qhov chaw, yog tias lub tshuab muaj teeb meem thaum lub sijhawm lav, thov hu rau peb ncaj qha !
