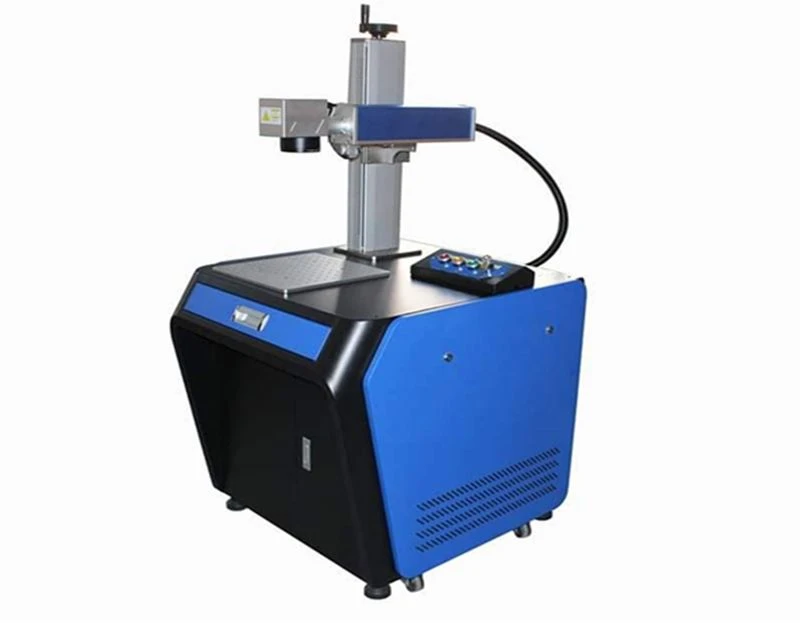

100w Fiber Laser tej tshuab
100w Fiber Laser tej tshuab
Khoom Description
100w Fiber LaserIt tuaj yeem kos qhov saum npoo ntawm cov hlau thiab cov ntaub ntawv tsis yog hlau. Peb cov khoom tau mus txog qib siab hauv cov tsos, kev ua tau zoo thiab kev ua haujlwm zoo, ua haujlwm zoo thiab ua haujlwm ruaj khov. Nws yog txawm peem rau nrog ib tug yooj yim ua hauj lwm interface, yooj yim to taub thiab yooj yim rau siv, thiab nws yog heev yooj yim mus ua hauj lwm. Tsis tas li ntawd, nws muaj qhov zoo ntawm tsis muaj consumables, tsis tshua muaj nqi depreciation, tsis muaj teeb meem mus sij hawm ntev kev khiav hauj lwm, thiab txij nkawm-dawb. 100w Fiber Laser yog dav siv.
Tsis muaj
|
Qauv |
Qauv: DS-LM100 |
|
Laser zog |
100W |
|
Pulse Repetition Frequency |
1-200kHz |
|
Beam quality (㎡ |
<1.6 |
|
Qhov tob ntawm engraving (nyob ntawm cov khoom) |
<5mmc |
|
Kev siv fais fab |
Tsawg dua lossis sib npaug li 1500W |
|
Ua haujlwm voltage |
Ib theem AC 220V / 110V 50 / 60HZ 5A |
|
Laser wavelength |
1064nm ua |
|
Chaw ua haujlwm |
100 × 100mm, 150 × 150mm |
|
Repetition precision |
± 0.003mm |
|
Max engraving ceev |
Tsawg dua lossis sib npaug li 8000mm / s |
|
Yam tsawg kawg kab dav |
0.01 hli |
|
Kev kos duab |
Chaw nres tsheb npav, disc teb, Rotary Marking |
|
Cim loj |
0 5-110mm |
|
Txias System |
Cua txias |
|
Kev taw qhia ntawm kev txhim kho cov khoom siv |
Ib qho |
|
Cable ntawm Length |
3m (5m yeem) |
|
Ua haujlwm kub ntau |
5-38 degree |
|
Ua haujlwm av noo |
20%-80% |
|
Net nyhav ntawm lub tshuab |
1 66kg |
|
Qhov loj me ntawm lub cev (L × W × H) |
1100mm × 85mm × 175mm |
100w Fiber Laser muaj ntau yam kev siv, dav siv hauv kev ua hlau, hlau ua, pwm ua, ua cov hniav nyiaj hniav kub, thiab lwm yam.
Nws tuaj yeem ua cov hlau thiab alloys xws li stainless hlau, tooj liab, hlau, txhuas, carbon hlau, laser marking ntawm EP cov ntaub ntawv (xws li hluav taws xob tivthaiv ntim, davhlau ya nyob twg posts, PCB Circuit Court boards, IC, thiab lwm yam) los yog yas xws li ABS ( xws li cov kav dej, cov khoom siv hluav taws xob, thiab lwm yam), cov khoom siv hluav taws xob thiab lwm yam khoom siv cim nrog cov lej cim, LOGO, thiab lwm yam.)
qhov zoo
1. High Precision: Cov hniav nyiaj hniav kub Mini Laser Engraver siv cov tshuab laser siab heev los kos cov qauv tsim, duab, ntawv, lossis barcodes nrog qhov tseeb tshwj xeeb. Kev ua haujlwm zoo meej yog ua kom yooj yim, tso cai rau cov kws ua yeeb yam tsim cov engravings sophisticated yam tsis muaj kev cuam tshuam qhov ncaj ncees ntawm lawv tus qauv tsim.
2. Compact Design: Nrog nws cov hneev taw me me thiab qhov loj me, qhov engraver no zoo tagnrho rau kev cob qhia lossis studios nrog qhov chaw tsawg. Nws yog yooj yim thauj, kom ntseeg tau siab tshaj plaws yooj yim thiab yooj rau cov neeg siv.
3. Ntau yam khoom siv sib xws: Cov hniav nyiaj hniav kub Mini Laser Engraver yog sib xws nrog ntau yam khoom siv feem ntau siv hauv cov hniav nyiaj hniav kub, nrog rau cov hlau zoo li kub, nyiaj, thiab platinum, nrog rau ntau yam gemstones, muaju, thiab txawm iav. Qhov versatility no tso cai rau koj los tsim cov khoom tshwj xeeb uas haum rau koj cov neeg siv khoom nyiam thiab nyiam.
4. User-friendly Interface: Lub engraver los nrog ib tug intuitive software uas yooj yim kawm thiab khiav lag luam. Nws txhawb ntau hom ntaub ntawv, ua rau nws yooj yim rau koj import koj tus tsim thiab coj koj lub tswv yim rau lub neej.

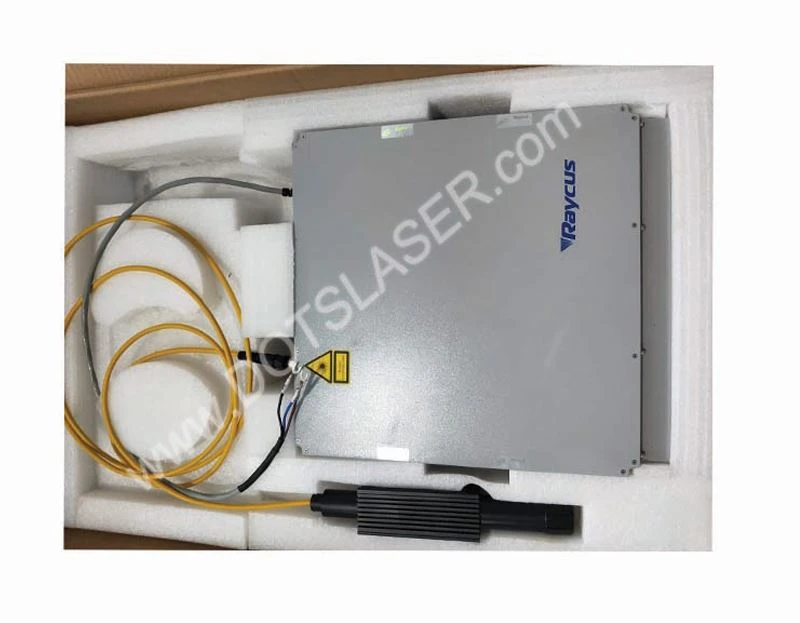

5. Sab saum toj hom laser generator, ruaj khov thiab lub neej ntev, max. 100, 000 teev.
tawv thiab ruaj khov laser ua hauj lwm rooj, Siv 2 hli thickness sheet hlau, seamless vuam txoj kev.

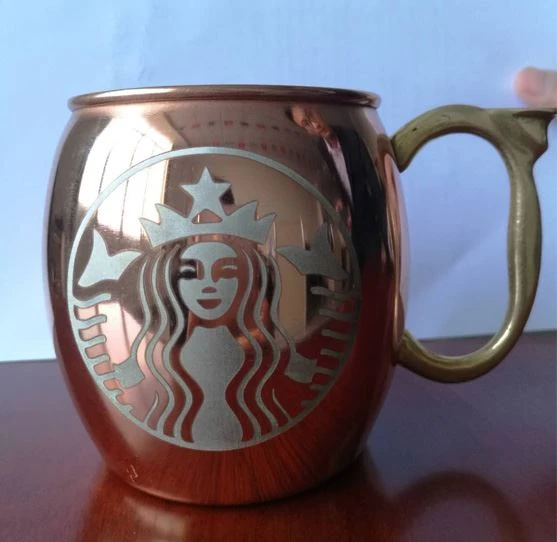

Kos cov qauv ntawm 100W fiber ntau laser
100W fiber ntau laser daim ntawv thov cheeb tsam

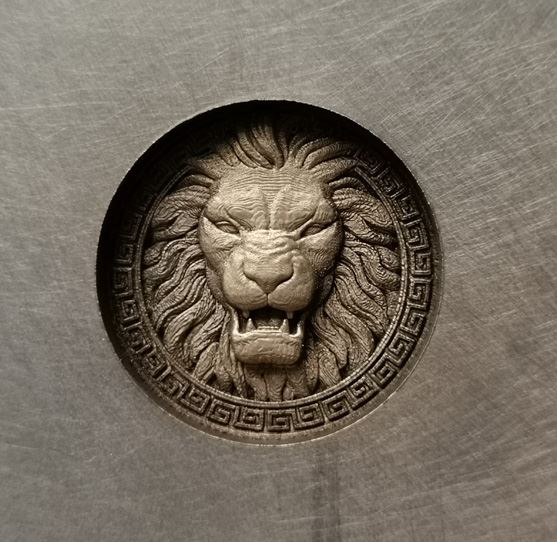

Sib sib zog nqus engraving
Piv nrog 50W los yog 60W lasers, 100W lasers muaj zog zog thiab ceev cov cim ceev, uas yog ntau haum rau sib sib zog nqus engraving.
