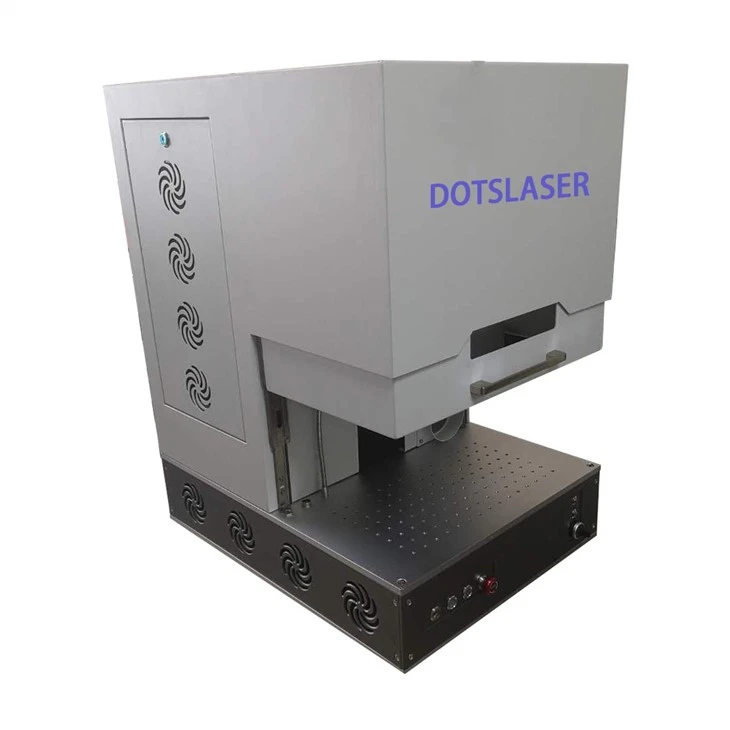

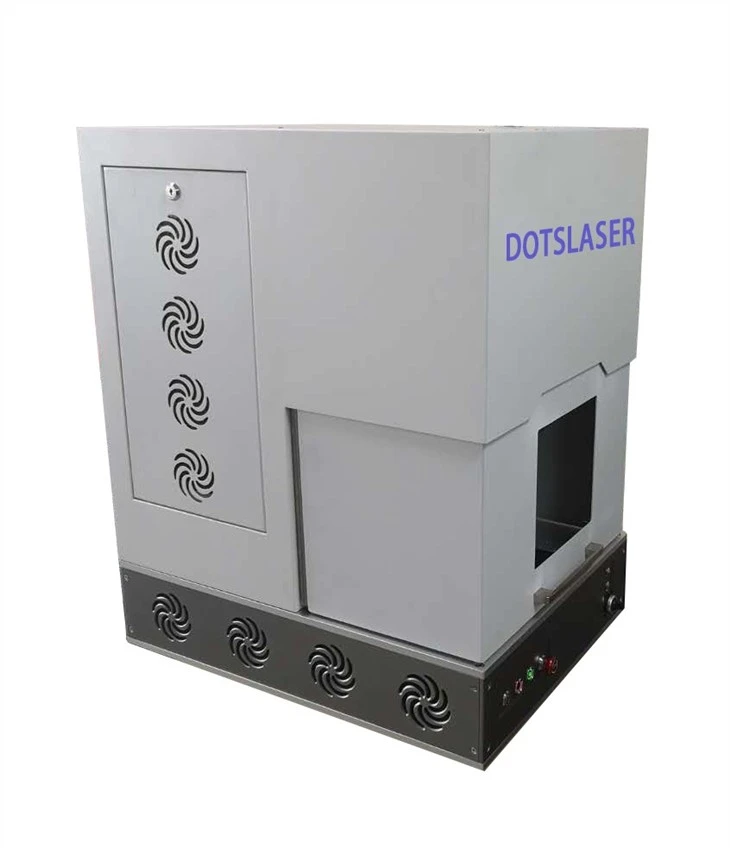

Laser Engraver Rau Stainless Hlau
Laser Engraver Rau Stainless Hlau
Khoom Description
Lub laser fiber ntau ncaj qha qhia txog 1064nm high-power laser rau hauv qhov chaw ua haujlwm los ntawm ib hom fiber ntau nrog cov sheath, thiab qhov chaw loj tom qab sib tsoo thiab tsom mus txog kaum tawm microns lossis tsawg dua. Hom laser no nyob ze rau qhov kev txwv tsis pub tshaj. Nws tuaj yeem siv rau kev kos, drilling lossis ua ntau yam ntaub ntawv.
Khoom nta
1. Laser Engraver Rau Stainless Hlau, hom khoom siv no muaj kev hloov hluav taws xob siab photoelectric, zoo beam zoo, thiab siab laser zog. Nws yog tshwj xeeb tshaj yog haum rau kev sib sib zog nqus cim thiab high-precision txiav ntawm stainless hlau thiab lwm yam hlau. Nws tseem tuaj yeem nruab nrog lub tshuab tig rau kev ua tiav ntawm cov khoom siv nplhaib.
2. Lub Laser Engraver rau Stainless Hlau yog paub txog nws precision thiab raug. Nws muaj peev xwm engraving ceev thiab ua tau zoo ntawm cov hlau tsis muaj hlau nrog qhov tsis zoo lossis qhov tsis zoo.
3. Lub tshuab kuj tseem muaj ntau yam, tso cai rau kev tsim kho thiab kos duab raws li cov kev xav tau tshwj xeeb. Nws pab cov lag luam tsim cov khoom lag luam zoo thiab cov kws tshaj lij uas ua tau raws li qhov xav tau ntawm kev ua lag luam.
Tsis muaj
|
Qauv |
DS-LM20/DS-LM30/DS-LM50 |
|
Laser zog |
20W/30W/50W |
|
Pulse Repetition Frequency |
1-200kHz |
|
Beam quality (㎡ |
<1.2 |
|
Qhov tob ntawmengraving (nyob ntawmntawm cov khoom) |
<5mm ua |
|
Kev siv fais fab |
Tsawg dua lossis sib npaug li 800W |
|
Kev khiav haujlwmhluav taws xob |
Ib leegTheem AC 220V / 110V 50 / 60HZ 5A |
|
Laser wavelength |
1064nm ua |
|
Ua haujlwmcheeb tsam |
100× 100mm, 150 × 150mm |
|
Repetition precision |
± 0.003mm |
|
Max engravingceev |
Tsawg dua los yog sib npaug8000 hli/s |
|
Yam tsawg kawg kab dav |
0.01 hli |
|
Kos npetxoj kev |
Nyob ruaj ruajMarking, Rotary Marking |
|
Cim loj |
0 5-110mm |
|
TxiasQhov system |
CuaTxias |
|
Kev taw qhia ntawm kev txhim kho cov khoom siv |
Ib qho |
|
Cable ntawmNtev |
3m (5mxaiv tau) |
|
Ua hauj lwm kub ntau yam |
5-38 degree |
|
Ua haujlwmCov av noo |
20%-80% |
|
Net nyhav ntawm lub tshuab |
56kg ua |
|
Dimension ntawm Main Lub Cev (L×W×H) |
480mm ×215mm × 450mm |
Kev qhia ntawm kev xaiv tshuab:
Lub zog:Lub zog laser muaj 20W, 30W, 50W, 60W, 80W, 100W, 120W, lub zog ntau dua, qhov ua tau zoo dua.
Chaw ua haujlwm: 70x70mm, 110x110mm, 150x150mm, 175x175mm, 200x200mm, 250x250mm, 300x300mm
Txoj cai lens:Lub lens tswj qhov chaw ua haujlwm.Koj tuaj yeem xaiv cov lo ntsiab muag sib txawv. Yog tias koj xav siv thaj chaw ua haujlwm dav, thov xaiv lub tshuab hluav taws xob laser siab.

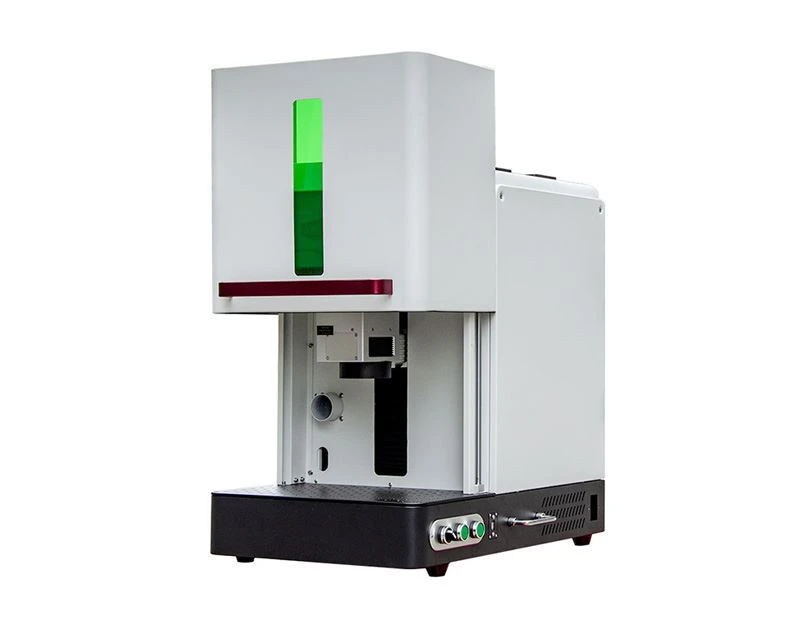

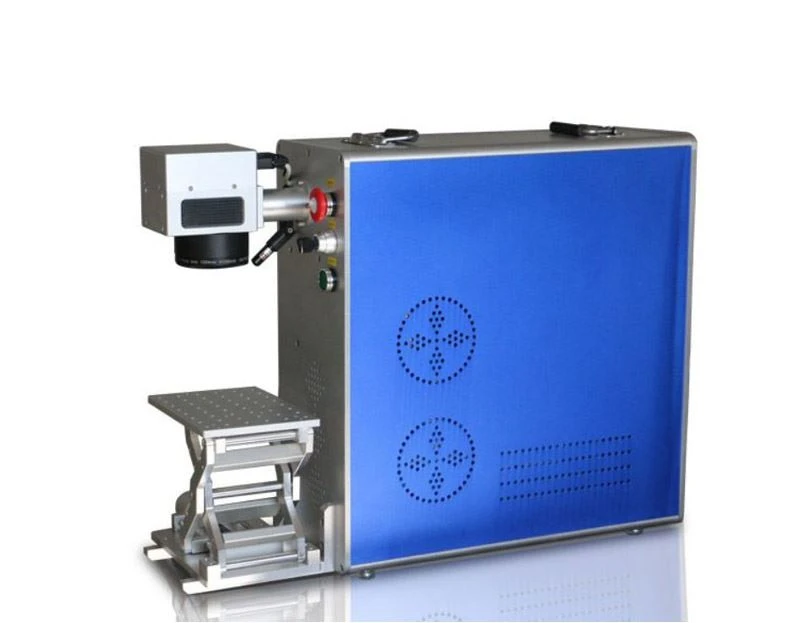

Koj tuaj yeem xaiv raws li koj qhov chaw ua haujlwm, peb muaj hom portable, cais hom, kaw hom, desktop hom, thiab lwm yam.
Vim li cas thiaj xaiv peb Laser Engraver Rau Stainless Hlau tshuab?

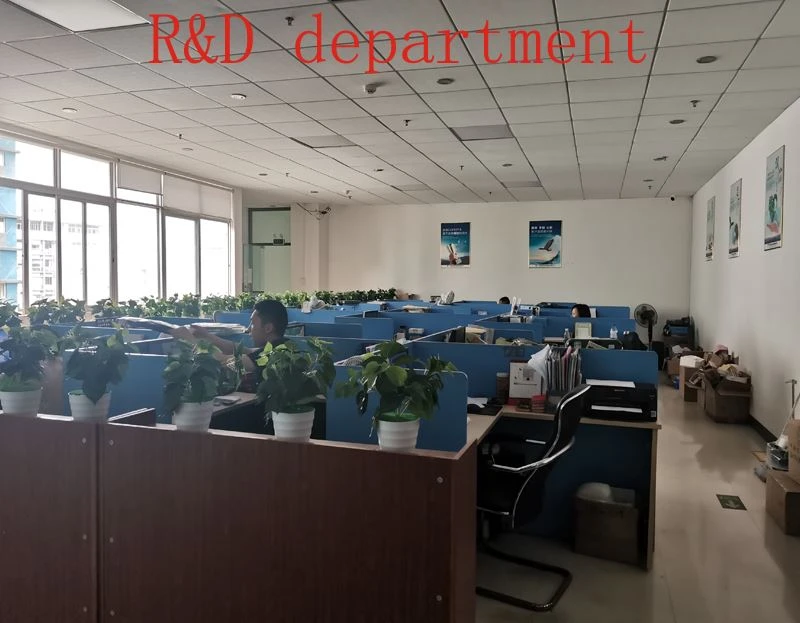

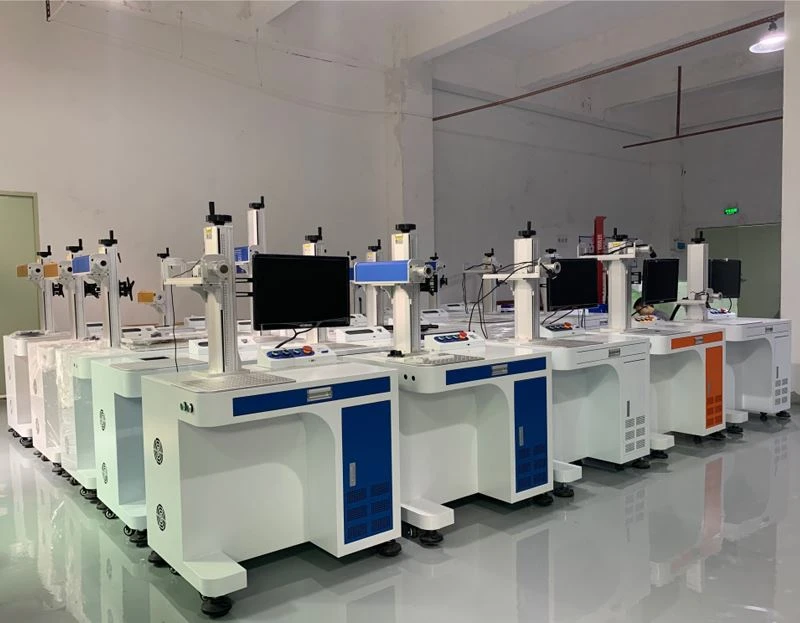

* Peb yog cov kws tshaj lij laser chaw tsim khoom nrog ntau tshaj 12 xyoos ntawm kev tshawb fawb laser ntau lawm thiab kev tsim kho. Cov tshuab raug xa tawm mus rau Tebchaws Europe, Amelikas, Nyiv, Kauslim.
* Peb muaj pab pawg ua haujlwm tshaj lij, thiab peb muaj cov neeg ua haujlwm siab rau kev pabcuam tomqab muag ntawm lub sijhawm sib txawv.
* Peb lub tuam txhab koom tes nrog txee manufacturers ntawm cov tuam txhab loj hauv tsev. Peb muab lawv cov tswv yim tsim. Lawv tsim cov khoom tiav rau peb. Ua ntej zoo yog peb txoj cai.
|
Dab tsi yog laser engraver rau stainless hlau? Raws li peb txhua tus paub lub laser tsis pom thiab tsis pom, tab sis nws muaj qhov ruaj khov wavelength. Piv txwv li, lub wavelength ntawm fiber ntau laser yog 1064nm. Qhov wavelength no tuaj yeem ua rau nws hnov mob ntawm cov ntaub ntawv tshwj xeeb, tshwj xeeb tshaj yog rau cov hlau. Cov ntaub ntawv stainless hlau tuaj yeem ua tau zoo heev, carving tawm cov qauv lossis cov duab peb xav tau. Lub tshuab no yog tsim los ntawm ob peb yam tseem ceeb. Thawj qhov loj ntawm lub laser tseem hu ua lub tshuab hluav taws xob laser, qhov thib ob loj yog hu ua lub taub hau scanning, uas tuaj yeem tswj cov kev taw qhia ntawm lub laser, thiab qhov thib peb loj yog hu ua daim npav tswj, uas tuaj yeem ua tau zoo heev. Qhov thib plaub tseem ceeb yog cov khoom siv hluav taws xob, uas muab lub zog rau thawj peb yam. Raws li peb txhua tus paub, cov khoom siv hluav taws xob xav tau lub zog ua haujlwm. Tib yam muaj tseeb rau lasers. Nws xav tau hluav taws xob ua haujlwm zoo li. |
|
Koj yuav tsum xyuam xim rau: (1) Lub lens yuav tsum tau ntxuav txhua hnub: khoov daim ntawv lo rau hauv ob peb folds thiab ntub nws nrog ob peb tee ntawm cov tshuaj acetone ntshiab; Maj mam so lub lens nto nrog daim ntawv lo lo ntxhuav ntub dej, ceev faj tsis txhob nias lub lens nrog koj cov ntiv tes; Rov ua dua ob peb zaug kom txog thaum lub lens nto huv si, tsis muaj av thiab cov khoom seem seem ntawm daim iav; Tshuab ziab nrog cua qhuav; Yog tias tsim nyog, dov daim ntawv lo ntsiab muag ntub nrog ob peb tee ntawm acetone rau hauv ib tug pas nrig thiab maj mam txhuam cov lo ntsiab muag kom tshem tawm cov stains hnyav. (2)Lub lens reflector yuav tsum tau muab ntxuav kom tshem tawm cov av raws sijhawm: tshem lub lens ntawm tus ncej; Daim iav ntsej muag, muab daim ntawv lo rau ntawm daim iav; Muab ob peb tee ntawm acetone rau ntawm daim ntawv lo ntsiab muag thiab maj mam rub daim ntawv lo rau ntawm daim iav; Rov ua cov txheej txheem saum toj no kom txog thaum daim iav huv si, tsis muaj cov av thiab cov stains uas nyob hauv daim iav; Tom qab ntawd haum lub lens rau hauv lub lens puag. |

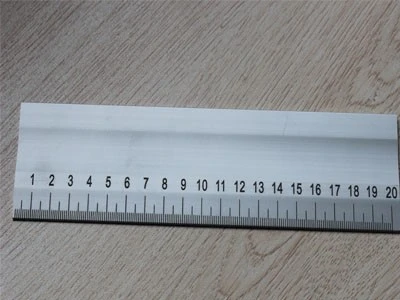

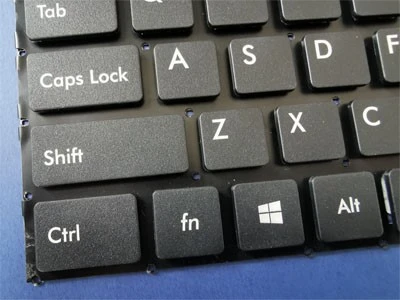

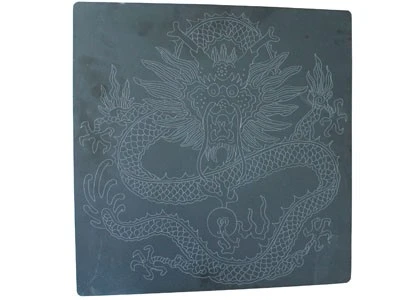

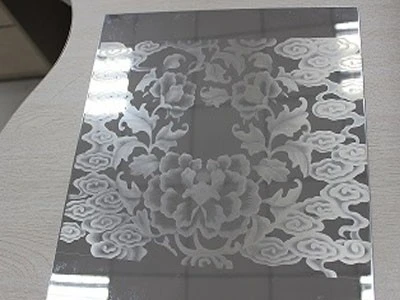

Cov qauv
