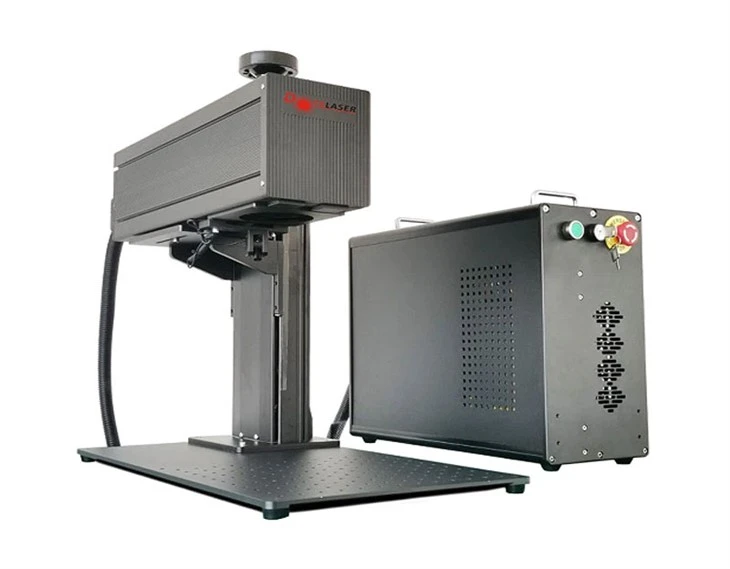

3D Fiber Laser sib sib zog nqus engraving
3D fiber ntau laser sib sib zog nqus engraving
Khoom Description

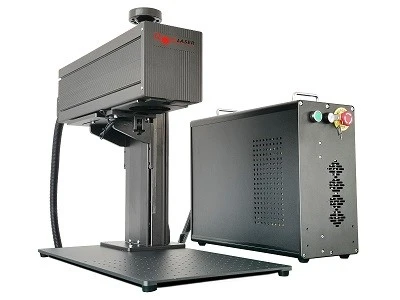

3D fiber ntau laser sib sib zog nqus engraving tshuab yog ib tug haib thiab ntau yam cuab yeej siv rau engraving rau ntau yam ntaub ntawv. Nrog nws cov high-powered fiber ntau laser los tsim cov ncauj lus kom ntxaws thiab meej tsim ntawm cov ntaub ntawv xws li hlau, yas, thiab txawm iav. Tsis muaj kev puas tsuaj rau qhov chaw tiav nrog nws cov engraving meej, nws yog haum rau kev kos duab intricate designs, serial tooj, thiab lwm yam cim ntawm ntau yam ntaub ntawv, Nrog nws versatility, raug, thiab ceev, lub tshuab no yog ib tug game-changer nyob rau hauv ntiaj teb no ntawm manufacturing thiab engraving.
tshuab nta
Kev siv dav
3D dynamic (planar / curved nto) cim .Wider daim ntawv thov ntau yam, haum rau engraving hlau thiab alloys, xws li hlau, stainless, hlau, hlau, tooj liab, tooj dag.aluminium, magnesium
, zinc thiab lwm yam hlau.
Precise engraving
3D fiber ntau laser engraving tshuab muaj lub zog siab ceev galvo system, yog li nws tuaj yeem kos cov khoom kom raug nrog ceev ceev.
Cov txheej txheem Advanced
German technology thiab zoo, thawj-chav sib dhos qauv.
Tsim tshwj xeeb
Integrated Circuit Court tsim ua rau tom qab kev muag khoom yooj yim dua. Compact loj, tsawg chaw nyob.
Parameter
|
Qauv |
DS-LM 20 |
DS-LM 30 |
DS-LM 50 |
Qauv: DS-LM80 |
|
Laser fais fab tso zis |
20W |
30W |
50W |
80W |
|
Engraving qhov tob |
Tsawg dua los yog sib npaug rau 0.2mm(nyob ntawm cov khoom) |
Tsawg dua los yog sib npaug rau 0.3mm(nyob ntawm cov khoom) |
Tsawg dua los yog sib npaug rau 0.5mm(nyob ntawm cov khoom) |
Tsawg dua los yog sib npaug rau 0.8mm(nyob ntawm cov khoom) |
|
laser wavelength |
1064 ± 10 nm |
|||
|
Kos thaj tsam (3D) |
150mm × 150mm × 40mm; 200mm × 200mm × 40mm |
|||
|
Pulse zaus |
20 ~ 80KHZ / 1 ~ 600KHZ / 1 ~ 4000KHZ |
|||
|
Max marking ceev |
8, 000mm/s |
|||
|
Rov ua qhov tseeb |
± 0.001 hli |
|||
|
Min. kab dav |
0.01 hli |
|||
|
Qhov loj me me |
0.2 hli |
|||
|
Txias |
Cua txias |
|||
|
Ua haujlwm temp |
10 ~ 35 degree |
|||
|
Humidity ntau |
< 70% No condensation |
|||
|
Fais fab mov |
AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz |
|||
Cov khoom siv kho vajtse, cov cuab yeej siv, cov khoom siv precision, iav thiab watches, hniav nyiaj hniav kub, nws pib qhov chaw, cov nyees khawm yas, cov khoom siv hauv tsev, khoom noj khoom haus, tshuaj, cov khoom siv hluav taws xob, cov khoom siv hluav taws xob sib txuas (IC), cov khoom siv hluav taws xob, kev sib txuas lus hauv xov tooj, PVC kav, cov khoom siv tu cev, lwm.
3D fiber ntau laser ua haujlwm li cas?
Yog hais tias koj yuav tsum tau txiav ob sab thiab peb-dimensional daim xws li cov hlab nrog puag ncig, square los yog rectangular seem, profiles, tab sis kuj beams, nplooj ntawv thiab cov ntawv tiaj tus tau coj mus rau txoj kev loj hlob ntawm 3D laser txiav tshuab uas tso cai rau koj los tsim ib tug ntau yam kev lag luam cov khoom siv rau ntau lub sectors, nrog rau cov khoom lag luam zoo heev.
Cov khoom siv tseem ceeb hauv cov txheej txheem no yog covfiber ntau optic laser. 3D laser processing yog ua raws li lub hauv paus ntsiab lus ntawm kev tsom mus rau ib qho kev sib txuas ntawm lub teeb ntawm lub teeb ntawm thaj tsam txwv kom thiaj li tuaj yeem txiav lossis kos cov khoom.
Nyob rau hauv cov ntaub ntawv tshwj xeeb no lub tshuab laser, ntxiv rau kev khiav hauj lwm ntawm linear axes X, Y thiab Z, kuj ua nyob rau theem ntawm inclination thiab rotation.
3D laser txiav tau ntse siv rau cov ntawv hlau ua, tso cai rau ntau qhov sib txawv geometric duab los kos thiab yog li muab tus nqi ntxiv rau cov khoom kawg. Lub 3D laser kuj muaj lub sijhawm los hloov kho qhov project txhua lub sijhawm thiab yog li ntawd yog ib qho zoo siv tshuab ob qho tib si rau kev tsim cov qauv thiab rau ntau lawm.

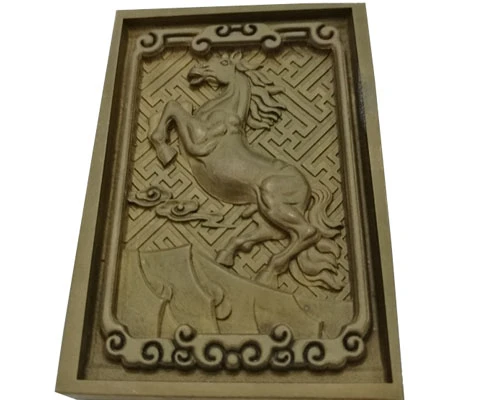

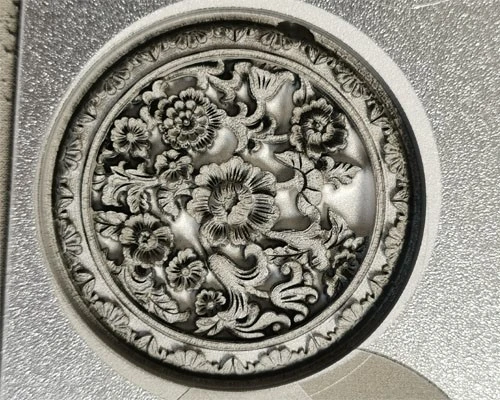

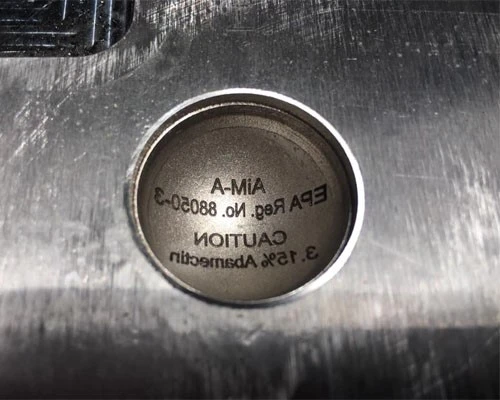

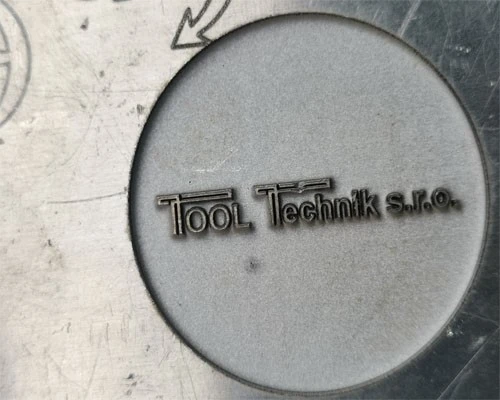

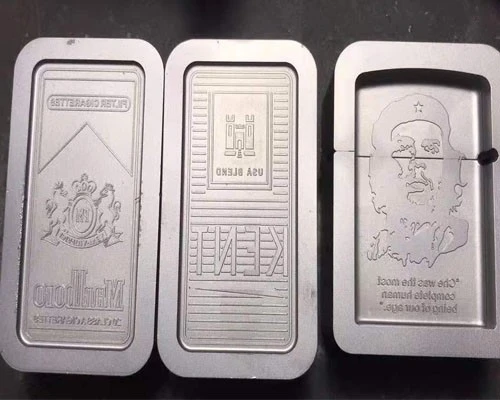

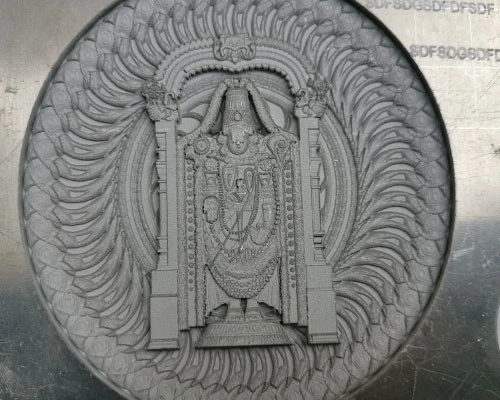

Cov qauvNtawm Laser Marking Tshuab
Shipping thiab pob
|
Ua haujlwm software: Kev kos npe software yog tag nrho Suav qhov rais system, sib xws nrog photoshop, coreldraw, autocad thiab lwm yam kev kos duab software, tuaj yeem paub Suav thiab Askiv cov cim, lub sijhawm thiab hnub, barcode, serial numberetc, tso tawm Suav thiab Askiv, duab, ntau yam barcodes, ob-seem code thiab lwm yam. Cov font ua haujlwm tau zoo, muaj txog li 200 fonts, customizable single-line fonts, thiab ib lub tsev qiv ntawv ib leeg-kab font. |
Daim ntawv pov thawj
FAQ
Q1: Lub pob zoo li cas?
Q2: Lub pob puas puas thaum lub sijhawm thauj mus los?
Q3: Yuav ua li cas rau nruab thiab khiav lub tshuab?
Q4: Kuv tuaj yeem ua li cas yog tias lub tshuab ua yuam kev?
