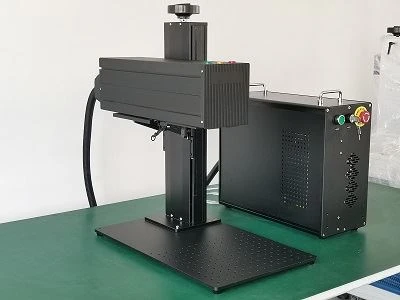

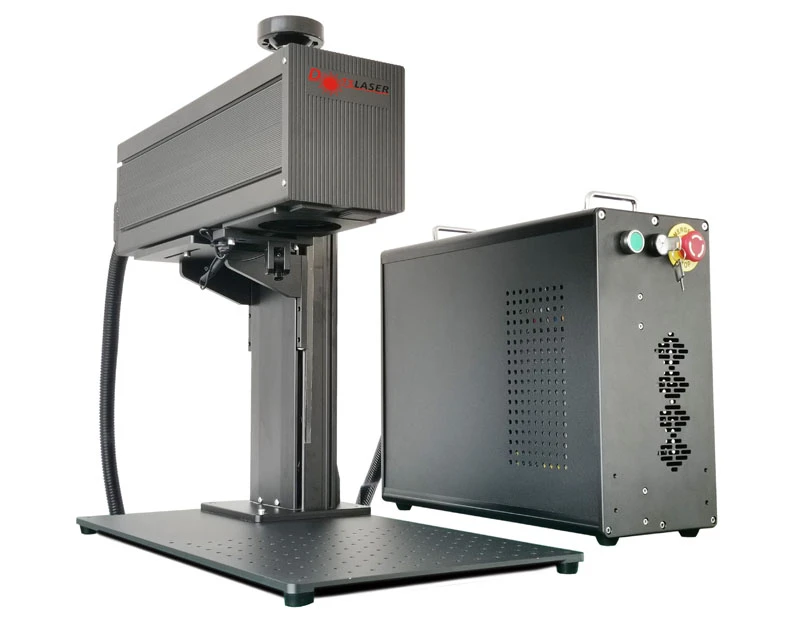

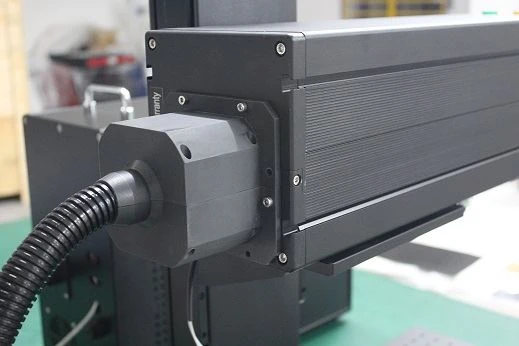

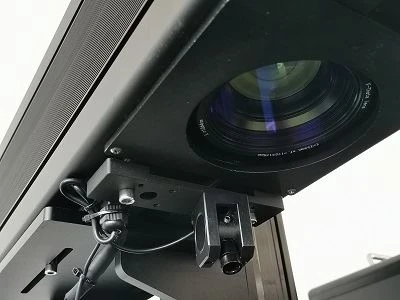

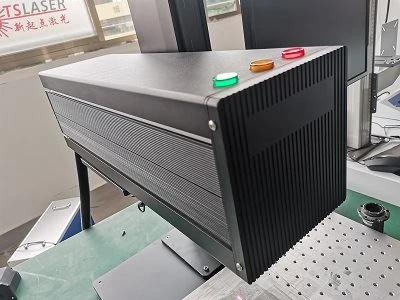

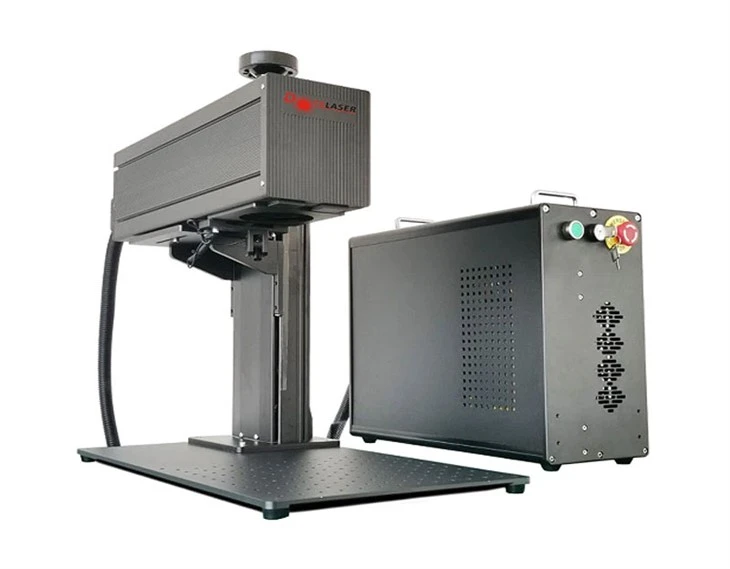

3D Fiber Engraving Tshuab
3D fiber ntau engraving tshuab
Khoom Description
Lub 3D fiber ntau laser npav tshuab siv lub fiber ntau laser los tso zis laser beam, thiab tom qab ntawd paub txog cov cim kev ua haujlwm los ntawm kev kub ceev galvo system. Nws muaj cov yam ntxwv nrog kev ua haujlwm siab electro-optical conversion efficiency, cua txias txias, me me, zoo beam zoo, muaj kev ntseeg siab, high efficiency, lub neej ntev thiab tsis tu ncua, thiab lwm yam., Nws yog nyiam los ntawm cov neeg siv txhua lub sijhawm.
tshuab nta
3D dynamic (planar / nkhaus nto) cim
Kev siv dav dav, suav nrog hlau, stainless hlau, hlau, tooj liab, tooj dag, txhuas, magnesium, zinc thiab lwm yam hlau.
Nws pib tsom
Ua kom txoj haujlwm yooj yim dua thiab yooj yim dua.
Integrated Circuit Court tsim ua rau tom qab kev muag khoom yooj yim dua.
Kev sib tw laser qhov chaw
Tau tshaj ntau yam laser qhov chaw thiab lub zog.
Rotary, disk rotation, conveyor yog xaiv tau.
Cim zoo nkauj tsim
Compact loj, tsawg chaw nyob. German technology thiab zoo, thawj-chav sib dhos qauv.
Parameter
|
Qauv |
DS-LM 20 |
DS-LM 30 |
DS-LM 50 |
Qauv: DS-LM80 |
|
Laser fais fab tso zis |
20W |
30W |
50W |
80W |
|
Engraving qhov tob |
Tsawg dua los yog sib npaug rau 0.2mm(nyob ntawm cov khoom) |
Tsawg dua los yog sib npaug rau 0.3mm(nyob ntawm cov khoom) |
Tsawg dua los yog sib npaug rau 0.5mm(nyob ntawm cov khoom) |
Tsawg dua los yog sib npaug rau 0.8mm(nyob ntawm cov khoom) |
|
laser wavelength |
1064 ± 10 nm |
|||
|
Kos thaj tsam (3D) |
150mm × 150mm × 40mm; 200mm × 200mm × 40mm |
|||
|
Pulse zaus |
20 ~ 80KHZ / 1 ~ 600KHZ / 1 ~ 4000KHZ |
|||
|
Max marking ceev |
8, 000mm/s |
|||
|
Rov ua qhov tseeb |
± 0.001 hli |
|||
|
Min. kab dav |
0.01 hli |
|||
|
Qhov loj me me |
0.2 hli |
|||
|
Txias |
Cua txias |
|||
|
Ua haujlwm temp |
10 ~ 35 degree |
|||
|
Humidity ntau |
< 70% No condensation |
|||
|
Fais fab mov |
AC220V ± 10%, 50Hz lossis AC110V ± 10%, 60Hz |
|||
Cov khoom siv kho vajtse, cov cuab yeej siv, cov khoom siv precision, iav thiab watches, hniav nyiaj hniav kub, nws pib qhov chaw, cov nyees khawm yas, cov khoom siv hauv tsev, khoom noj khoom haus, tshuaj, cov khoom siv hluav taws xob, cov khoom siv hluav taws xob sib txuas (IC), cov khoom siv hluav taws xob, kev sib txuas lus hauv xov tooj, PVC kav, cov khoom siv tu cev, lwm.
Cov ntaub ntawv siv tau:
1. Hom hlau thiab alloys: steel, stainless hlau, hlau, tooj liab, tooj dag, txhuas, magnesium, zinc thiab lwm yam hlau.
2. Tsis tshua muaj hlau thiab alloys: kub, nyiaj, titanium. Hlau oxide, tshwj xeeb nto kho (phosphating, aluminium anodizing, electroplating nto)
3. Common non-metals:yas (ABS, PVC, PE, PET, thiab lwm yam), hardboard.

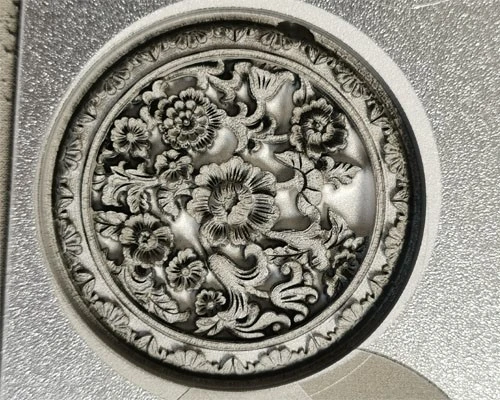

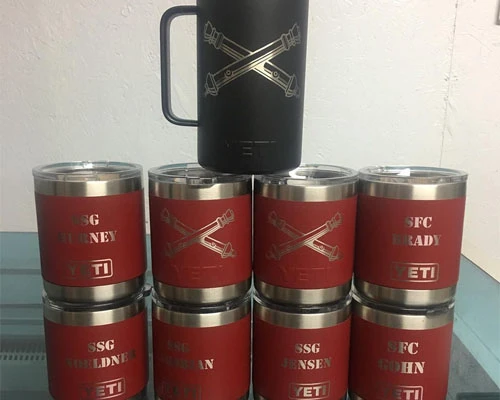

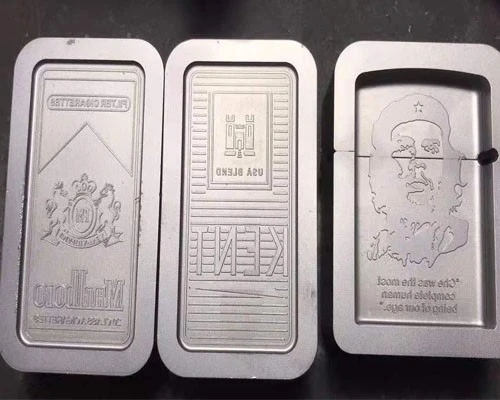

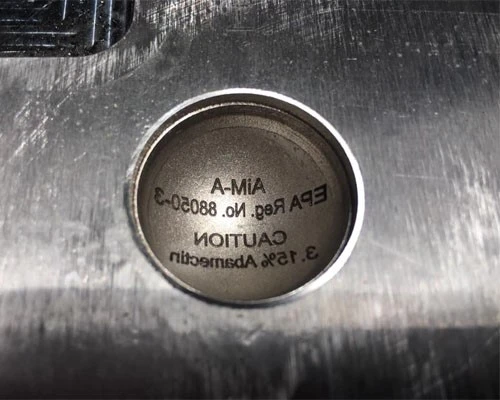

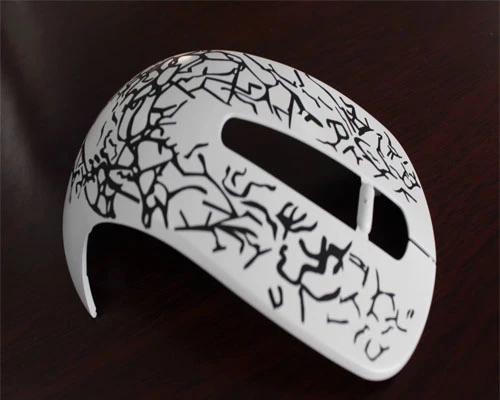

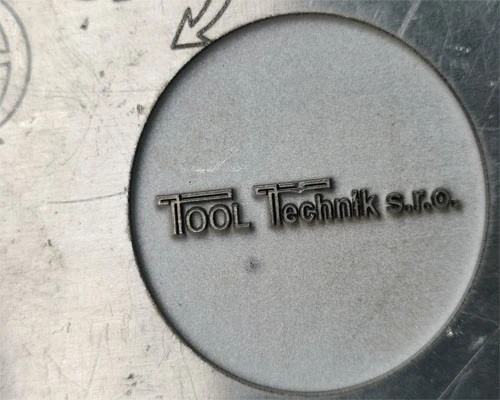

Cov qauvNtawm Laser Marking Tshuab
Shipping thiab pob

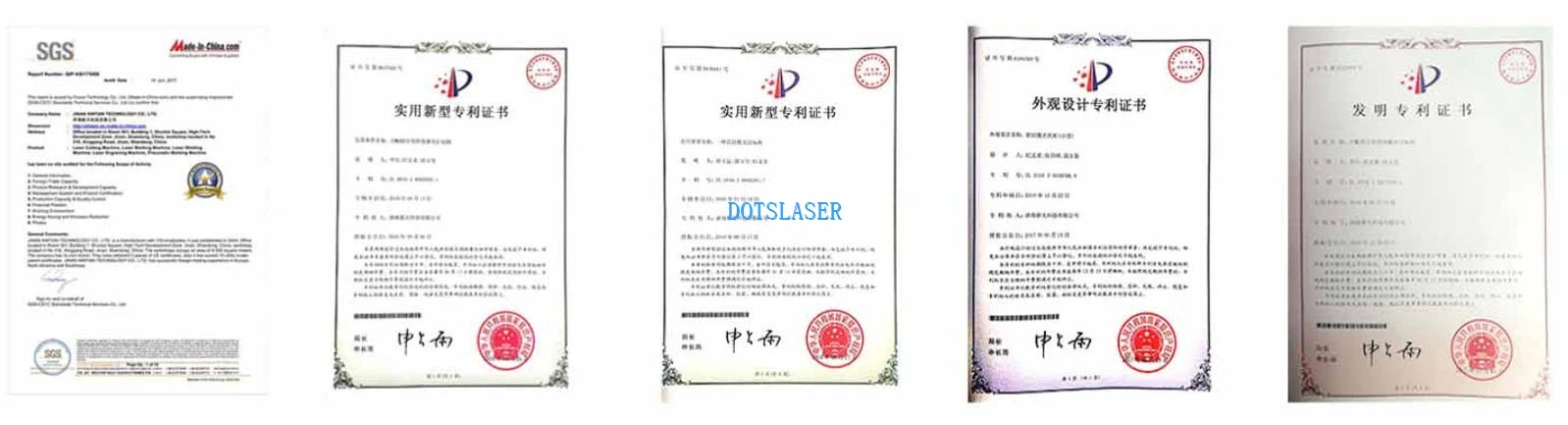

Daim ntawv pov thawj
FAQ
Q1: Lub pob zoo li cas?
Q2: Lub pob puas puas thaum thauj?
Q3: Yuav ua li cas rau nruab thiab khiav lub tshuab?
Q4: Kuv tuaj yeem ua li cas yog tias lub tshuab ua yuam kev?
