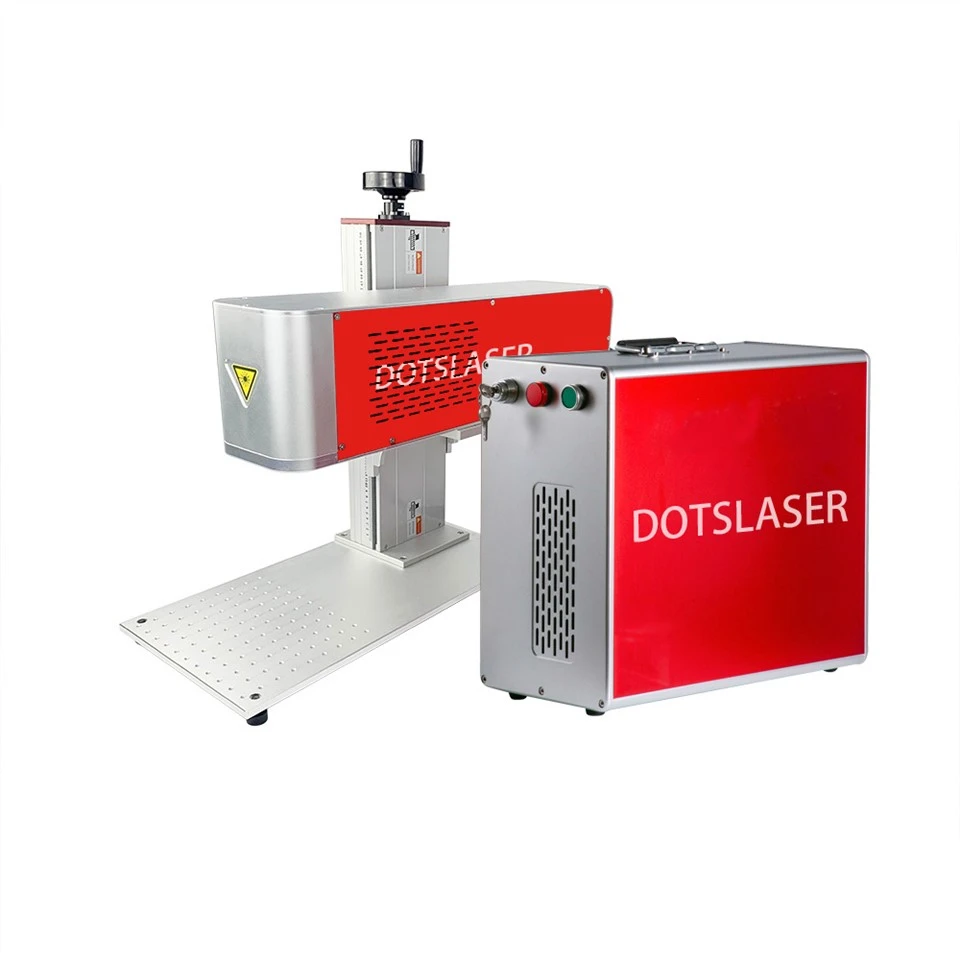

3D Fiber Laser Npav Tshuab
3D Fiber Laser Npav Tshuab
Khoom Description

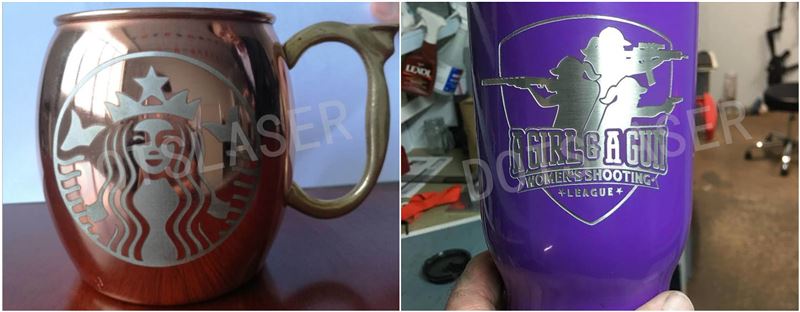

3D Fiber Laser Marking Tshuab haum rau kev tuav cov khoom sib txawv ntawm qhov sib txawv, piv txwv li, puag ncig, funnel zoo li tus nto, qhov sib txawv qhov siab, concave thiab convex nto, txhua qhov chaw. Ntau cov txiaj ntsig ntawm kev tuav cov khoom tsis zoo suav nrog cov khoom tsim tau zoo, kev ua haujlwm zoo, kev ua haujlwm yooj yim, thiab cov txiaj ntsig zoo tshaj plaws. Nws siv cov cuab yeej siv tau zoo thiab hloov pauv 3D thev naus laus zis, lub tswv yim zoo tshaj plaws ntawm kev tsim thev naus laus zis thev naus laus zis, Peb qhov tshwj xeeb 3D (3-}axis) kev tsim kho tshiab coj mus rau hauv kev txheeb xyuas ntawm qhov nkhaus lossis qhov tsis tuaj yeem pom yam tsis muaj kev hloov pauv ntawm cov khoom ua haujlwm. Qhov tseeb 3D kev daws teeb meem etching kuj tseem siv tau. Niaj hnub nimno computerization thiab kev ua haujlwm tau zoo tau txiav txim siab txog qhov tsis muaj kev txwv thiab kev tswj xyuas kom ua tau raws li qhov xav tau tshaj plaws.
*Fast Marking thiab Deep Engraving.
* Ntev ntev laser qhov chaw lub neej.

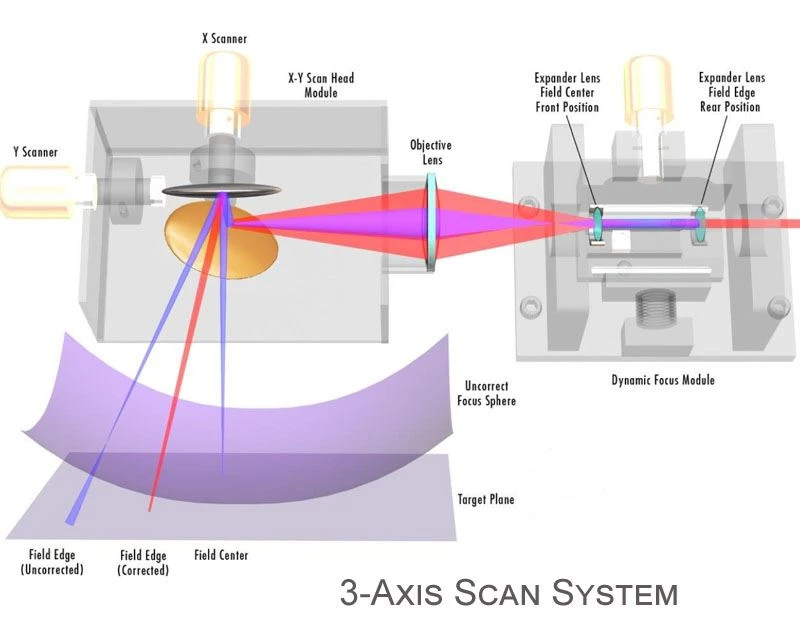

*3-Axis Tswj kom tshem tawm cov cuab yeej hloov pauv.
*Kev tu-dawb, lub teeb yuag, ntim me me, haum rau qhov chaw ua haujlwm tsis zoo.
* Hwj chim cim software.
|
Tsim nyog Industries: 3D Fiber Laser Marking Tshuab feem ntau yog siv rau hauv kev lag luam ntawm cov xov tooj ntawm tes, cov yas yas, cov khoom siv hluav taws xob, cov khoom siv hluav taws xob (IC), cov tshuab hluav taws xob, cov khoom sib txuas lus, cov khoom tsis muaj menyuam, cov khoom siv, cov hniav, watches, tsom iav, pob zeb, nws pib frills. , hnab nqa taug kev, cov cuab yeej ua noj, cov khoom siv hlau tempered.
Cov ntaub ntawv tsim nyog: Ntau hom hlau (xws li cov hlau tsis tshua muaj), xws li hlau, hlau, hlau kho, txhuas, anodized txhuas, tooj dag, tooj liab, nyiaj, kub, alloy, tsim cov yas, cov khoom siv electroplating, cov ntaub ntawv npog, cov ntaub ntawv da dej, yas thiab elastic , epoxy tar, earthenware ntau lawm, thiab cov khoom sib txawv. |
Technical parameters
|
Qauv |
DS-LM20-3D/DS-LM30-3D/DS-LM50-3D/DS-LM60-3D/DS-LM100-3D |
|
Laser zog |
20W/30W/50W/60W/100W |
|
Pulse Repetition Frequency |
1 kHz -1000kHz |
|
Beam quality (㎡ |
<1.6 |
|
Qhov tob ntawm engraving (nyob ntawm cov khoom) |
<5mm |
|
Kev siv fais fab |
Tsawg dua los yog sib npaug rau 1200W |
|
Ua haujlwm voltage |
Ib theem AC 220V / 110V 50 / 60HZ 5A |
|
Laser wavelength |
1064nm ua |
|
Chaw ua haujlwm |
100 × 100 × 60mm, 150 × 150 × 60mm, 300 × 300 × 60mm |
|
Repetition precision |
± 0.003mm |
|
Max engraving ceev |
Tsawg dua lossis sib npaug li 10000mm / s |
|
Yam tsawg kawg kab dav |
0.01 hli |
|
Kev kos duab |
Nyob ruaj ruaj Marking, Flying Marking, Rotary Marking |
|
Cim loj |
0 5-110mm |
|
Txias System |
Cua txias |
|
Kev taw qhia ntawm kev txhim kho cov khoom siv |
Ib qho |
|
Cable ntawm Length |
3m (5m yeem) |
|
Ua hauj lwm kub ntau yam |
5-38 degree |
|
Ua haujlwm av noo |
20%-80% |
|
Net nyhav ntawm lub tshuab |
46kg ua |
|
Dimension ntawm lub cev loj (L × W × H) |
480mm × 215mm × 450mm 700mm × 320mm × 700mm |

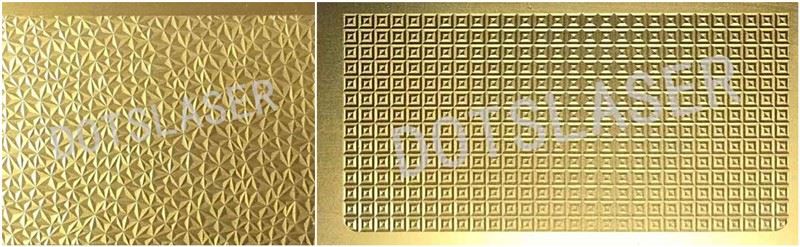

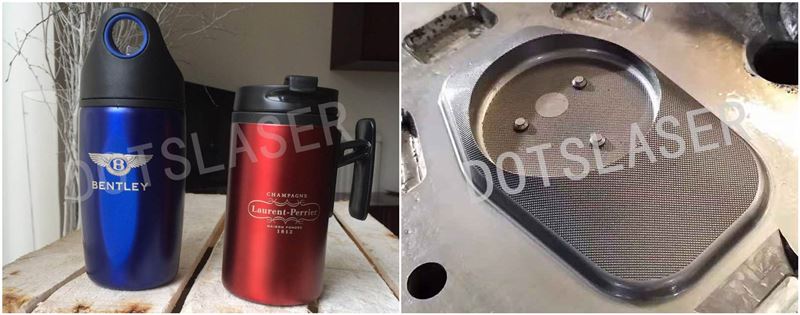

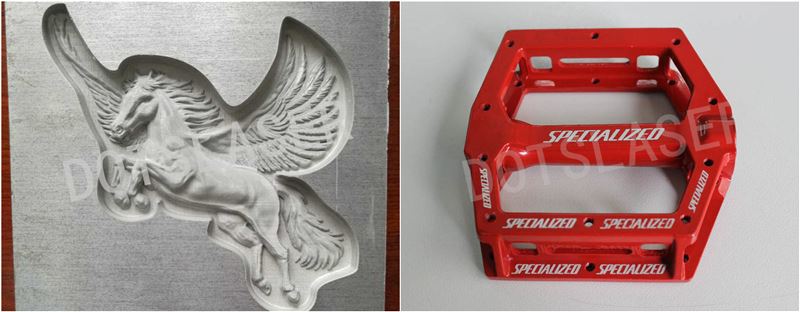

Khoom Paub meej

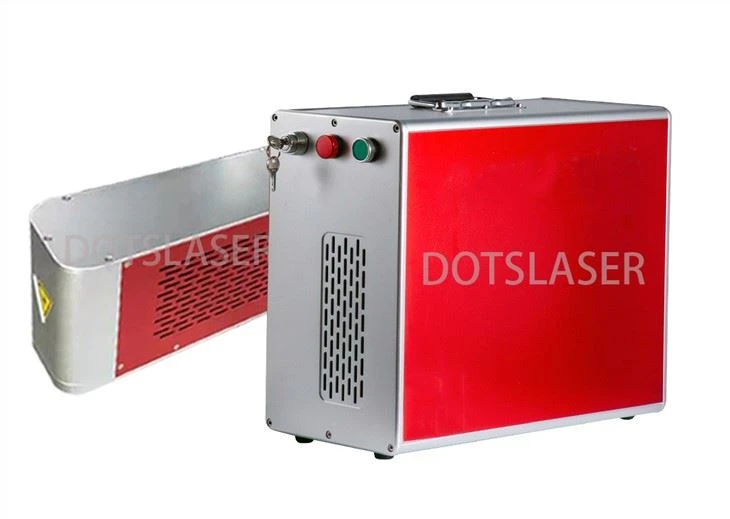

Lub cev ua haujlwm
Cov qauv
Ntim
1. Txheem ntoo rooj plaub nrog daim txhuam cev ntim rau hauv kev tiv thaiv kev ntim khoom
2. Ntoo rooj plaub yog fumigation dawb uas yog tsim los ntawm hiav txwv & los ntawm huab cua.
3. Customized Packing raws li tus neeg siv khoom xav tau.
