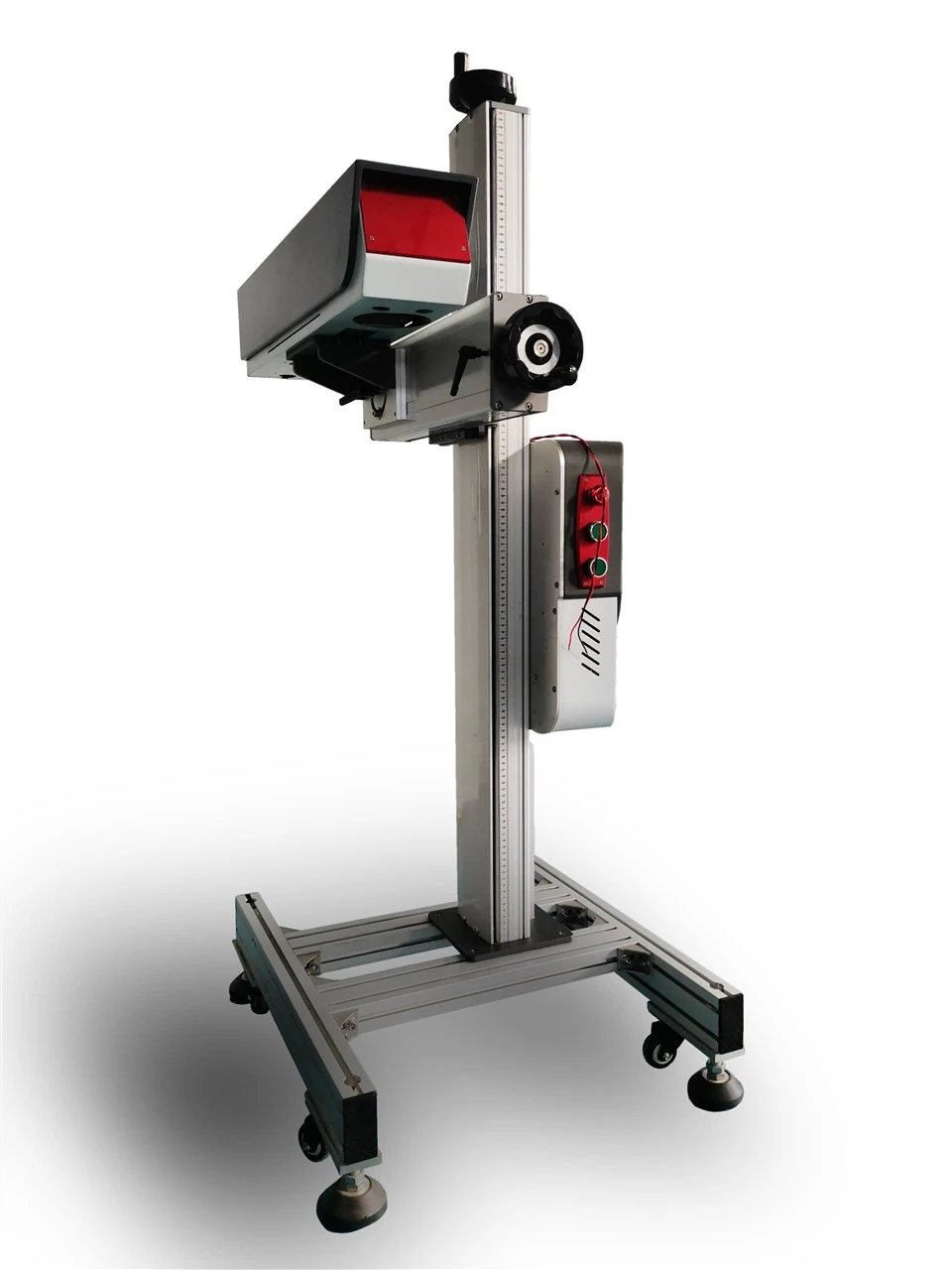

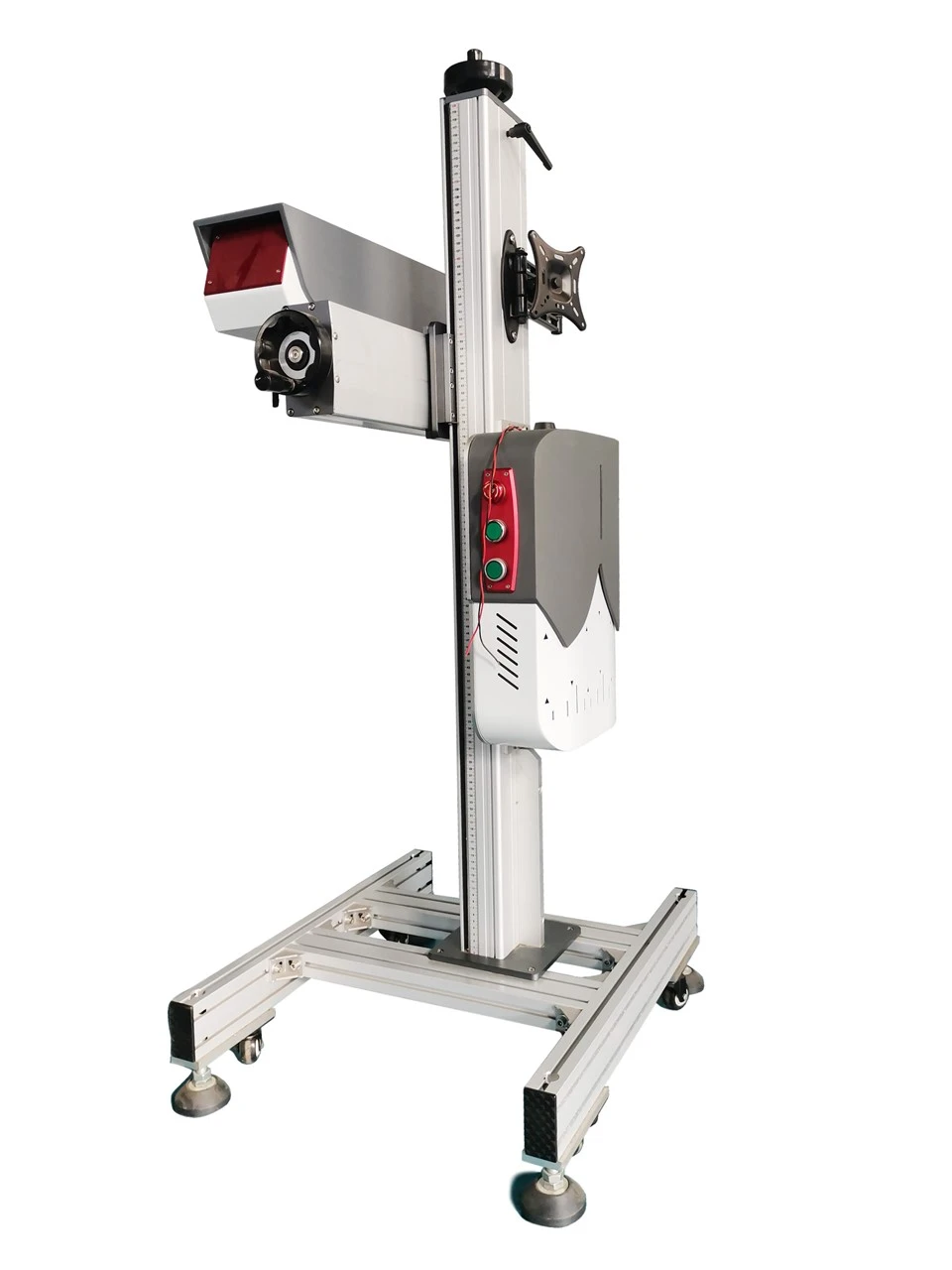

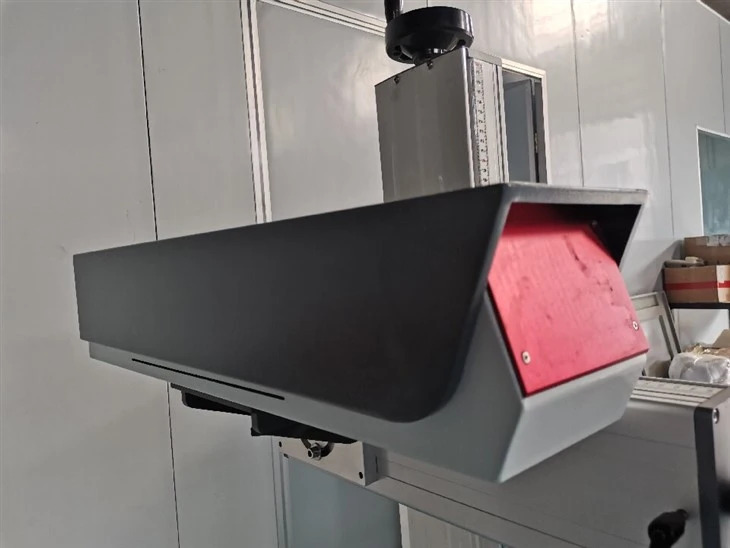

Lub raj mis fiber ntau laser ya tawm tshuab
Cov khoom lag luam
Lub raj mis fiber laser ya marking tshuab ntawm peb lub tuam txhab adopts feem ntau siab laser nqus tshuab hauv ntiaj teb. Nws ncaj qha ua kom muaj zog photons high-zog photons los ntawm kev nqus laser, ua rau muaj ntau cov nqaj sib txuas ntxiv hauv nruab nrab laser. Raws li qhov kev txiav txim ntawm Q-hloov, ib tug loj mem tes laser nrog lub wavelength ntawm 1064nm yog tsim. Tom qab ntawd, cov cim ua si yog nqa tawm los ntawm kev kho qhov muag pom galvanometer thiab "f-θ" tsom iav pab pawg nyob hauv kev tswj hwm ntawm lub computer cim software. Qhov kev ntsuas loj ntawm Galvanometer scanning system ntawm kev ua haujlwm nrawm, yuav tsum tsis muaj kev ua haujlwm nrawm, tsis muaj kev tu siab, thiab tuaj yeem ua tiav cov kev ua haujlwm txuas ntxiv.
Khoom nta
tsis siv neeg tsom iav
Lub raj mis fiber laser ya ntaus cim cim cim lub cim admin kev sib xyaw ua ke, yog nruab nrog ib qho kev ua haujlwm siab xav tau, thiab cov txheej txheem kev ua haujlwm yog tus neeg siv-phooj ywg.
Ruaj khov
Tiv thaiv lub qhov rais ntawm cov fiber ntau laser nrog imported raug rho tawm hauv kev ruaj khov thiab lub neej ntawm laser.
Txuag hluav taws xob
Nws muaj cov electro-optical hloov pauv kev ua tau zoo, nrog tag nrho lub tshuab siv tsawg dua 500 ntawm lub teeb liab-pumped khov kho tshuab, txo cov nqi siv hluav taws xob,
Siab zoo
Cov nqaj zoo yog qhov zoo dua li tias ntawm cov khoom lag luam zoo li qub-xeev laser cim tshuab, nrog rau hom kev tshaj tawm (kab}) Tshaj tawm txoj kab uas tsawg dua 20UM. Lub divergence kaum ntse ntse yog ib plaub ntawm cov semiconductor-pumped laser. Nws yog tshwj xeeb rau kev tsim nyog rau cov cim zoo thiab meej.
Tsis Muaj Kev Tu Yuav Tsum Tau
Nws yuav tsum tsis muaj kev saib xyuas, muaj lub neej pabcuam ntev, yog qhov me me thiab haum rau kev ua haujlwm hauv cov chaw hnyav.
Kev Kub Ceev
Nws tau txais kev tswj hwm lub nrawm laser-kev tswj hwm nrawm uas yog 2 txog 3 zaug ntawm cov cav ntoo ua ke, nrog lub davhlau ceev ntawm mus txog 200m \/ min.
Chaw ua uas tsis tau haus
| Cav Ua Haujlwm | Ua Kom Parameter | Tag nrho lub tshuab fais fab |
0. 5kw |
| Khij Num | Nws txawv nyob ntawm lub focal ntev ntawm lub lens xaiv | ||
| F =254 hli, cim thaj tsam: 160 hli × 160mm | |||
| F =160 hli, Cim Nto: 100mm × 100 hli | |||
| Laser Engraving Ceev | Tawm Scanning: 7000mm \/ s | ||
| Tsawg kawg linewidth |
0. 015mm |
||
| Ib Qho Txawj |
Tsawg dua los yog sib npaug rau 0. 05mm |
||
| rov ua qhov tseeb dua |
{0. 01 hli |
||
| Min Cim |
0. 3 hli |
||
| laser | LASER Fais |
20W |
|
| mem tes lub zog |
<{0. 1mj |
||
| Beam Zoo M² |
＜1.3 |
||
| Weaser kho kho tshiab |
1064nm |
||
| Software Tswjhwm System | Cov tswj software yog tsim nyog tsim los ntawm peb lub tuam txhab. Nws ua haujlwm ntawm Windows platform, yog ib qho yooj yim rau kev khiav lag luam thiab kawm, thiab muaj cov haujlwm muaj zog. Nws yog sib xws nrog cov ntaub ntawv tawm tswv yim xws li plt thiab BMP tsim tawm los ntawm software xws li autocad, coreldraw, thiab Photoshop. Nws tuaj yeem cim cov qauv, barcodes, thiab Suav thiab lus Askiv cim. Cov khoom lag luam txog tus naj npawb (nrog cov lej tsis siv neeg dhia) tuaj yeem siv ncaj qha hauv cov software hauv sx thiab TTF fonts. Qhov loj me, spacing thiab kev npaj ntawm cov cim kuj tseem tuaj yeem hloov kho yooj yim heev. | ||
Ua haujlwm ib puag ncig yuav tsum muaj
Cua siab ntawm lub raj mis laser ya tawm marking tshuab: 86-106 KPA.
Lub Hwj Chim Pab Daim Ntawv Cog Lus Yuav Tsum Tau: 220V; 50Hz.
Lub ambient kub yog yuav tsum tau nyob nruab nrab ntawm 15 thiab 40 degree.
Cov huab cua noo txoj cai tau txais 40% -80%. Yog tias tsis muaj kev hws, lub dehumidifier yuav tsum tau nruab.
Kev sib txuas fais fab hluav taws xob hloov pauv: ± 5%, thiab cov kab sib chaws hlau hauv av ua raws thoob ntiaj teb. Hauv cov cheeb tsam uas cov voltage amplitude tshaj 5%, hluav taws xob tsis zoo xws li voltage thiab cov khoom siv hluav taws xob ruaj khov.
Yuav tsum tsis muaj cov phiajcim kaw hluav taws xob tau ze rau cov khoom siv ntsia. Zam kev siv xov tooj cua (lossis cov chaw xa khoom) nyob ib ncig ntawm lub chaw teeb tsa.
Foundation amplitude: tsawg dua 5 0 μ m; Kev co kev co kom nrawm: tsawg dua 0.05G. Zam kev muaj ntau cov stamping thiab lwm yam cuab yeej siv lub tshuab nyob ze.
Cov khoom siv yuav tsum muaj pa taws thiab plua plav, thiab zam kev ua haujlwm ib puag ncig uas muaj plua plav loj xws li hlau polishing thiab sib tsoo.
Anti-static pem teb thiab txhim kho kev tiv thaiv yuav tsum tau nruab ib puag ncig.

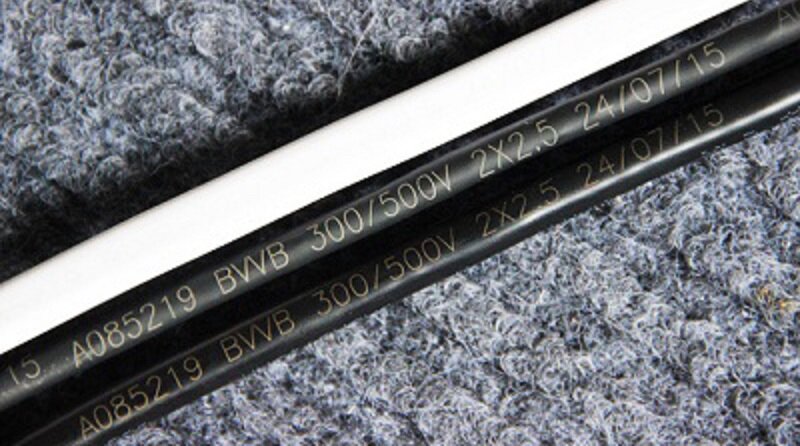

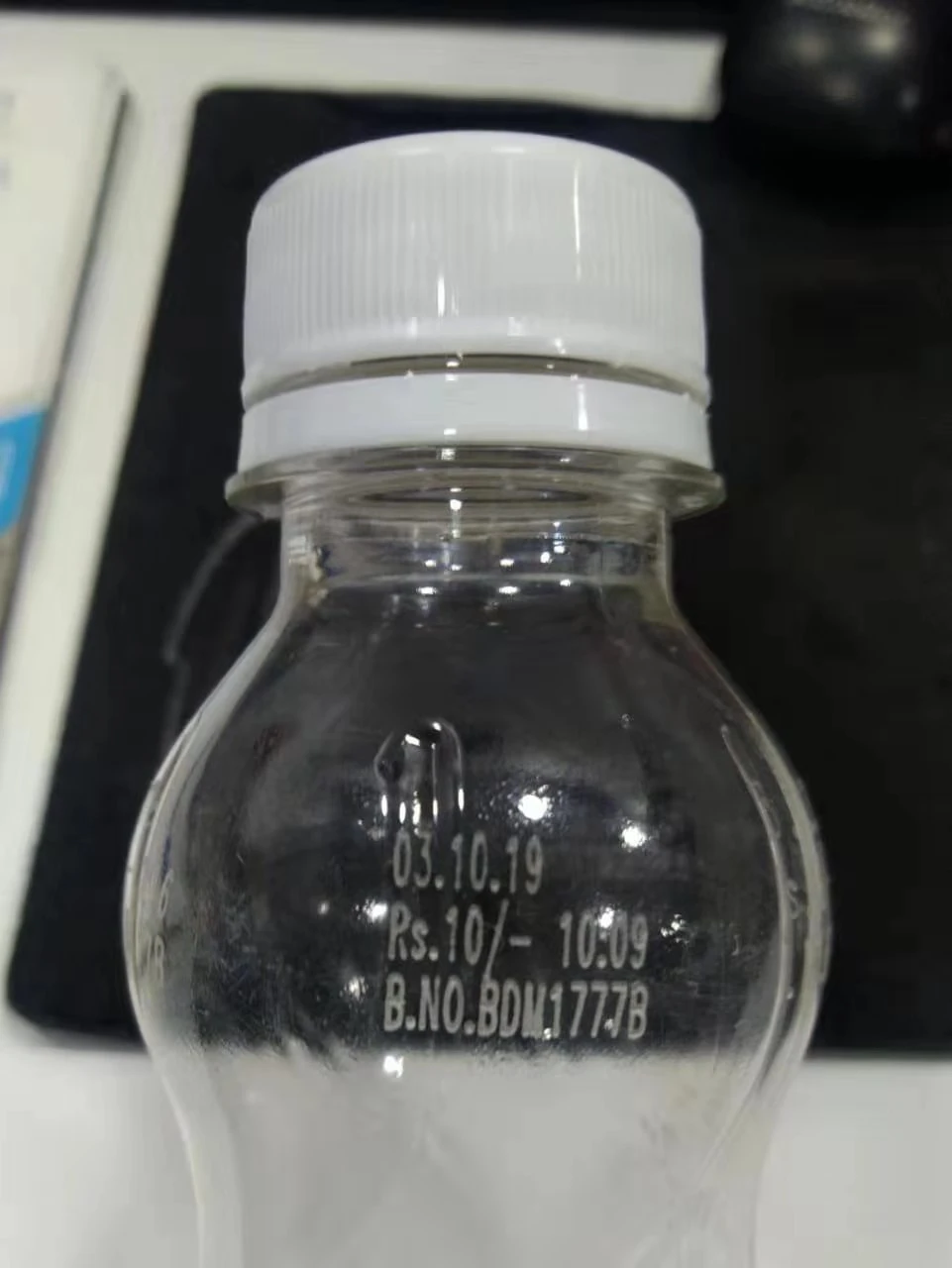

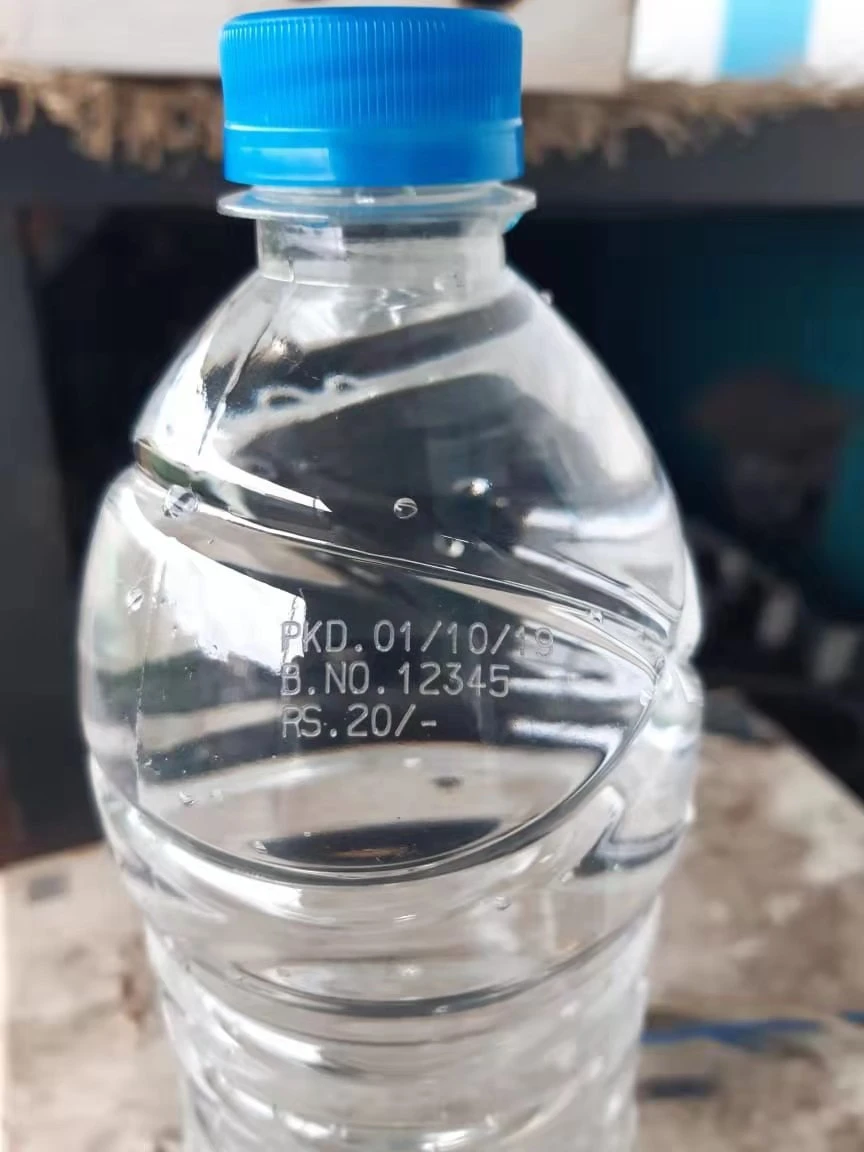

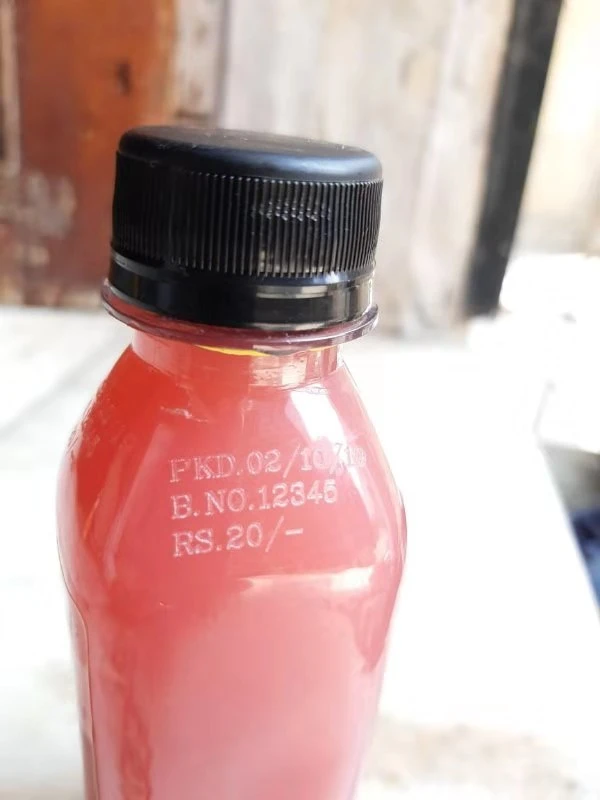

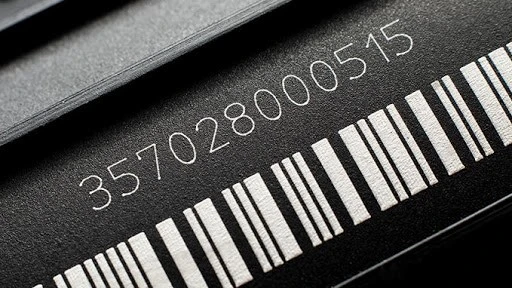

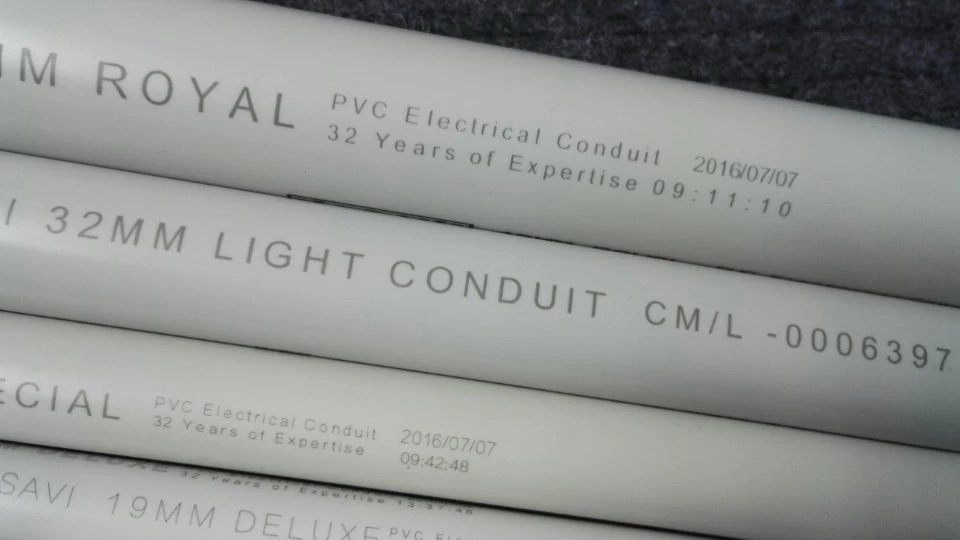

Qauv Qhia

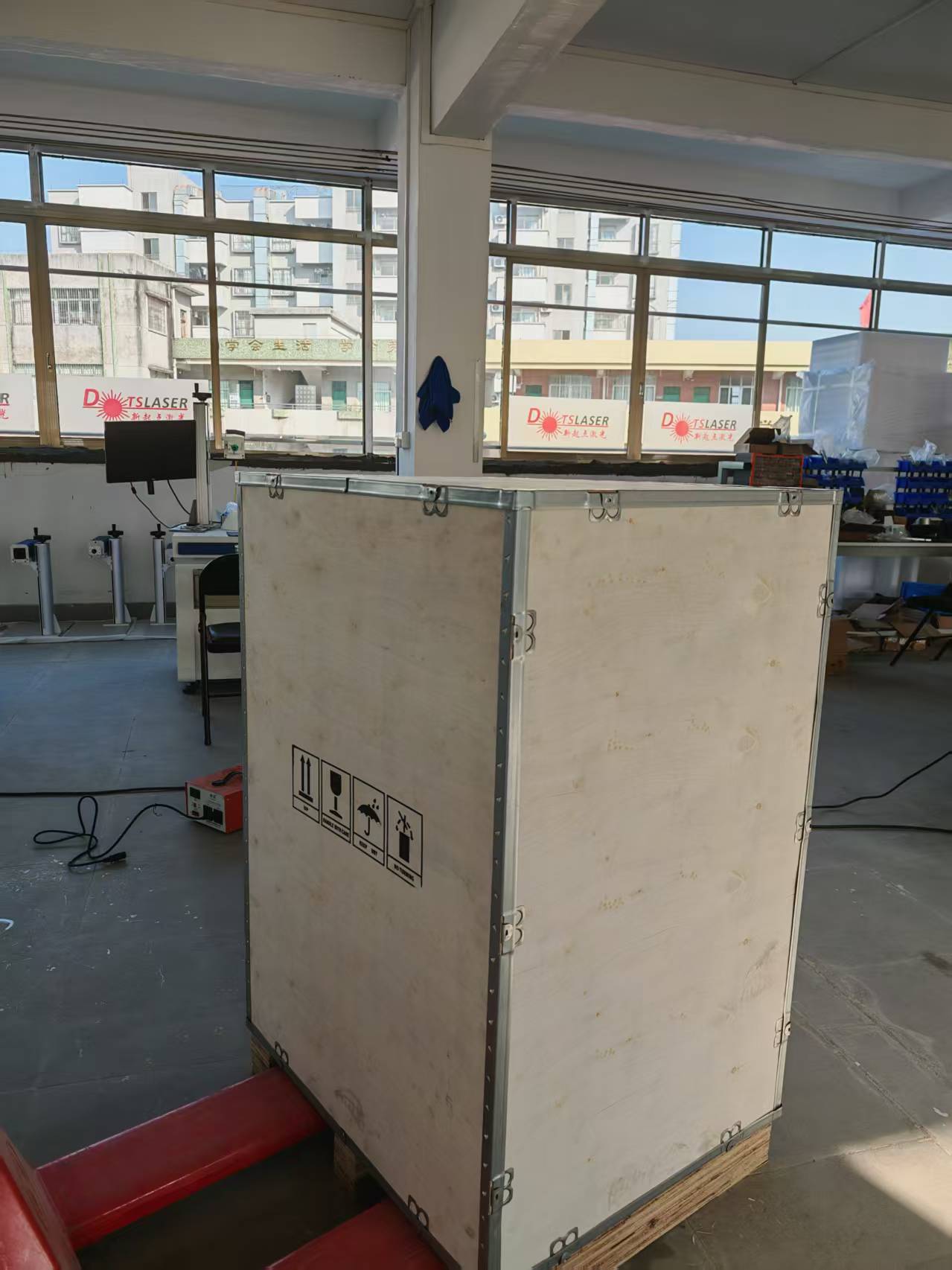

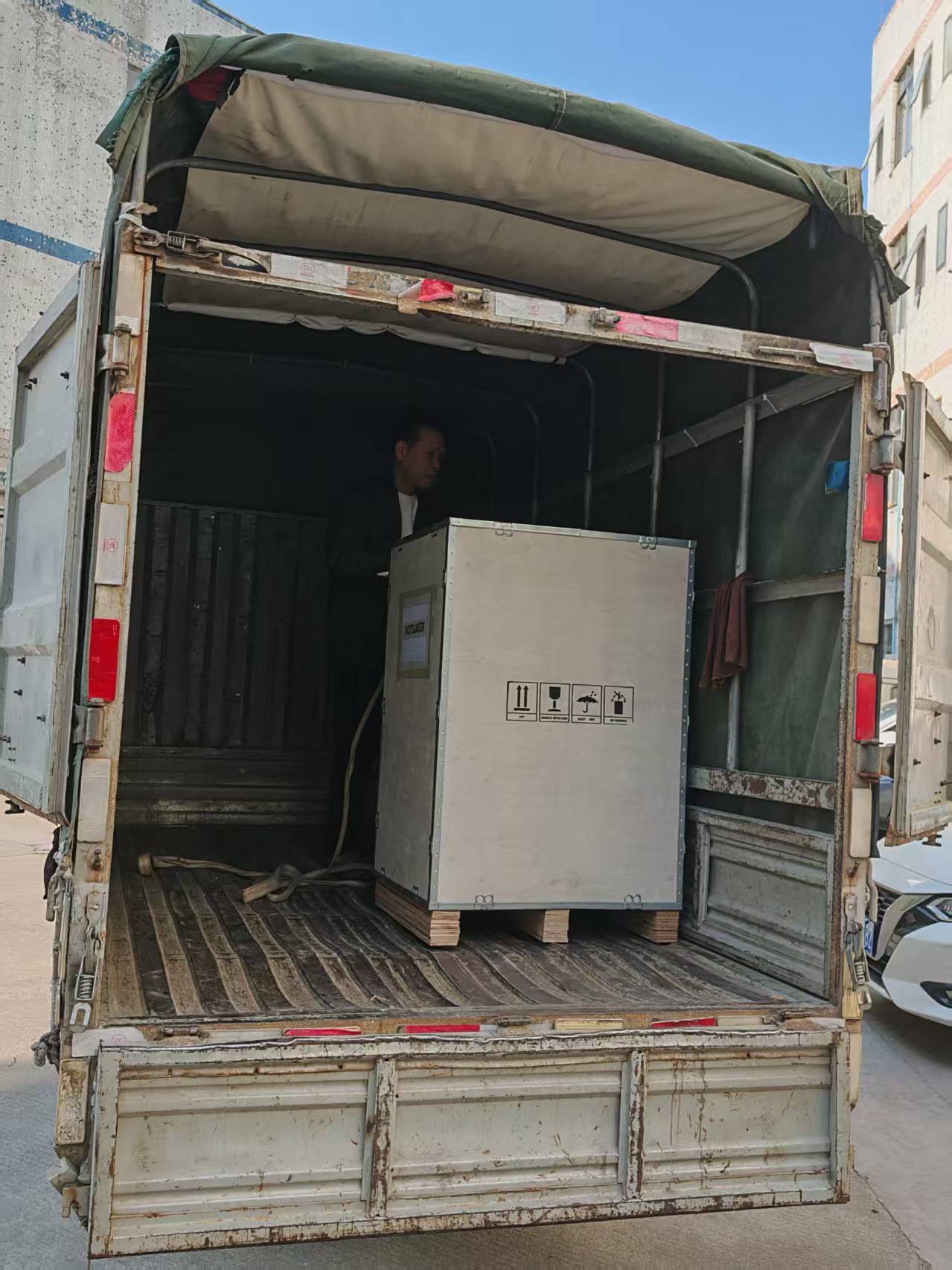

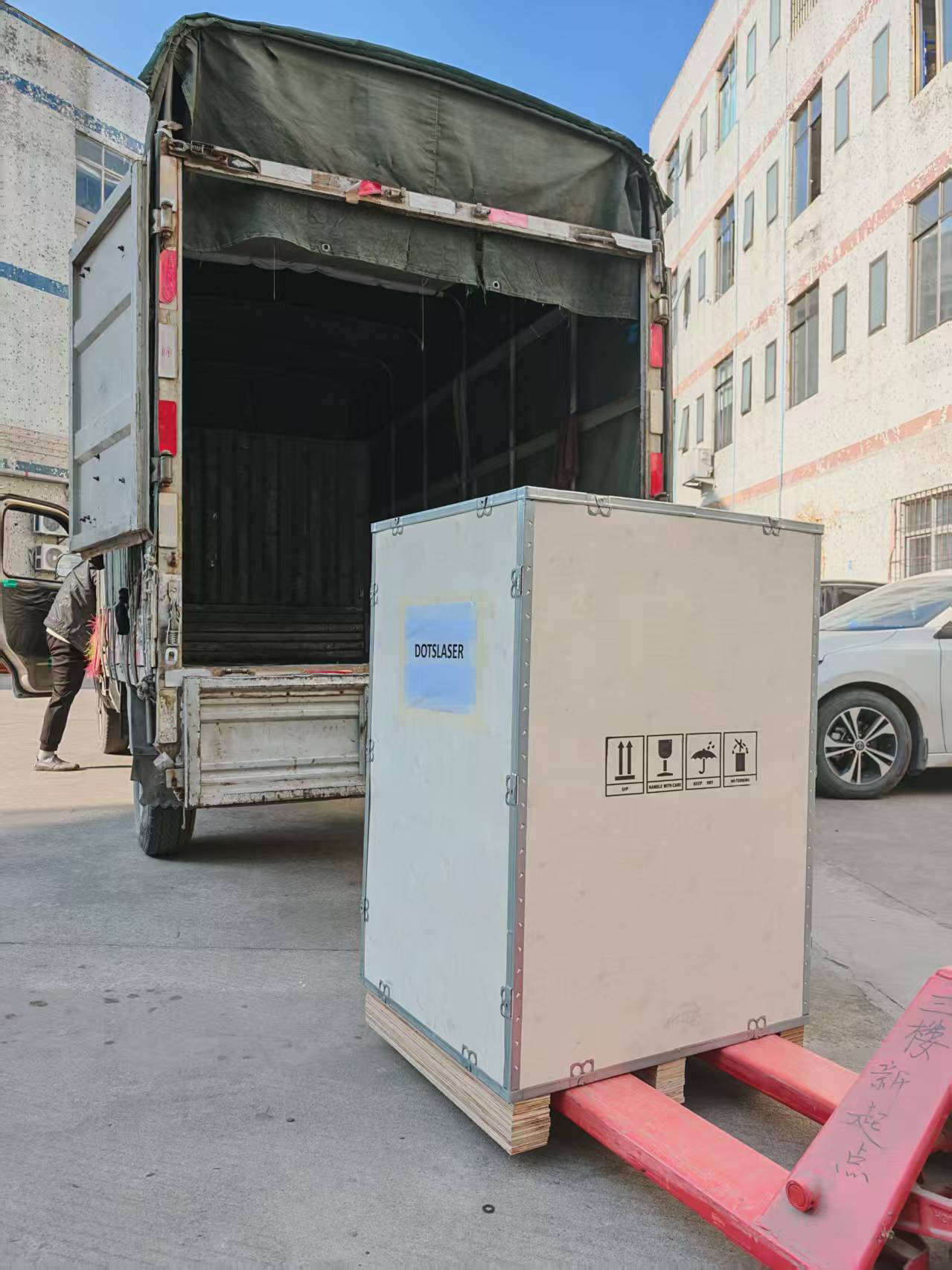

Shipping thiab pob
Txhim Kho thiab Debugging
Ua ntej lub raj mis laser ya tawm lub cav teeb meem cim, peb yuav muab cov duab txheej yooj yim ntawm cov qauv ntawm cov khoom siv txheej txheem. Lub sijhawm ua haujlwm thiab commisioning ntawm cov cuab yeej yog kwv yees li tsib hnub ua haujlwm. Hauv thawj peb hnub, kev sib txuas thiab kev sib txuas ntawm cov haujlwm yuav nqa tawm, thiab hauv ob hnub hauv qab no, kev cob qhia ntawm cov txheej txheem kev ua haujlwm ntsig txog cov khoom siv yuav raug ua.
Cov Txheej Txheem Txhawb
Peb yuav muab cov neeg siv khoom muaj ntau yam kev txhawb nqa thiab tsim nyog ua engraving cov ntaub ntawv tshwj xeeb, thiab pab kom cov neeg siv yooj yim pom cov txheej txheem cov txheej txheem tshwj xeeb hauv kev tsim khoom.
Pab Txhawb Nqa
Yog tias muaj ib qho ntawm lub raj mis laser ya tawm marging tshuab system muaj teeb meem thaum lub sijhawm lav, Dotss tuaj yeem muab kev sib tham hauv xov tooj lub sijhawm twg los tau. Rau txhua cov kev pab txhawb nqa nyob rau lub sijhawm zoo, cov neeg siv tau hu rau dototslaser ncaj qha.
Kev cob qhia systematic
Txhawm rau kom cov neeg ua haujlwm ntawm koj lub tuam txhab kom paub cov cuab yeej ua haujlwm ntawm cov cuab yeej ua haujlwm ntawm cov cuab yeej ua haujlwm, peb yuav npaj cov khoom lag luam thiab cov txheej txheem ntsig txog koj cov neeg ua haujlwm.
Vim li cas thiaj xaiv Dotslaser
Nov yog plaub yam vim li cas koj thiaj li xaiv peb
Muab cov kev pabcuam customized

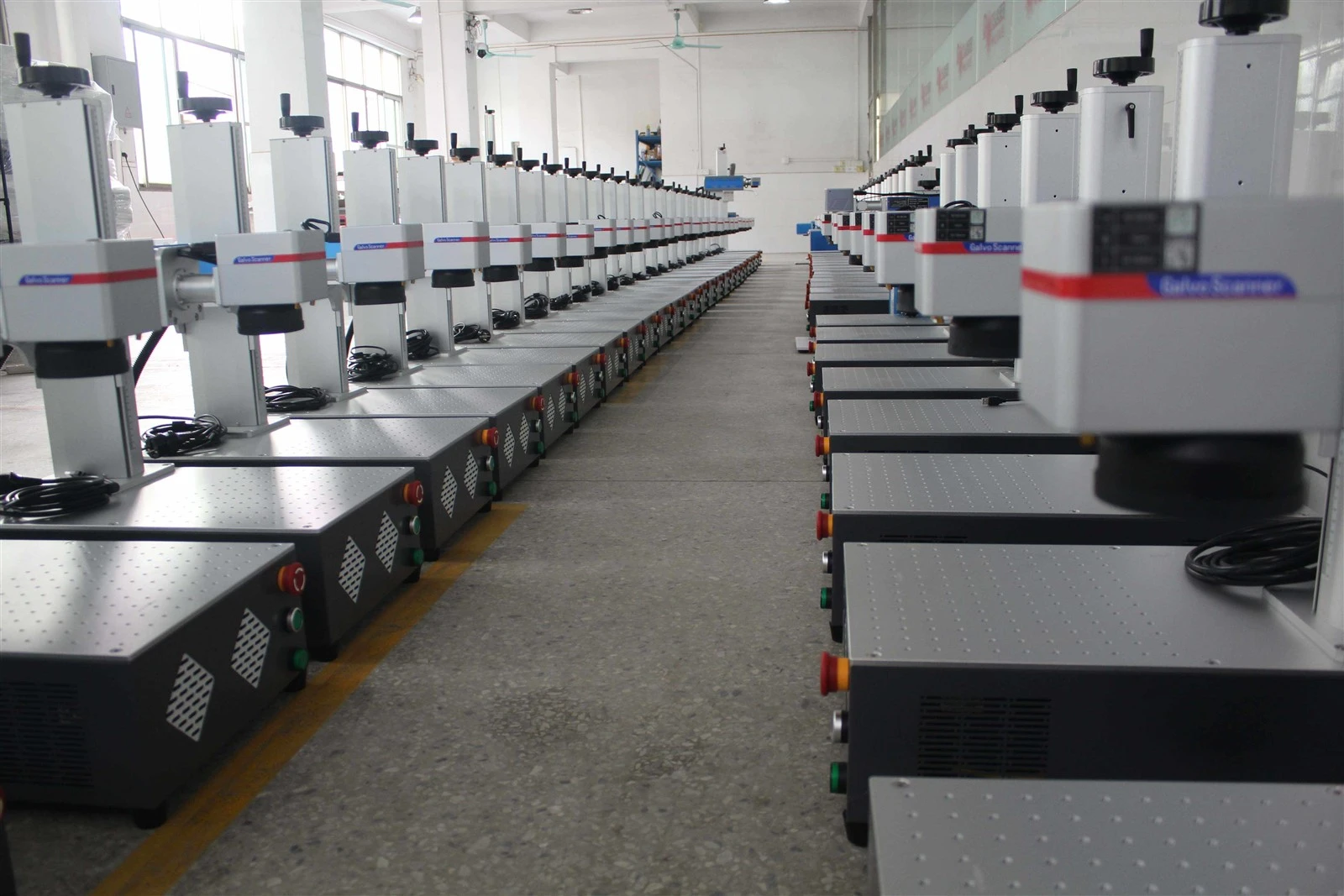

Doaslaser Laser muaj 18 xyoo kev kawm hauv cov khoom siv laser, peb yog cov khoom siv laser laser txheej ntau lawm, tsim kho, sib sau ua ke ntawm peb tus kheej.
Peb lub tswv yim thiab lub hom phiaj: ntev npaum li koj xav tau, peb tuaj yeem xaiv koj cov khoom lag luam rau koj los ua cov khoom tshwj xeeb hauv koj thaj chaw.
Peb tsis tsuas yog xav tau lub tuam txhab uas siv cov cuab yeej siv, tab sis kuj tseem muaj txiaj ntsig zoo uas tuaj yeem nqa tau koj tes ua ke nrog koj thiab tsim kev ua ke.
