Cov hniav nyiaj hniav kub txiav Engraving tshuab
Khoom Description

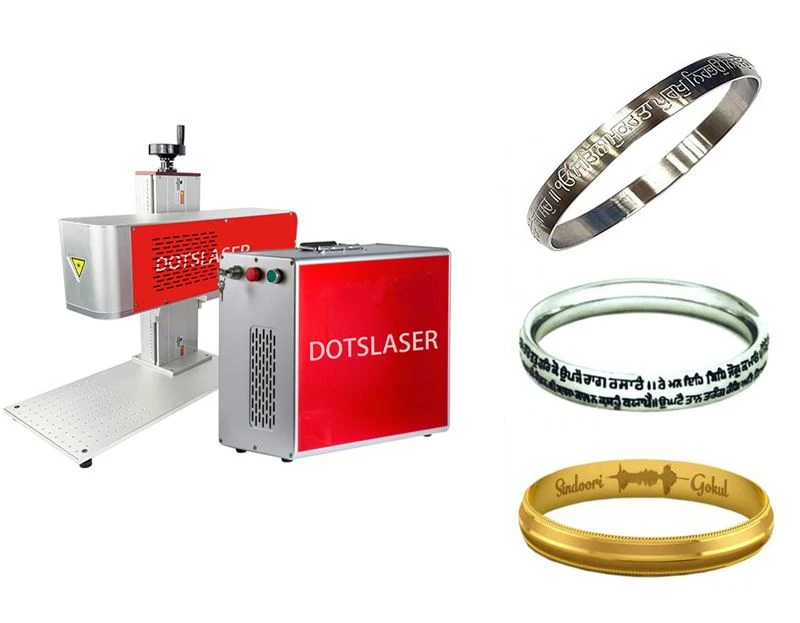

Jewelry Cutting Engraving Tshuab plays lub luag haujlwm tseem ceeb hauv kev tsim cov hniav nyiaj hniav kub. Vim tias cov qib siab ntawm kev ua haujlwm zoo laser, nws yog qhov zoo tagnrho rau cov khoom muaj nqis thiab me me hauv kev lag luam hniav nyiaj hniav kub. Vim lub laser tsom beam yog zoo heev, nyob rau hauv lub nplhaib, saw caj dab ua cov khoom hniav nyiaj hniav kub laser engraving tshuab no tshuab yog ib tug tsim nyog cov khoom.
Tshuab Nta
Precision: Laser txiav tshuab equiped nrog unparalleled precision thiab raug nyob rau hauv hniav nyiaj hniav kub txiav. Lub laser muaj peev xwm tsim intricate thiab complex designs nrog zoo meej precision, tsim zoo kawg nkaus crafts thiab visually khoom.
Ceev: Laser txiav tuaj yeem txo lub sijhawm ntau lawm, automation ntawm cov txheej txheem txiav. Cov khoom loj ntawm cov hniav nyiaj hniav kub tuaj yeem txiav tau sai thiab ua tau zoo, txuag lub sijhawm thiab nyiaj txiag.
Ntau yam: Laser txiav tshuab tuaj yeem txiav ntau yam khoom siv, suav nrog kub, nyiaj, tooj dag, tooj liab, thiab txawm tias muaj txiaj ntsig gemstones. laser thev naus laus zis tuaj yeem siv los tsim cov qauv tsim tsis sib xws, kuj tseem siv los txiav ntau yam khoom siv.
Ua haujlwm siab: Fiber laser npav tshuab muab cov cim ceev ceev thiab ua haujlwm siab. Lawv ua kom cov txheej txheem ceev ceev nrog lub neej ua haujlwm ntev thiab kev ua haujlwm ruaj khov.
ib puag ncig tus phooj ywg: lub zog-npaum tshuab, pab txhawb kev txo qis kev lag luam carbon hneev taw, yog li muab ib puag ncig huv.
Kev xaiv zoo tshaj plaws rau kev tsim khoom loj: executes designs npaum thiab raug, tsawg kawg nkaus wastage. Nws muaj ntau yam kev tsim qauv zoo nkauj, muab cov jewelers nrog qhov yooj yim, suav nrog cov kev nyiam tshwj xeeb ntawm lawv cov neeg siv khoom.
| Khoom Parameters | |
|
Qauv |
DS-LM20-3D/DS-LM30-3D/DS-LM50-3D/DS-LM60-3D/DS-LM100-3D |
|
Laser zog |
20W/30W/50W/60W/100W |
|
Pulse Repetition Frequency |
30 kHz -1000kHz |
|
Beam quality (㎡ |
<1.6 |
|
Qhov tob ntawm engraving (nyob ntawm cov khoom) |
<5mm |
|
Kev siv fais fab |
Tsawg dua los yog sib npaug rau 1200W |
|
Ua haujlwm voltage |
Ib theem AC 220V / 110V 50 / 60HZ 5A |
|
Laser wavelength |
1064nm ua |
|
Chaw ua haujlwm |
1 |
|
Repetition precision |
± 0.003mm |
|
Max engraving ceev |
Tsawg dua lossis sib npaug li 10000mm / s |
|
Yam tsawg kawg kab dav |
0.01 hli |
|
Kev kos duab |
Nyob ruaj ruaj Marking, Flying Marking, Rotary Marking |
|
Cim loj |
0 5-110mm |
|
Txias System |
Cua txias |
|
Kev taw qhia ntawm kev txhim kho cov khoom siv |
Ib qho |
|
Cable ntawm Length |
3m (5m yeem) |
|
Ua haujlwm kub ntau |
5-38 degree |
|
Ua haujlwm av noo |
20%-80% |
|
Net nyhav ntawm lub tshuab |
64kg ua |
|
Dimension ntawm lub cev loj (L × W × H) |
80mm × 60mm × 66mm |

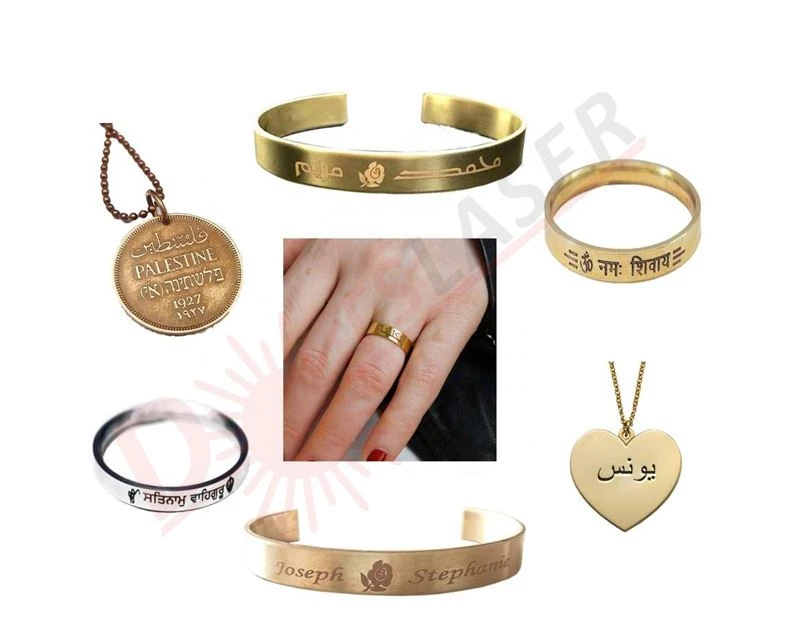

Lub tshuab laser npav siv lub tshuab hluav taws xob muaj zog laser kom evaporate saum npoo ntawm cov khoom, nthuav tawm cov txheej txheem sib sib zog nqus ntawm cov khoom, ua rau nws tsim cov tshuaj lom neeg thiab lub cev hloov pauv rau etch cov qauv thiab cov cim uas yuav tsum tau ua, tsim cov cim mus tas li, thiab cov ntsiab lus tsis txwv. , Cov cim, thiab lub logo tuaj yeem txheeb xyuas tau. Cov hniav nyiaj hniav kub yog ua los ntawm ntau yam khoom, xws li kub, nyiaj, jade bracelets, thiab lwm yam.
Lub coding ceev ntawm lub laser npav tshuab yog ceev heev, thiab nws yuav siv sij hawm tsuas yog ib tug kaum ob vib nas this los siv lub laser coding tshuab rau code rau cov hniav nyiaj hniav kub bracelet, uas yuav zoo heev txuag lub sij hawm ua hauj lwm thiab txhim kho cov tswv yim ua hauj lwm efficiency. Nws tuaj yeem ua tiav qhov tsis sib cuag nrog cov cim ua tiav yam tsis muaj cov khoom poob rau cov khoom lag luam hniav nyiaj hniav kub, thiab tsis muaj kev puas tsuaj rau cov qauv. Marking txoj kev ntawm lub tshuab laser kuj hloov tau heev. Koj tsuas yog yuav tsum tau sau cov ntawv sau lossis qauv hauv software, thiab lub tshuab laser npav tuaj yeem kos cov nyhuv xav tau tam sim ntawd hauv lub sijhawm luv luv.
Cov neeg siv khoom xaiv cov qauv raws li lawv cov xwm txheej tiag tiag. Qhov tshwm sim ntawm hom laser npav tshuab no tau daws qhov tsis txaus thiab qhov tsis zoo ntawm tib neeg engraving, thiab tuaj yeem ua tau raws li cov kev xav tau ntawm tib neeg. Nws yog qhov kev xaiv zoo tshaj plaws rau cov hniav nyiaj hniav kub thiab cov hniav nyiaj hniav kub processors.
