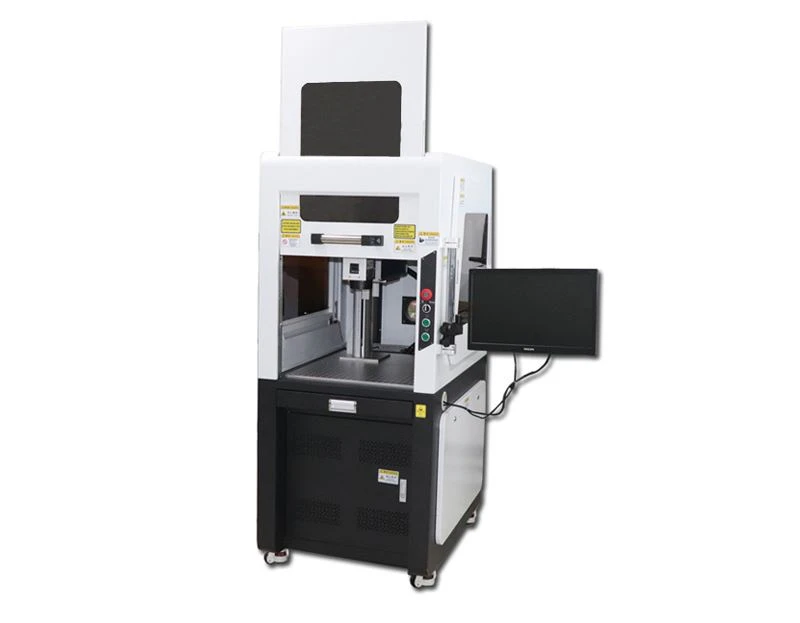

Laser Xim Marking
Laser Xim Marking
Khoom Description

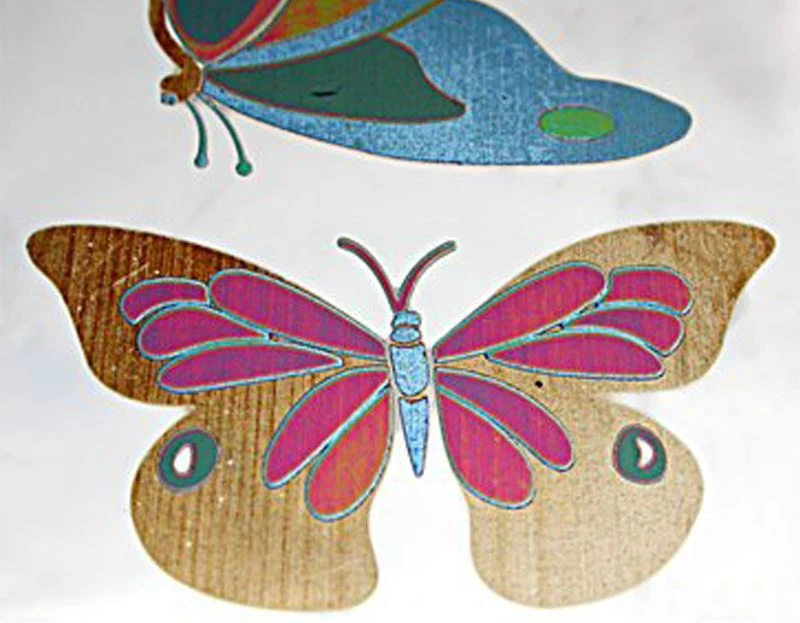

Lub hauv paus ntsiab lus ntawm Laser Xim Marking yog siv laser kom sov cov ntaub ntawv stainless hlau. Nrog rau qhov tsis zoo xws li kev defocus kom zoo thiab siab pulse zaus, cov xim tsis muaj xim thiab pob tshab tuaj yeem tsim rau saum npoo ntawm stainless hlau. Oxide zaj duab xis, zaj duab xis no yog irradiated los ntawm lub teeb, thiab kev cuam tshuam ntawm qhov teeb meem teeb pom kev zoo ua rau lub ntsej muag stainless hlau qhia ntau yam xim. Lub phantom xim cim txheej tsim nyob rau saum npoo ntawm stainless hlau hloov nrog cov pom sib txawv, thiab cov cim cim kuj hloov mus rau ntau yam xim.
Khoom nta
Siab Precision
Fiber Laser Engraving Tshuab yog zoo meej rau engraving nrog raug thiab clearness. Nws qhov siab precision ua kom cov khoom tau txais cov txiaj ntsig zoo, tsis tas yuav muaj kev polishing ntxiv.
Siab ceev
Fiber Laser Engraving Tshuab ceev nrawm dua li kev kos duab ib txwm muaj. Nrog nws cov peev txheej ua haujlwm siab, nws tuaj yeem ua tiav cov haujlwm ua tiav hauv lub sijhawm tsawg.
Durability
Fiber Laser Engraving Tshuab muaj lub neej ntev dua li cov tshuab engraving ib txwm. Qhov no yog vim cov ntaub ntawv uas siv los tsim lub tshuab, xws li fiber ntau optic cables.
Ntau yam
Fiber Laser Engraving Tshuab tuaj yeem kos rau ntawm ntau yam ntaub ntawv, suav nrog hlau, yas, ntoo, tawv, thiab lwm yam. Qhov kev hloov pauv no txhais tau tias nws zoo meej rau yuav luag txhua qhov kev lag luam.
Nqi-zoo
Ib qho txiaj ntsig tseem ceeb ntawm Fiber Laser Engraving Tshuab yog nws cov txiaj ntsig zoo. Nws cov nqi khiav qis thiab kev ua neej ntev txhais tau hais tias nws muaj txiaj ntsig zoo rau cov nyiaj hauv lub sijhawm ntev.
Ntau yam kev siv
Nws tuaj yeem kos cov ntaub ntawv hlau thiab qee cov ntaub ntawv tsis yog hlau. Lub cim yuav tsis ploj mus vim ib puag ncig yam tseem ceeb (kov, acidic thiab alkaline gases, siab kub, tsis kub, thiab lwm yam), thiab nws muaj qib siab ntawm kev tiv thaiv cov khoom cuav.
Parameters:
|
Qauv |
DS-LM20/DS-LM30 |
|
Laser zog |
20W/30W |
|
mem tesRov ua duaNtau zaus |
1-1000kHz |
|
Beam quality (㎡ |
<1.6 |
|
Qhov tob ntawm engraving (nyob ntawm cov khoom) |
<5mm |
|
Kev siv fais fab |
Tsawg dua los yog sib npaug rau 1200W |
|
Ua haujlwm voltage |
Ib theem AC 220V / 110V 50 / 60HZ 5A |
|
Laser wavelength |
1064nm ua |
|
Chaw ua haujlwm |
100 × 100mm, 180 × 180mm |
|
Repetition precision |
± 0.003mm |
|
Max engraving ceev |
Tsawg dua lossis sib npaug li 8000mm / s |
|
Yam tsawg kawg kab dav |
0.01 hli |
|
Kev kos duab |
Chaw nres tsheb npav, disc teb, Rotary Marking |
|
Cim loj |
0 5-110mm |
|
Txias System |
Cua txias |
|
Kev taw qhia ntawm kev txhim kho cov khoom siv |
Ib qho |
|
Cable ntawm Length |
3m (5m yeem) |
|
Ua hauj lwm kub ntau yam |
5-38 degree |
|
Ua haujlwm av noo |
20%-80% |
|
Net nyhav ntawm lub tshuab |
1 86kg |
|
Dimension ntawm lub cev loj (L × W × H) |
1100mm × 85mm × 175mm |
Laser xim cim thermal nyhuv:
1. Cov nyhuv thermal ntawm laser nyob rau saum npoo ntawm stainless hlau tau kawm. Los ntawm kev suav ntawm qhov sib npaug ntawm cov nyhuv thermal, qhov sib piv ncaj qha ntawm lub zog laser zog rau cov yeeb yaj kiab thickness tau txais. Cov kev sim qhia tau hais tias nrog kev nce ntawm lub zog laser, cov xim ntawm cov hlau tsis muaj hlau hloov pauv hauv cov xim hauv qab no: txiv kab ntxwv-liab-ntsuab-xiav-ntsuab-ntsuab-ntsuab-ntsuab-ntsuab-daj-ntsuab-daj-txiv kab ntxwv-liab. .. Qhov tshwj xeeb stainless hlau xim laser npav tshuab tsim los ntawm cov khoom siv laser chaw tsim khoom yog qhia.
2. Cov kev tsis sib xws ntawm laser npav tshuab kos npe yog: tam sim no, mem tes repetition zaus, mem tes dav thiab nrug ntawm cov ntsiab lus, kab nrug thiab cim ceev, thiab lwm yam. Cov tsis ncaj ncees no tsis ncaj qha rau cov xim ntawm cov hlau tsis huv uas ua los ntawm laser. Cov cim cim tuaj yeem hloov pauv. Cov xim hloov pauv yog qhov tsis muaj qhov cuam tshuam ncaj qha rau saum npoo ntawm stainless hlau, xws li laser zog, mem tes repetition zaus, mem tes dav, thiab lwm yam., txo cov kev hloov pauv tsis tau, txhim kho qhov yooj yim thiab kev ntseeg siab ntawm kev hloov kho, ua xim, ua rau stainless. steel laser xim Kos npe nkag mus rau cov khoom lag luam loj.
3. Lub tshuab kos npe aser siv cov kab teeb ci laser los kos rau saum npoo ntawm ntau yam ntaub ntawv, uas yog ruaj khov. Lub luag haujlwm ntawm kev kos yog txhawm rau nthuav tawm cov khoom sib sib zog nqus los ntawm evaporation ntawm cov khoom siv saum npoo, yog li kos cov qauv zoo nkauj, cov cim lag luam thiab cov cim. Raws li lub hauv paus ntsiab lus ntawm kev ua haujlwm ntawm lub tshuab laser npav, nws yog qhov tsim nyog uas cov xim coding tsis tuaj yeem tsim.
4. Laser npav tshuab tuaj yeem tsuas yog cov xim pleev xim thiab tsim cov teebmeem illusion ntawm stainless hlau thiab zinc alloy. Thaum nws muab kev tswj tau thiab meej thermal txhaj tshuaj rau cov khoom siv hlau xws li stainless hlau thiab zinc alloy los ntawm laser pulse irradiation, nws tuaj yeem tsim cov yeeb yuj oxides. , Cov xim feem ntau yog xim dawb, daj, dub, thiab lwm yam Alumina thiab txhuas cov khoom tuaj yeem ua xim dub thiab dawb. Txawm li cas los xij, lwm yam khoom siv hlau tsis tuaj yeem cim nrog cov xim xim. Piv txwv li, aluminium alloys tsis tuaj yeem cim nrog cov qauv xim thiab cov cim.

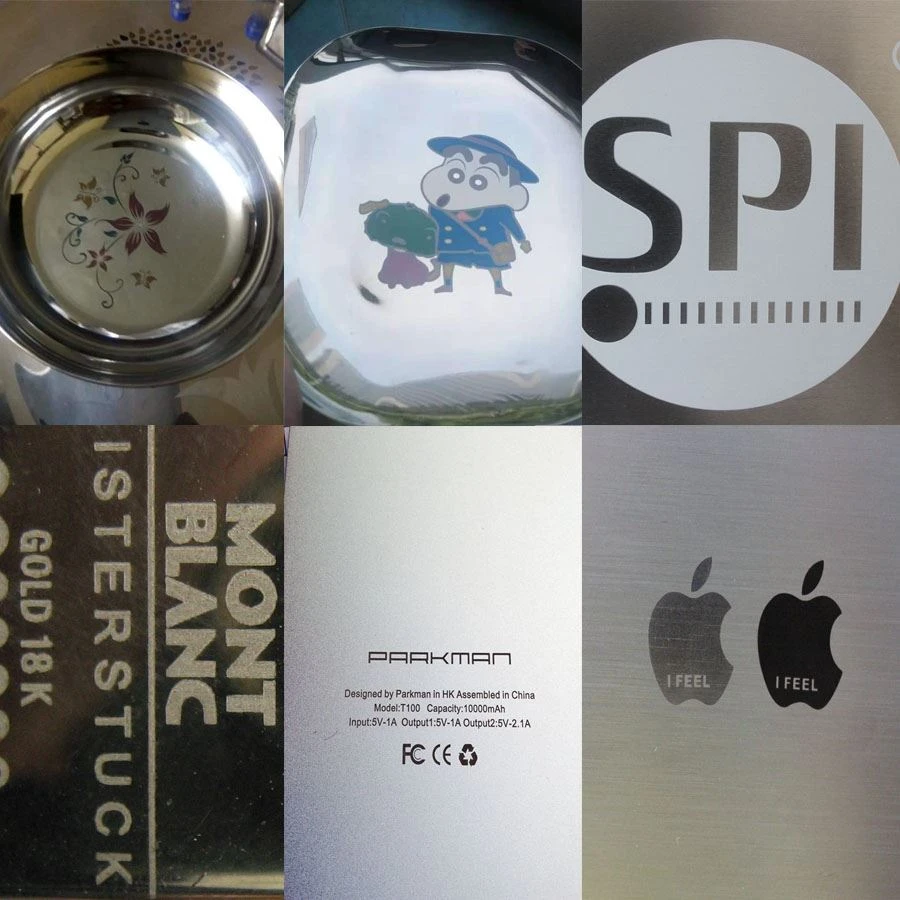

Qauv qhia
