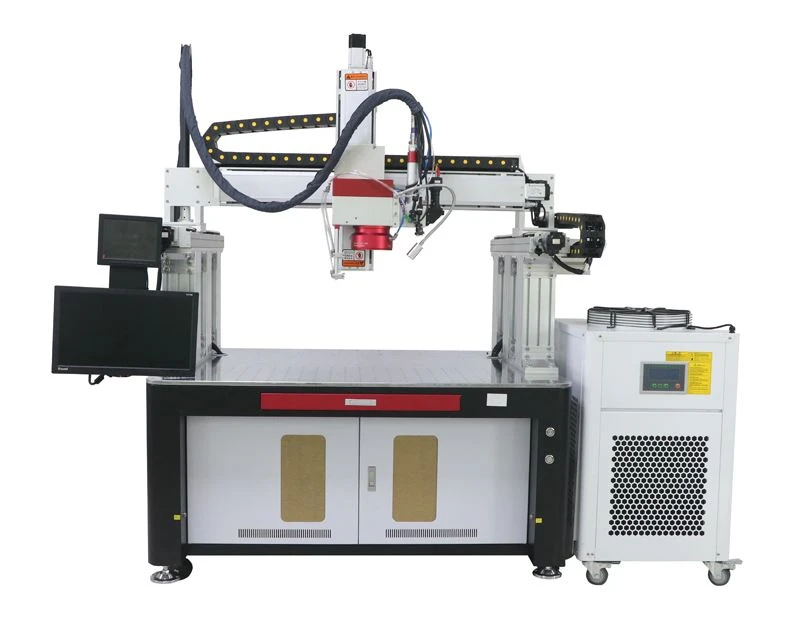

Galvo Laser Vuam System
Galvo Laser Vuam System
Khoom Description
Galvo Laser Vuam System yog lub tshuab siv los ua cov khoom siv thiab laser vuam, nrog rau cov yam ntxwv ntawm cov nqaj zoo thiab lub zog siab. Piv nrog rau YAG lasers ntawm tib lub zog, peb cov khoom muaj cov yam ntxwv ntawm kev sib sib zog nqus vuam qhov tob thiab zoo nruam vuam lub zog, uas tuaj yeem siv rau feem ntau ntawm cov laser vuam.
Galvo Laser Welding System muaj ntau yam kev siv, thiab tsim nyog rau precision vuam ntawm qee qhov chaw hauv kev lag luam xws li cov khoom siv hluav taws xob sib txuas lus, kev kho mob, hluav taws xob, thiab roj teeb. Peb cov khoom yog ua los ntawm cov ntaub ntawv zoo raw khoom, muaj kev tiv thaiv corrosion zoo thiab kub tsis kam, muaj kev pab lub neej ntev, thiab ruaj khov.
laser vuam system Features
1. Cov cuab yeej siv no siv cov txheej txheem kev lag luam kev lag luam, ua ke nrog lub laser vuam tshuab thiab tswj kev txav mus rau hauv PC lag luam interface, ua rau kev lag luam yooj yim dua.
2. Nws txais kev tswj hwm PC muaj zog, yooj yim rau kev pab cuam, kev debug thiab tswj, thiab tuaj yeem ua tau raws li txhua yam kev xav tau vuam.

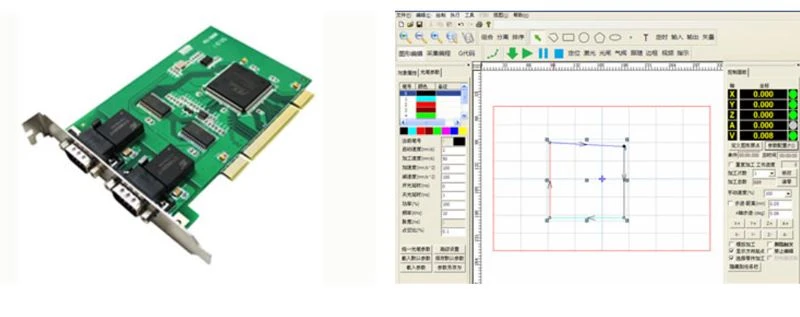

3. Lub kaw lus siv IDE kev sib xyaw ua haujlwm ib puag ncig hom, uas suav nrog cov duab kho kom raug, kev saib xyuas kev ua haujlwm, tau txais thiab kev ua haujlwm, uas yooj yim thiab tseem ua rau kev ua haujlwm zoo dua.
4. Nws txais yuav 4-axis kev ua haujlwm siab tswj kev txav, tsis xav tau lwm lub PC plug-in.
5. Nws muab ntau hom lus tswj thiab txhawb cov neeg los ntawm ntau lub teb chaws.
Tsis muaj
|
Yam khoom Parameter |
Yam nqi |
|
Laser wavelength |
10 80nm |
|
rated zog |
1000W , 1500W ,2000W |
|
Beam zoo (M2) |
2.2 |
|
optical fiber ntau |
100 m, 15 m |
|
|
1000 Hz |
|
Lub zog ruaj khov |
<3% |
|
Beam tso zis |
1 beam |
|
Txias nruab nrab |
Distilled los yog deionized dej |
|
Lub sijhawm ua haujlwm tsis tu ncua |
24 teev |
|
Lub zog xav tau |
220V ± 10% / 380V ± 10%, 50Hz, Rated zog 5Kw Rated tam sim no 40A |
|
Environmental xav tau |
Kub 5-45 degree Humidity 10-90% |
Modulation requency
Tshuab Component

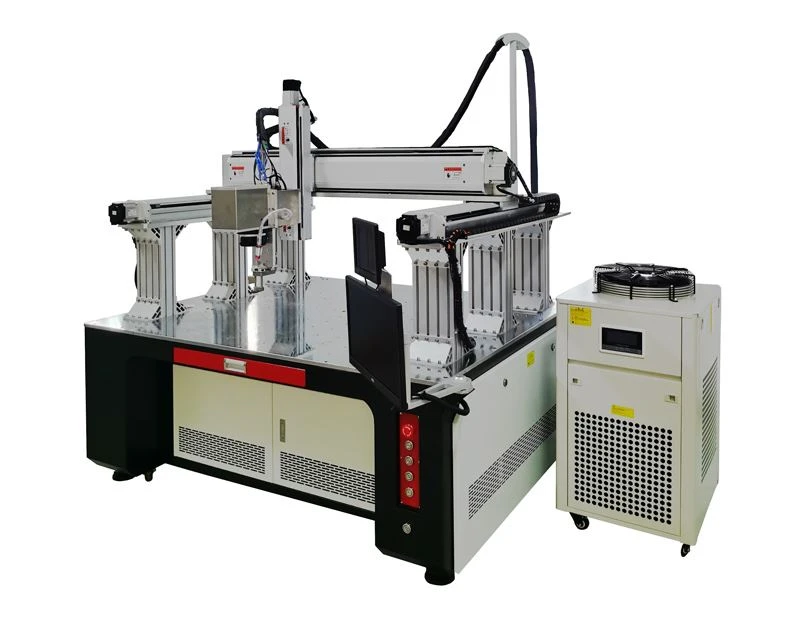

Tshuab saib
Sab saum toj zoo CW fiber ntau laser qhov chaw
High standard hlau txuas

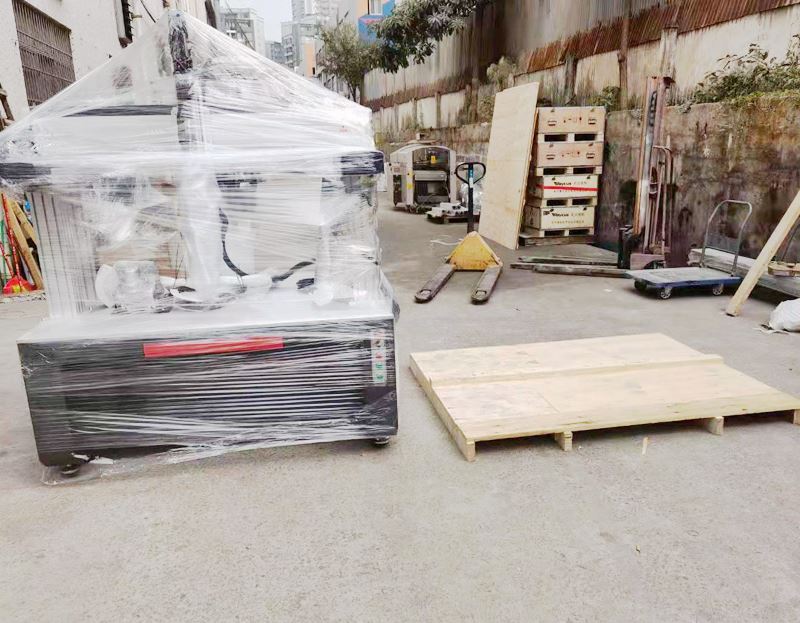

Packing laser vuam system

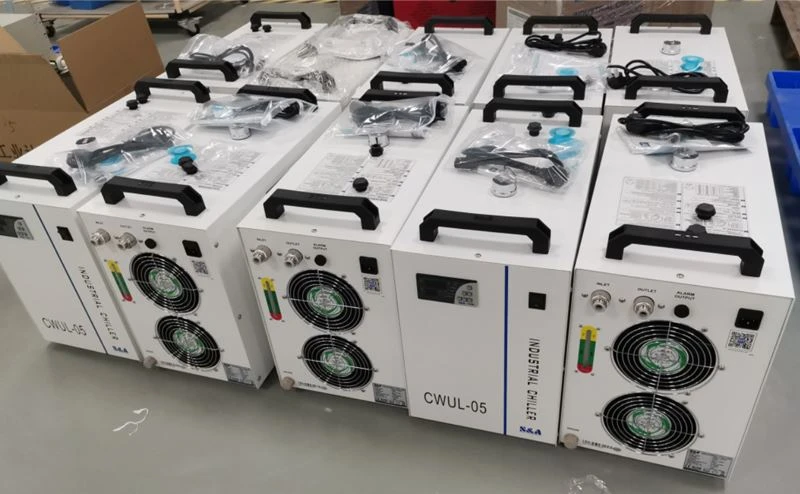

Dej chiller

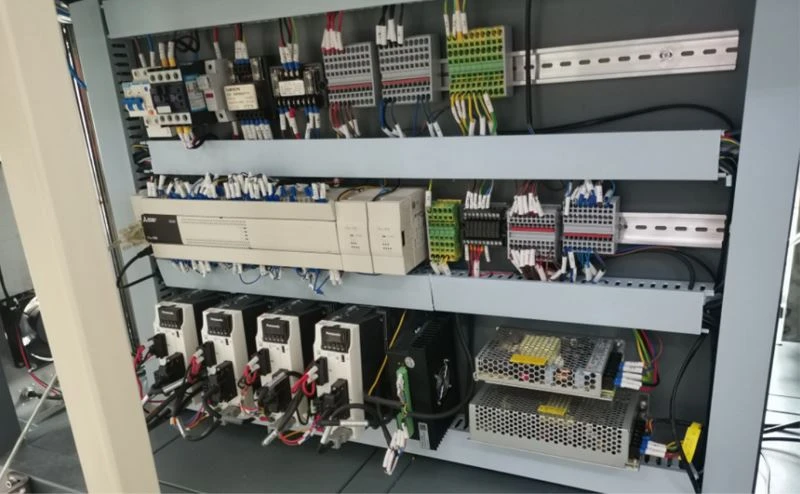

Tswj vaj huam sib luag
1. Tsis muaj consumables, txij nkawm-dawb, qhov nruab nrab lub zog noj yog tsawg
2.Qhov ntau ntawm cov hlau melting yog dav dua (zoo hlau melting: stainless hlau 0.1-1.2mm), lub laser yog ruaj khov dua thiab tsis khiav tawm ntawm lub teeb.
3. Nruab nrog lub tshuab dej tshwj xeeb uas muaj qhov kub thiab txias dual tswj, uas tuaj yeem ua tau raws li kev ua haujlwm ntev, thiab qhov vuam ruaj khov ntawm high-power yog zoo dua.
4. Lub hom phiaj lens yog nruab nrog cov dej txias, uas tuaj yeem tiv thaiv lub hom phiaj lens zoo dua thaum ua haujlwm nrog lub zog siab ntev.
5. Qhov vuam qhov tob yog qhov loj, qhov vuam yog qhov ruaj khov, qhov vuam tuaj yeem ua tiav tag nrho, tsis muaj qhov pores thiab trachoma, thiab kho cov cim zoo nkauj dua.
6.Lub taub hau laser tuaj yeem tig tau yooj yim 90 degrees thiab tuaj yeem xaub rov qab los pab txhim kho vuam ntawm txhua sab.
Nta ntawm galvo laser vuam system:
★ Kev ua haujlwm siab
★ Siab precision
★ Kev ua haujlwm siab
★ Rau qhov chaw uas nyuaj rau welded, hloov tau yooj yim kis tau tus mob tsis sib cuag welding yog siv, uas muaj ntau dua yooj.
DOTSLASER's galvo laser vuam system muaj 6 qhov zoo:
1.Muaj zog vuam, tsis yooj yim rau deform.
2.Fully automated loj ntau lawm.
3.Kev kub ceev thiab kev ua haujlwm siab.
4.High precision.
5.Kev ua haujlwm ruaj khov.
6.Customizable servo workbench.

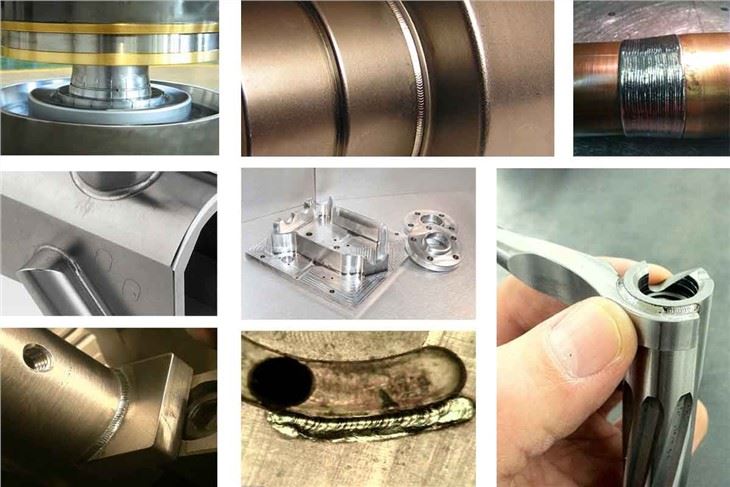

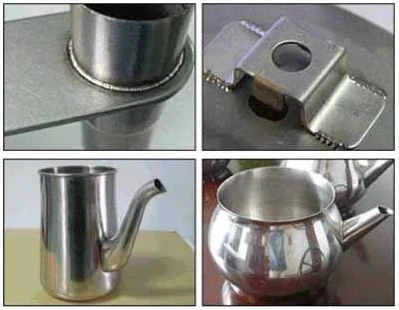

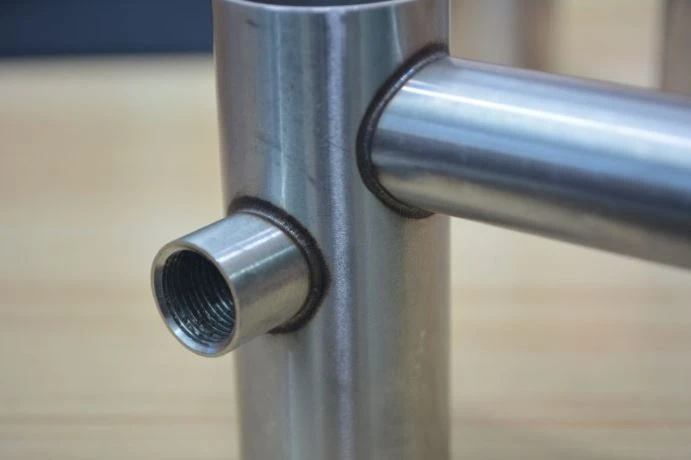

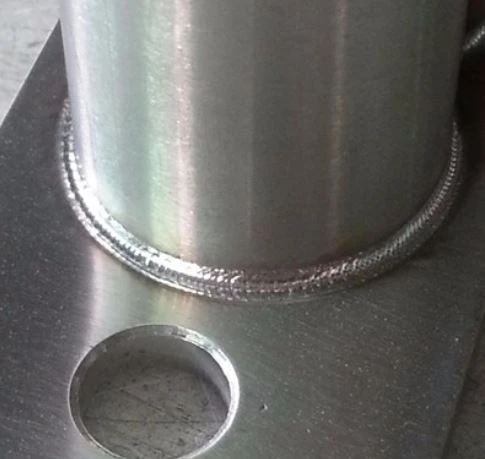

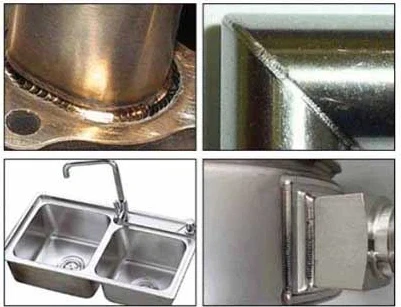

Cov qauv ua tiav los ntawm galvo laser vuam system
Pob
FAQ
Q1: Lub pob zoo li cas?
Q2: Lub pob puas puas thaum thauj?
Q3: Yuav ua li cas rau nruab thiab khiav lub tshuab?
Q4: Kuv tuaj yeem ua li cas yog tias lub tshuab ua yuam kev?
